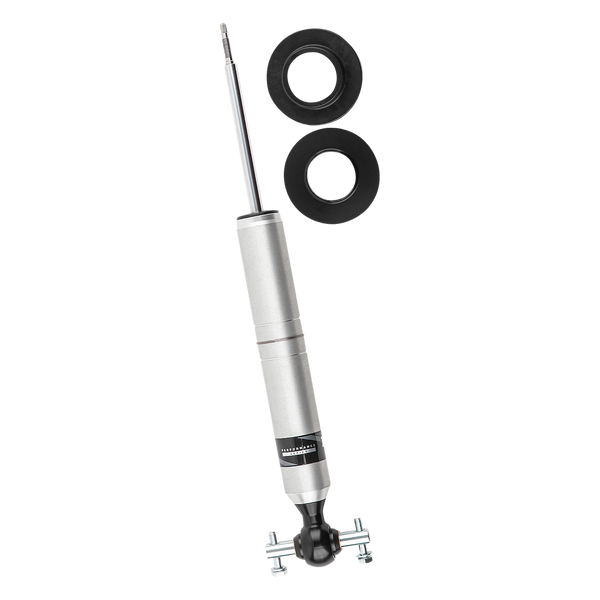

Fox Shocks Performance Series 2.0 Coil-Over (MPN: 985-62-008)

Advanced shock technology for superior on and off-road performance.

The Fox Shocks Performance Series 2.0 Coil-Over Snap Ring IFP shock is engineered for enhanced vehicle performance, featuring a robust hydraulic and nitrogen gas charged design. This shock is built with a precision impact-extruded aluminum body that is both lightweight and rust resistant, ensuring durability over time. The internal floating piston (IFP) design effectively separates the nitrogen gas from the shock oil, preventing mixing and maximizing performance through factory-tuned precision valving.

This product allows for the reuse of original equipment coil springs and mounting hardware, making installation straightforward and efficient. With three predetermined preload settings, users can select between 0 Inch, 1 Inch, or 2 Inch of lift, catering to specific vehicle needs. The shock's construction includes hard-anodized components and a redundant sealing pack system, which enhances reliability and performance in various driving conditions.

Designed for vehicle-specific applications, the Performance Series 2.0 provides a comfortable ride on paved roads while maintaining predictable handling in off-road scenarios. The combination of advanced materials and engineering ensures that this shock absorber meets the demands of both casual drivers and off-road enthusiasts.

Features

• CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time
• Body Plating: Hard-Anodized For A Durable Finish
• Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
• Components Are Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
• Hard Chrome Plated Steel Shafts
• Application Specific Valving To Maximize Performance
• Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
• Bearing Are PTFE-Lined, Heat-Treated, Alloy Steel Spherical
• Coil-Over Snap Ring IFP Provides A Comfortable On-Road Ride And Predictable Off-Road Handling In Even The Toughest Conditions

Specifications

• Manufacturer: Fox Shocks
• Manufacturer Part Number: 985-62-008
• Type: Hydraulic/ Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 21.4 Inch
• Compressed Length (IN): 16.03 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Cross Pin
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Non Adjustable Valving
• Ride Height Adjustable: No
• Rod Material: Steel
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2015-2020 Ford F-150

Technical Documents

• 605_01_312_REV_A_Color.pdf
