Advanced design for superior ride quality and durability on rough terrain.

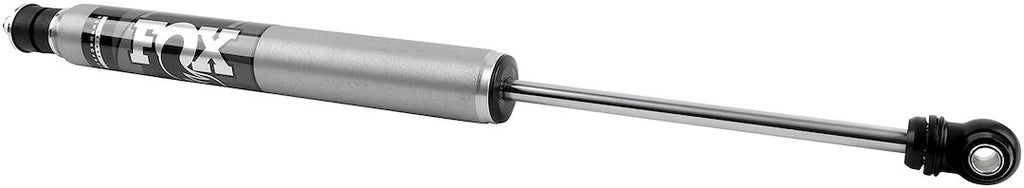

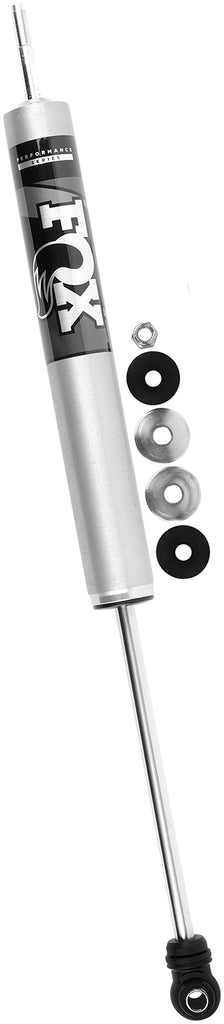

The Fox Shocks Performance Hydraulic Shock Absorber features a precision metal impact aluminum body that enhances cooling capacity and resists rust over time. This shock absorber utilizes race-proven performance valving technology, ensuring optimal performance through its Internal Floating Piston (IFP) mono-tube design. The IFP effectively separates the shock oil from the high-pressure nitrogen-charged gas chamber, eliminating oil aeration and maximizing the efficiency of the factory-tuned precision valving.
Designed for handling the most challenging road conditions, the shock absorber incorporates a race-developed high flow damping piston paired with application-specific valving. This combination delivers predictable ride quality, making it suitable for various vehicle applications. The durable construction includes a 2.0 inch impact extruded and CNC machined 6061-T6 aluminum body, which is clear-anodized for added protection against wear and corrosion.
Additional features include a redundant sealing pack system that enhances reliability and performance, as well as a quiet nitrile rubber bushing that allows for increased suspension articulation. The use of JM92 advanced suspension fluid ensures improved performance across a range of temperatures, making this shock absorber a robust choice for demanding driving conditions.
Features
- Body : 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time
- Body Plating : Clear-Anodized For A Durable Finish
- Reservoir : Internal IFP Mono-Tube Reservoir Design
- Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
- Shaft : 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Piston : Race-Developed High-Flow Piston Design
- Seals : Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- Oil : JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures

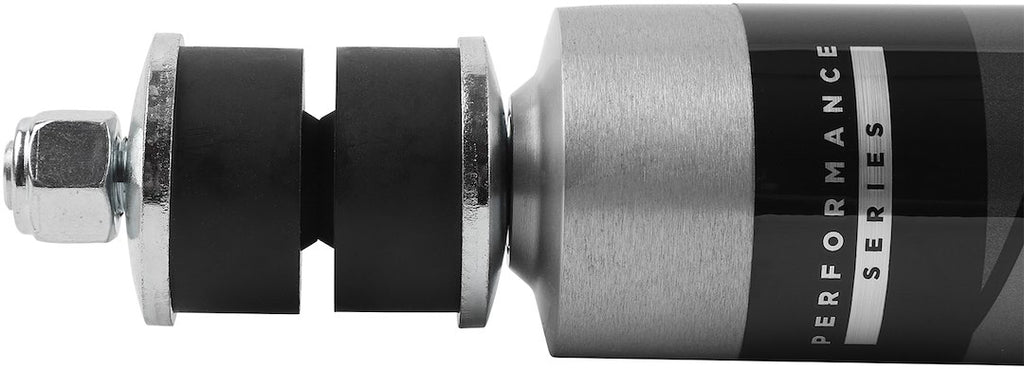

- Bushing : Quiet Nitrile Rubber Allows For Increased Suspension Articulation
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 985-24-203
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 28.64 Inch
- Compressed Length (IN): 17.45 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
- 2013-2025 Ram 3500
