Advanced damping technology for enhanced performance and comfort in off-road conditions.

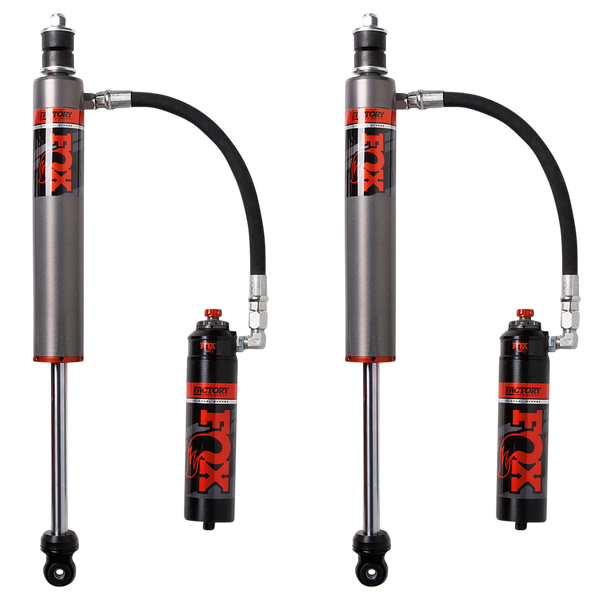

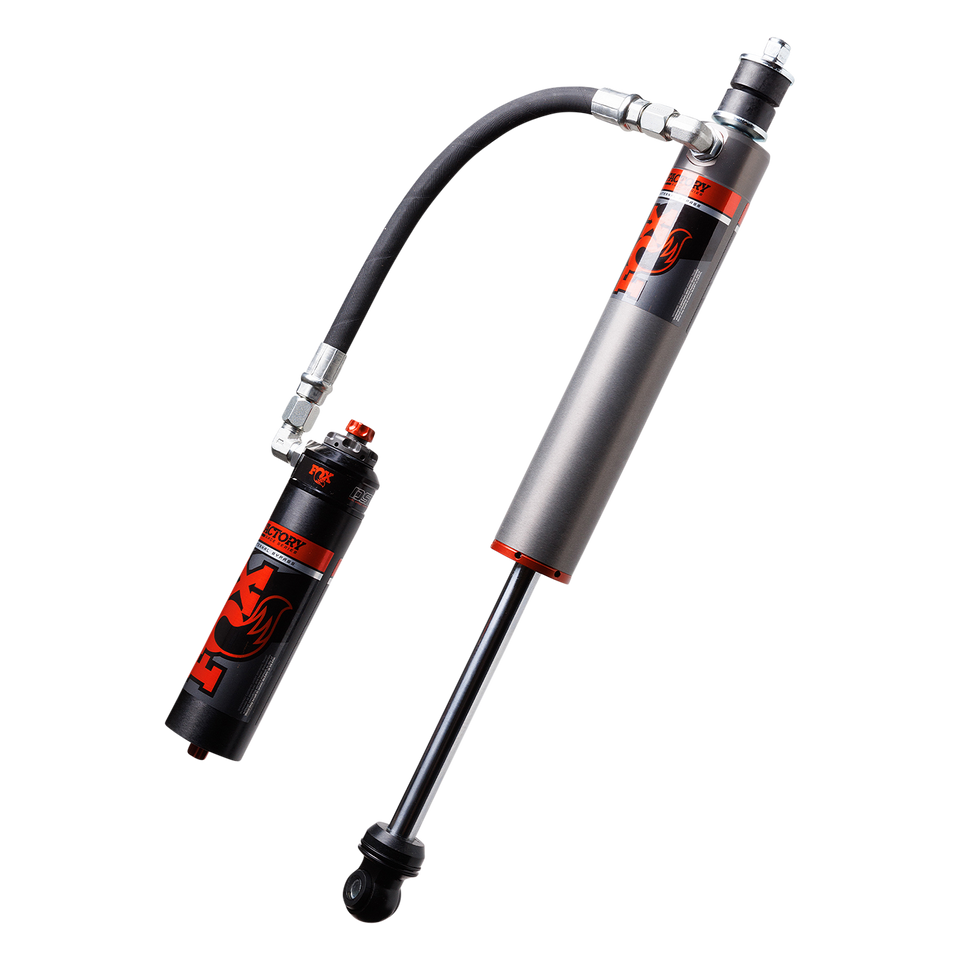

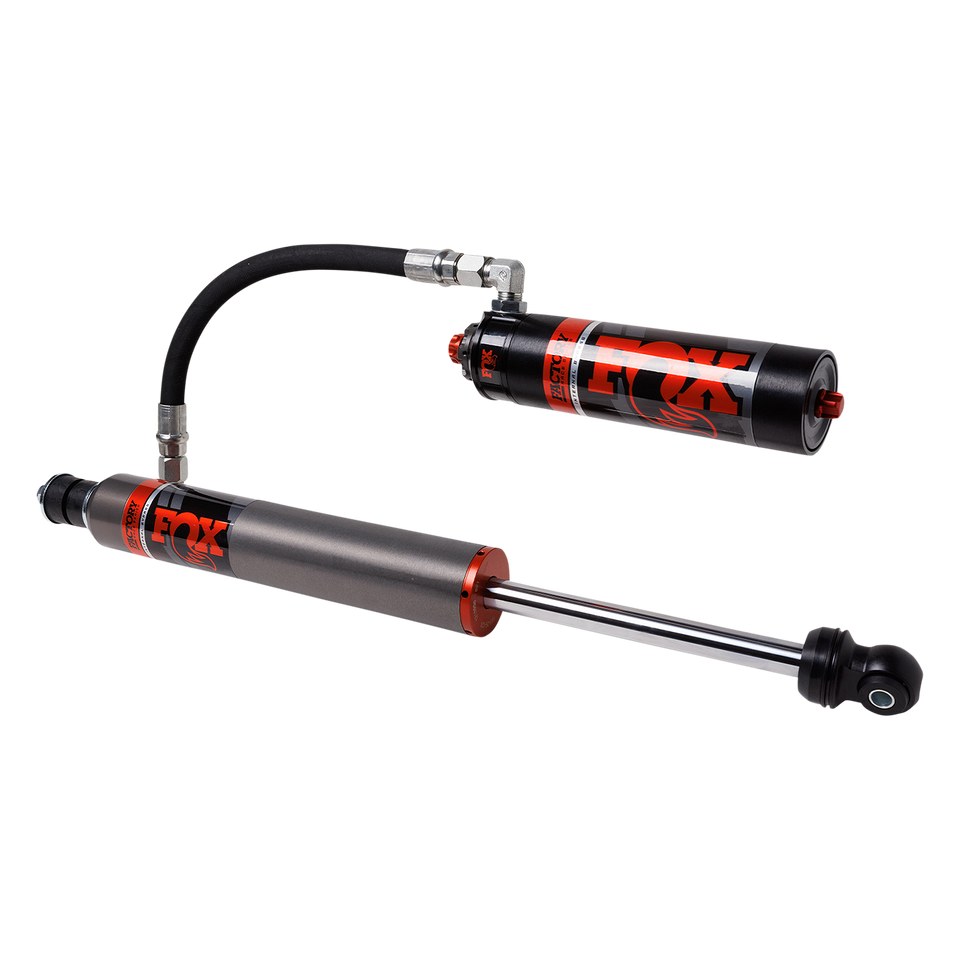

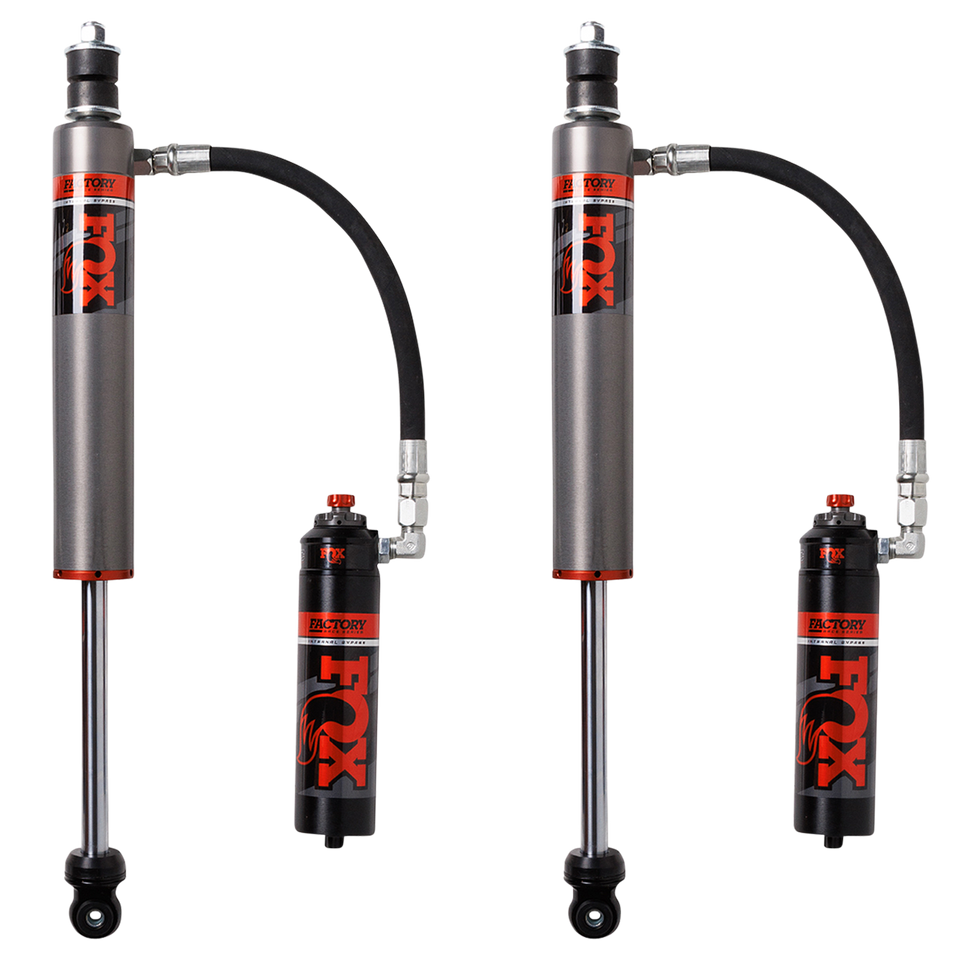

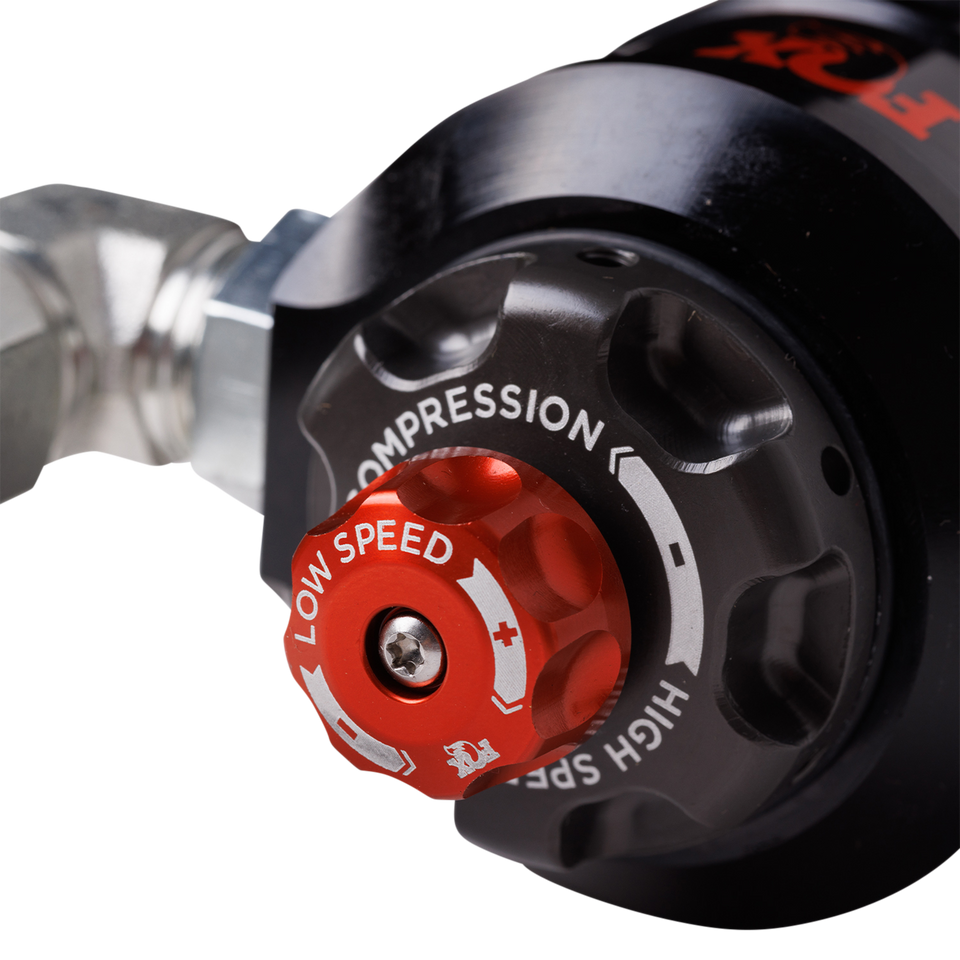

The Fox Shocks Factory Series 2.5 Internal Bypass shocks are engineered for the Toyota Tacoma, providing superior velocity and position-sensitive damping. This system features Dual Speed Compression adjustment, allowing users to fine-tune their ride for various terrains and driving styles. The patented Internal Bypass technology enhances damping control, ensuring a smooth ride even in challenging conditions by managing the shock's response to impacts effectively.
Constructed from 6061-T6 aluminum with a hard-anodized finish, these shocks are designed for durability and resistance to corrosion. The 2.5-inch diameter body houses a race-developed high-flow piston design, which optimizes performance by increasing damping capacity and preventing harsh bottom-outs. The external reservoir not only increases oil capacity but also maintains consistent damping by separating the shock oil from the nitrogen charge, ensuring cooler operation during extended use.
With adjustable valving and a robust sealing system, these shocks are built to withstand rigorous off-road conditions while providing a comfortable driving experience. The design includes a redundant sealing pack system to enhance reliability and longevity, making these shocks a practical choice for serious off-road enthusiasts.
Features
- 2.5 Inch Impact Extruded And CNC Machined 6061-T6 Hard Anodized Aluminum Body
- Hard-Anodized For A Durable Finish
- 7/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Race-Developed High-Flow Piston Design
- Redundant Sealing Pack System Main Seal Wiper Seal Scraper Seal
- PTFE-Lined Heat-Treated Alloy Steel Spherical
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 883-26-123
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22.9 Inch
- Compressed Length (IN): 14.35 Inch
- Upper Mounting Style: Strut
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2005-2023 Toyota Tacoma
