Advanced damping technology for enhanced ride control and comfort.

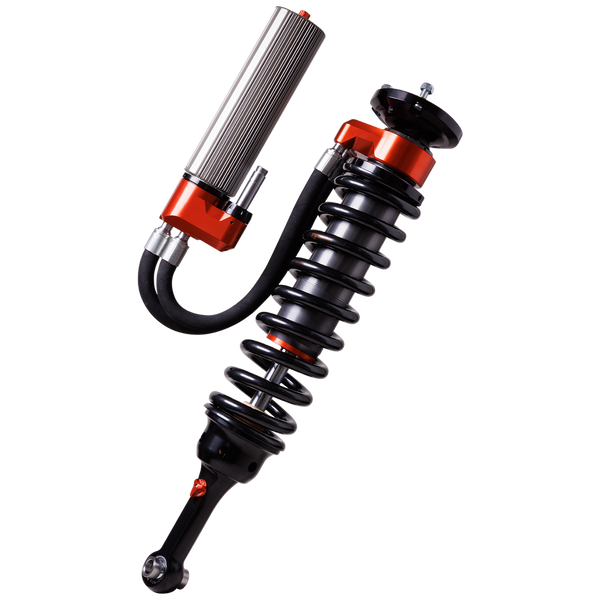

The Fox Shocks Factory Race Series Coil Over Shock Absorber features a 3.2 inch diameter aluminum body designed to withstand internal pressures exceeding 3000 pounds per square inch. This shock absorber utilizes patented Internal Bypass technology, which allows for multiple zones of damping control, ensuring a comfortable ride over various terrains. The position and velocity sensitive damping maximizes control, providing a smooth experience even in challenging conditions.
Equipped with a 3-way quick switch (QS3) adjuster, this shock absorber allows for fine-tuning of the ride characteristics to suit different driving conditions. The coil overs are designed with 1 inch hard chromed steel shafts and an optimized spring rate, ensuring durability and performance. Additionally, the recirculating dual hoses and finned reservoirs enhance shock cooling, maintaining optimal performance during extended use.
The redesigned shock mounting improves clearance under extreme suspension travel, making it compatible with all 3rd generation single valve Raptors. With adjustable ride height capabilities ranging from 2 to 2-1/4 inches, this shock absorber set of 2 is engineered for those seeking enhanced performance and control in their vehicle's suspension system.
Features
- 3.2 Inch Shock Bodies Can Withstand Internal Pressures Over 3000 Pounds Per Square Inch
- Position And Velocity Sensitive Damping Maximize Control Through Any Terrain
- Patented, Internal Bypass Is Specifically Tuned To Accommodate A Lifted Ride Height
- Coil Overs Utilize 1 Inch Hard Chromed Steel Shafts And An Optimized Spring Rate
- Recirculating Dual Hoses, Rear ECS2 Coolers, And Front Finned Reservoirs Increase Shock Cooling
- Redesigned Shock Mounting Improves Clearance Under Extreme Suspension Travel
- Guaranteed To Fit All 3rd Generation Single Valve Raptors
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 883-06-182
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 0 To 1 Inch
- Extended Height (IN): 29.21 Inch
- Compressed Height (IN): 22.36 Inch

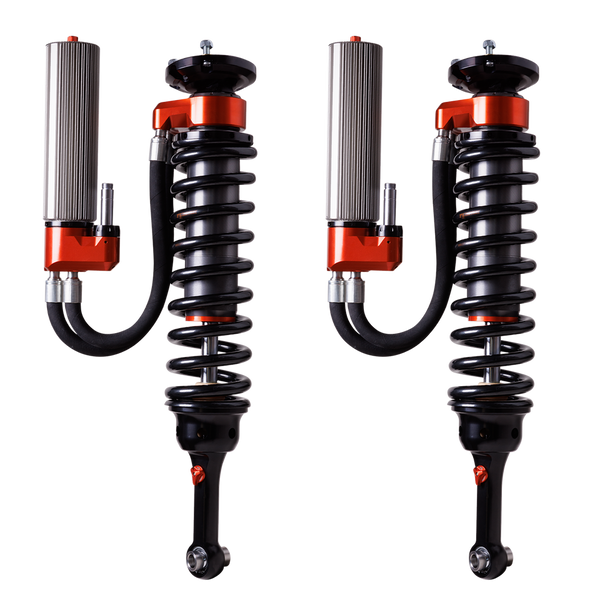

- Quantity: Set Of 2
- Valving Type: Application Specific Valving
- Shock Body Color: Black/ Silver
- Shock Body Material: Aluminum
- Spring Style: Single Flat End
- Spring Color: Black
Compatibility / Fit
- 2021-2026 Ford F-150
