Advanced damping technology for enhanced performance and comfort in off-road conditions.

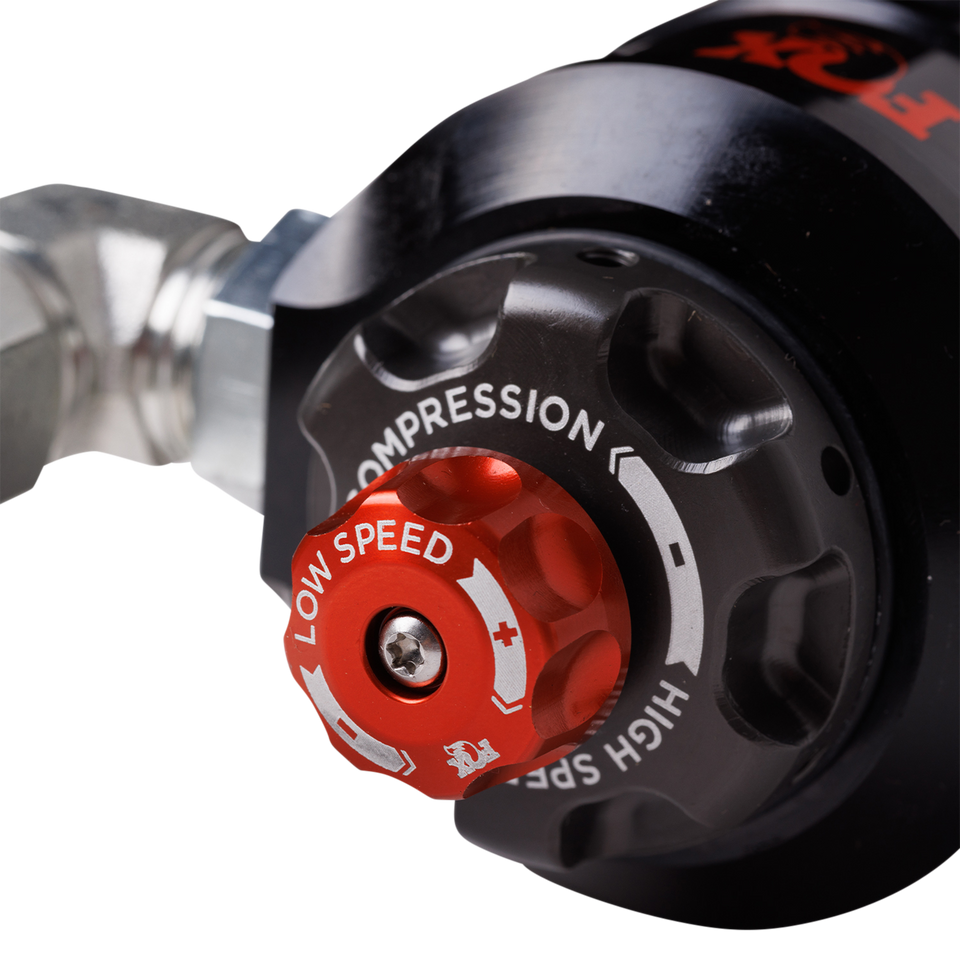

The Fox Shocks Factory Race Series 2.5 Internal Bypass shocks are engineered for the Toyota Tacoma, providing superior velocity and position-sensitive damping. These shocks feature Dual Speed Compression adjustment, allowing users to fine-tune their suspension setup for various driving conditions. The patented Internal Bypass technology enhances damping control, resulting in a smoother ride over rough terrain while effectively managing bottom-outs and top-outs.
Constructed from 6061-T6 hard anodized aluminum, the 2.5 inch diameter bodies are designed for durability and resistance to corrosion. The high-flow piston design and redundant sealing pack system ensure reliable performance and longevity. With external reservoirs that increase oil capacity, these shocks maintain consistent damping and temperature control, making them suitable for demanding off-road applications.
The adjustable valving allows for customization based on load, environment, and driving style, making these shocks versatile for various users. The combination of advanced materials and innovative design makes the Fox Shocks Factory Race Series 2.5 Internal Bypass shocks a critical component for enhancing the performance of the Toyota Tacoma.
Features
- 2.5 Inch Impact Extruded And CNC Machined 6061-T6 Hard Anodized Aluminum Body
- Hard-Anodized For A Durable Finish
- 7/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Race-Developed High-Flow Piston Design
- Redundant Sealing Pack System Main Seal Wiper Seal Scraper Seal
- PTFE-Lined Heat-Treated Alloy Steel Spherical
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 883-26-124
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 24.9 Inch
- Compressed Length (IN): 15.35 Inch
- Upper Mounting Style: Strut
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2005-2023 Toyota Tacoma
