Experience race-proven performance with advanced damping technology.

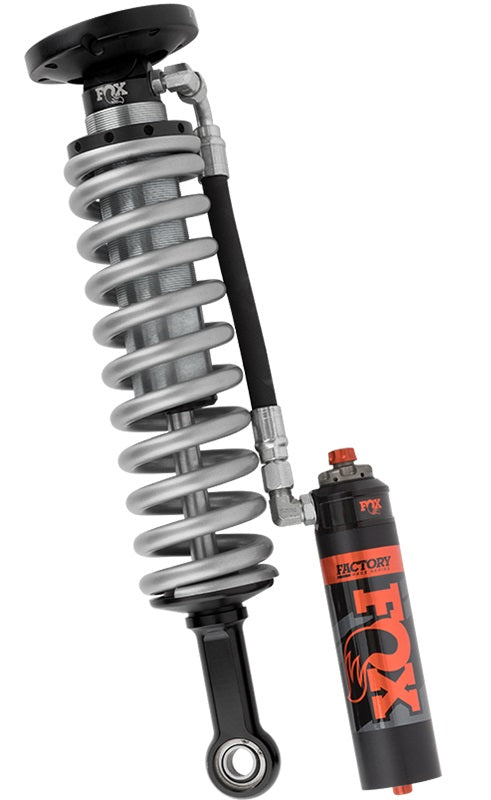

The Fox Shocks Coil Over Shock Absorber is engineered for high-performance applications, providing exceptional control and stability across various terrains. Designed for vehicles with a lift of 4 to 6 inches, these non-adjustable shocks feature an external reservoir that enhances damping capabilities, ensuring a smooth ride even under extreme conditions. The integrated coil spring is pre-set for optimal ride height and preload, allowing for immediate installation and performance enhancement right out of the box.
Constructed with a smooth bore and honed seamless alloy body, these shocks are built to withstand rigorous use. The zinc-plated and double clear coated finish ensures durability and longevity, while the components are crafted from black anodized, CNC machined 6061-T6 billet aluminum for added strength. The hardened NitroSteel carbon shafts and high flow aluminum piston further contribute to the shock's robust performance.
With application-specific valving designed to maximize performance, the Fox Shocks Coil Over Shock Absorber delivers precise control and responsiveness. The redundant sealing pack system, which includes a main seal, wiper seal, and scraper seal, provides enhanced protection against dirt and debris, ensuring reliable operation in challenging environments. This set of two shocks comes complete with all necessary mounting hardware for straightforward installation.
Features
- Smooth Bore And Honed Seamless Alloy Body
- Zinc-Plated And Double Clear Coated For Long Lasting Finish
- Components: Black Anodized, CNC Machined 6061-T6 Billet Aluminum
- 7/8 Inch Hardened NitroSteel Steel Carbon Shafts
- 6061-T6 Hard-Anodized, High Flow Aluminum Piston
- Application Specific Valving To Maximize Performance
- Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 883-02-114
- Adjustable: No
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Extended Height (IN): 28.44 Inch
- Compressed Height (IN): 22.85 Inch
- Quantity: Set Of 2
- Valving Type: Non Adjustable Valving
- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2014-2020 Ford F-150
