Advanced hydraulic shocks with adjustable valving for enhanced performance.

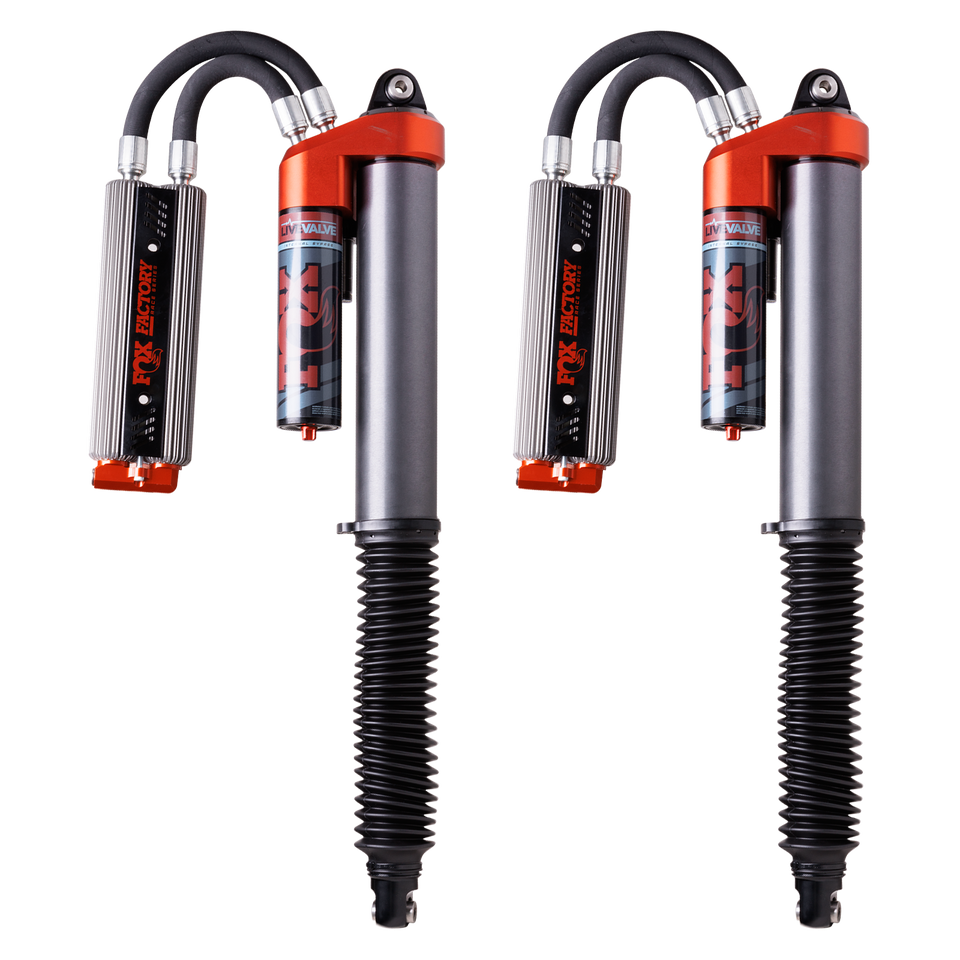

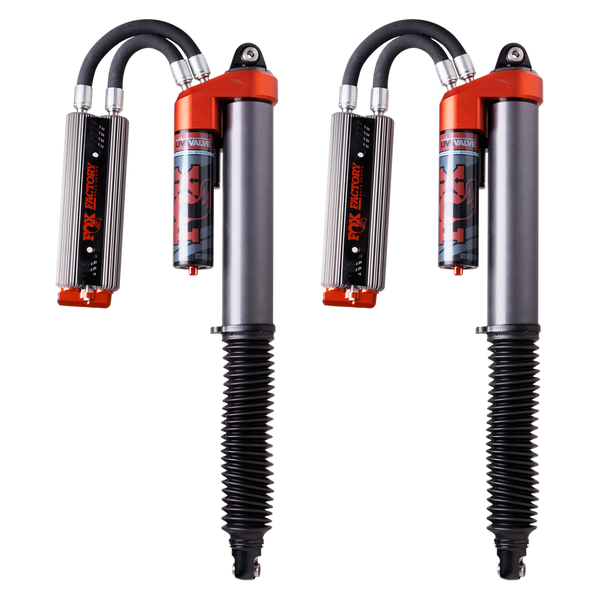

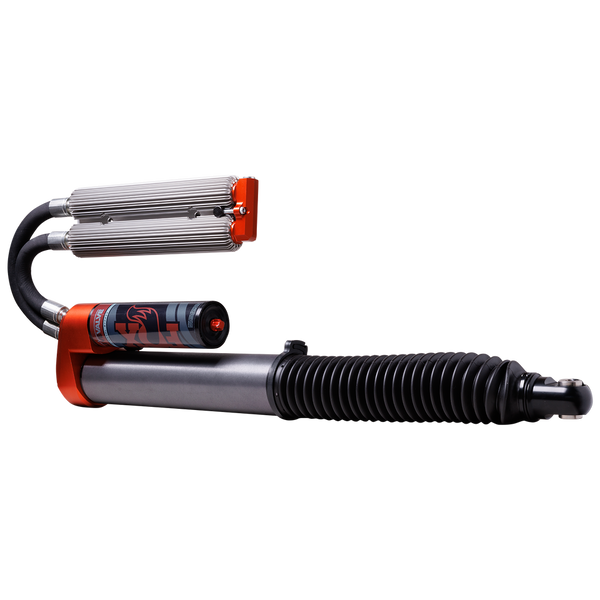

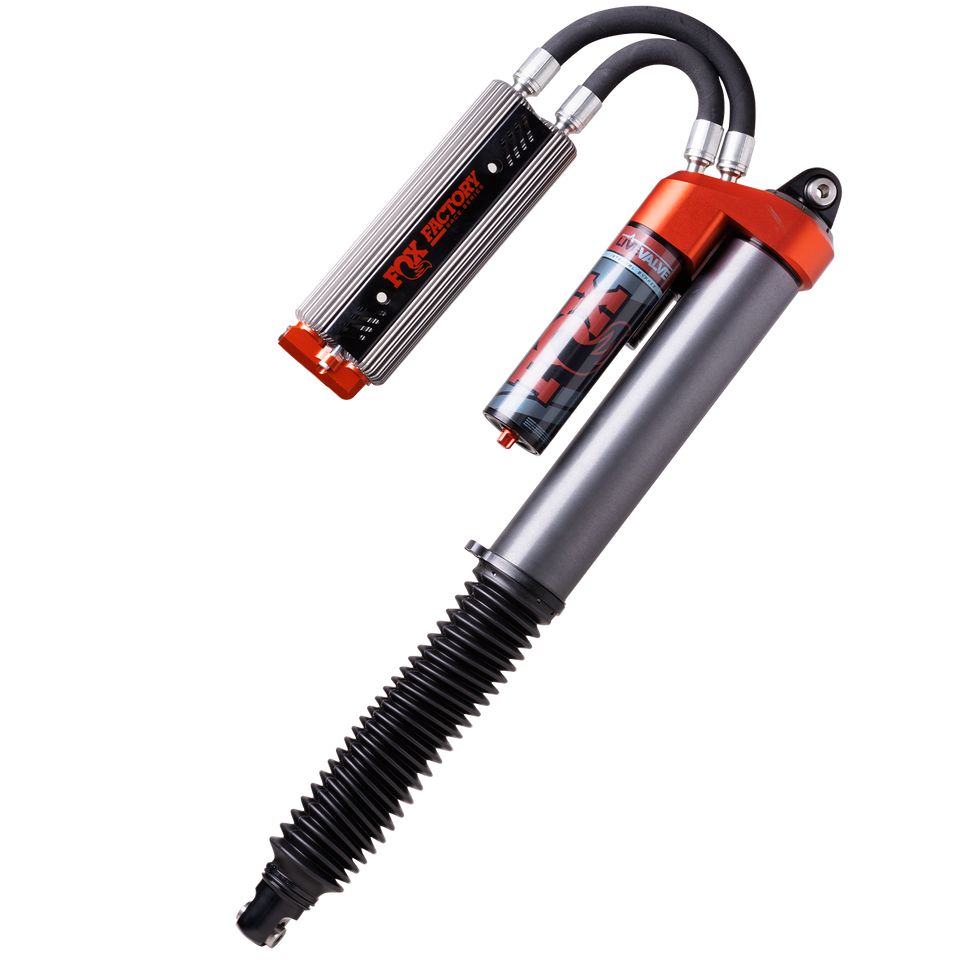

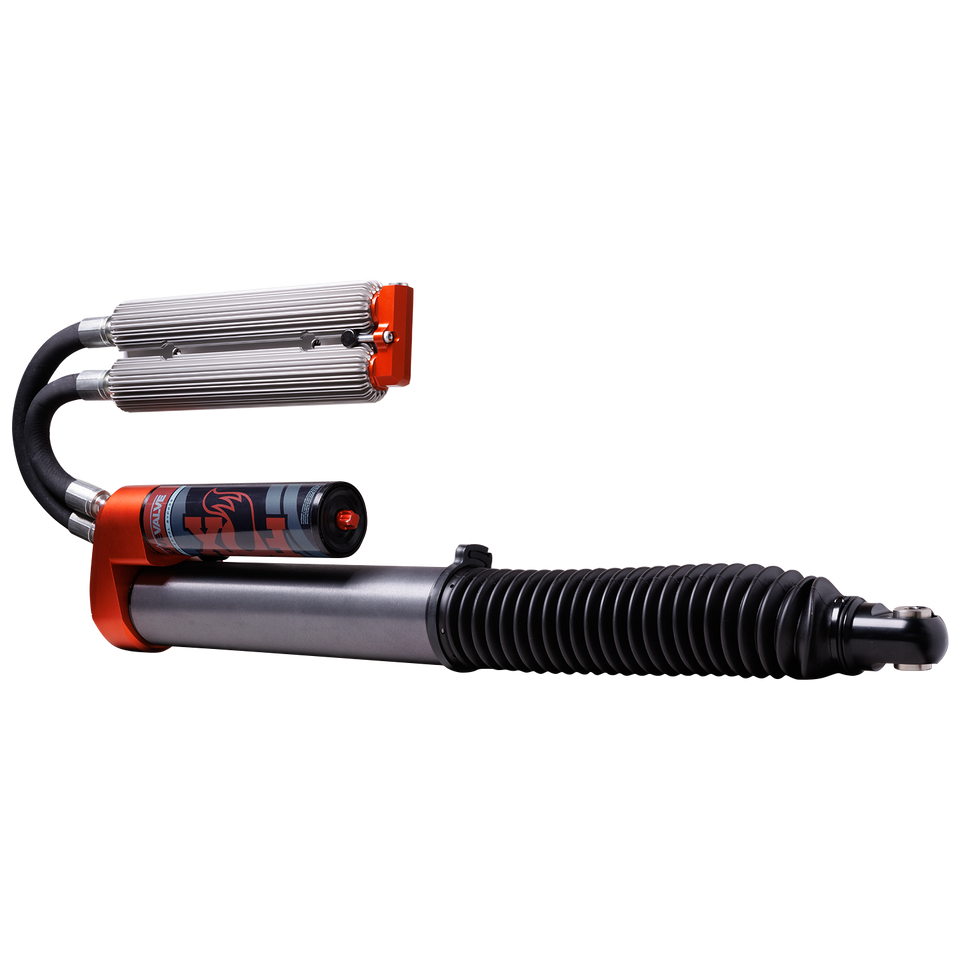

The Fox Shocks 3.0 Factory Series Shock Absorber is engineered for high-performance applications, featuring hydraulic and nitrogen gas charging for superior damping capabilities. With a quick switch adjustable valving system, these shocks allow for precise tuning to match various driving conditions, ensuring optimal handling and comfort. The shock's extended height of 32.25 inches and compressed height of 19.99 inches make it suitable for lifted vehicles, while the eyelet top and bottom mounts facilitate easy installation.
Constructed from durable aluminum, these shocks are designed to withstand extreme conditions, with 3.2-inch shock bodies capable of handling internal pressures exceeding 3000 PSI. The patented internal bypass technology provides position-sensitive damping, allowing for enhanced control over rough terrain and preventing harsh impacts during bottom-outs and top-outs. Additionally, the recirculating reservoirs maintain optimal shock fluid temperatures, contributing to consistent performance.

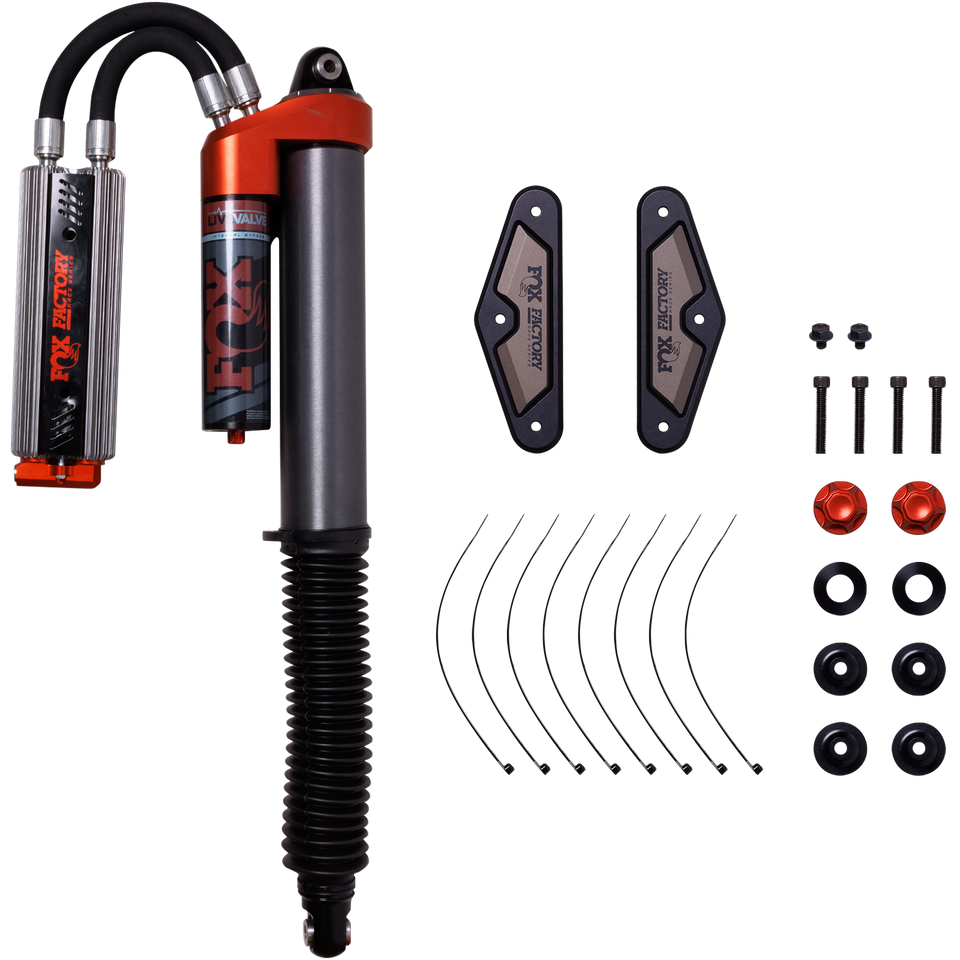

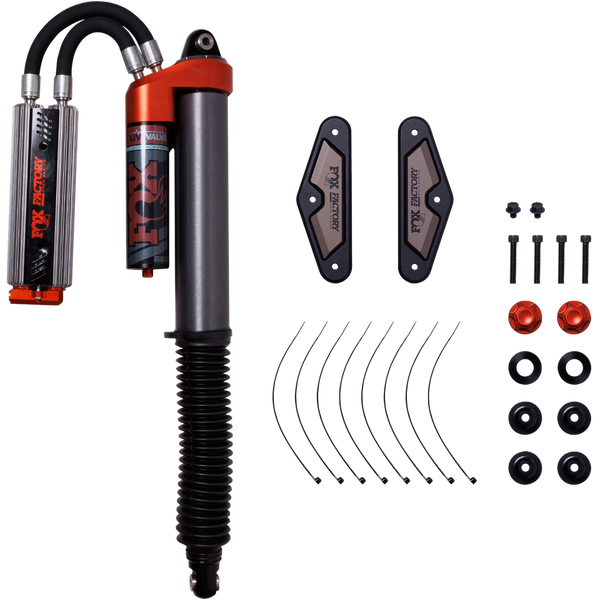

This set of two shock absorbers is specifically tuned for 3rd generation single valve Raptors, ensuring a perfect fit and improved clearance during extreme suspension travel. The inclusion of a shock boot and necessary hardware simplifies installation, making these shocks a reliable choice for off-road enthusiasts seeking to enhance their vehicle's suspension system.
Features
- 3.2 Inch Shock Bodies Can Withstand Internal Pressures Over 3000 Pounds Per Square Inch
- Position And Velocity Sensitive Damping Maximize Control Through Any Terrain
- Patented, Internal Bypass Is Specifically Tuned To Accommodate A Lifted Ride Height
- Coil Overs Utilize 1 Inch Hard Chromed Steel Shafts And An Optimized Spring Rate
- Recirculating Dual Hoses, Rear ECS2 Coolers, And Front Finned Reservoirs Increase Shock Cooling
- Redesigned Shock Mounting Improves Clearance Under Extreme Suspension Travel
- Guaranteed To Fit All 3rd Generation Single Valve Raptors
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 883-06-183
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 32-1/4 Inch
- Compressed Length (IN): 19.99 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: Yes
- Estimated Install Time (Hours): 1
Compatibility / Fit
- 2021-2026 Ford F-150
