Enhance your vehicle's performance with advanced damping technology.

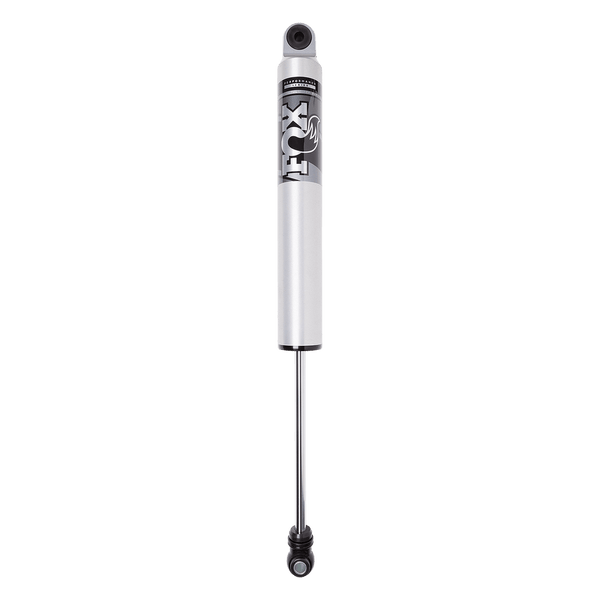

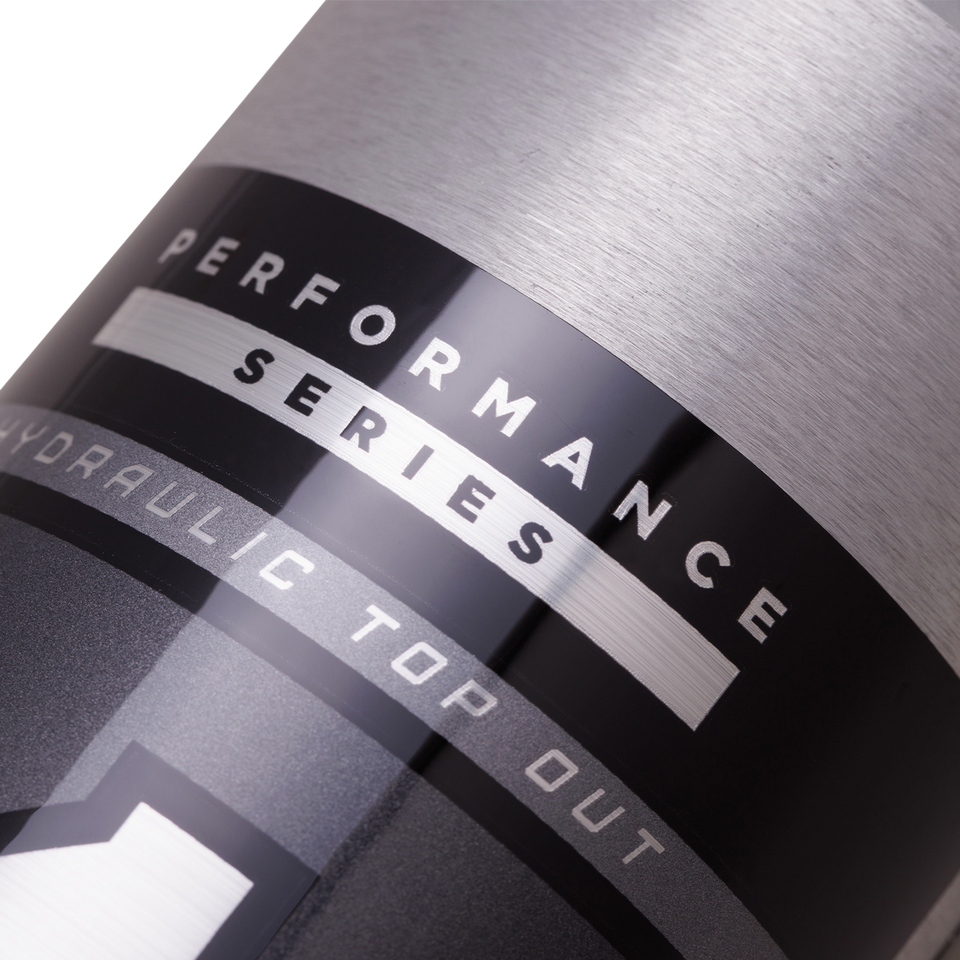

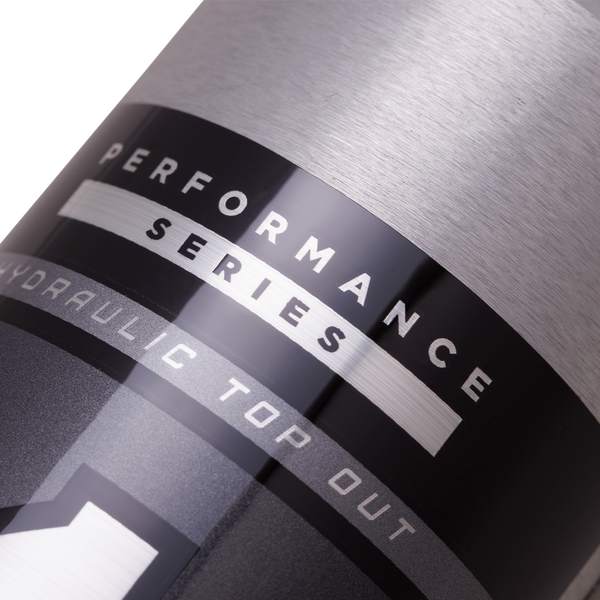

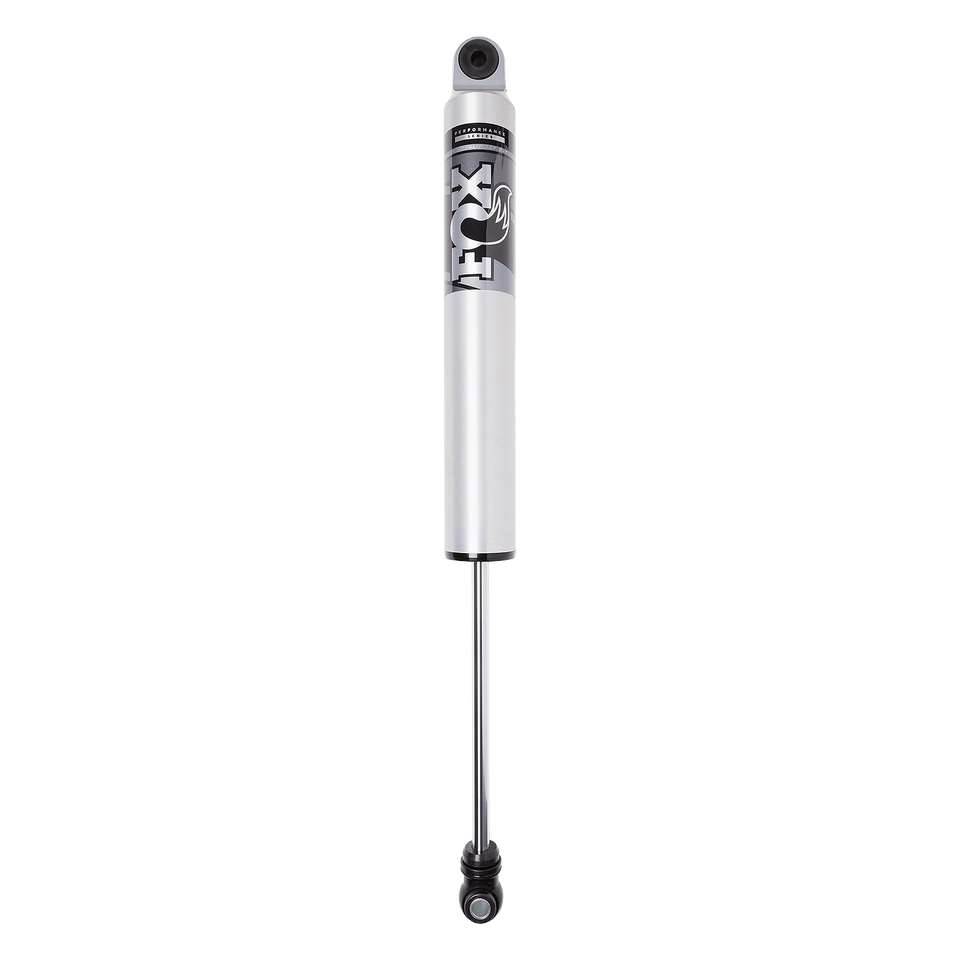

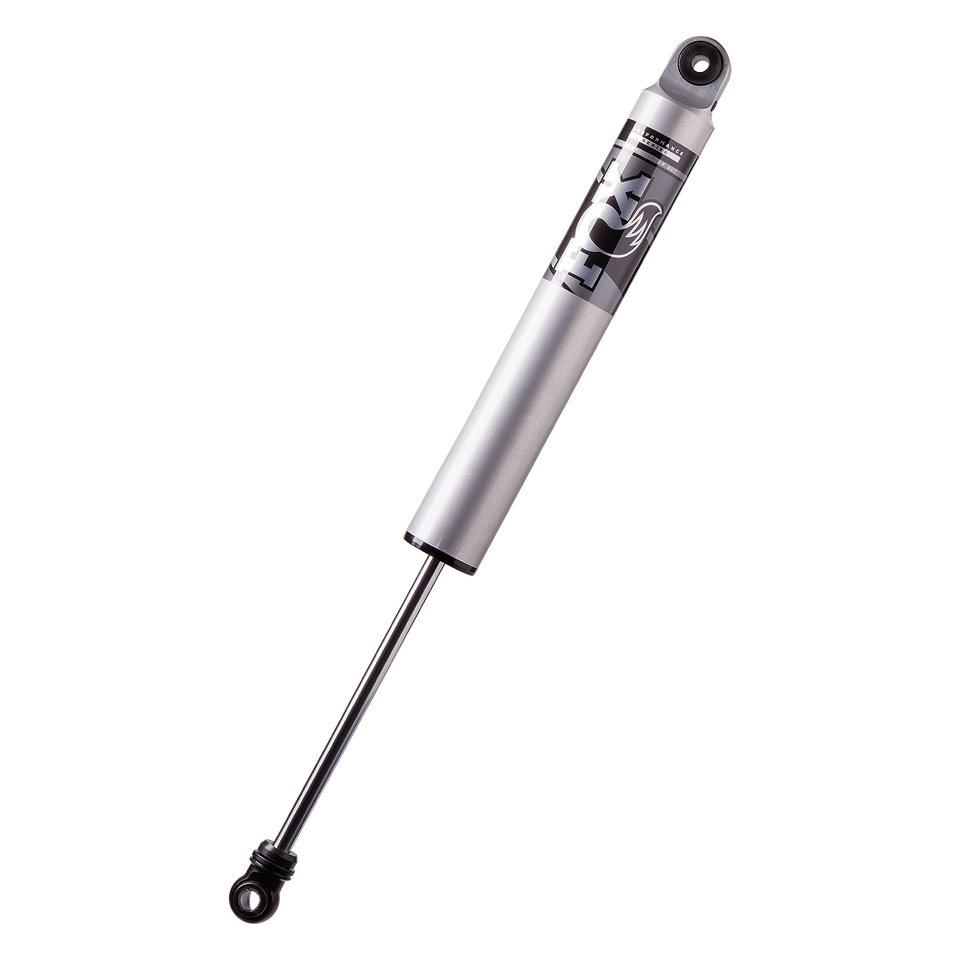

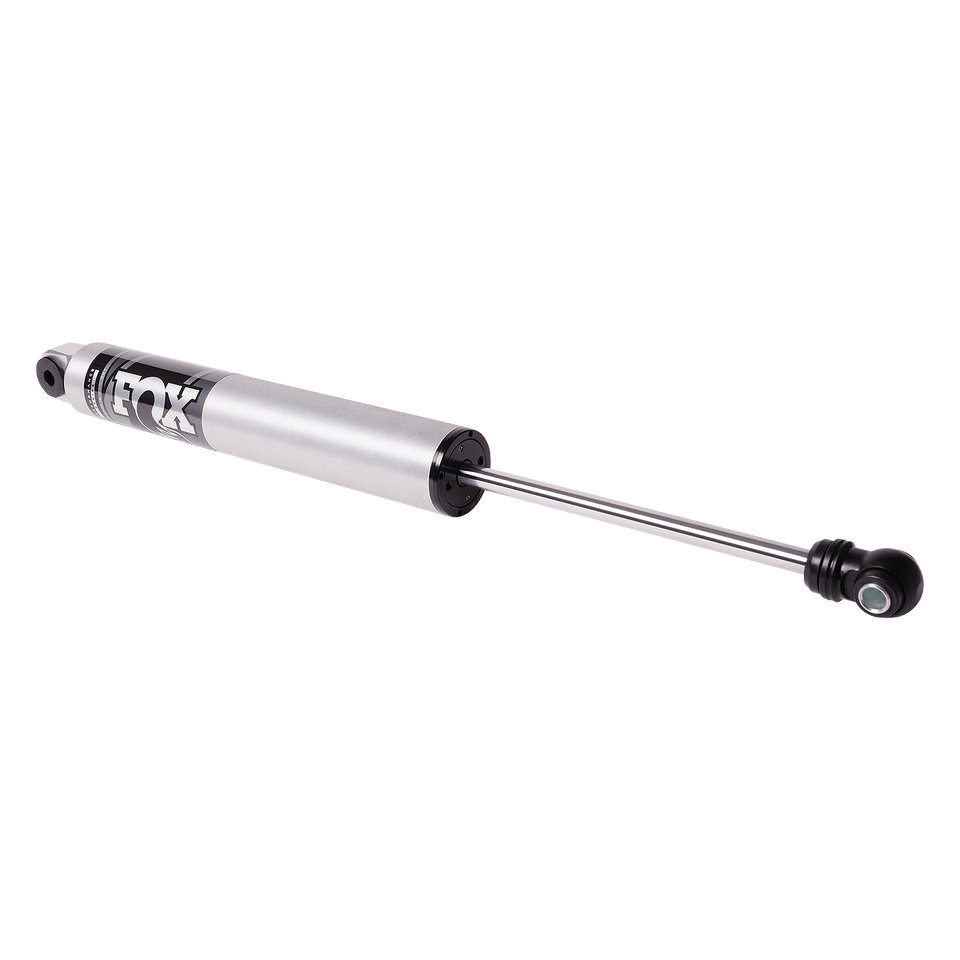

The Fox Shocks 2.5 Performance Series HTO shock is engineered for improved on and off-road performance through its innovative design and technology. This shock features a 2-1/2 inch impact extruded aluminum body that is type II anodized to resist corrosion and dissipate heat effectively. The internal floating piston (IFP) design optimizes damping by separating the shock oil from high pressure nitrogen, ensuring consistent performance under various conditions.
Incorporating Hydraulic Top Out (HTO) technology, this shock provides position sensitive rebound damping control, enhancing comfort and control on rough terrains. The HTO system minimizes harsh top outs by regulating shock shaft speed, making it particularly advantageous for vehicles with heavier tires or those lifted beyond OEM specifications. With a focus on vehicle-specific valving and larger pistons, the 2.5 Performance Series HTO shock is a reliable choice for those seeking to enhance their vehicle's ride quality and handling capabilities.
Features
- 2-1/2 Inch Impact Extruded 6061-T6 Aluminum Shock Body
- Type II Clear Anodized Body Plating
- High Flow Velocity Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Features An Internal Floating Piston
- Hydraulic Top Out Technology Offers Position Sensitive Rebound Damping For Better Control On And Off-Road
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 987-24-061
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 32.62 Inch
- Compressed Length (IN): 20.55 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Non Adjustable Valving
- Ride Height Adjustable: No
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2018-2021 Jeep Wrangler JL
