Enhance on and off-road performance with advanced damping technology.

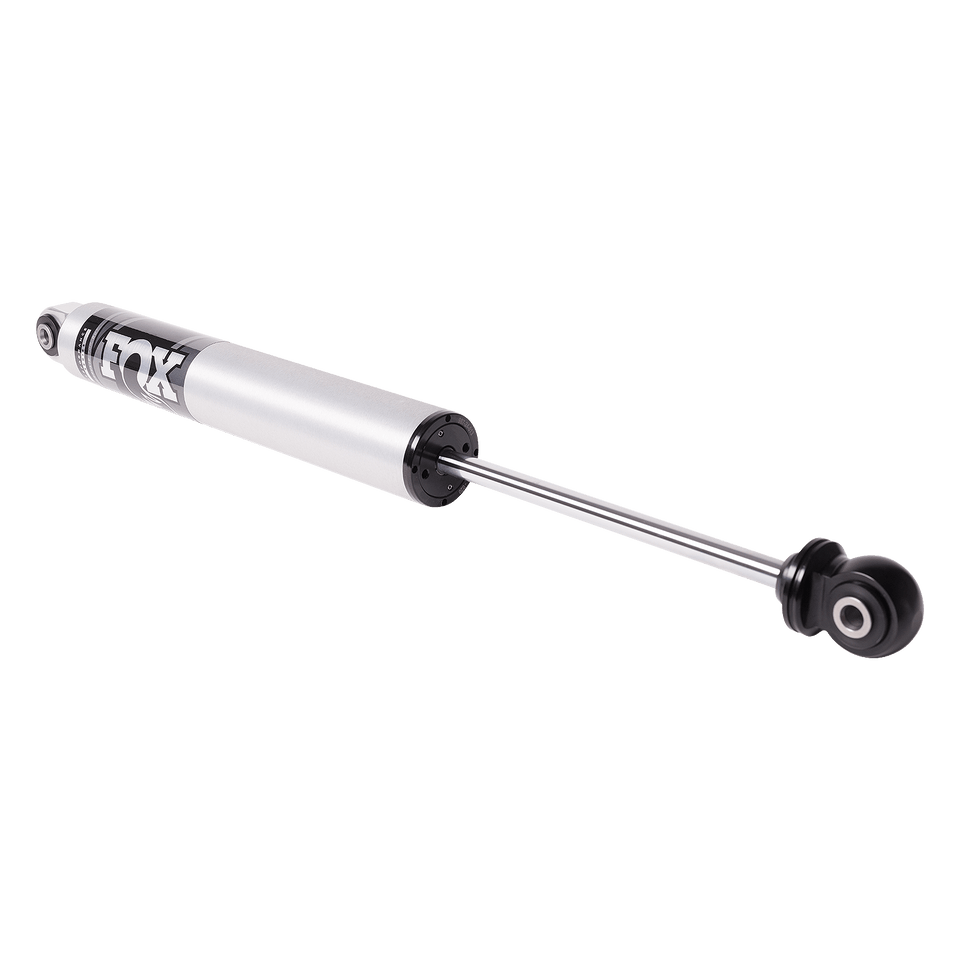

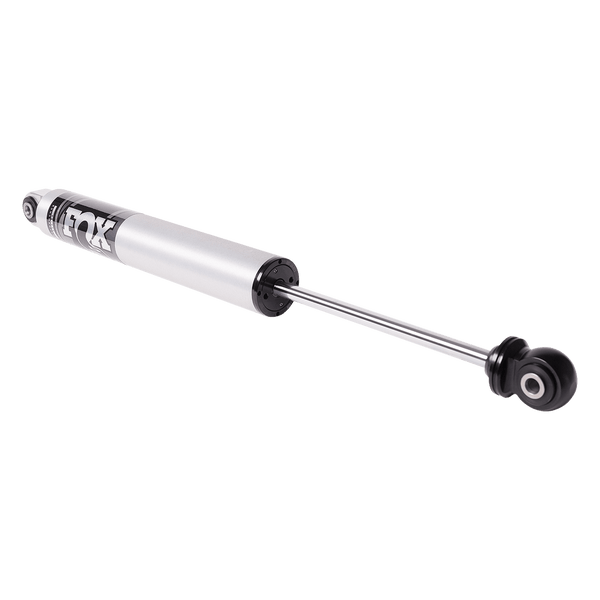

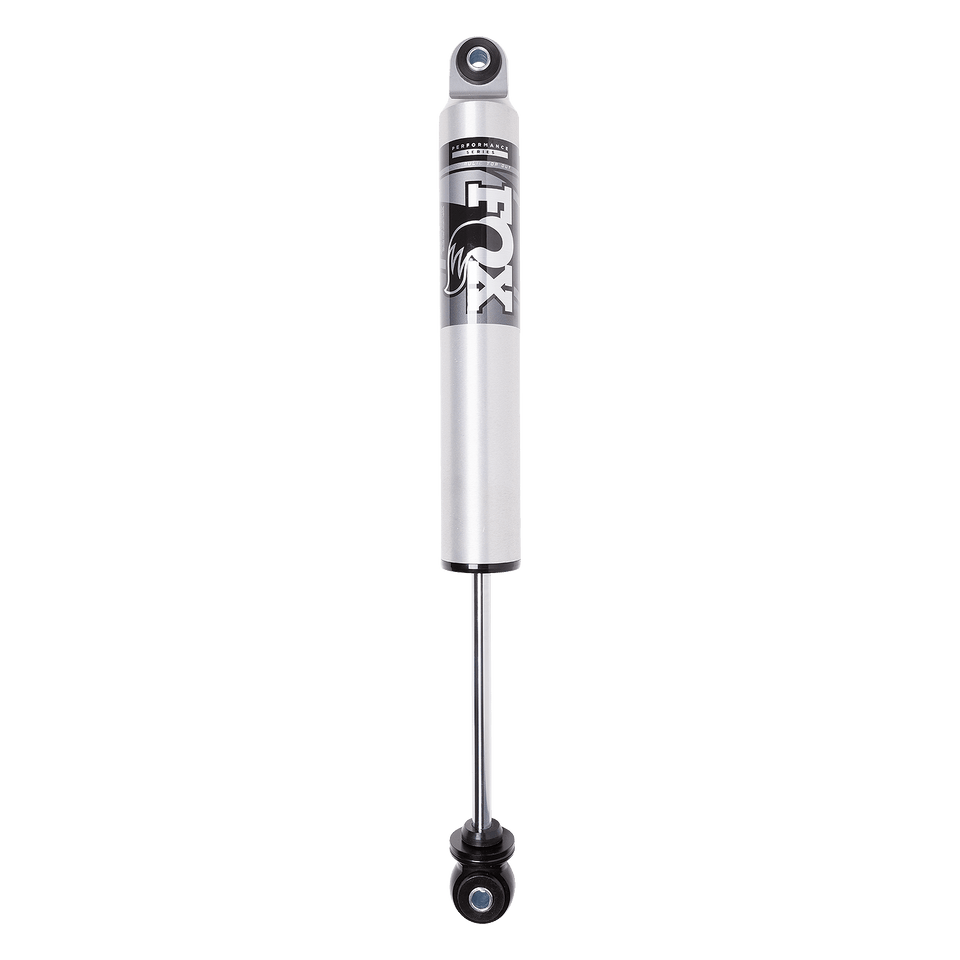

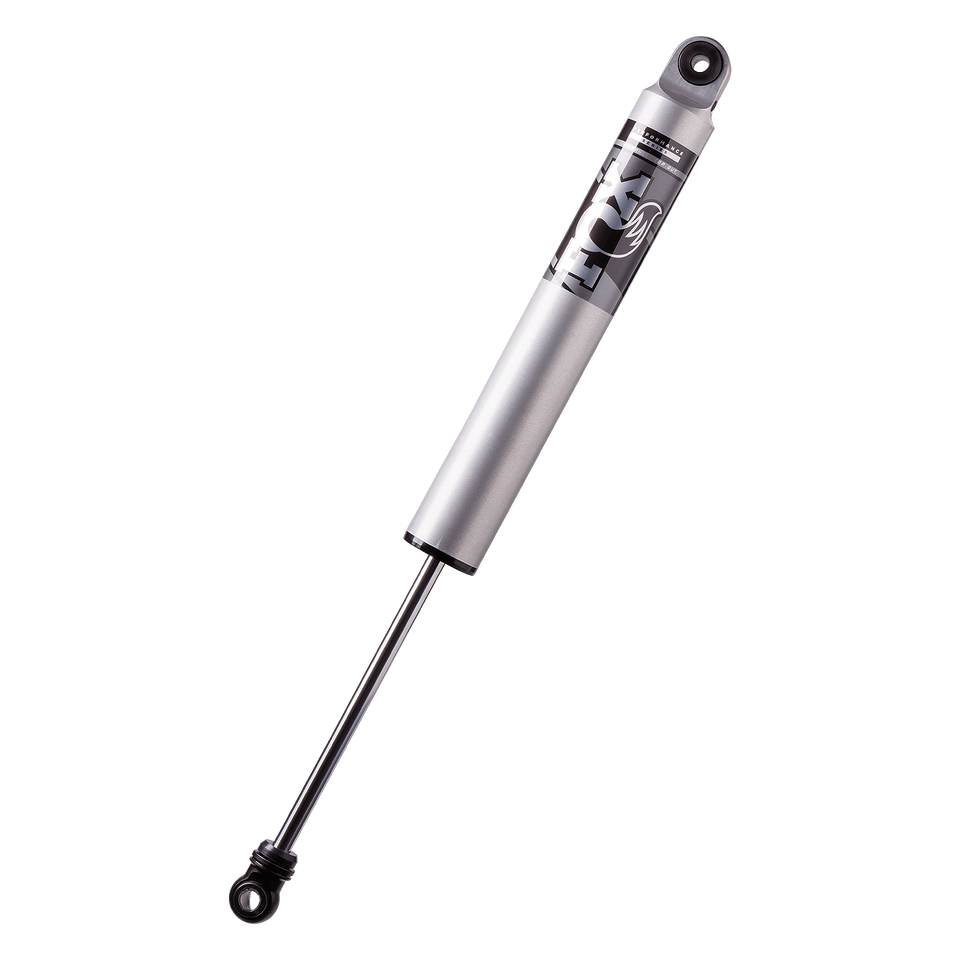

The Fox 2.5 Performance Series HTO shock is engineered for improved vehicle handling and comfort in various driving conditions. This hydraulic shock features a robust 2.5-inch impact extruded aluminum body that is type II anodized for enhanced heat dissipation and corrosion resistance. The internal floating piston (IFP) design effectively separates shock oil from high-pressure nitrogen, optimizing damping performance and ensuring consistent ride quality.
Incorporating Hydraulic Top Out (HTO) technology, this shock provides position-sensitive rebound damping control, which is particularly beneficial for vehicles with heavier tires or those lifted beyond OEM specifications. The HTO system minimizes harsh top-out impacts, enhancing overall comfort during both on-road and off-road driving. With vehicle-specific valving and high-flow velocity-sensitive damping, the Fox 2.5 Performance Series HTO shock is a reliable choice for those seeking to elevate their vehicle's performance.
This single shock is designed for easy bolt-on installation, making it a practical upgrade for enthusiasts looking to enhance their suspension system. The 5/8-inch hard chrome shaft and durable aluminum construction ensure longevity and reliability under demanding conditions.
Features
- 2.5 Inch Impact Extruded 6061-T6 Aluminum Shock Body
- Type II Clear-Anodized Body Plating
- High-Flow Velocity-Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Internal Floating Piston IFP
- Hydraulic Top Out HTO Piston
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 987-24-054
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 29.58 Inch
- Compressed Length (IN): 18.79 Inch

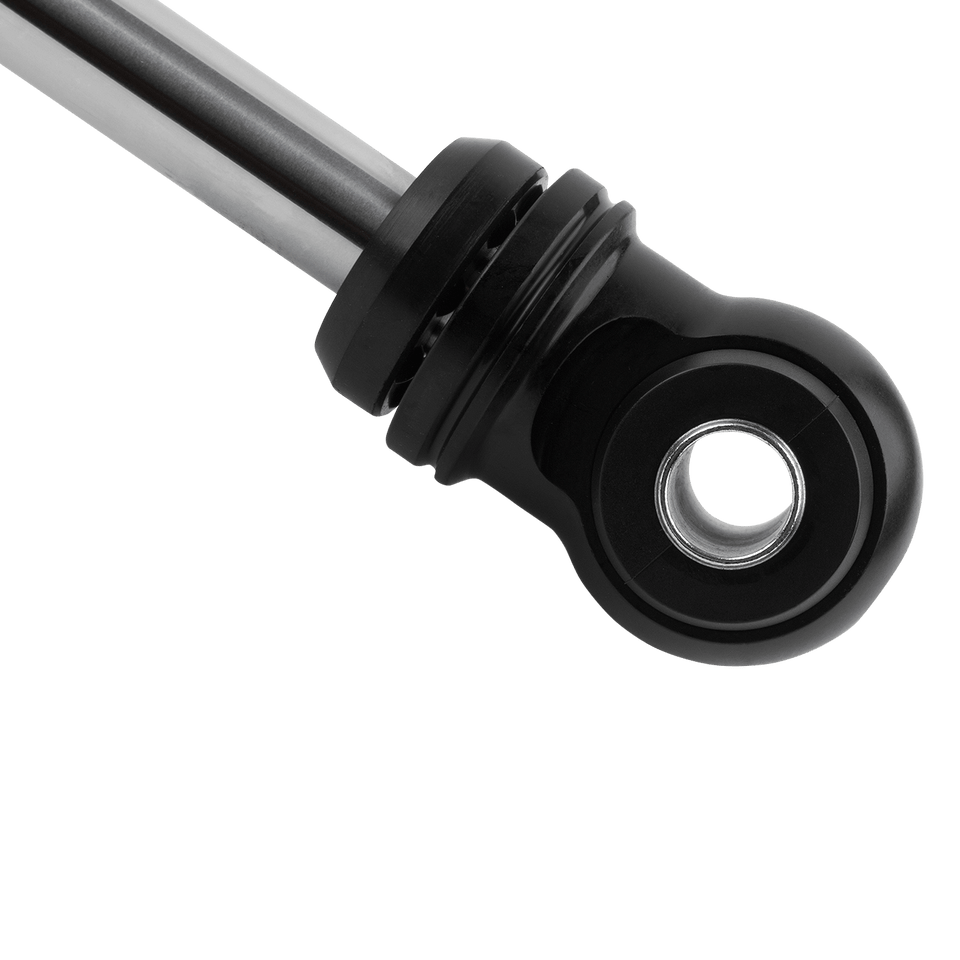

- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2005-2016 Ford F-250 Super Duty
- 2005-2016 Ford F-350 Super Duty
