Enhance your vehicle's performance with advanced damping technology.

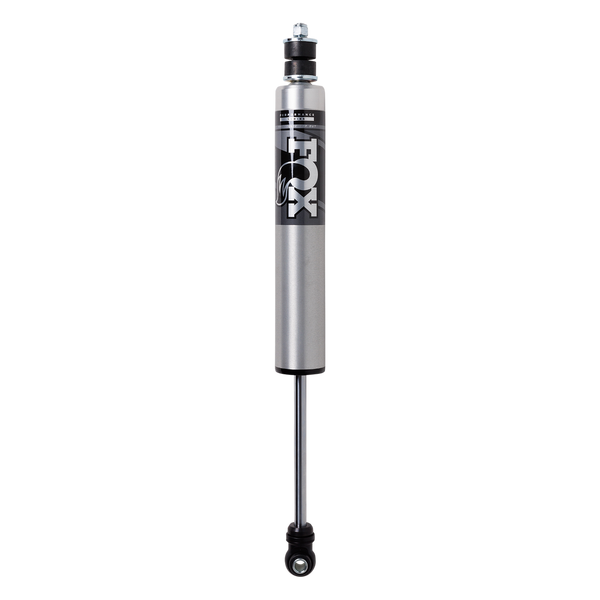

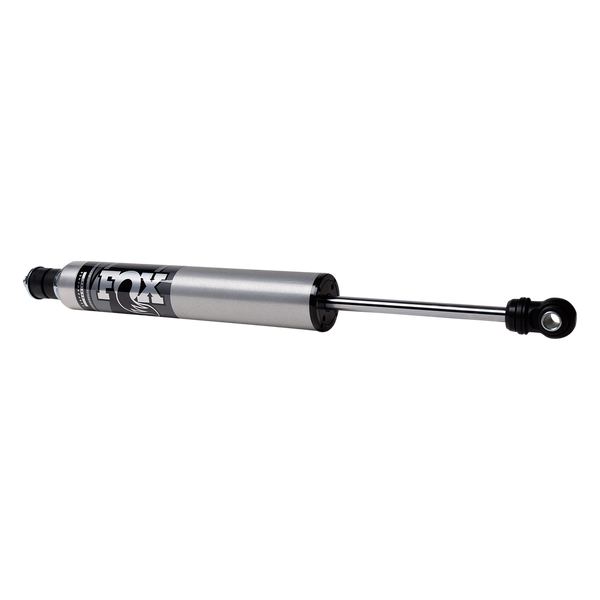

The Fox 2.5 Performance Series HTO shock is engineered for both on and off-road applications, featuring a robust hydraulic and nitrogen gas charged design. This shock utilizes position sensitive technology and vehicle specific valving to optimize performance, ensuring improved handling and comfort. The 2-1/2 inch impact extruded aluminum body is treated with type II anodized plating, providing excellent heat dissipation and corrosion resistance.
Incorporating an internal floating piston (IFP), this shock effectively separates the shock oil from high pressure nitrogen, enhancing damping capabilities. The Hydraulic Top Out (HTO) technology is a key feature, offering position sensitive rebound damping that reduces harsh top outs and improves ride quality. This is particularly advantageous for vehicles equipped with heavier tires or those lifted beyond OEM specifications.
Designed as a bolt-on solution, the Fox 2.5 Performance Series HTO shock increases damping capacity while maintaining ride comfort. With a 5/8 inch hard chrome shaft and high flow velocity sensitive damping, this shock is built to withstand rigorous conditions, making it a reliable choice for performance enthusiasts.
Features
- 2-1/2 Inch Impact Extruded 6061-T6 Aluminum Shock Body
- Type II Clear Anodized Body Plating
- High Flow Velocity Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Features An Internal Floating Piston
- Hydraulic Top Out Technology Offers Position Sensitive Rebound Damping For Better Control On And Off-Road
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 987-24-049
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 28.89 Inch
- Compressed Length (IN): 18-1/2 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Non Adjustable Valving
- Ride Height Adjustable: No
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
