Enhance on and off-road performance with advanced damping technology.

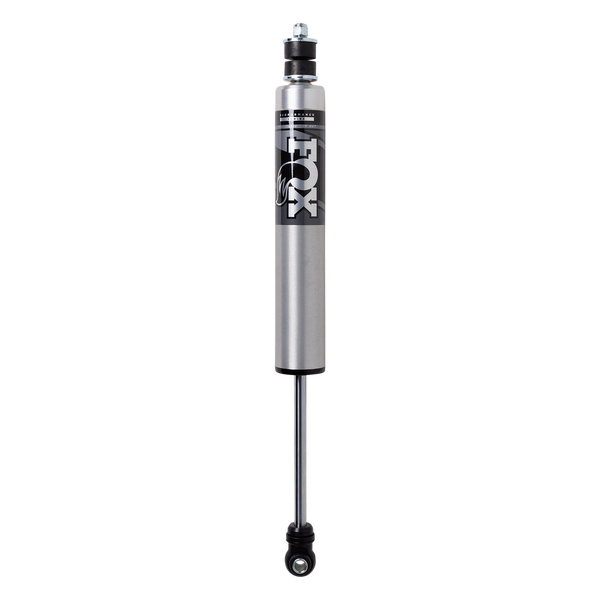

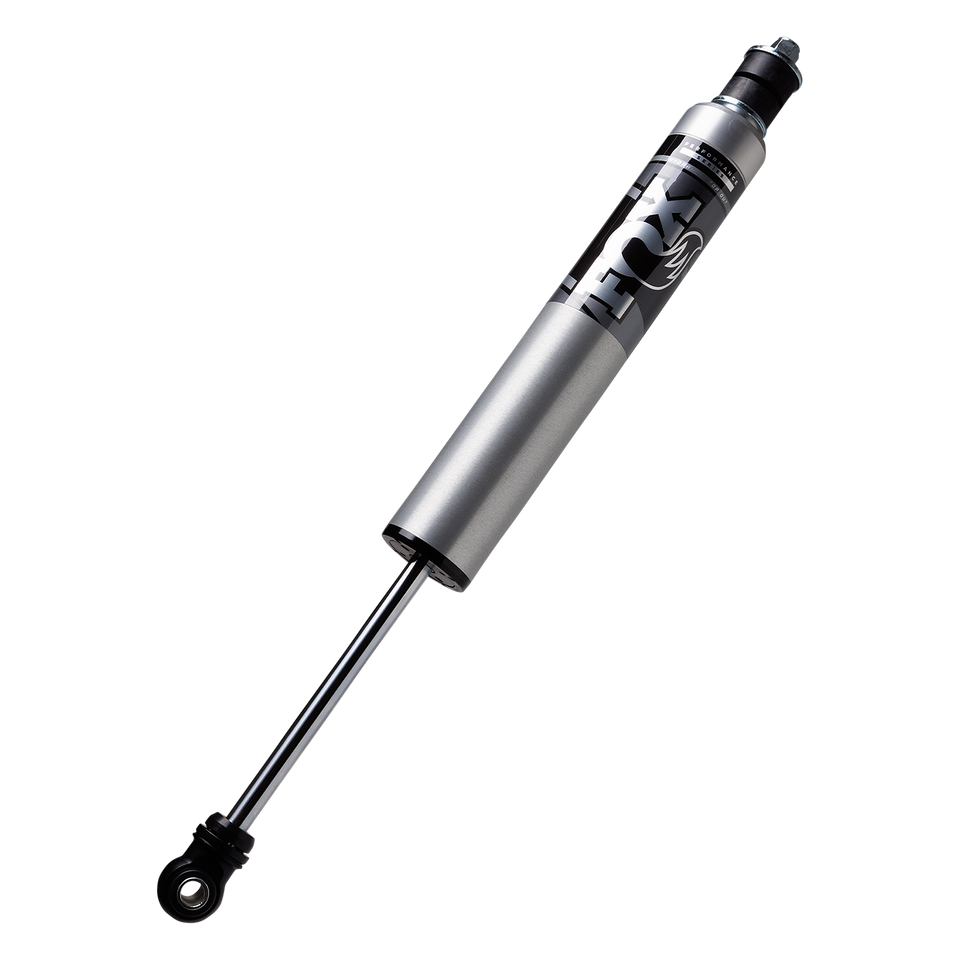

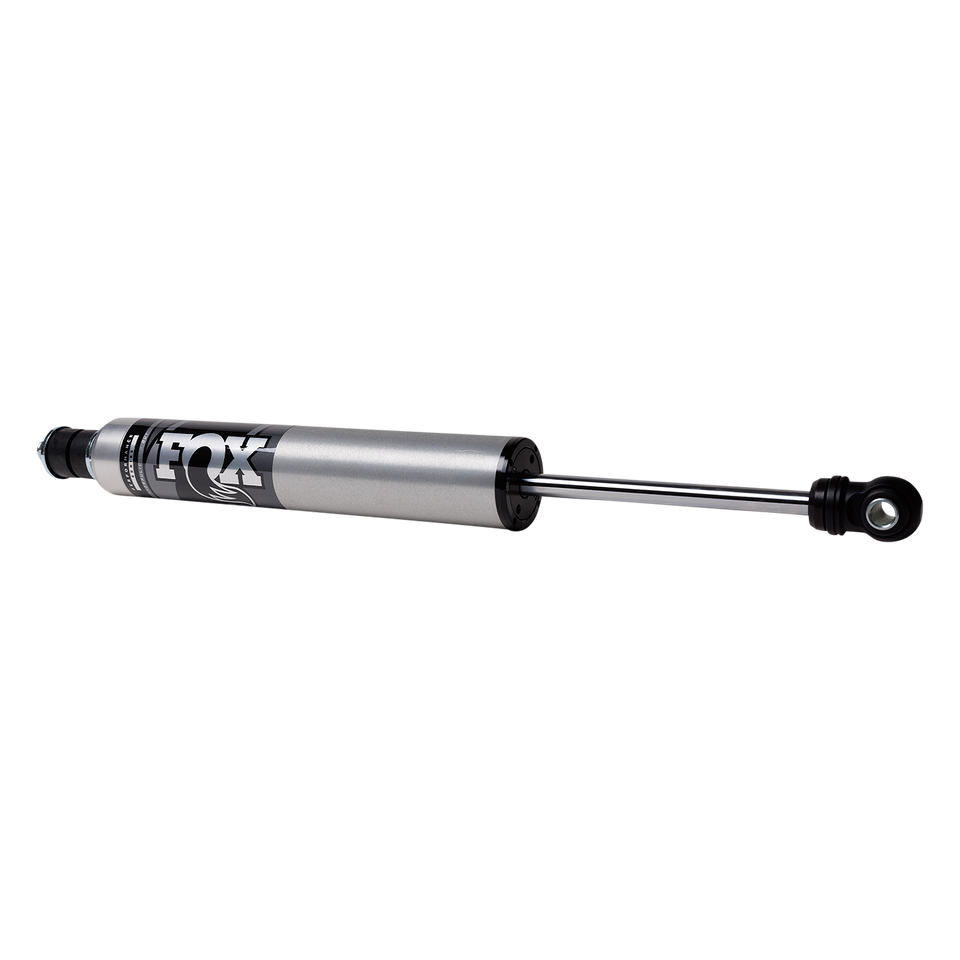

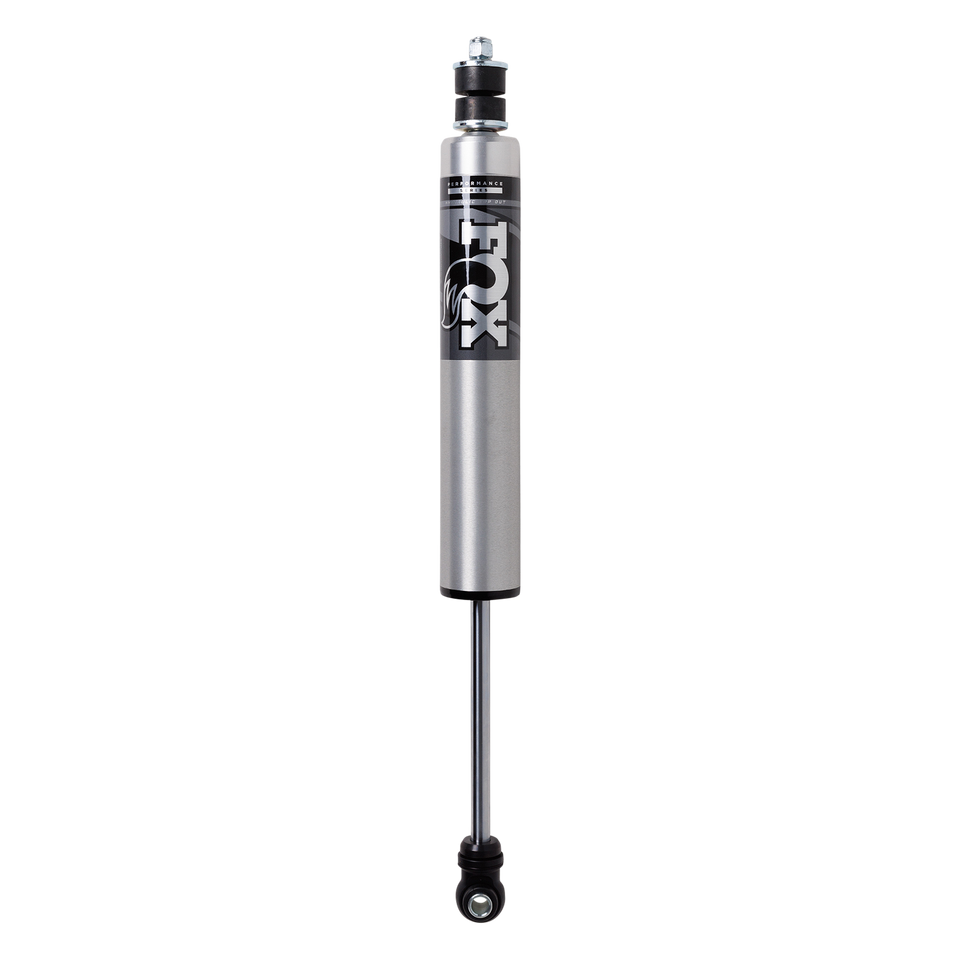

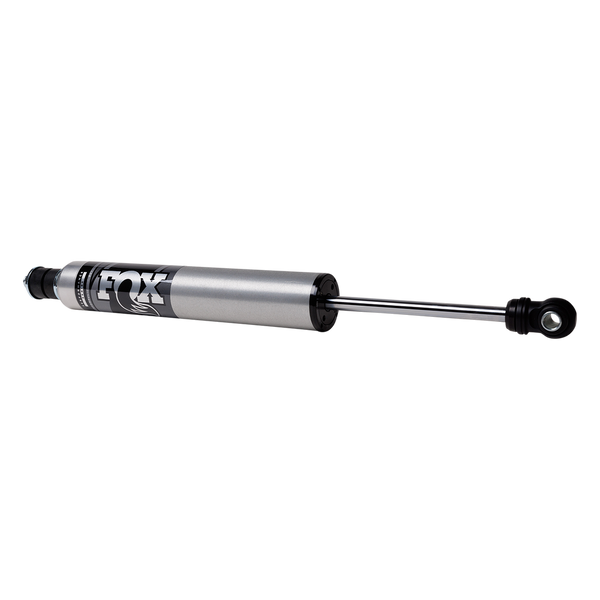

The Fox 2.5 Performance Series HTO shock is engineered for improved vehicle handling and comfort both on and off-road. This shock features a robust 2-1/2 inch impact extruded aluminum body that is type II anodized to resist corrosion and dissipate heat effectively. The internal floating piston design optimizes damping by separating the shock oil from high-pressure nitrogen, ensuring consistent performance under varying conditions.

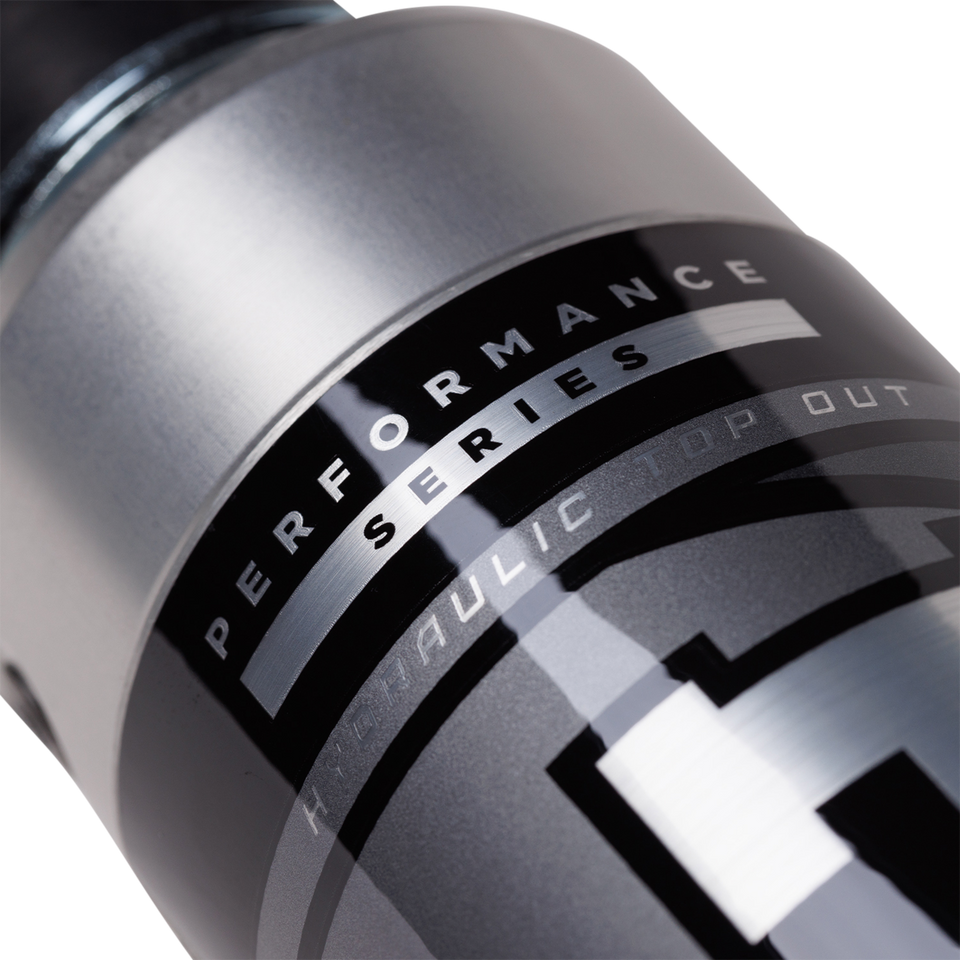

Incorporating Hydraulic Top Out (HTO) technology, this shock provides position-sensitive rebound damping control, which enhances comfort and reduces harsh top outs. This feature is particularly advantageous for vehicles equipped with heavier tires or those lifted beyond OEM specifications. The high flow velocity sensitive damping system further contributes to a smoother ride, making it suitable for a range of driving environments.
Designed as a bolt-on solution, the Fox 2.5 Performance Series HTO shock is vehicle specific, ensuring a precise fit and optimal performance. With non-adjustable valving, this shock simplifies installation while maintaining high performance standards. The durable construction and advanced technology make it a reliable choice for enhancing your vehicle's suspension system.
Features
- 2-1/2 Inch Impact Extruded 6061-T6 Aluminum Shock Body
- Type II Clear Anodized Body Plating
- High Flow Velocity Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Features An Internal Floating Piston
- Hydraulic Top Out Technology Offers Position Sensitive Rebound Damping For Better Control On And Off-Road
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 987-24-048
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 27.97 Inch
- Compressed Length (IN): 18.28 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Non Adjustable Valving
- Ride Height Adjustable: No
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2014-2025 Ram 2500
- 2014-2018 Ram 3500
