Enhance on and off-road performance with advanced damping technology.

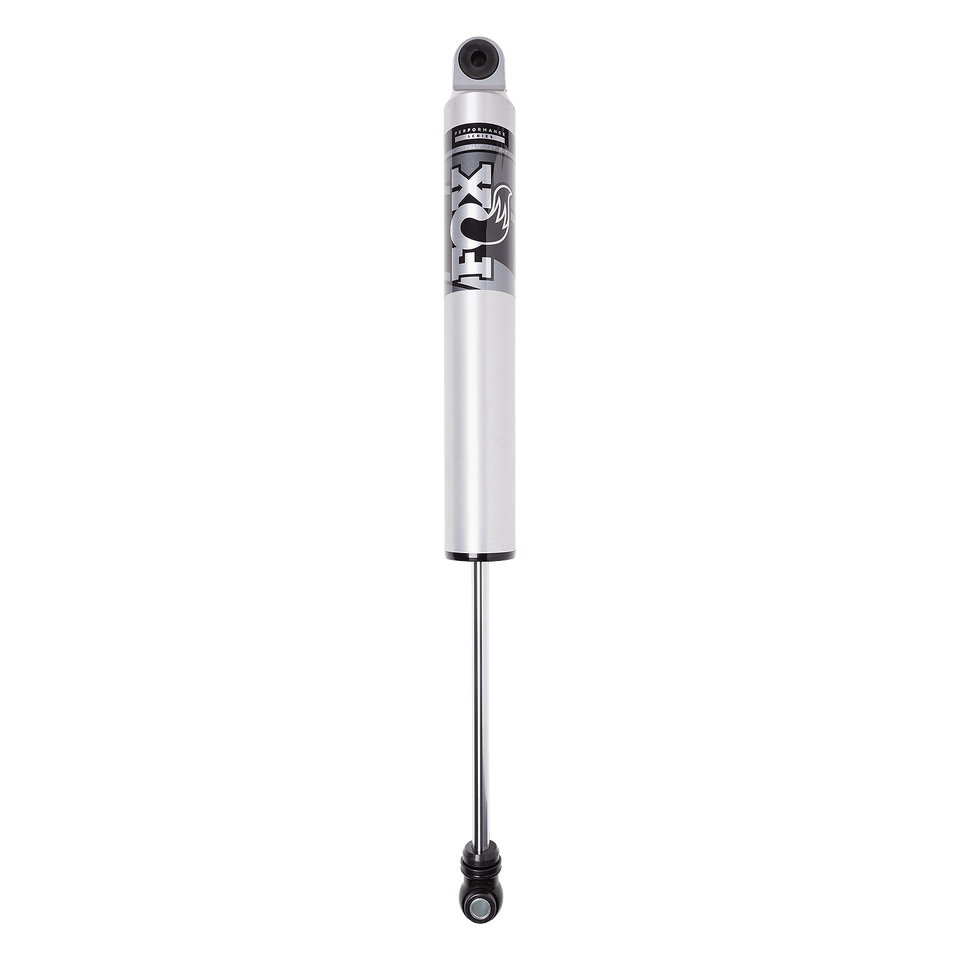

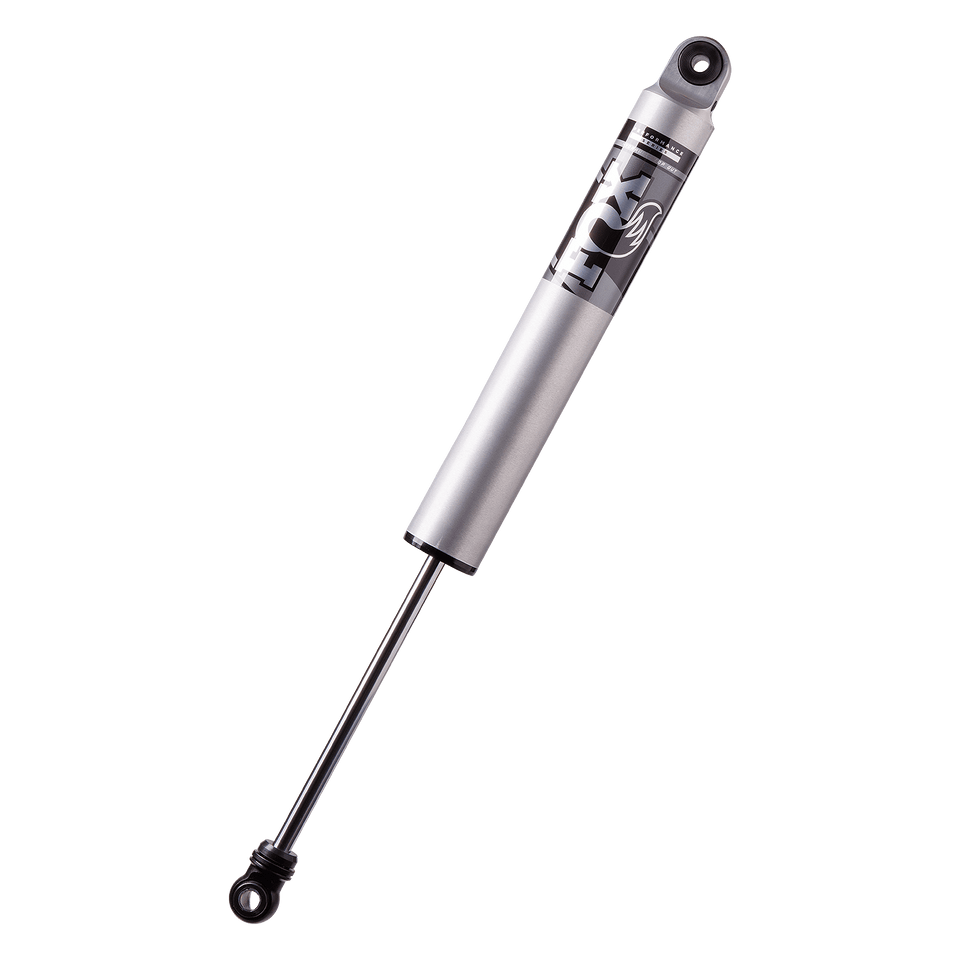

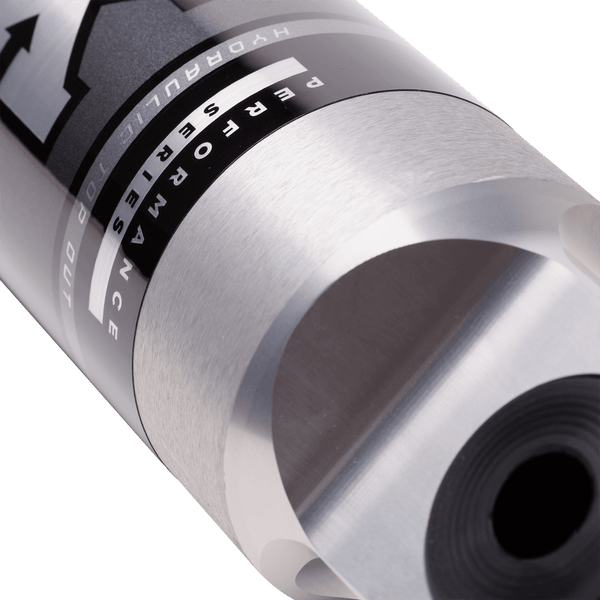

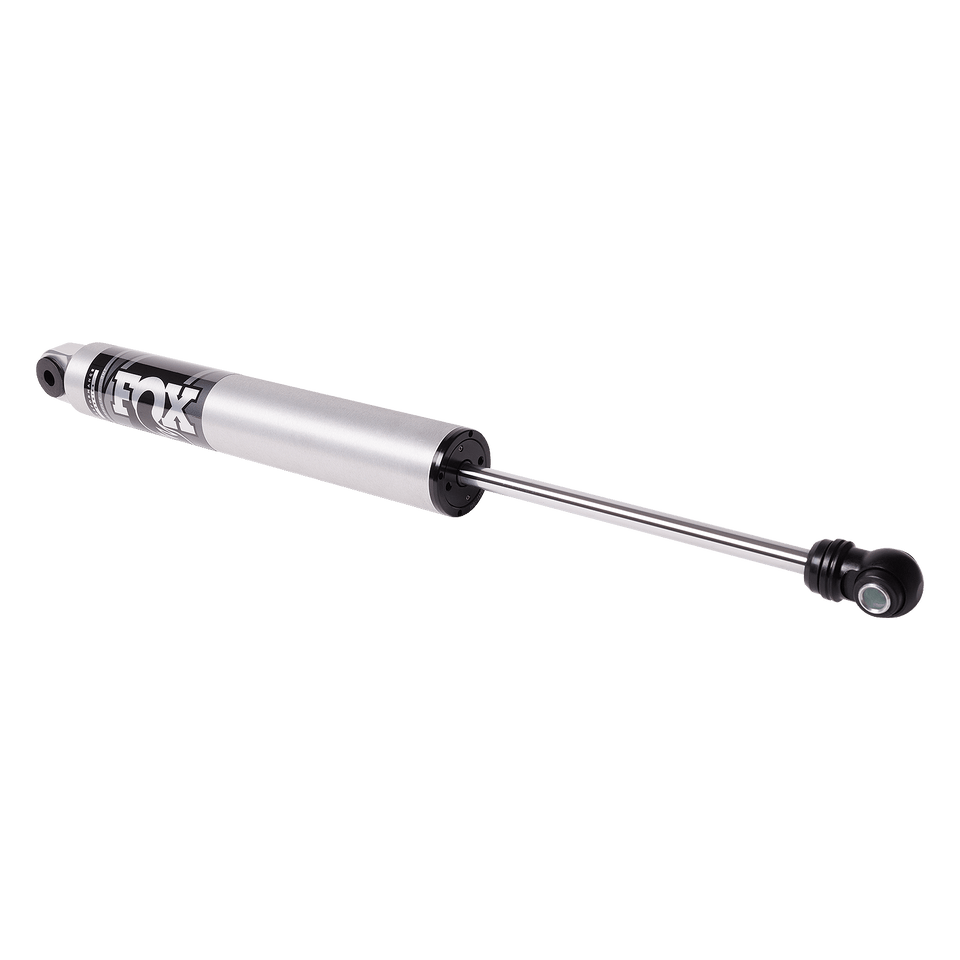

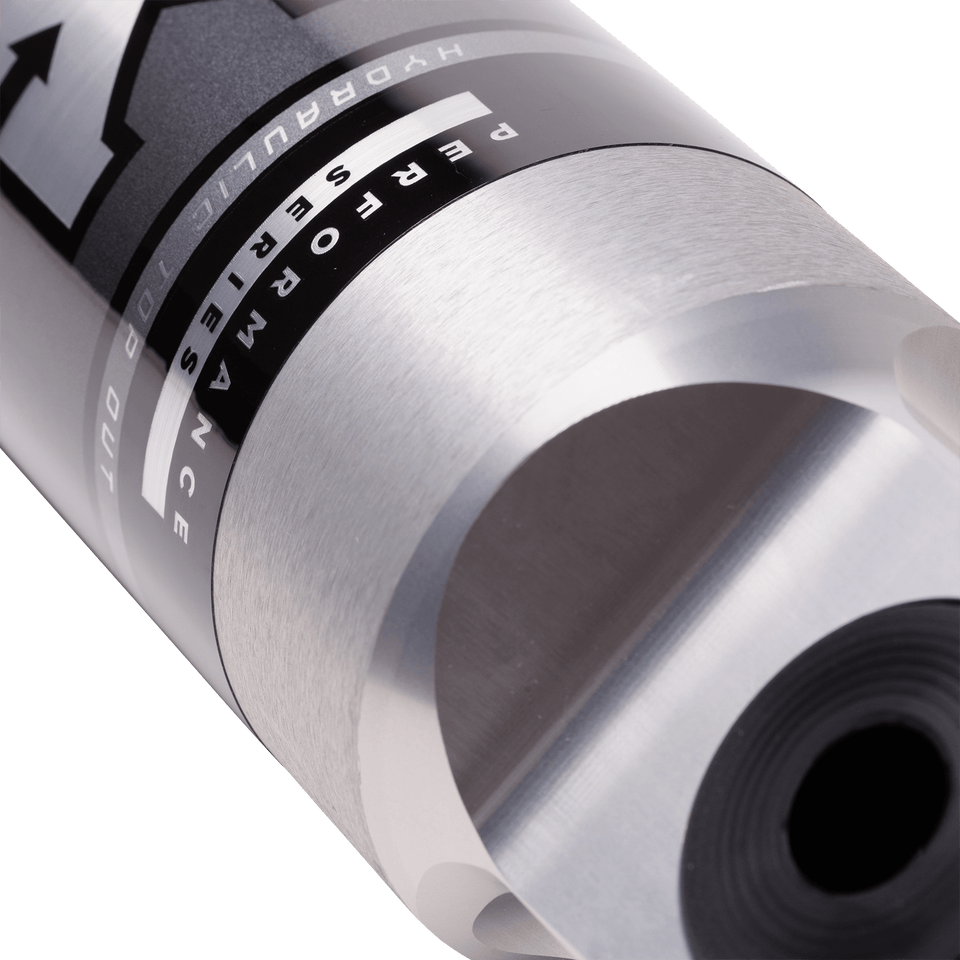

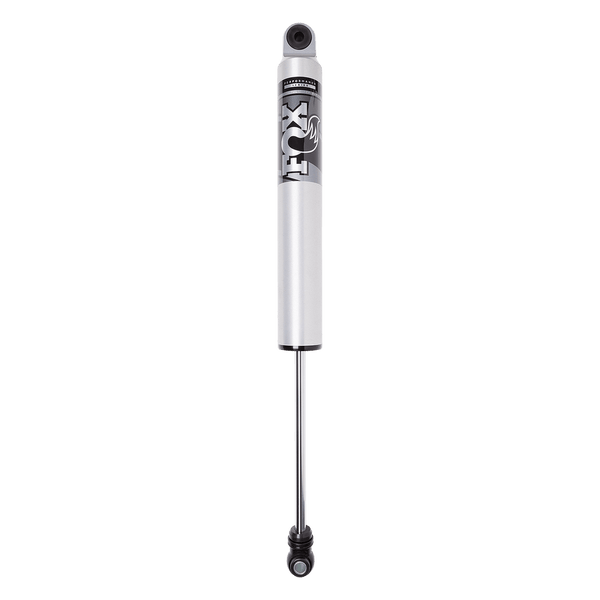

The Fox 2.5 Performance Series HTO shock is engineered for improved vehicle handling and comfort, featuring a robust hydraulic and nitrogen gas charged design. This shock utilizes position-sensitive technology and vehicle-specific valving to optimize performance across various terrains. The 2-1/2 inch impact extruded aluminum body is type II anodized, ensuring durability and resistance to corrosion while effectively dissipating heat during operation.
Incorporating an internal floating piston, the shock separates the shock oil from high-pressure nitrogen, enhancing damping capabilities. The Hydraulic Top Out technology minimizes harsh top-outs and provides a smoother ride by controlling shock shaft speed through a secondary shim stack. This feature is particularly advantageous for vehicles equipped with heavier tires or those lifted beyond OEM specifications.
Designed as a bolt-on solution, the Fox 2.5 Performance Series HTO shock is a single unit that increases damping capacity and ride comfort. Its high-flow velocity-sensitive damping system and 5/8 inch hard chrome shaft contribute to its superior performance, making it a reliable choice for both on-road and off-road applications.
Features
- 2-1/2 Inch Impact Extruded 6061-T6 Aluminum Shock Body
- Type II Clear-Anodized Body Plating
- High-Flow Velocity-Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Features Internal Floating Piston And Hydraulic Top Out Piston
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 987-24-021
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 33.88 Inch
- Compressed Length (IN): 21.29 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Body Color: Silver
- Valving Type: Non Adjustable Valving
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2017-2026 Ford F-250 Super Duty
- 2017-2026 Ford F-350 Super Duty
