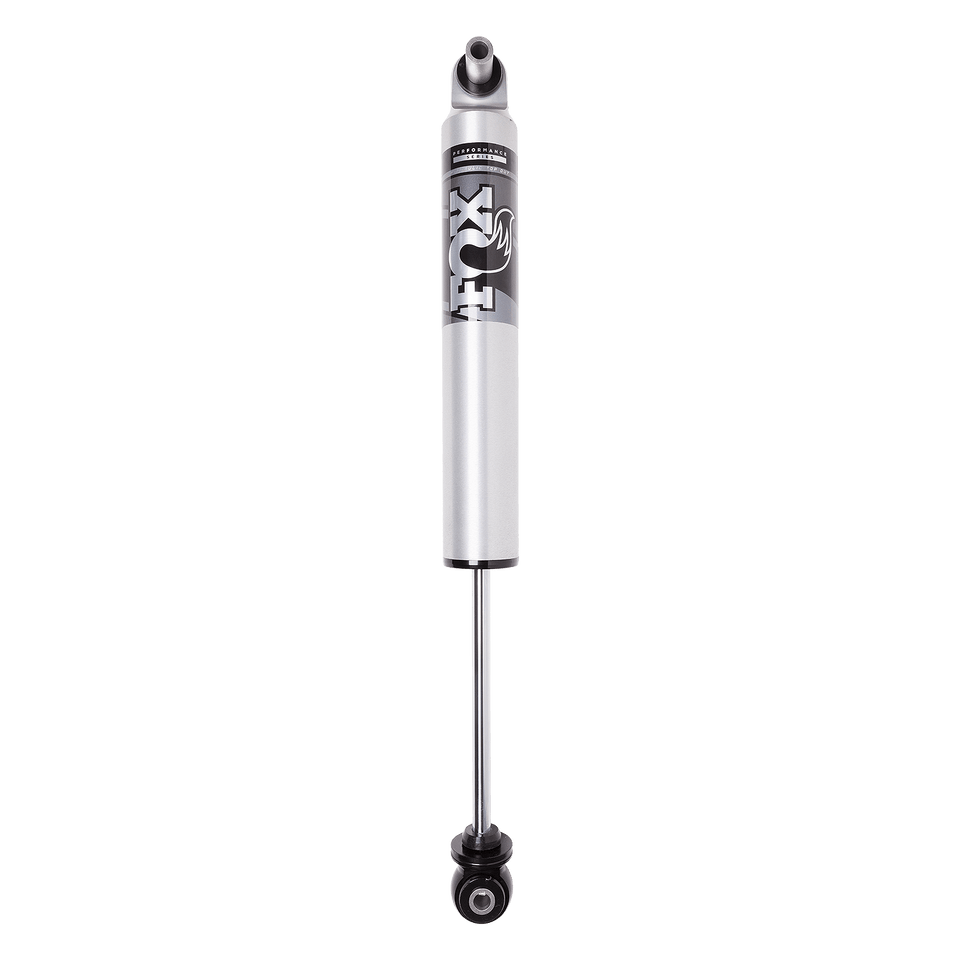

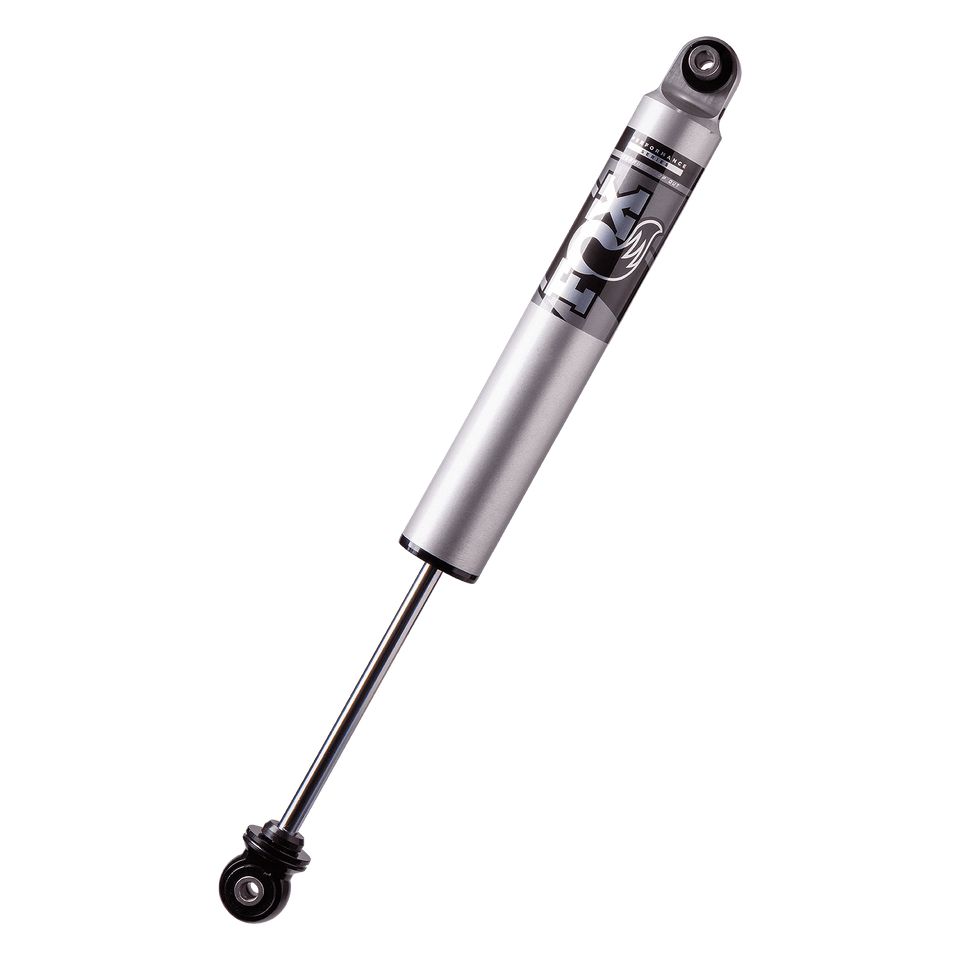

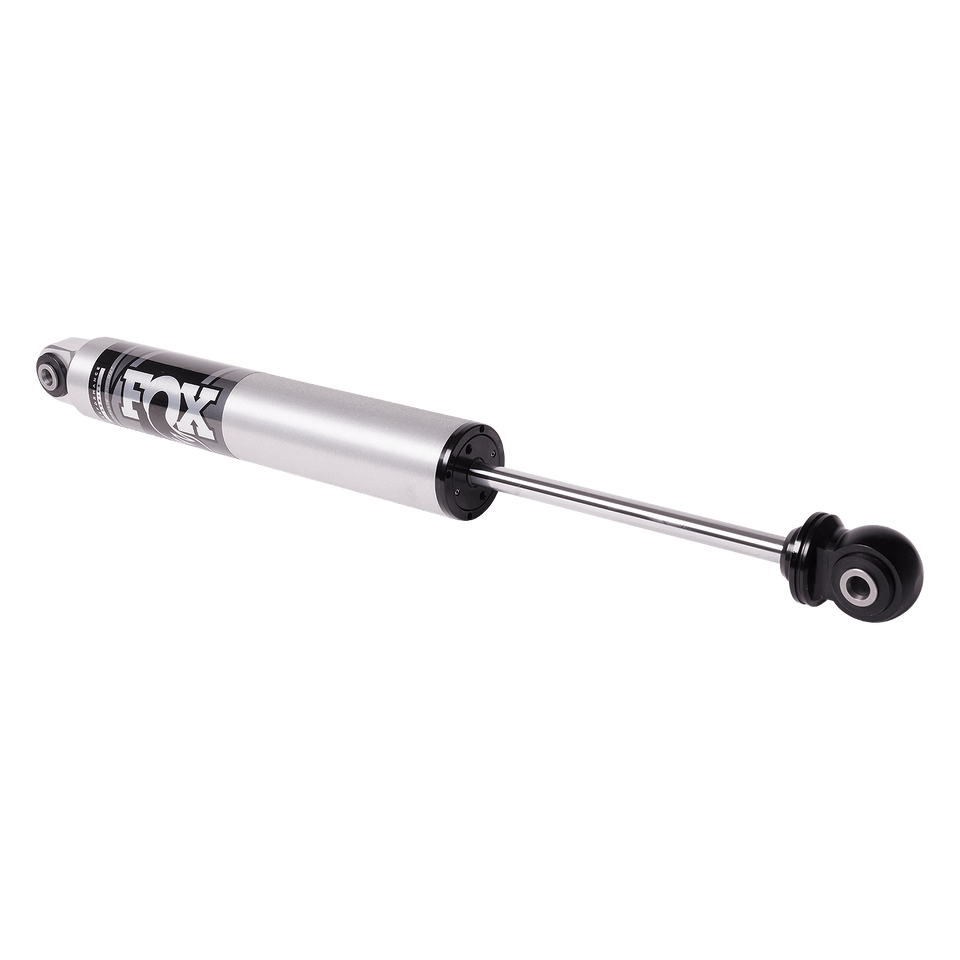

Fox Shocks 2.5 Performance Series HTO Shock (MPN: 987-24-005)

Enhance on and off-road performance with advanced damping technology.

The Fox 2.5 Performance Series HTO shock is engineered for improved vehicle handling and comfort in various terrains. This shock features a robust 2-1/2 inch impact extruded and CNC machined aluminum body that is hard anodized to resist corrosion and dissipate heat effectively. The internal floating piston design optimizes damping by separating the shock oil from high-pressure nitrogen, ensuring consistent performance under varying conditions.

Incorporating Hydraulic Top Out (HTO) technology, this shock provides position-sensitive rebound damping control, which enhances comfort and reduces harsh top-outs. This is particularly beneficial for vehicles equipped with heavier tires or those lifted beyond OEM specifications. The shock's vehicle-specific valving and larger pistons contribute to its superior performance, making it a reliable choice for both on-road and off-road applications.

The Fox 2.5 Performance Series HTO shock is designed for easy bolt-on installation, allowing for a straightforward upgrade to your vehicle's suspension system. With features such as a redundant sealing pack system and a durable hard-anodized finish, this shock is built to withstand the rigors of diverse driving conditions while providing precise control and improved damping capabilities.

Features

• 2-1/2 Inch Impact Extruded And CNC Machined 6061-T6 Hard Anodized Aluminum Body Resists Rust Over Time
• External Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
• Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components
• 7/8 Inch Hard Chrome Plated, Heat-Treated Alloy Steel Shaft
• Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
• Performance Elite Shocks Provide Improved Damping In Any Terrain
• Incredible Performance And Precise Control That Performance Elite Series 2.5 Reservoir Shocks Deliver
• Body Plating: Hard-Anodized For A Durable Finish

Specifications

• Manufacturer: Fox Shocks
• Manufacturer Part Number: 987-24-005
• Type: Hydraulic/ Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 24.7 Inch
• Compressed Length (IN): 15.84 Inch
• Upper Mounting Style: Cross Pin
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Single
• Universality: Vehicle Specific
• Internal Design: Monotube
• Body Color: Silver
• Rod Diameter (IN): 5/8 Inch
• Valving Type: Velocity Sensitive Valving
• Ride Height Adjustable: Yes
• Body Material: Aluminum
• With Reservoir: No
• Includes Dust Shield: No
• Includes Boot: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2014-2025 Ram 2500

Technical Documents

• 605_01_053_REV_C.pdf
