Fox Shocks 2.0 Factory Series Steering Stabilizer (MPN: 983-02-144)

Advanced steering stabilizer with adjustable damping for enhanced control.

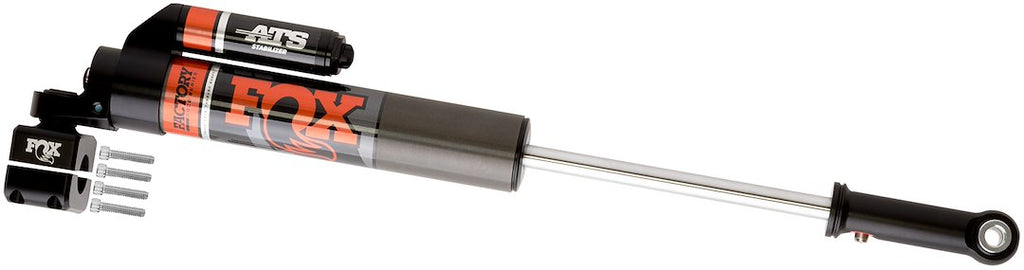

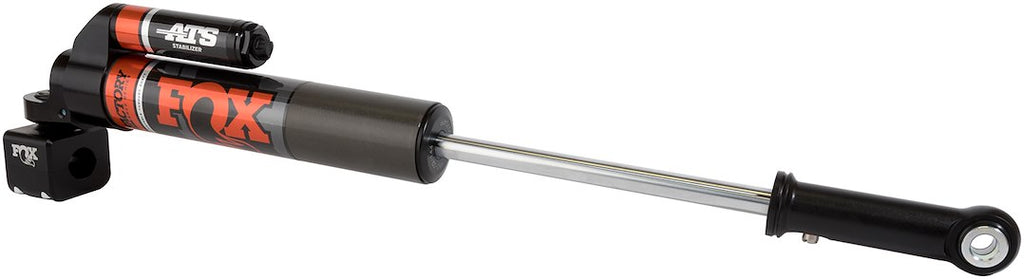

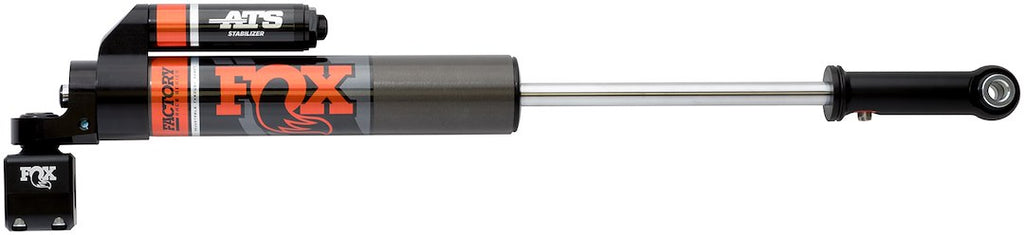

The Fox Shocks 2.0 Factory Series Steering Stabilizer is engineered to provide superior steering control and feedback management. Utilizing an Adjustable Through Shaft (ATS) architecture, this stabilizer minimizes fluid displacement throughout its travel, ensuring consistent performance in both directions. The external piggyback reservoir increases fluid capacity and features an Internal Floating Piston (IFP) that effectively separates the shock oil from the nitrogen gas charge, preventing cavitation and enhancing reliability.

Designed for versatility, the stabilizer includes an external adjuster with 24 clicks of adjustment, allowing users to fine-tune the damping characteristics to match their driving style and vehicle setup. The robust construction features a 2.0 inch impact extruded and CNC machined aluminum body that is hard-anodized for durability and resistance to rust. The high-flow piston design and advanced JM92 suspension fluid ensure optimal performance across a range of temperatures, while the redundant sealing pack system enhances longevity and reliability.

This single stabilizer is a straightforward bolt-on solution that eliminates the need for dual opposing stabilizers, simplifying installation and reducing space requirements. With its innovative design and high-quality materials, the Fox Shocks 2.0 Factory Series Steering Stabilizer is a reliable choice for those seeking improved steering response and control.

Features

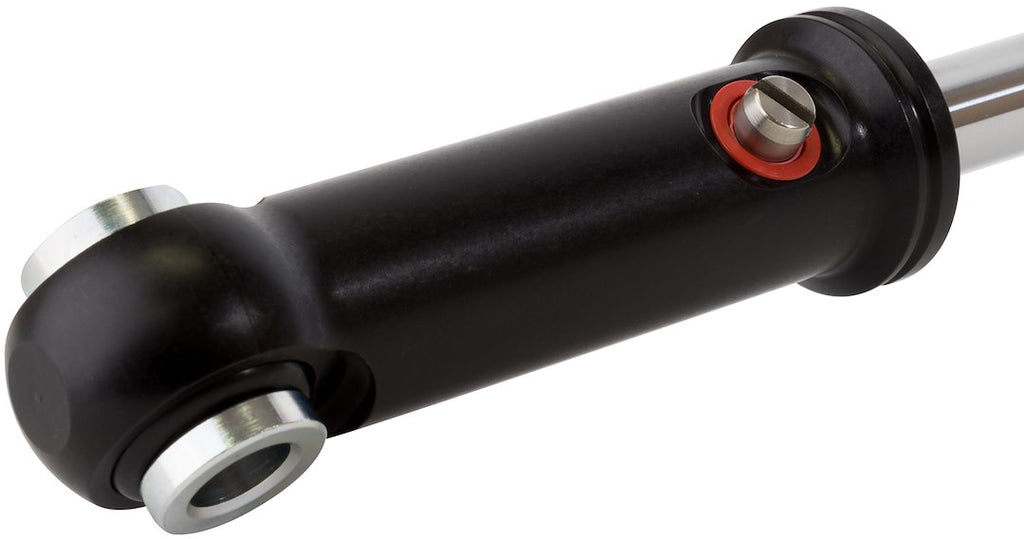

• Body: 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum Body Resists Rust Over Time
• Body Plating: Hard-Anodized For A Durable Finish
• Reservoir: External Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
• Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
• Piston: Race-Developed High-Flow Piston Design
• Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
• Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
• Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation
• Adjustments: Adjuster - 24 Clicks Of Adjustability

Specifications

• Manufacturer: Fox Shocks
• Manufacturer Part Number: 983-02-144
• Type: Single
• Color: Black
• Internal Design: Mono Tube
• Diameter (IN): 2 Inch
• Finish: Anodized
• Material: Aluminum
• Includes Mounting Brackets: No
• Boot Color: Without Boot
• Estimated Install Time (Hours): 1

Compatibility / Fit

• 2008-2016 Ford F-250 Super Duty
• 2008-2016 Ford F-350 Super Duty

Technical Documents

• 605-01-124-REV_A.pdf
