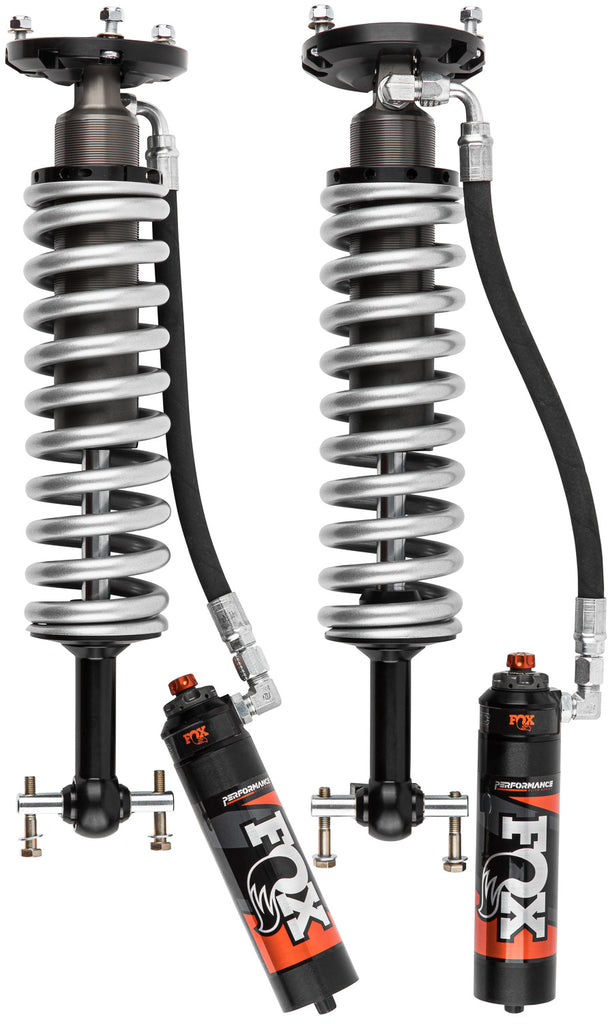

Fox Off-Road Performance Series Coil-Over Shock Absorber (MPN: 883-06-162)

Advanced suspension technology for enhanced off-road performance and comfort.

The Fox Off-Road Performance Series Coil-Over Shock Absorber is engineered for durability and performance in challenging terrains. Featuring a precision machined aluminum body, this shock absorber offers increased cooling capacity and resistance to rust. The design includes adjustable ride height capabilities ranging from 1.5 to 3.5 inches, allowing for customization based on vehicle requirements. With dual speed compression adjustment, users can fine-tune damping for both high and low-speed conditions, ensuring optimal handling and comfort.

Constructed with high-quality materials, the shock absorber includes a smooth-bore, zinc plated, honed seamless alloy body and components made from black anodized 6061-T6 billet aluminum. The 7/8 inch hard chrome plated heat treated alloy steel shaft and race-developed high-flow piston design contribute to its robust performance. The redundant sealing pack system enhances reliability, while the JM92 advanced suspension fluid ensures consistent performance across varying temperatures.

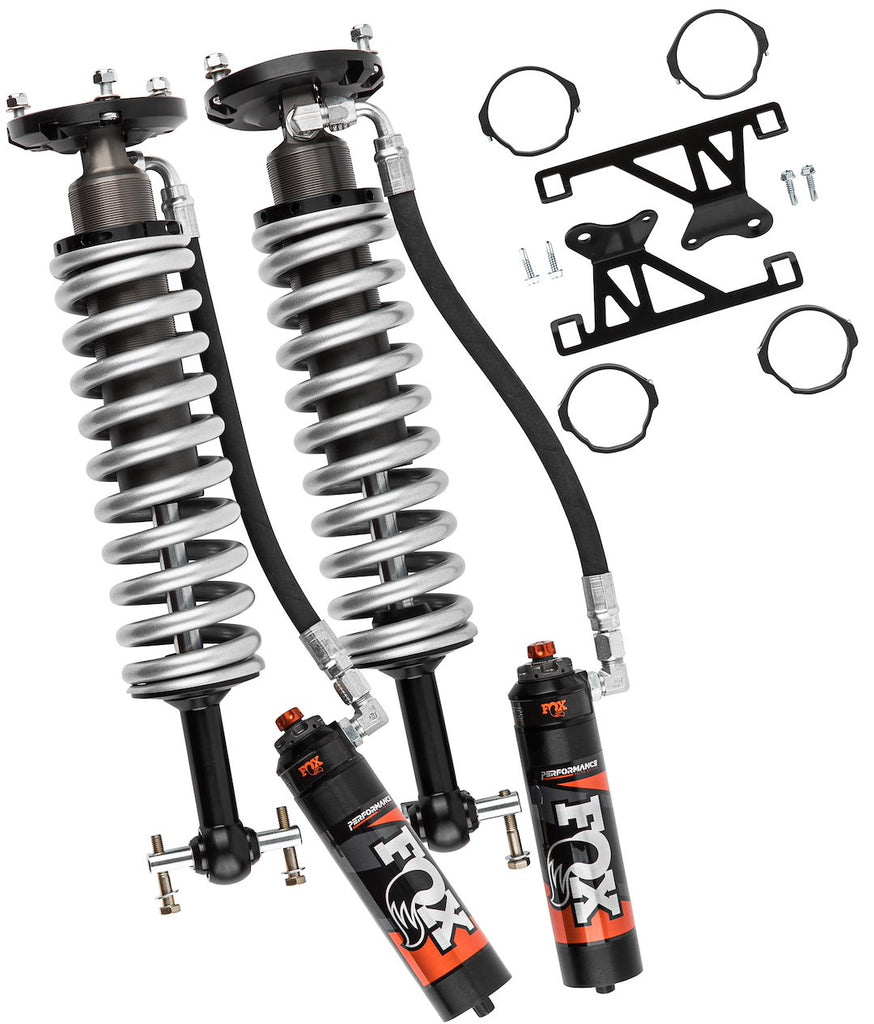

This set of two coil-over shock absorbers is designed for easy installation with OEM upper mounting and cross pin lower mounting types. The adjustable valving allows for personalized tuning, making it suitable for a range of off-road applications. The braided steel hose and replaceable PTFE-lined bearings further enhance durability, making the Fox Off-Road Performance Series Coil-Over Shock Absorber a reliable choice for serious off-road enthusiasts.

Features

• Body: Smooth-Bore, Zinc Plated, Honed Seamless Alloy Bodies
• Components: Black Anodized 6061-T6 Billet Aluminum
• Shaft: 7/8 Inch Hard Chrome Plated Heat Treated Alloy Steel
• Piston: Race-Developed High-Flow Piston Design
• Valving: Tunable Velocity-Sensitive Deburred Valve Shims
• Seals: Redundant Sealing Pack System, Main Seal, Wiper Seal, Scraper Seal
• Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
• Hose: Braided Steel Hose For Maximum Durability With High-Flow Fittings
• Bearings: Replaceable PTFE-Lined, Heat Treaded, Alloy Steel Spherical. 1/2 Inch Bolt X 1-1/4 Inch Wide

Specifications

• Manufacturer: Fox Shocks
• Manufacturer Part Number: 883-06-162
• Adjustable: Yes
• Upper Mounting Type: OEM
• Lower Mounting type: Cross Pin
• Front/Rear Drop (IN): 3-1/2 Inch
• Extended Height (IN): 23.62 Inch
• Compressed Height (IN): 17.74 Inch
• Quantity: Set Of 2
• Valving Type: Adjustable Valving
• Shock Type: Gas Charged
• Shock Body Color: Black/ Silver
• Shock Body Material: Aluminum
• Spring Style: Single Flat End

Compatibility / Fit

• 2020-2021 Chevrolet Silverado 1500
• 2023-2025 Chevrolet Silverado 1500
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model

Technical Documents

• 605-01-259_REV_B-Color.pdf
