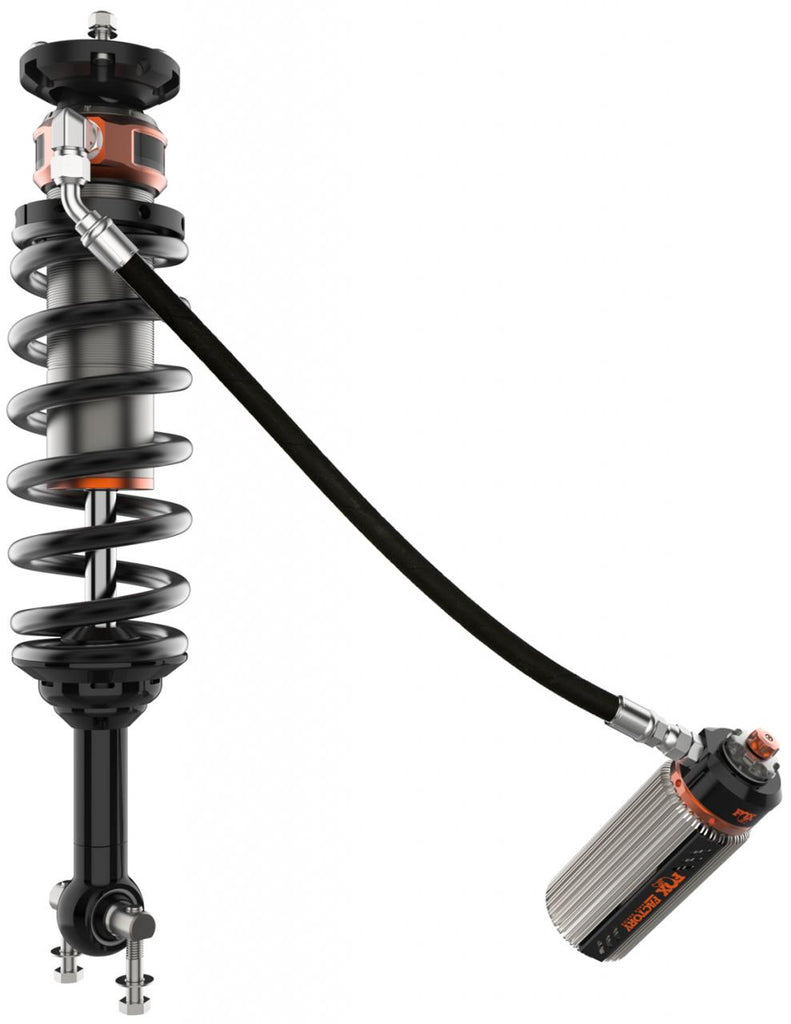

Fox Factory Race Series 3.0 Shock Absorber (MPN: 883-06-204)

Advanced damping technology for enhanced ride quality and control.

The Fox Factory Race Series 3.0 Internal Bypass shocks are engineered for the Ford Bronco, providing superior position-sensitive damping technology. With Dual Speed Compression (DSC) adjustment, these shocks allow for precise tuning based on load, environment, and driving style, ensuring optimal performance across various terrains. The patented Internal Bypass design enhances damping control, effectively managing both high and low-speed impacts for a smoother ride.

Constructed from 6061-T6 hard-anodized aluminum, the 3.0 inch diameter shock bodies are designed to withstand harsh conditions while maintaining low fluid temperatures through finned external reservoirs. The redundant sealing pack system, including main, wiper, and scraper seals, ensures durability and reliability in performance. The vehicle-specific valving maximizes comfort and control, making these shocks suitable for both casual driving and off-road adventures.

With an adjustable ride height ranging from 3 to 4.5 inches, these shocks provide versatility for various applications. The application-specific springs enhance articulation and stability, making them a valuable addition to any Ford Bronco. The combination of advanced materials and innovative design makes the Fox Factory Race Series 3.0 shocks a top choice for those seeking enhanced performance and ride quality.

Features

• 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body
• Patented, Internal Bypass Design
• Application-Specific Springs
• 7/8 Inch Hard Chrome-Plated Steel Shafts
• Vehicle-Specific Valving To Maximize Performance
• Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
• Position- And Velocity-Sensitive Damping Maximize Comfort And Control Through Any Terrain
• Tune Vehicle For Load, Environment, And Driving Style With DSC Adjusters
• Vehicle-Specific Springs Enhance Articulation And Increase Stability

Specifications

• Manufacturer: Fox Shocks
• Manufacturer Part Number: 883-06-204
• Adjustable: Yes
• Upper Mounting Type: Strut
• Lower Mounting type: Cross Pin
• Front/Rear Drop (IN): 3 To 4-1/2 Inch Lift
• Extended Height (IN): 23.44 Inch
• Compressed Height (IN): 17.95 Inch
• Quantity: Set Of 2
• Valving Type: Application Specific Valving
• Shock Type: Gas Charged
• Shock Body Color: Black
• Shock Body Material: Aluminum
• Spring Color: Black

Compatibility / Fit

• 2021-2026 Ford Bronco

Technical Documents

• 605-01-324-REV-B.pdf
