Advanced damping technology for enhanced off-road performance and comfort.

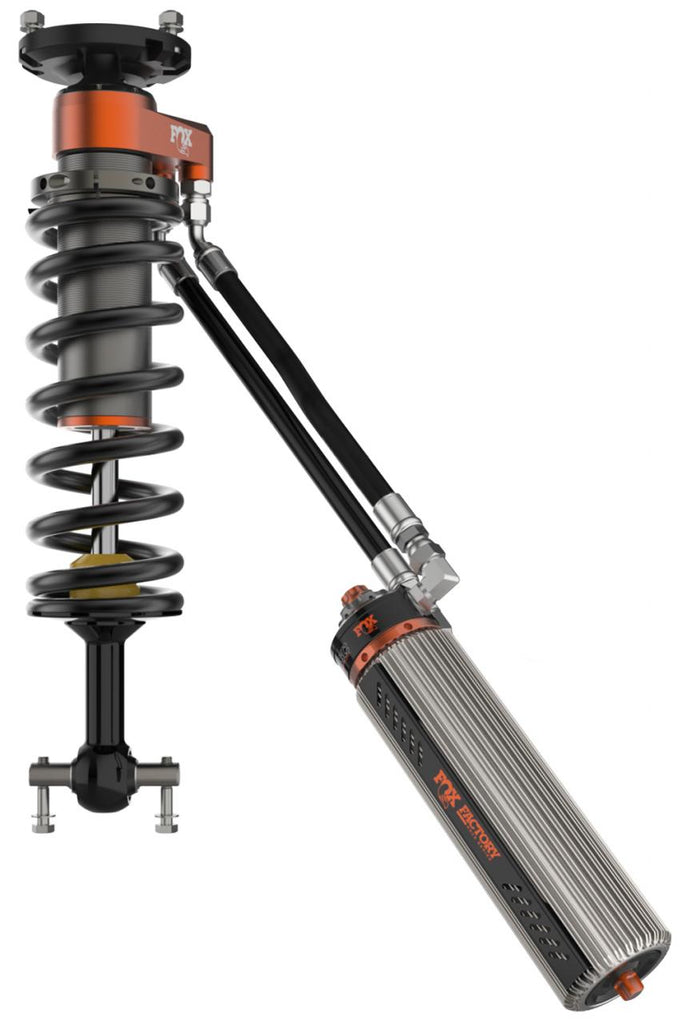

The Fox Factory Race Series 3.0 Internal Bypass shocks are engineered for the Chevrolet/GM 1500, providing superior position-sensitive damping technology. These shocks feature Dual Speed Compression (DSC) adjustment, allowing for precise tuning of high and low-speed damping to suit various driving conditions. The patented Internal Bypass design enhances performance by controlling damping force through multiple zones, resulting in a smoother ride over rough terrain while preventing harsh bottom-outs and top-outs.
Constructed from 3.0 inch impact extruded and CNC machined 6061-T6 hard-anodized aluminum, these shocks are lightweight and resistant to corrosion. The aluminum finned remote reservoir, equipped with a recirculating reservoir bridge, ensures efficient heat dissipation, maintaining optimal shock temperatures during operation. The high-flow piston design and application-specific valving further maximize performance, making these shocks suitable for demanding off-road environments.
The redundant sealing pack system, which includes a main seal, wiper seal, and scraper seal, effectively resists leaks in harsh conditions, ensuring durability and reliability. Additionally, the PTFE-lined, heat-treated alloy steel spherical bearings provide smooth and quiet shock movement. With tool-free adjustment capabilities, the Fox Factory Race Series 3.0 shocks are designed to meet the needs of serious off-road enthusiasts.
Features
- 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel
- Hard-Anodized For A Durable Finish
- Aluminum Finned Remote Reservoir With Recirculating Reservoir Bridge Dissipates Heat Fast
- Shaft 7/8 Inch Hard Chrome Plated Heat-Treated Alloy
- Race-Developed High-Flow Piston Design
- Patented, Internal Bypass Design, Application-Specific Valving To Maximize Performance
- Redundant Sealing Pack System Main Seal, Wiper Seal, And Scraper Seal Resist Leaks In Harsh Conditions
- PTFE-Lined, Heat-Treated, Alloy Steel Spherical Keep The Shock Movement Quiet And Smooth
- Dual Speed Compression Adjusters Allow Tool-Free High And Low-Speed Compression Adjustment
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 883-06-175
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Cross Pin
- Front/Rear Drop (IN): 3-1/2 Inch Front
- Extended Height (IN): 22.74 Inch
- Compressed Height (IN): 17.15 Inch
- Quantity: Set Of 2
- Valving Type: Application Specific Valving
- Shock Type: Gas Charged
- Shock Body Color: Gray
- Shock Body Material: Aluminum
- Spring Finish: Anodized
- Spring Color: Black
- Spring Material: Aluminum
- Includes Mounting Hardware: No
Compatibility / Fit
- 2020-2021 Chevrolet Silverado 1500
- 2023-2025 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
- 2019-2019 Chevrolet Silverado 1500- New Model
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2020-2021 GMC Sierra 1500
- 2023-2026 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500 Limited- Old Model
- 2019-2019 GMC Sierra 1500- New Model
- 2022-2022 GMC Sierra 1500- New Model
