Advanced damping technology for enhanced performance and comfort on rough terrain.

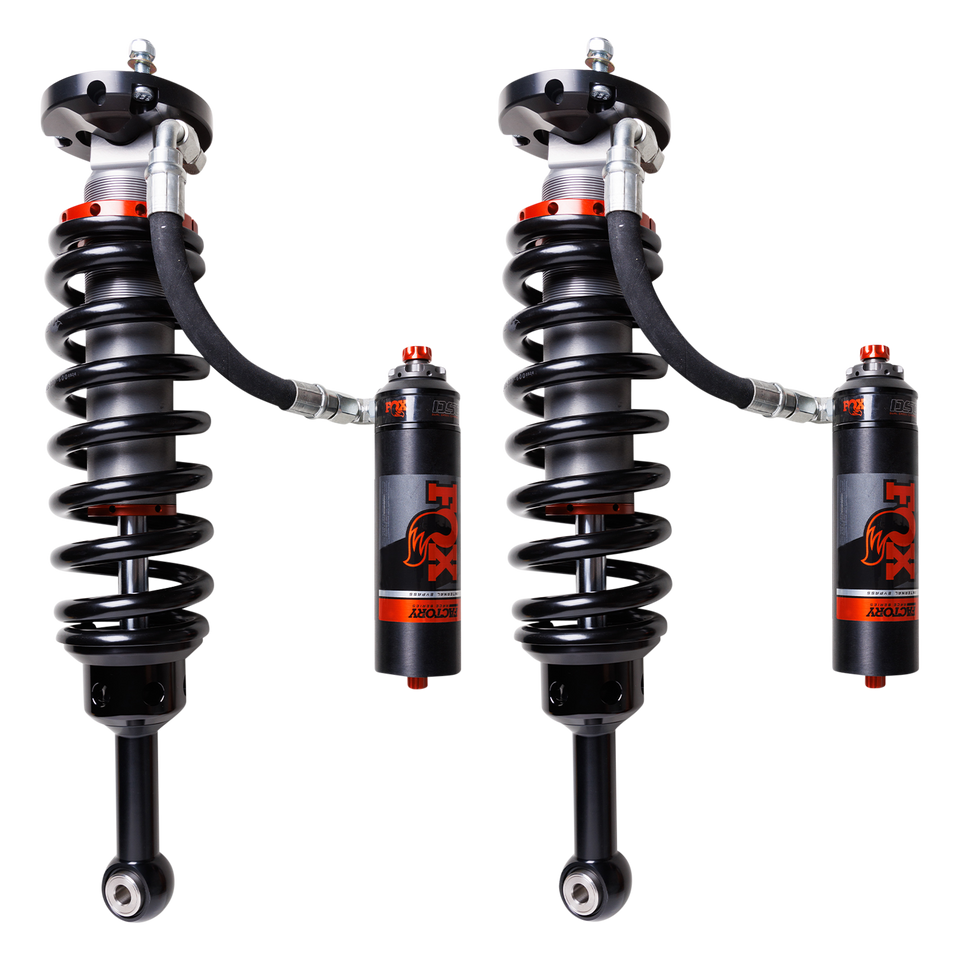

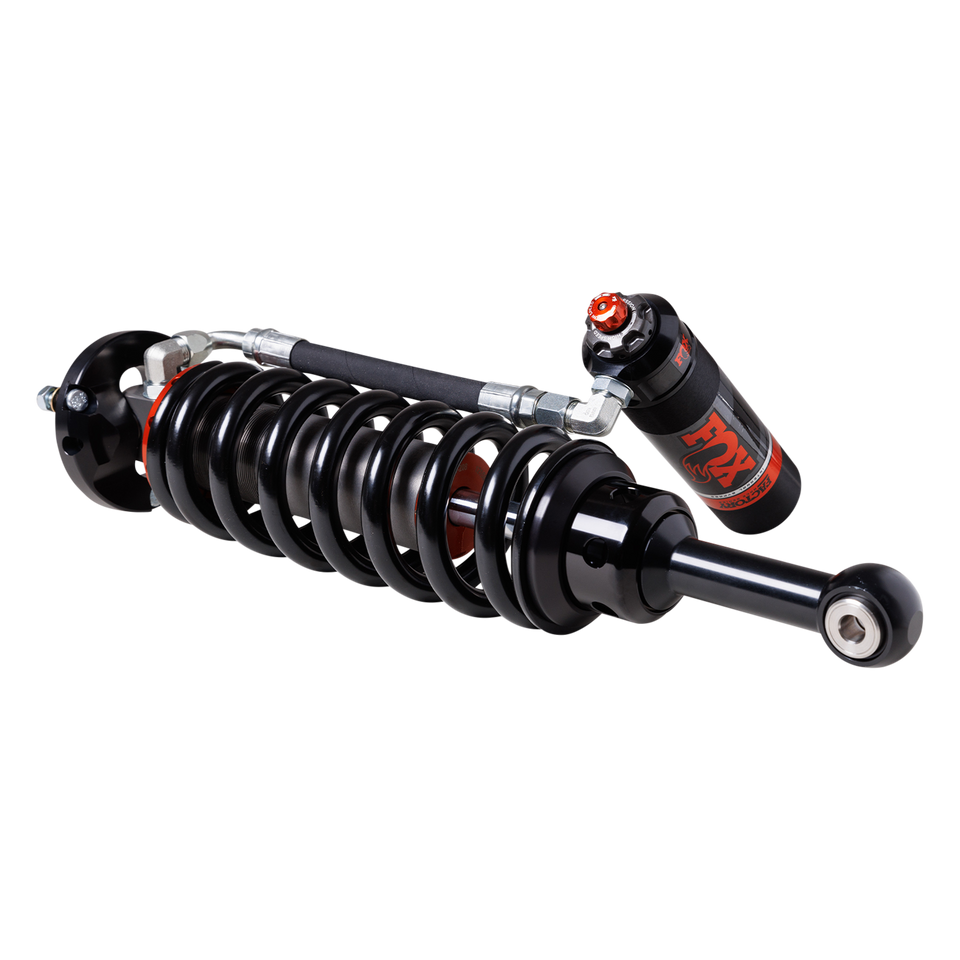

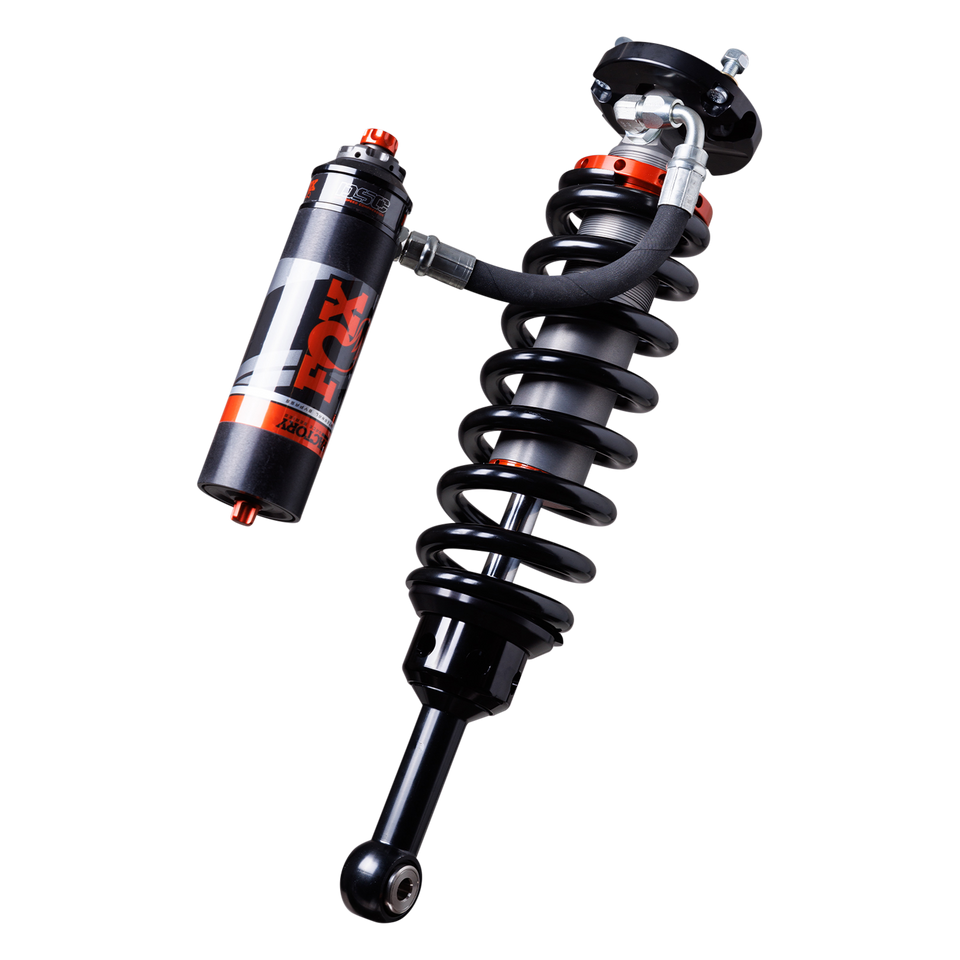

The Fox Factory Race Series 2.5 Internal Bypass shocks are engineered for the Toyota Tacoma, providing superior velocity and position-sensitive damping technology. These shocks feature Dual Speed Compression adjustment, allowing users to fine-tune their ride for various loads and driving conditions. The patented Internal Bypass design enhances damping capacity, effectively managing hard bottom-outs and preventing harsh top-outs, resulting in a smoother ride over challenging surfaces.
Constructed from 6061-T6 Type III anodized aluminum, the 2.5 inch diameter shock bodies are designed to resist corrosion and wear, ensuring longevity and reliability. The external reservoirs increase oil capacity and maintain consistent damping performance by separating the shock oil and nitrogen charge. This design helps keep shock temperatures low, enhancing overall performance.
With adjustable ride height capabilities ranging from 2 to 3 inches, these shocks can be tailored to meet specific vehicle requirements. The redundant sealing pack system, including main seal, wiper seal, and scraper seal, ensures optimal performance and durability. The Fox Factory Race Series shocks are a robust solution for those seeking enhanced control and comfort in their off-road adventures.
Features
- 2.5 Inch Impact-Extruded And CNC-Machined 6061-T6 Type III Anodized Aluminum Body
- Patented Internal Bypass Design
- 7/8 Inch Hard Chromed Steel Shafts
- Redundant Sealing Pack System Main Seal Wiper Seal Scraper Seal

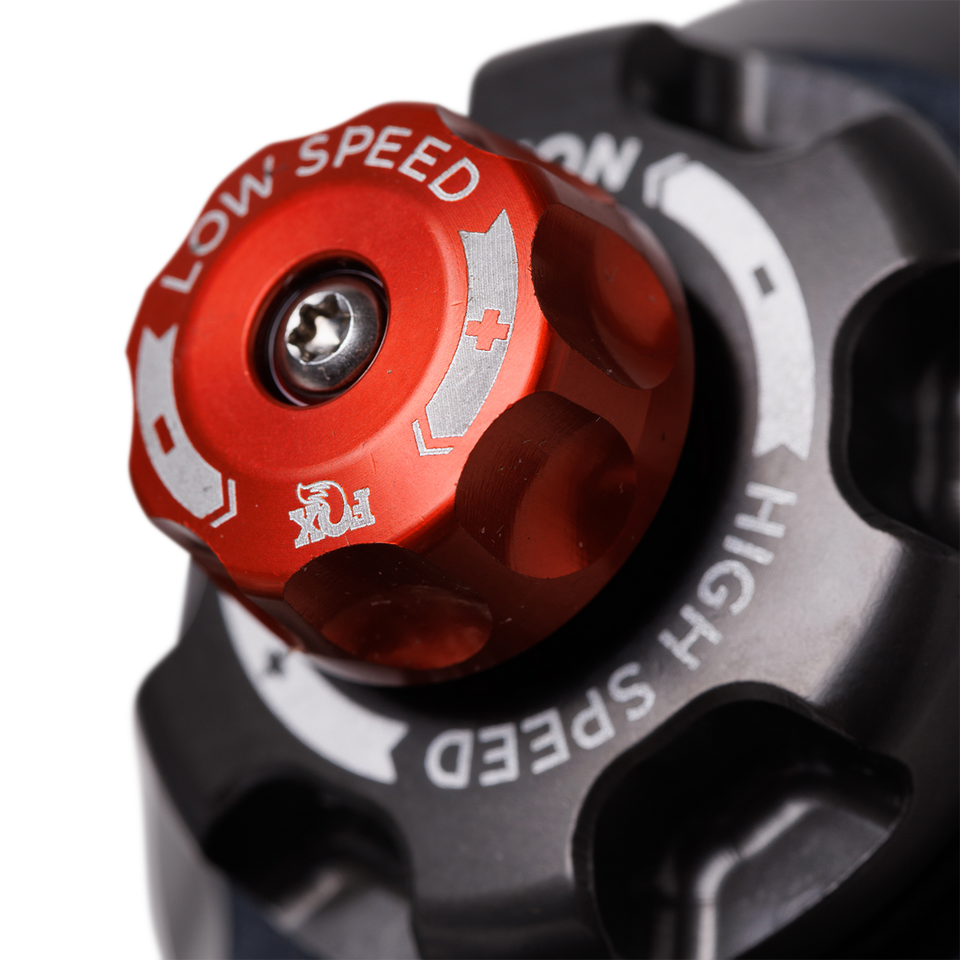

- External Reservoir With DSC Adjuster
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 883-06-208
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2 To 3 Inch Lift
- Extended Height (IN): 21.87 Inch
- Compressed Height (IN): 16.64 Inch
- Quantity: Set Of 2
- Valving Type: Application Specific Valving
- Shock Type: Hydraulic
- Shock Body Color: Black/ Gray
- Shock Body Material: 6061-T6 Billet Aluminum
- Spring Color: Black

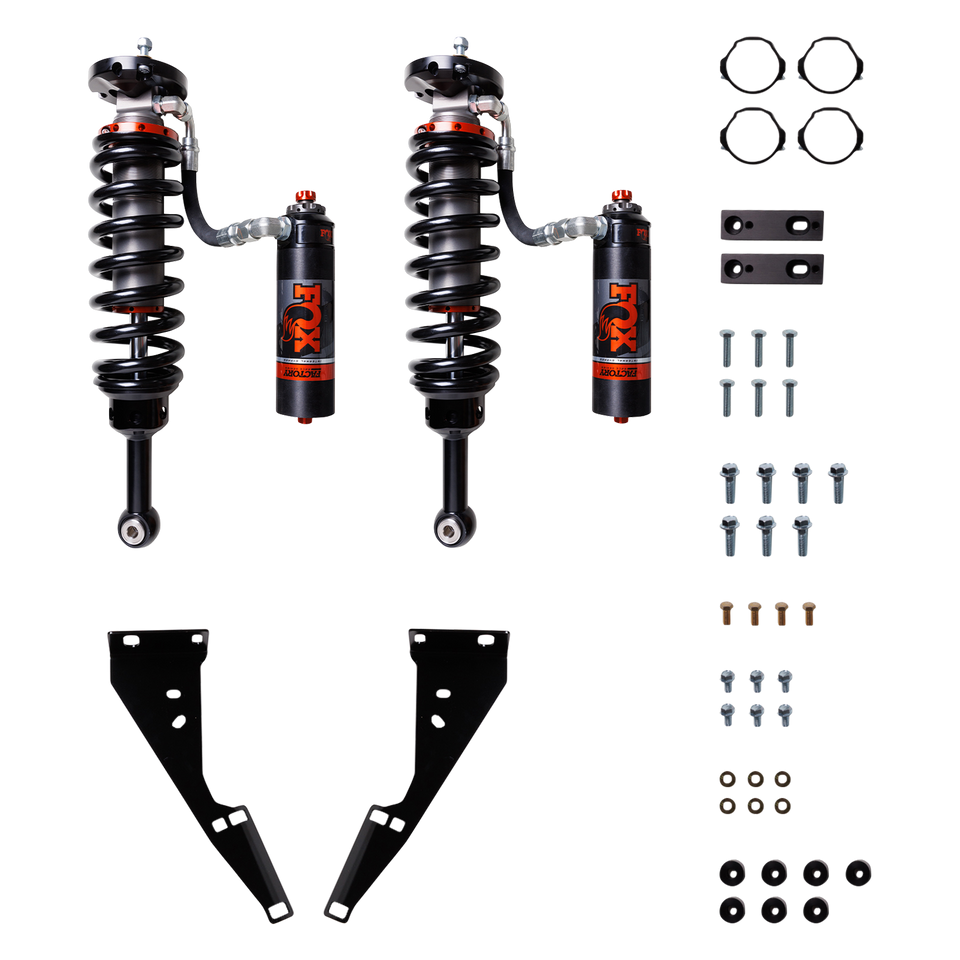

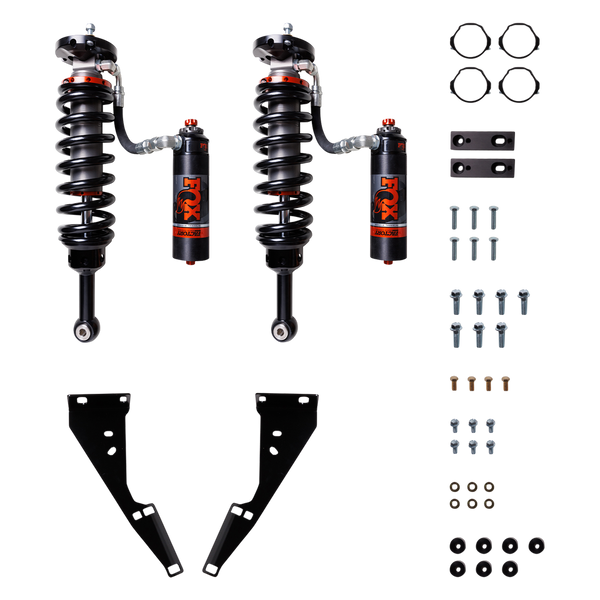

- Includes Mounting Hardware: Yes
Compatibility / Fit
- 2005-2023 Toyota Tacoma
