Engineered for performance in diverse driving conditions.

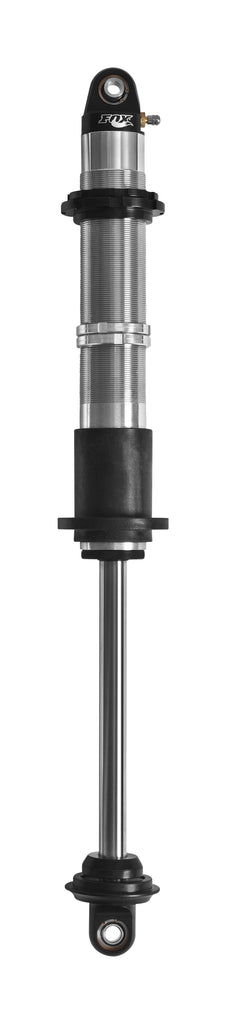

The Fox Coil Over Shock Absorber is designed to deliver superior performance across various terrains, from racing circuits to off-road environments. With an extended height of 26.15 inches and a compressed height of 16.15 inches, this shock absorber provides adjustable settings to meet specific vehicle requirements. Constructed with smooth-bore, clear coated, zinc plated, honed seamless alloy bodies, it ensures durability and reliability under extreme conditions.
The shock features a race-developed high flow piston design and proprietary deburred valve shims, enhancing responsiveness and control. Its redundant sealing pack system, which includes a main seal, wiper seal, and scraper seal, offers enhanced protection against contaminants. Additionally, the shock is 100 percent rebuildable and revalveable, allowing for long-term use and maintenance.
Manufactured by Fox Shocks, this hydraulic shock absorber is built with high-quality materials, including black anodized 6061-T6 billet aluminum and steel components. The application-specific valving ensures optimal performance tailored to your vehicle's needs, making it a versatile choice for both daily drivers and high-performance builds.
Features
- Smooth-Bore, Clear Coated, Zinc Plated, Honed Seamless Alloy Bodies
- Black Anodized 6061-T6 Billet Aluminum
- Race Developed High Flow Piston Design
- Proprietary Deburred Valve Shims
- Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal. Optional High Temperature Viton Seals
- Fox Formulated For Ultimate Performance At Variable Temperatures
- 100 Percent Rebuildable And Revalveable
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 980-02-354
- Adjustable: Yes
- Upper Mounting Type: Eyelet
- Lower Mounting type: Eyelet
- Extended Height (IN): 26.15 Inch
- Compressed Height (IN): 16.15 Inch
- Quantity: Single
- Valving Type: Application Specific Valving
- Shock Type: Hydraulic
- Shock Body Color: Silver
- Shock Body Material: Steel
- Spring Height (IN): Application Specific
- Spring Rate: Not Applicable
- Spring Style: Application Specific Adjustable
- Spring Finish: Powder Coated
- Spring Color: Silver
- Spring Material: Steel
