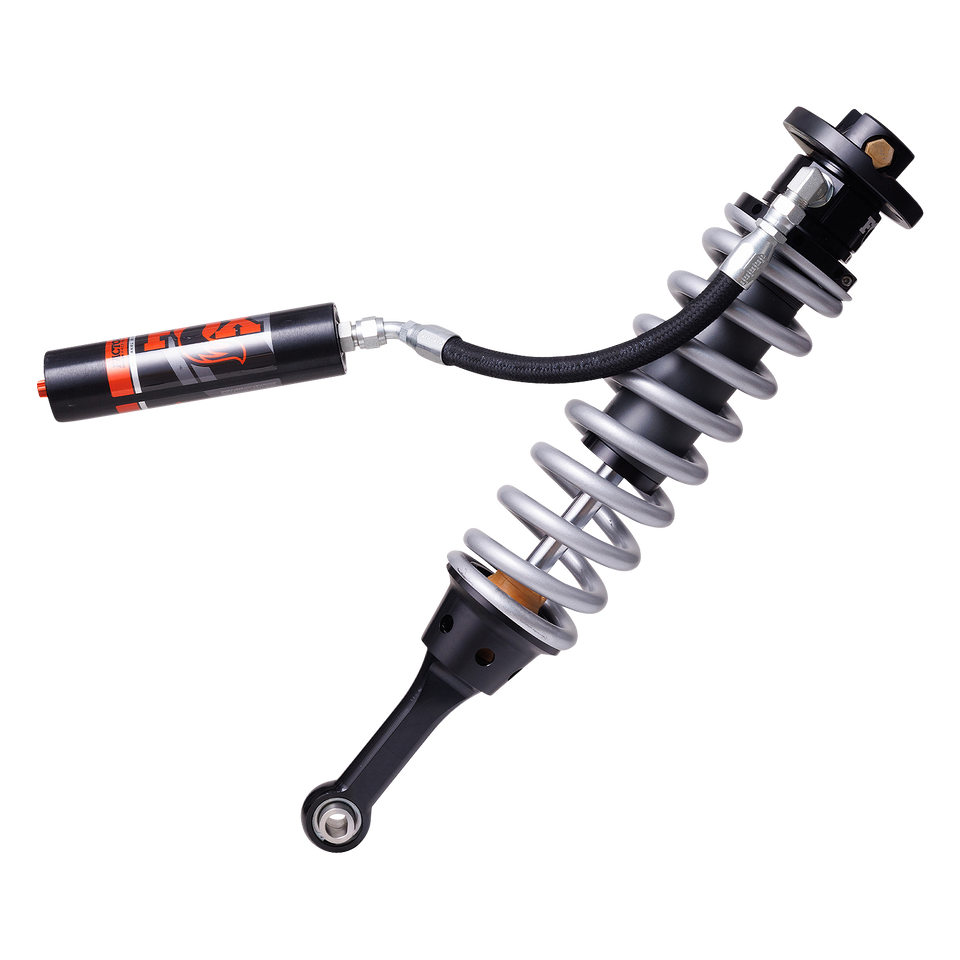

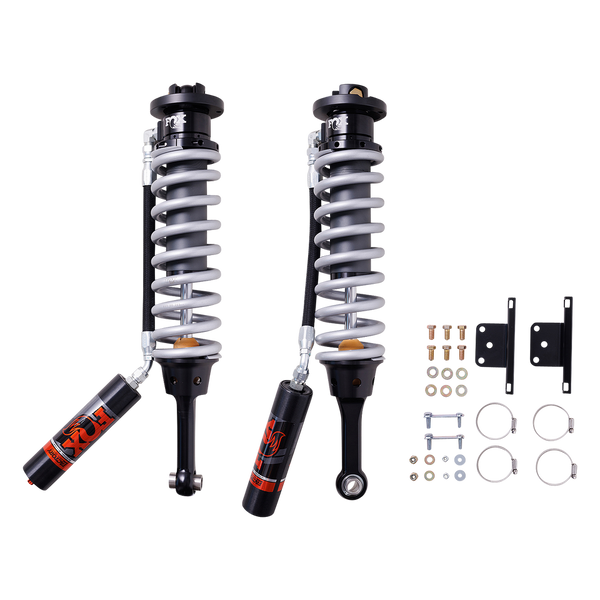

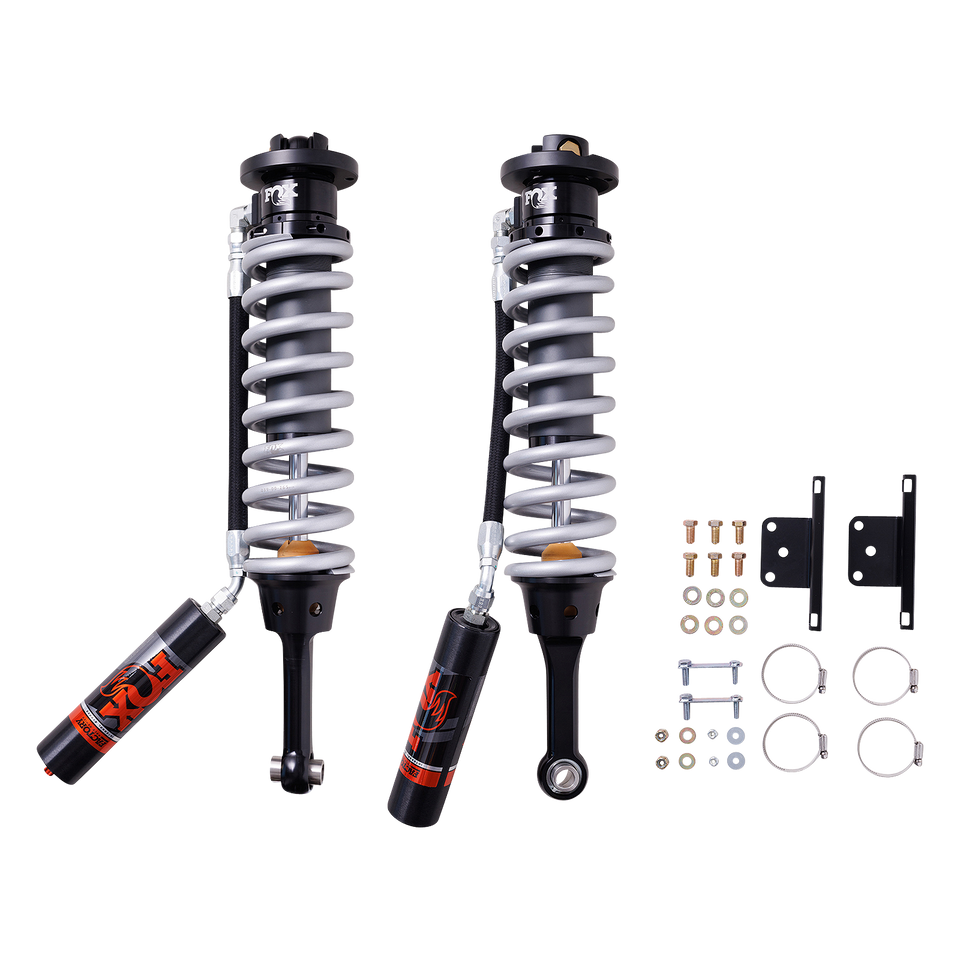

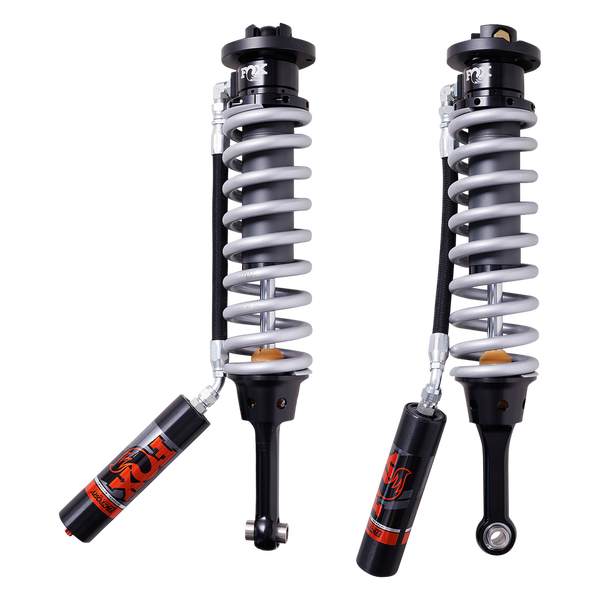

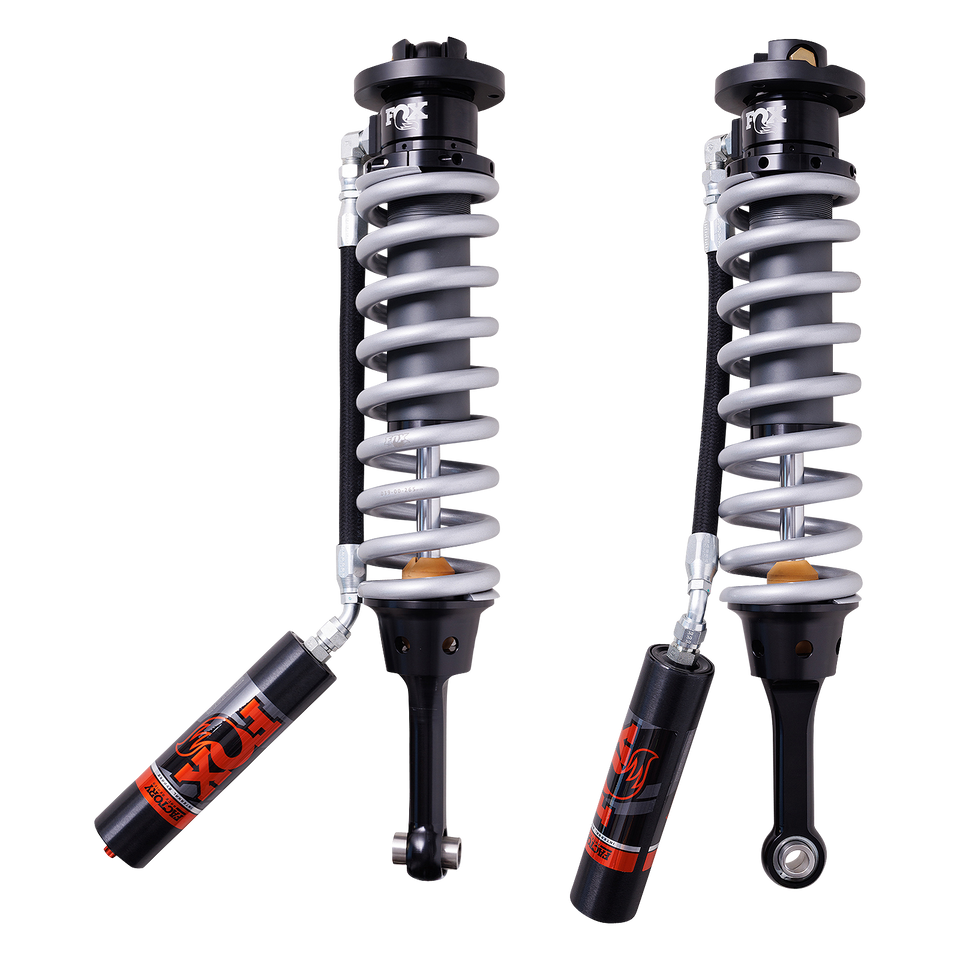

Fox 3.0 Factory Series Coil Over Shock Absorber (MPN: 883-02-233)

Maximize wheel travel and enhance off-road performance with advanced damping technology.

The Fox 3.0 Factory Race Series Coil-over Shock Absorber is engineered for high-performance off-road applications. Featuring a durable Cerakote plated seamless alloy body, these shocks are designed to withstand extreme conditions while providing a plush ride. The external reservoir system enhances cooling capabilities, allowing for consistent performance during demanding use. With application-specific valving, these shocks maximize performance and ensure a predictable ride over various terrains.

These heavy-duty shocks come pre-set to level your vehicle and offer adjustable ride height from 0 to 2 inches. The integrated coil spring allows for preload adjustments, ensuring optimal vehicle dynamics. Constructed with anodized CNC machined aluminum components and stainless steel shock shafts, the Fox 3.0 shocks are built for longevity and reliability. The proprietary racing oil and high-temperature Viton seals further enhance their durability, making them suitable for both casual and competitive off-road driving.

Features

• Durable Cerakote Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components
• Application Specific Valving To Maximize Performance
• Redundant Sealing Pack System Main Seal Wiper Seal Scraper Seal Optional High Temperature Viton Seals

Specifications

• Manufacturer: Fox Shocks
• Manufacturer Part Number: 883-02-233
• Adjustable: No
• Upper Mounting Type: Strut
• Lower Mounting type: Eyelet
• Front/Rear Drop (IN): 0 To 2 Inch Lift
• Extended Height (IN): 27.97 Inch
• Compressed Height (IN): 20.44 Inch
• Quantity: Set Of 2
• Valving Type: Non Adjustable Valving
• Shock Type: Hydraulic
• Shock Body Color: Black
• Shock Body Material: 6061-T6 Billet Aluminum
• Spring Color: Silver

Compatibility / Fit

• 2010-2014 Ford F-150

Technical Documents

• 605_01_071_REV_C.pdf
