Advanced hydraulic shock for enhanced off-road and on-road performance.

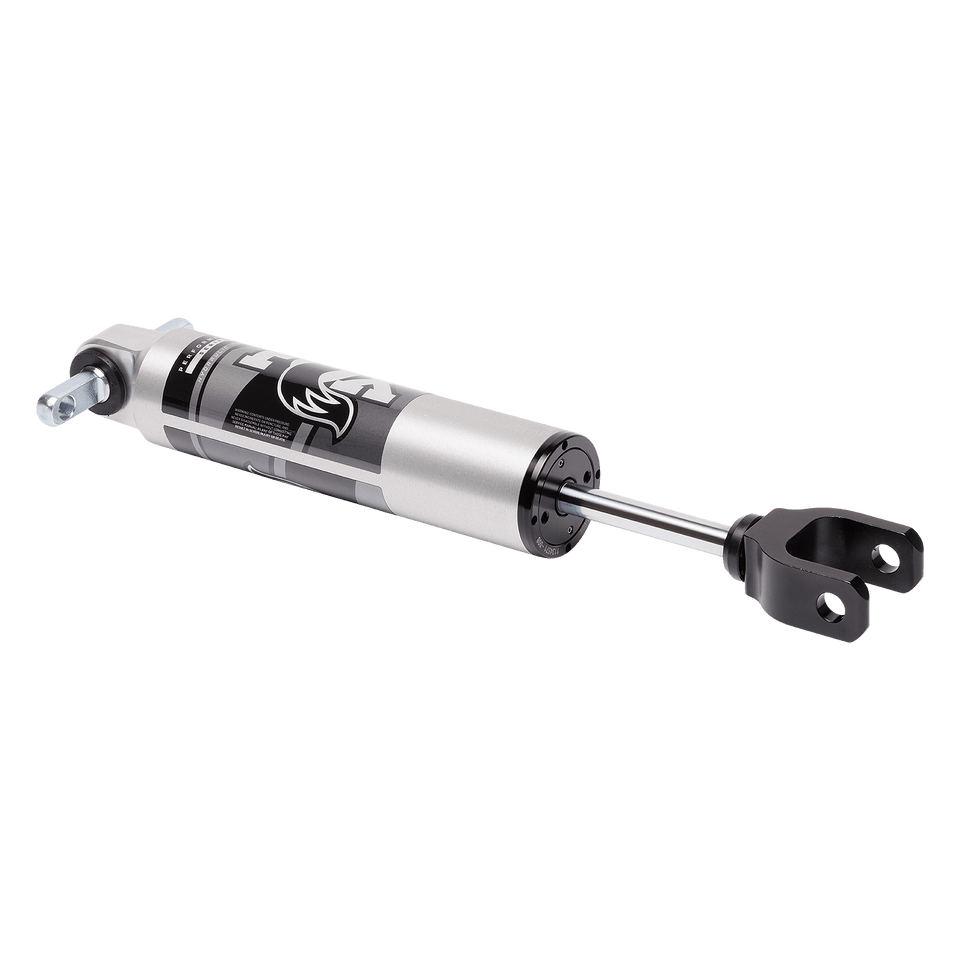

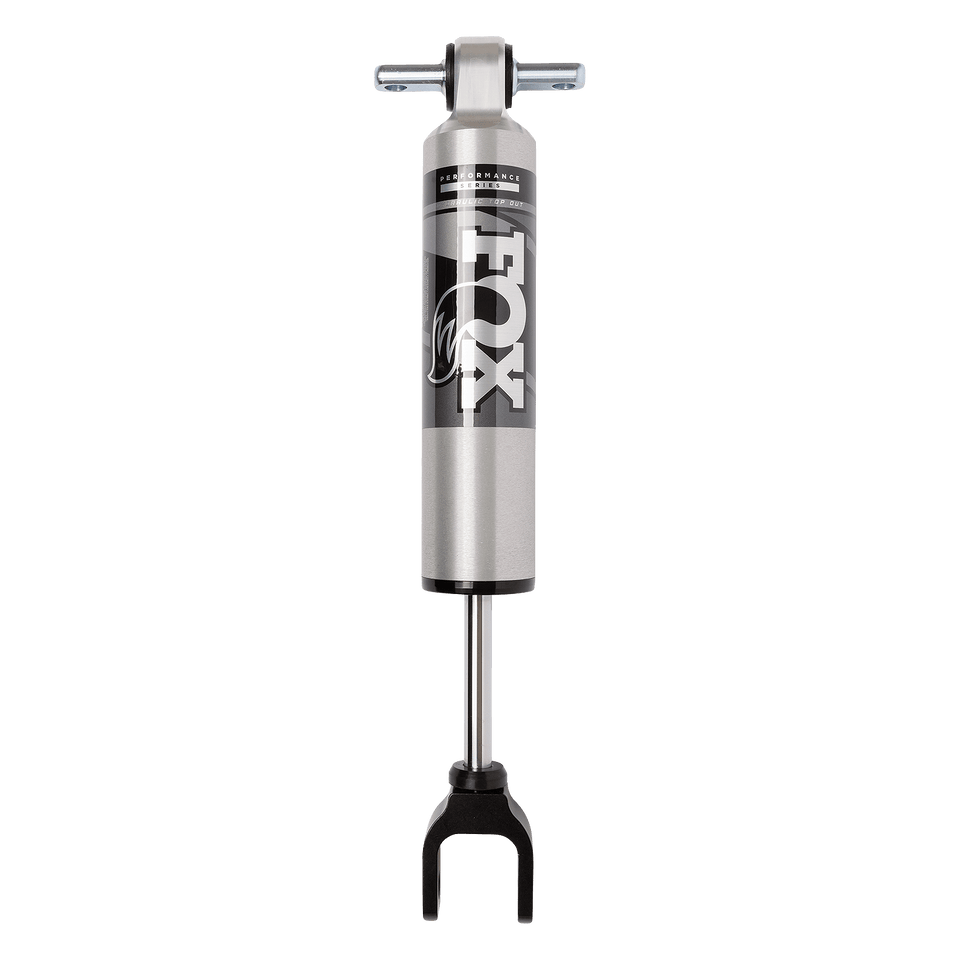

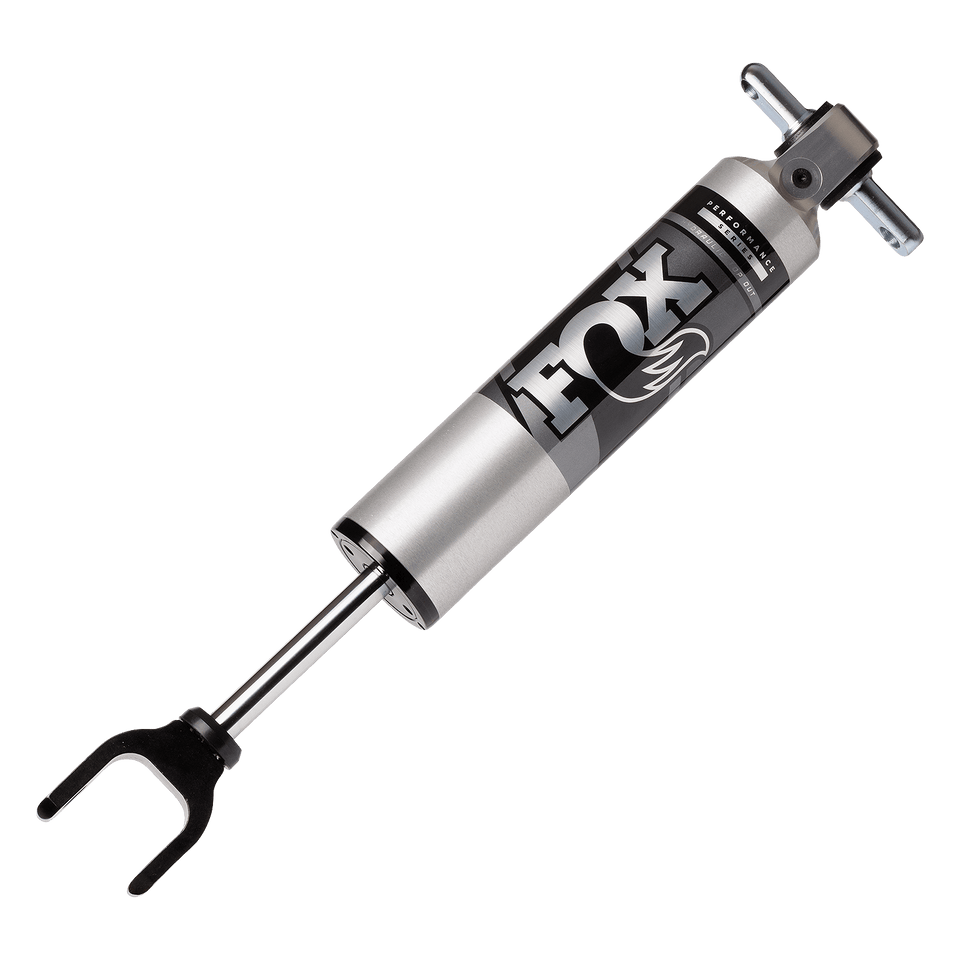

The Fox 2.5 Performance Series HTO shock is engineered to provide superior performance for both on-road and off-road applications. Featuring a 2.5 inch impact extruded aluminum shock body, this shock is designed to efficiently dissipate heat and resist corrosion with its Type II anodized aluminum body. The internal floating piston (IFP) technology optimizes damping by separating the shock oil from high-pressure nitrogen, ensuring consistent performance under various conditions.
Incorporating Hydraulic Top Out (HTO) technology, this shock offers position-sensitive rebound damping control, which significantly reduces harsh top-outs and enhances comfort. This feature is particularly advantageous for vehicles equipped with heavier tires or those lifted beyond OEM specifications. The high-flow velocity-sensitive damping system further contributes to improved ride quality, making it suitable for a range of driving environments.
With a robust 5/8 inch hard chrome shaft and vehicle-specific valving, the Fox 2.5 Performance Series shock is designed for durability and reliability. Its cross pin upper mounting style and clevis lower mounting style ensure a secure fit, while the absence of adjustable valving simplifies installation and maintenance. This single shock unit is an excellent choice for those seeking to enhance their vehicle's suspension performance.
Features
- 2.5 Inch Impact Extruded Aluminum Shock Body
- Type II Clear-Anodized Body Plating
- High-Flow Velocity-Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Internal Floating Piston (IFP)
- Hydraulic Top Out (HTO) Piston
Specifications
- Manufacturer: Fox Shocks
- Manufacturer Part Number: 987-24-033
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 21-1/4 Inch
- Compressed Length (IN): 14.77 Inch

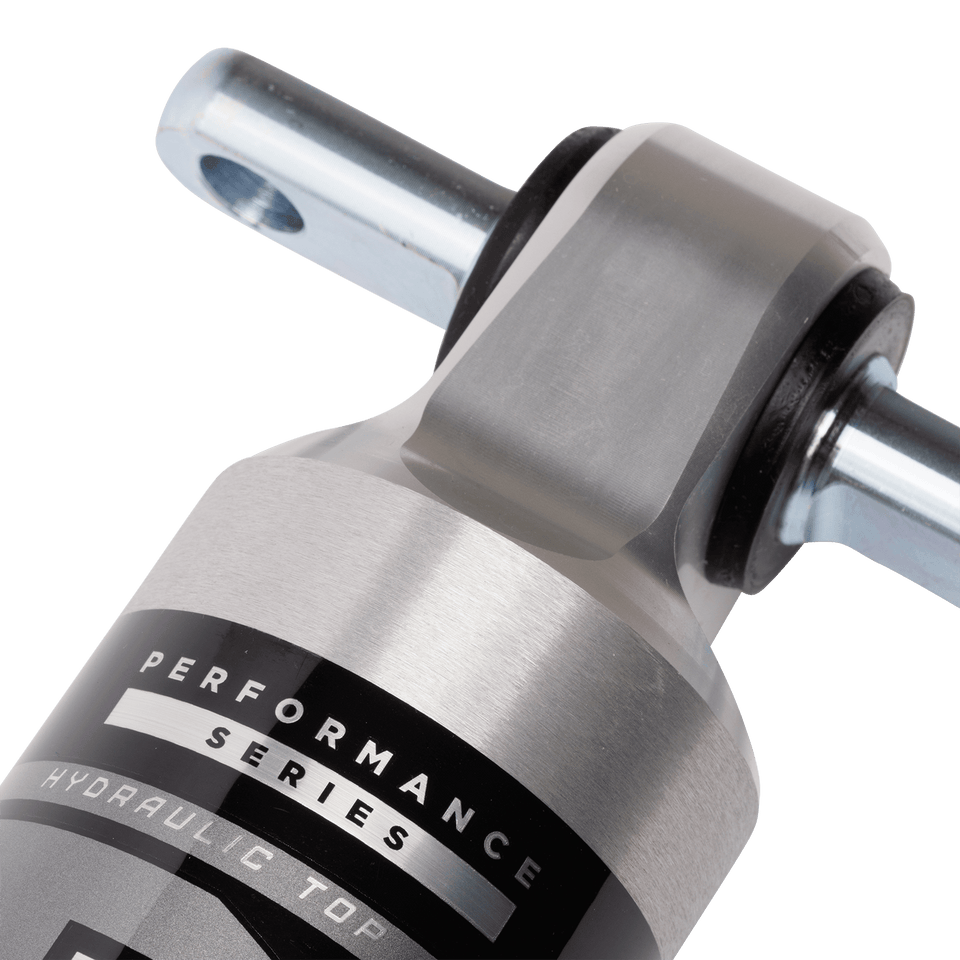

- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Clevis
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Body Color: Gray
- Rod Diameter (IN): 5/8 Inch
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2020-2026 Chevrolet Silverado 2500 HD
- 2020-2026 Chevrolet Silverado 3500 HD
- 2020-2026 GMC Sierra 2500 HD
- 2020-2026 GMC Sierra 3500 HD
Technical Documents
