High-strength aluminum drive shaft for enhanced performance and durability.

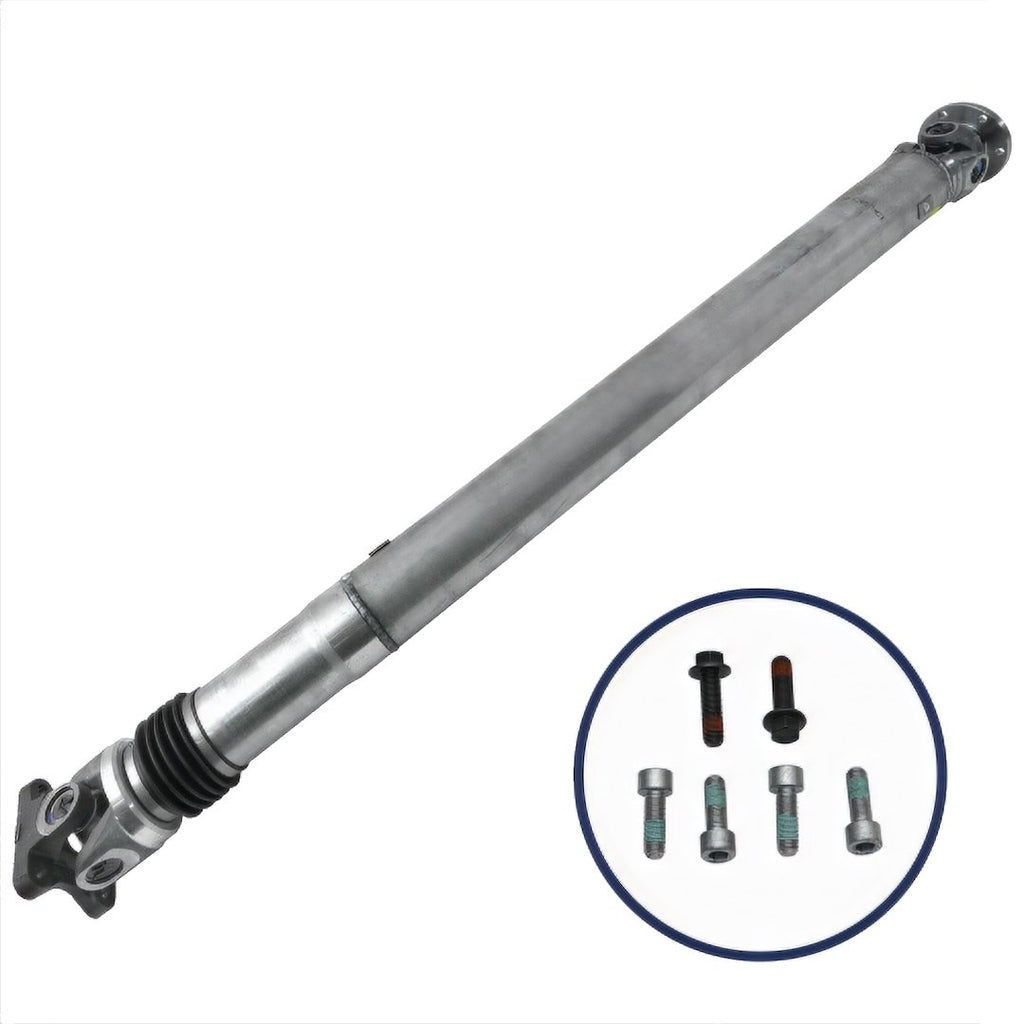

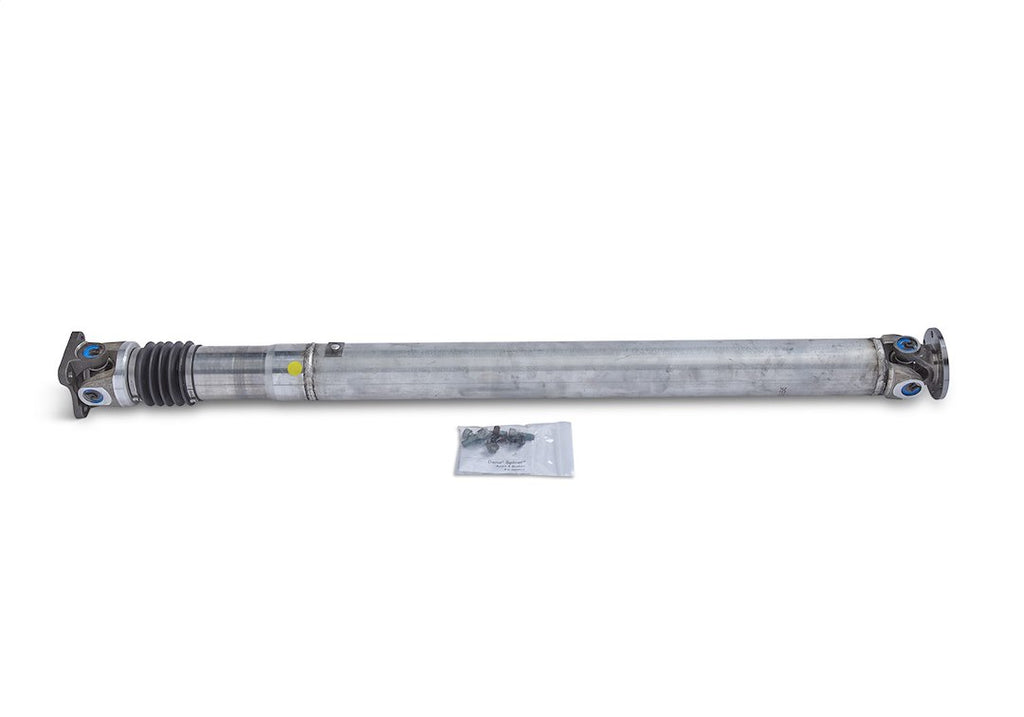

The Ford Performance Drive Shaft is engineered for high horsepower applications, providing peak endurance and optimum strength. With an overall length of 52.597 inches, this drive shaft features a direct bolt-in spline and slip design, ensuring a seamless installation process. Constructed from 6061-T6 aluminum tubing with a wall thickness of 0.125 inches, it offers exceptional strength and reliability while reducing overall weight and rotating mass for improved driving performance.

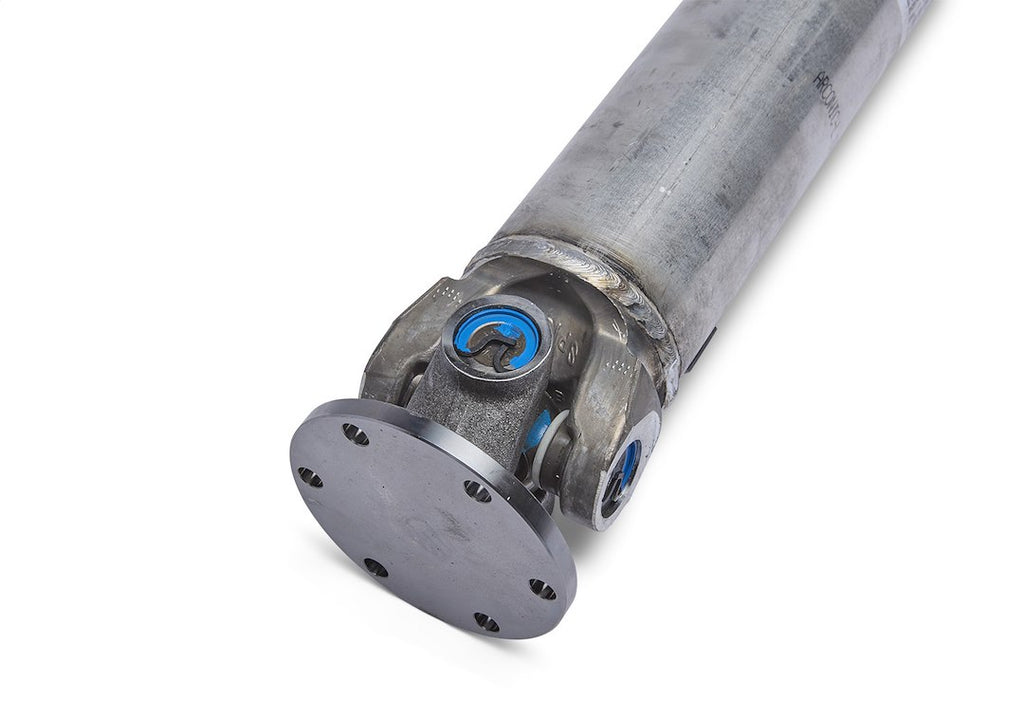

This fully assembled and balanced drive shaft includes 1350 series Dana 5-1350X solid body joints and flange yokes for both the transmission and rear end, eliminating the need for a center support bearing. The hard plastic boot protects the spline and slip from contaminants, ensuring longevity and consistent performance. Designed to accommodate suspension movement, this drive shaft is a practical solution for those seeking enhanced acceleration and driving dynamics.
Features
- Designed For Increased Horsepower Applications To Deliver Peak Endurance And Optimum Strength
- 6061-T6 Aluminum Tubing With 0.125 Inch Wall Thickness Provides Exceptional Strength And Reliability
- Fully Assembled And Balanced

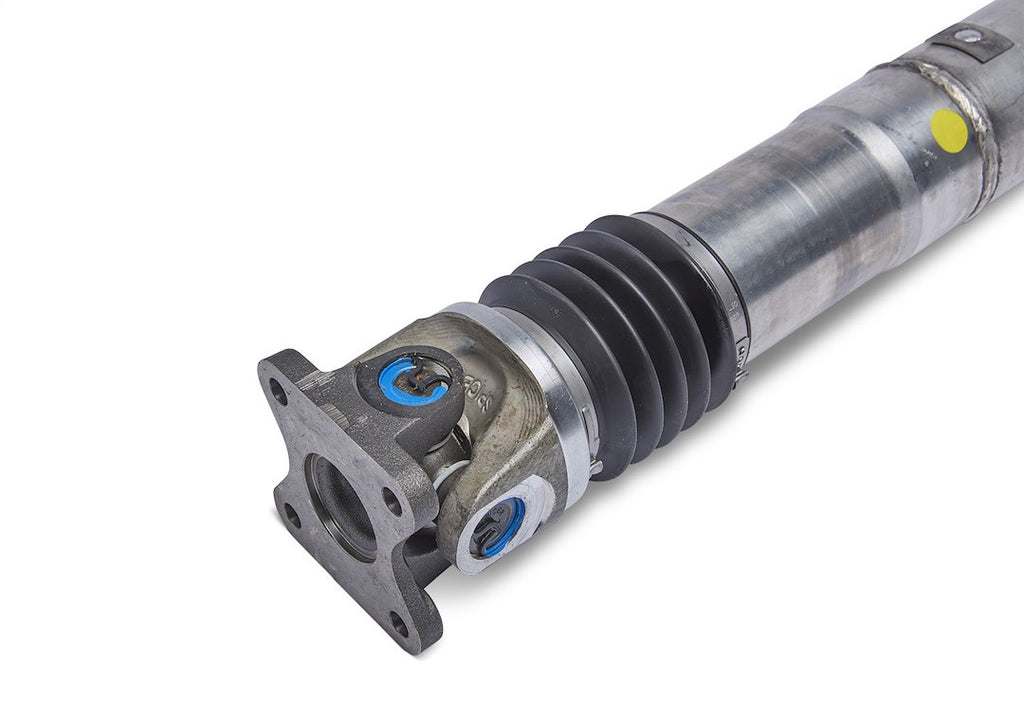

- Hard Plastic Boot To Keep Grease In And Water Out To Protect Spline And Slip From Contaminants
- Face Of Transmission Flange To Face Of Rear End Flange Dimension
- Eliminates The Need For A Center Support Bearing
- Reduced Overall Weight And Rotating Mass Delivers Improved Driving Performance And Provides Quicker Acceleration
- Direct BOLT IN Right Out Of The Box
- Spline And Slip Design To Allow For Installation And Suspension Movement
Specifications
- Manufacturer: Ford Performance
- Manufacturer Part Number: M-4602-MGTA
- Condition: New
- Design: Direct Bolt In Spline And Slip Design
- Material: Aluminum
- Length (IN): 52.59 Inch
- Diameter (IN): 3-1/2 Inch
- Transmission Joint Style: 1350 Series Joints
- Driveshaft Joint Style: 1350 Series Joints
- Balanced: Yes
- Includes Differential Yoke: No
- Includes Transmission Yoke: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2005-2010 Ford Mustang
