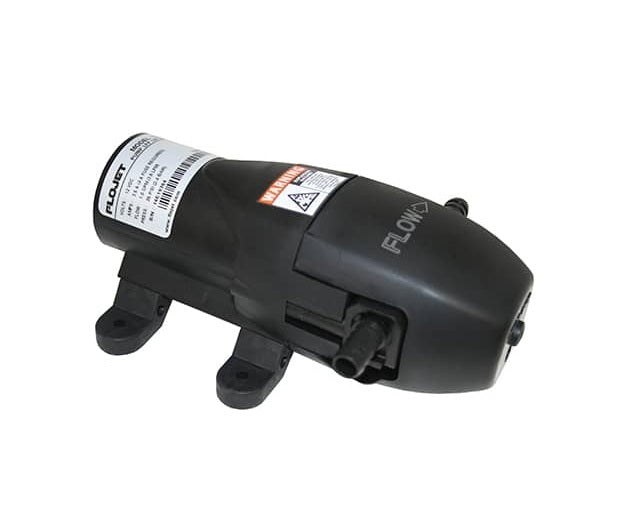

Flojet Compact Diaphragm Pump (MPN: RLFP122202E)

Efficient self-priming pump with versatile features for various applications.

The Flojet Compact Diaphragm Pump is designed for efficient fluid transfer with a flow rate of up to 1 gallon per minute. Engineered with a self-priming capability, this pump can operate effectively at heights of up to 6 feet, making it suitable for a range of applications. The built-in thermal protector ensures the pump operates safely without overheating, while the sealed motor and pressure switch provide reliable performance over time.

Constructed from durable materials such as Geolast or Santoprene diaphragm and EPDM or Viton check valves, the Flojet pump is compatible with many harsh and abrasive chemicals. The quick disconnect ports facilitate easy cleaning and hose replacement, enhancing user convenience. With a low amp draw, this pump is particularly well-suited for battery-powered applications, ensuring efficient operation without excessive power consumption.

Features

• Accommodates Flow Rates Up To 1 Gallons Per Minute And Operating Pressures Up To 40 Pounds Per Square Inch
• Sealed Motor And Pressure Switch, Providing Years Of Dependable Reliability
• Run Dry Capabilities To Extend The Life Of The Pump
• Self-Priming Accommodating Up To 6 Feet
• Built-In Thermal Protector Prevents Pump From Overheating

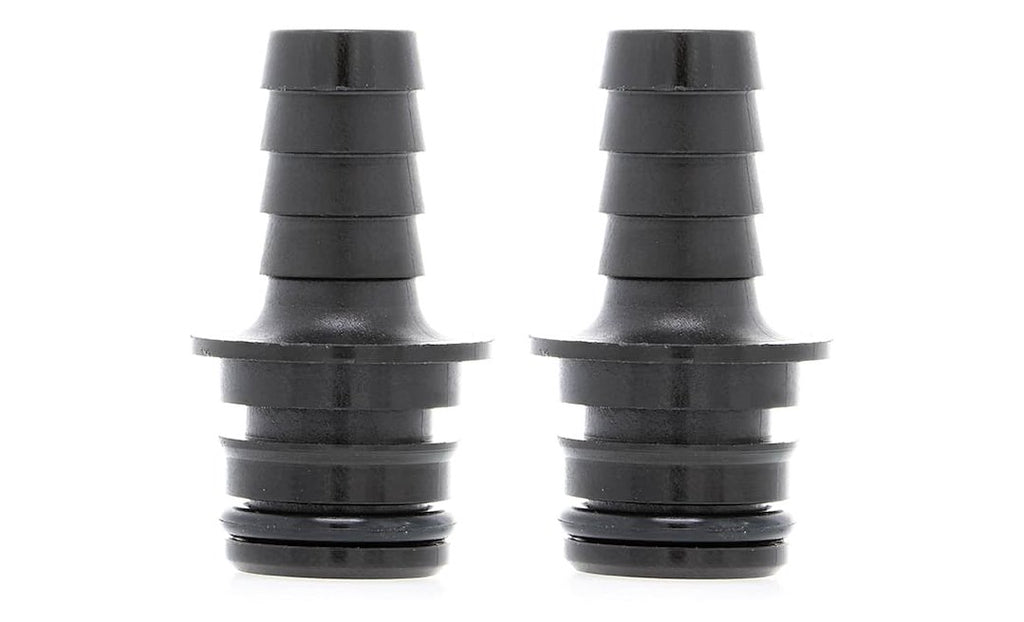

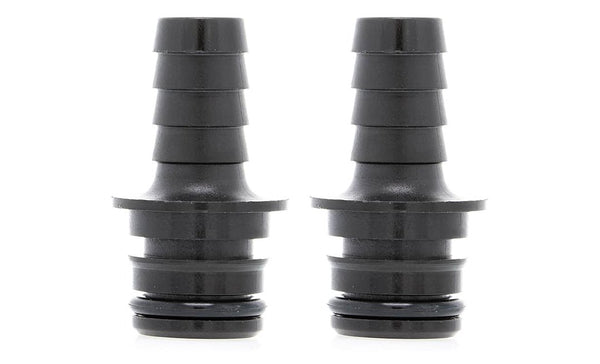

• Quick Disconnect Ports Allow For Quick Cleaning And Easy Hose Replacement In Seconds
• Low Amp Draw Is Ideal For Battery Powered Applications

Specifications

• Manufacturer: Flojet
• Manufacturer Part Number: RLFP122202E
• Pump Operation: 12 Volt DC
• Flow Rate: 1 Gallon Per Minute
• Pressure Rating (PSI): 40 Pounds Per Square Inch
• Type: Self-Priming
• Inlet Port Type: 3/8 Inch Hose Barb
• Outlet Port Type: 3/8 Inch Hose Barb
• Length (IN): 6-7/16 Inch
• Width (IN): 4-1/16 Inch
• Height (IN): 2-11/16 Inch
• Material: Polypropylene
• With Thermal Overload Protection: Yes
• With Pressure Switch: Yes
