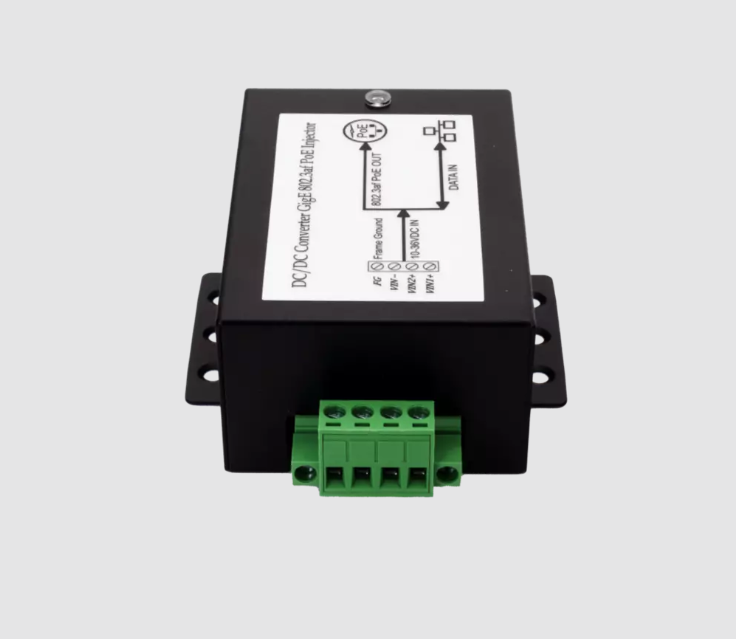

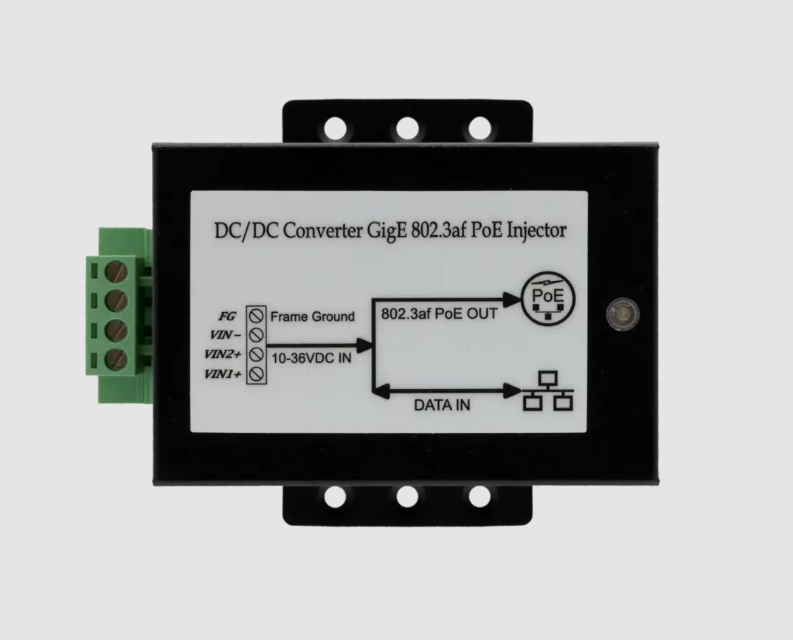

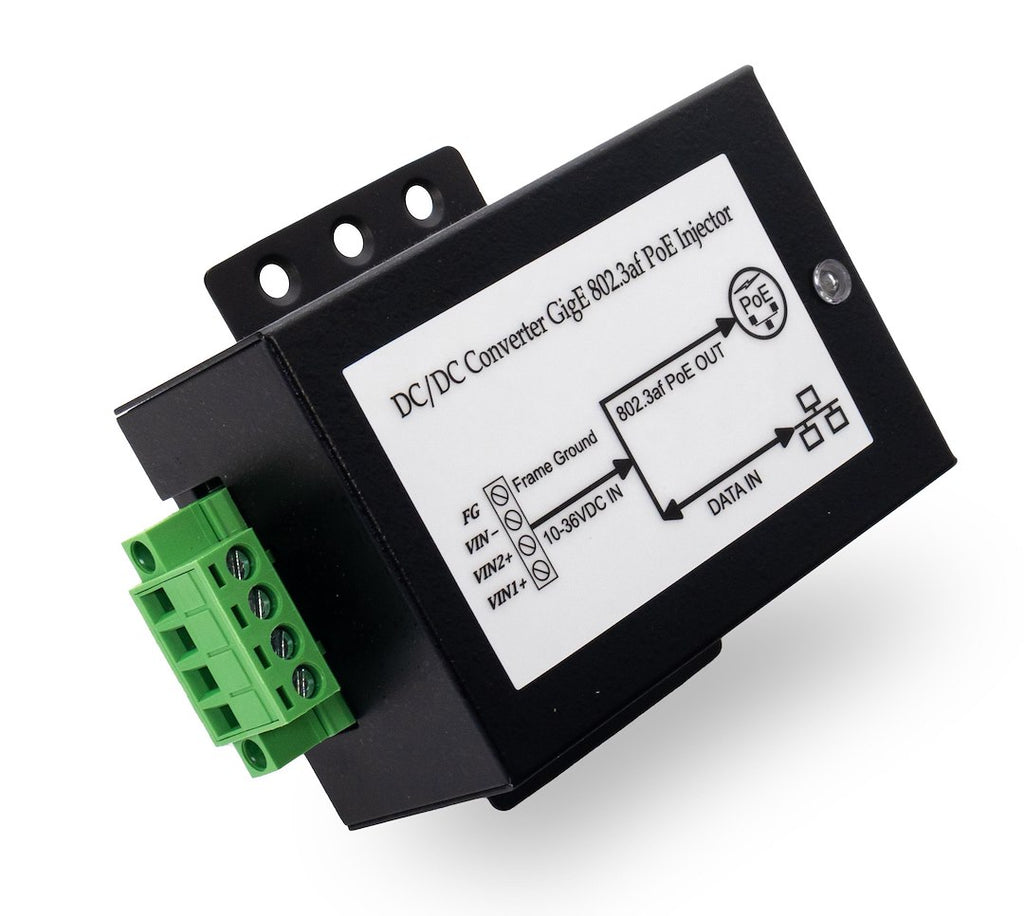

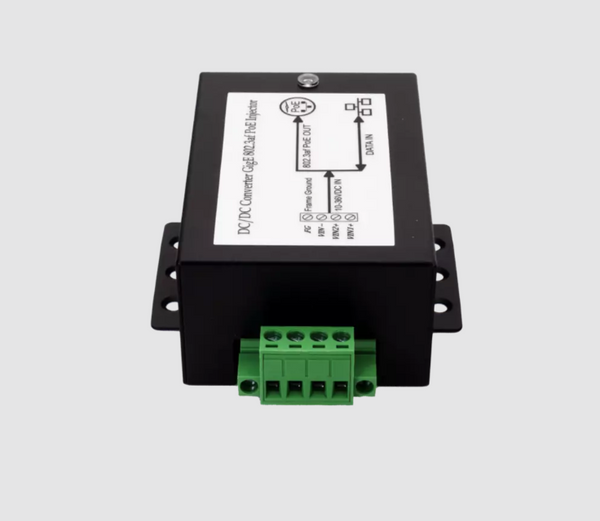

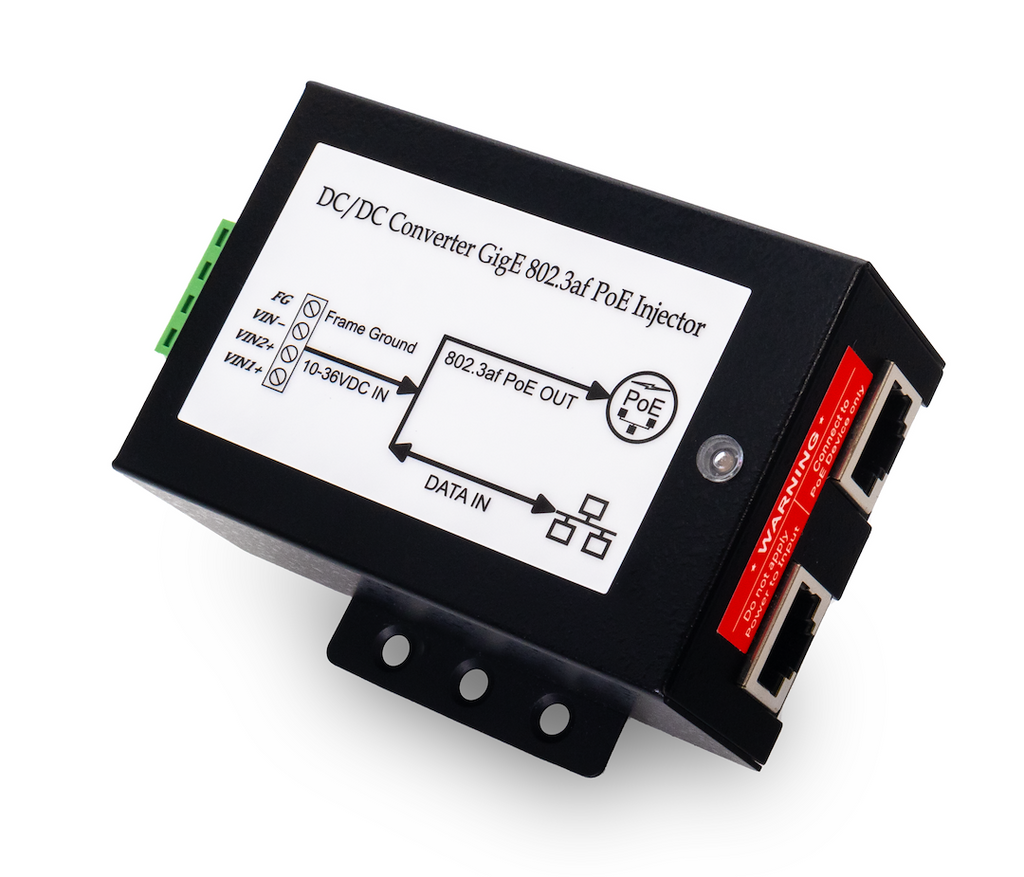

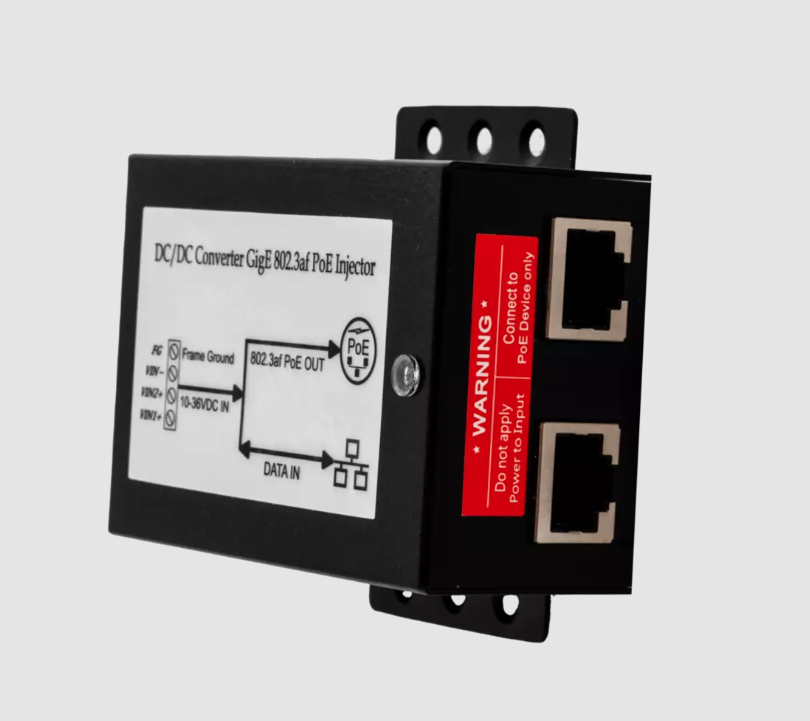

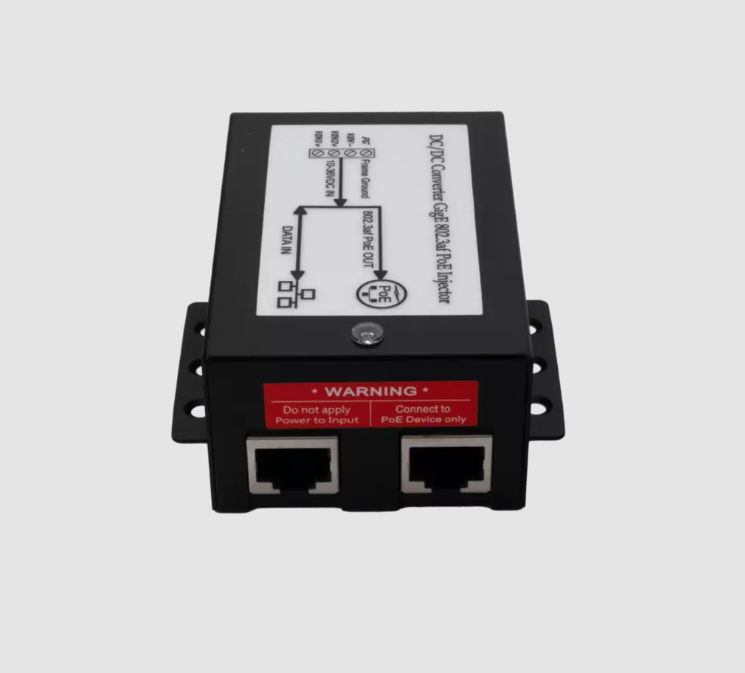

FLIR Power Over Ethernet Injector (MPN: A80811)

Reliable PoE solution for seamless connectivity in marine applications.

The FLIR Power Over Ethernet Injector is designed to provide efficient power and data transmission for marine joystick control units. This injector supports both 12-volt and 24-volt DC systems, offering flexibility for various installations. With a transmission speed of up to 5 Gigabits per second through its RJ-45 data port, it ensures rapid connectivity for demanding applications.

Constructed for durability, the FLIR PoE injector operates within a temperature range of -40 to 104 degrees Fahrenheit, making it suitable for harsh marine environments. Its compact design, measuring 3.66 inches in length, 1.3 inches in depth, and 2.9 inches in height, allows for easy wall mounting in tight spaces. However, it is important to note that this device is not waterproof, so it should be installed in a dry location to prevent moisture ingress.

With a maximum power output of 15.4 watts, this injector adheres to the IEEE 802.3af PoE standard, ensuring compatibility with a wide range of devices. The FLIR Power Over Ethernet Injector is an essential component for maintaining reliable network connections in marine settings.

Features

• Compatible With Both 12- And 24-Volt DC Systems For Maximum Flexibility
• Supports Up To 5 Gigabit Speed Networking
• RJ-45 Data Connection Port
• Not Protected Against The Ingress Of Moisture Or Liquids

Specifications

• Manufacturer: FLIR Systems
• Manufacturer Part Number: A80811
• Numbers Of Ports: 1 Data/ 1 PoE Port
• PoE Standard: IEEE 802.3af
• Transmission Speed: 1000/ 5000 Mbps Data
• Input Voltage: 12/ 24 Volt
• Power Output: 15.4 Watt
• Universality: Semi-Universal
• Waterproof: No
• Mounting Type: Wall Mount
• Operating Temperature Range: -40 To 104 Degree Fahrenheit
• Color: Black
• Dimension: 3.66 Inch Length X 1.3 Inch Depth X 2.9 Inch Height

Technical Documents

• 77008_(Rev_1)_PoE_Injector_(2nd-Gen)_Installation_Summary_(A3)_PRINT.pdf
