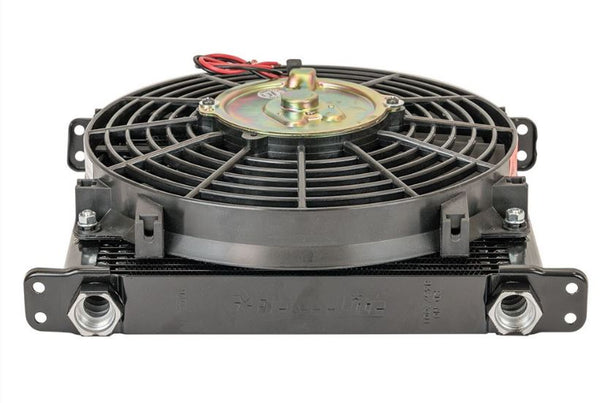

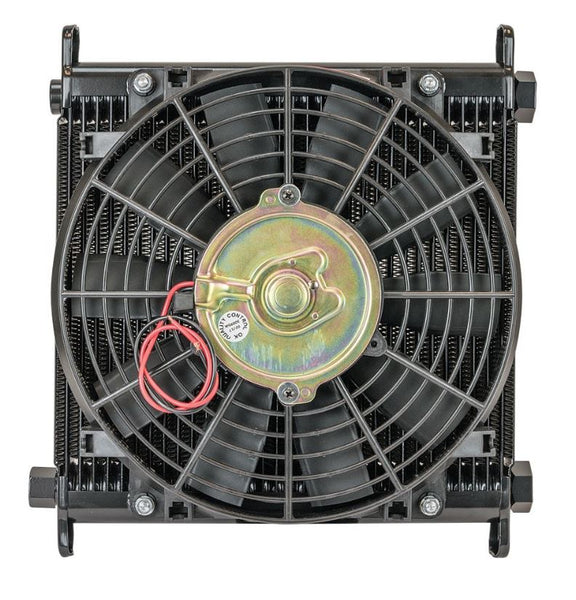

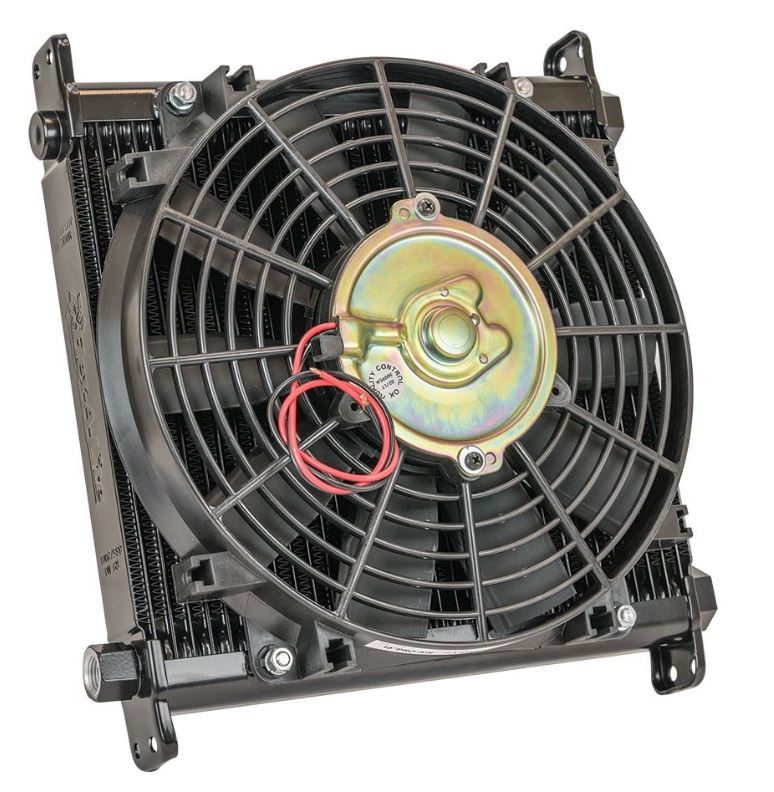

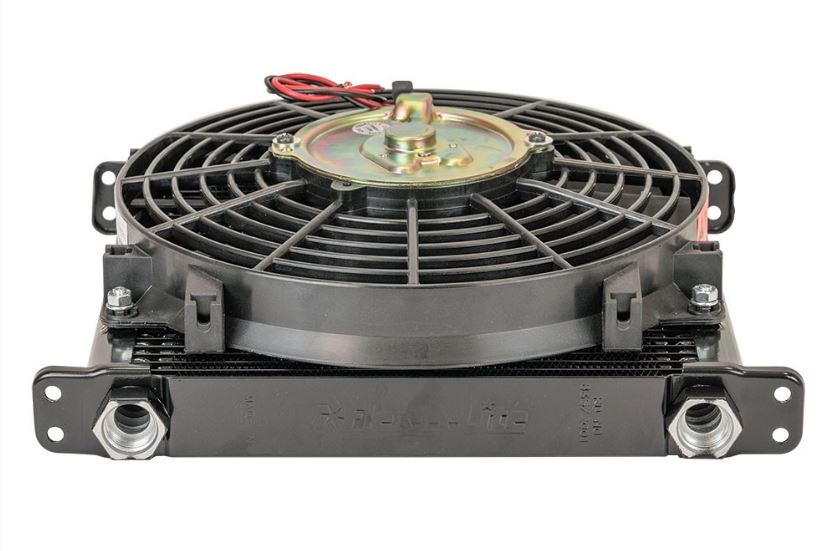

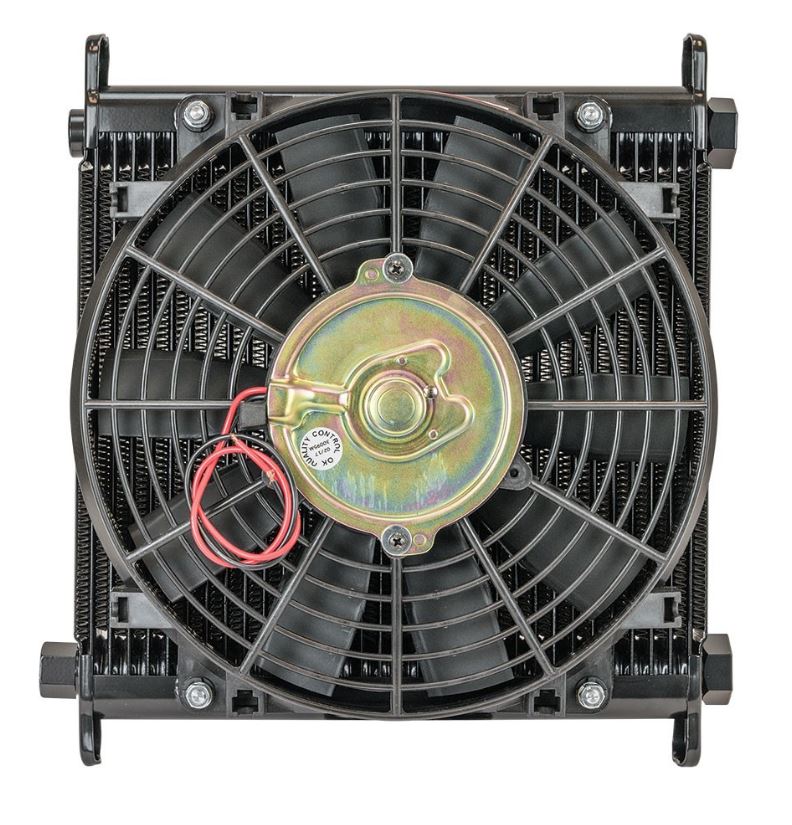

Flex-A-Lite Engine Oil Cooler (MPN: 700032)

Advanced cooling technology for high-performance engine applications.

The Flex-A-Lite engine oil cooler is engineered to provide superior cooling for demanding engine applications. With a compact design measuring 11 inches by 11 inches by 4-1/4 inches, this 32-row stacked-plate cooler is suitable for remote mounting and is equipped with a 10-inch electric fan to enhance airflow. This cooler is particularly beneficial for heavy-duty vehicles, including racing cars and trucks that tow, where maintaining optimal engine oil temperature is critical.

Utilizing advanced technology, the cooler features turbulized fins and louvered fins that maximize heat transfer efficiency. The thick 1-3/4 inch core minimizes oil-pressure drop while ensuring effective heat dissipation. This design is essential in harsh conditions where engine coolant alone may not sufficiently protect engine oil and internal components from wear or failure.

Constructed from durable aluminum with a powder-coated finish, the Flex-A-Lite engine oil cooler is built to withstand the rigors of high-performance applications. It includes interchangeable 8/10/12 AN fittings and O-rings, along with all necessary mounting hardware for easy installation. The electric fan operates at a CFM rating of 800, ensuring optimal airflow for enhanced cooling performance.

Features

• Efficiency, Modern Design, Maximum Performance – Engine-Oil Coolers Bring Performance Cooling To Demanding Engine Applications
• In Harsh Conditions, Engine-Coolant Alone Isn’t Enough To Protect The Engine Oil And Internal Components From Premature Wear Or Failure
• Engine Oil Coolers Use Turbulized Fins Inserted Into The Internal Cooling Plates And Louvered Fins For Heat Transfer To The Air
• The Thick, 1-3/4 Inch Core Minimizes Oil-Pressure Drop Through The Cooler While Maximizing Heat Transfer
• Stacked-Plate, 21-Row Engine-Oil Cooler Is Designed For Remote Mounting

Specifications

• Manufacturer: Flex-A-Lite
• Manufacturer Part Number: 700032
• Condition: New
• Recommended Use: Engine Oil
• Construction: Plate And Fin
• Overall Height (IN): 4-1/4 Inch
• Overall Width (IN): 11 Inch
• Overall Depth (IN): 4-1/4 Inch
• Number Of Cooling Rows: 32
• Inlet Attachment: Female Threaded
• Inlet Size: 7/8-14 Inch
• Outlet Attachment: Female Threaded
• Outlet Size: 7/8-14 Inch
• Color: Black
• Material: Aluminum
• With Fan: Yes
• Fan Control: Electric
• Finish: Powder Coated
• Fan CFM Rating: 800 Cubic Feet Per Minute
• Fan Diameter: 10 Inch
• With Mounting Hardware: Yes
