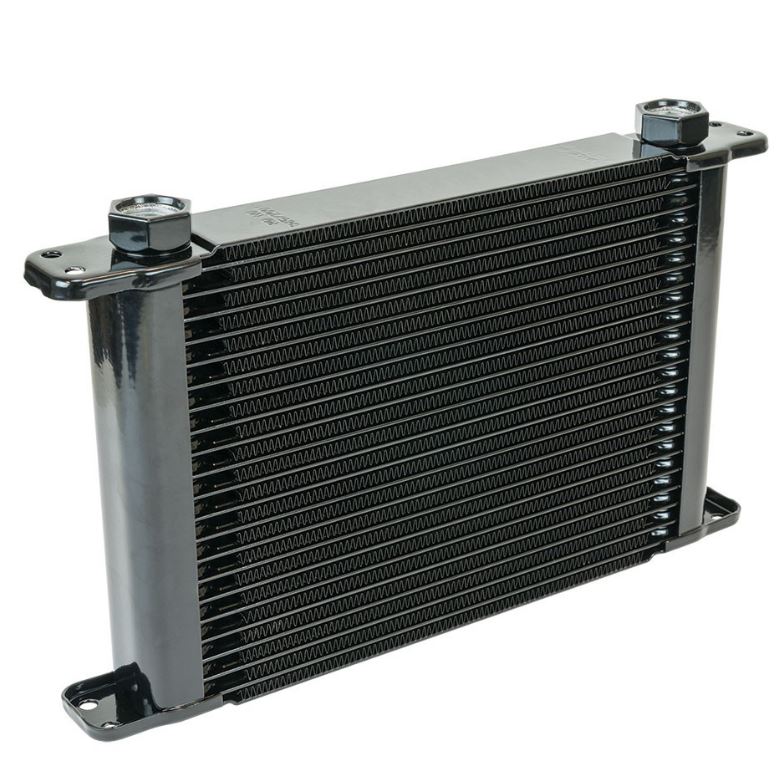

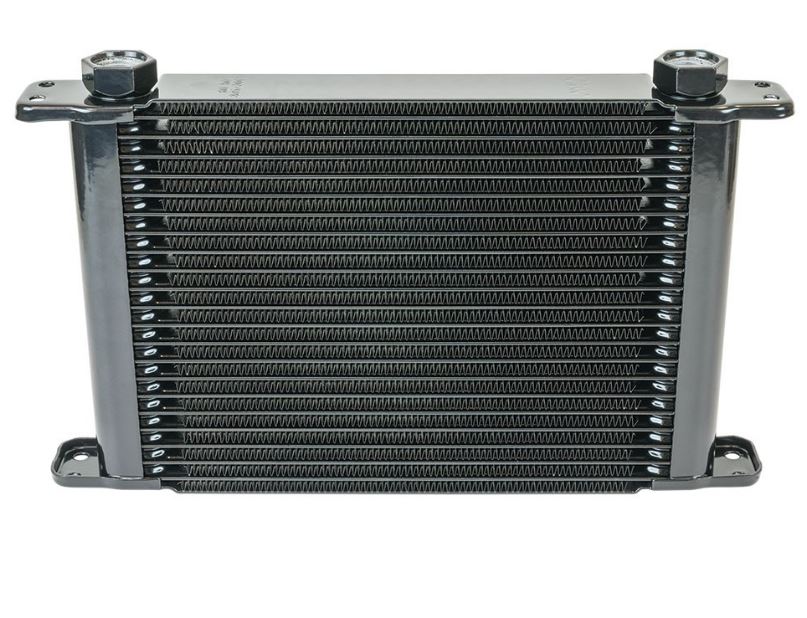

Flex-A-Lite Engine Oil Cooler (MPN: 104120)

Advanced cooling technology for heavy-duty engine applications.

The Flex-A-Lite engine oil cooler is designed to enhance the cooling efficiency of engine oil in demanding automotive environments. With a compact size of 11 inches in width, 1-3/4 inches in depth, and 7-1/2 inches in height, this 21-row cooler utilizes a modern plate and fin construction to maximize heat transfer while minimizing oil pressure drop. This design is particularly beneficial for high-performance vehicles, including racing cars and trucks that frequently tow heavy loads.

In harsh operating conditions, relying solely on engine coolant may not suffice to protect engine oil and internal components from premature wear. The Flex-A-Lite cooler employs advanced technology, including turbulized fins and louvered fins, to ensure optimal heat dissipation. This results in improved engine performance and longevity, making it a critical component for those who demand reliability and efficiency from their vehicles.

Constructed from durable aluminum and finished with a powder coating, this cooler is built to withstand the rigors of heavy-duty use. It comes with interchangeable 8, 10, and 12 AN fittings and O-rings, allowing for versatile installation options. The inclusion of mounting hardware further simplifies the installation process, ensuring that users can quickly and effectively enhance their engine's cooling capabilities.

Features

• Efficiency, Modern Design, Maximum Performance – Engine-Oil Coolers Bring Performance Cooling To Demanding Engine Applications
• In Harsh Conditions, Engine-Coolant Alone Isn’t Enough To Protect The Engine Oil And Internal Components From Premature Wear Or Failure
• Engine Oil Coolers Use Turbulized Fins Inserted Into The Internal Cooling Plates And Louvered Fins For Heat Transfer To The Air
• The Thick, 1-3/4 Inch Core Minimizes Oil-Pressure Drop Through The Cooler While Maximizing Heat Transfer

Specifications

• Manufacturer: Flex-A-Lite
• Manufacturer Part Number: 104120
• Condition: New
• Recommended Use: Engine Oil
• Construction: Plate And Fin
• Overall Height (IN): 7-1/2 Inch
• Overall Width (IN): 11 Inch
• Overall Depth (IN): 1-3/4 Inch
• Number Of Cooling Rows: 21
• Inlet Attachment: Female Threaded
• Inlet Size: 7/8-14 Inch
• Outlet Attachment: Female Threaded
• Outlet Size: 7/8-14 Inch
• Color: Black
• Material: Aluminum
• With Fan: No
• Fan Control: No Fan
• Finish: Powder Coated
• Fan CFM Rating: No Fan
• Fan Diameter: No Fan
• Fan Amp Draw: No Fan
• With Mounting Hardware: Yes
