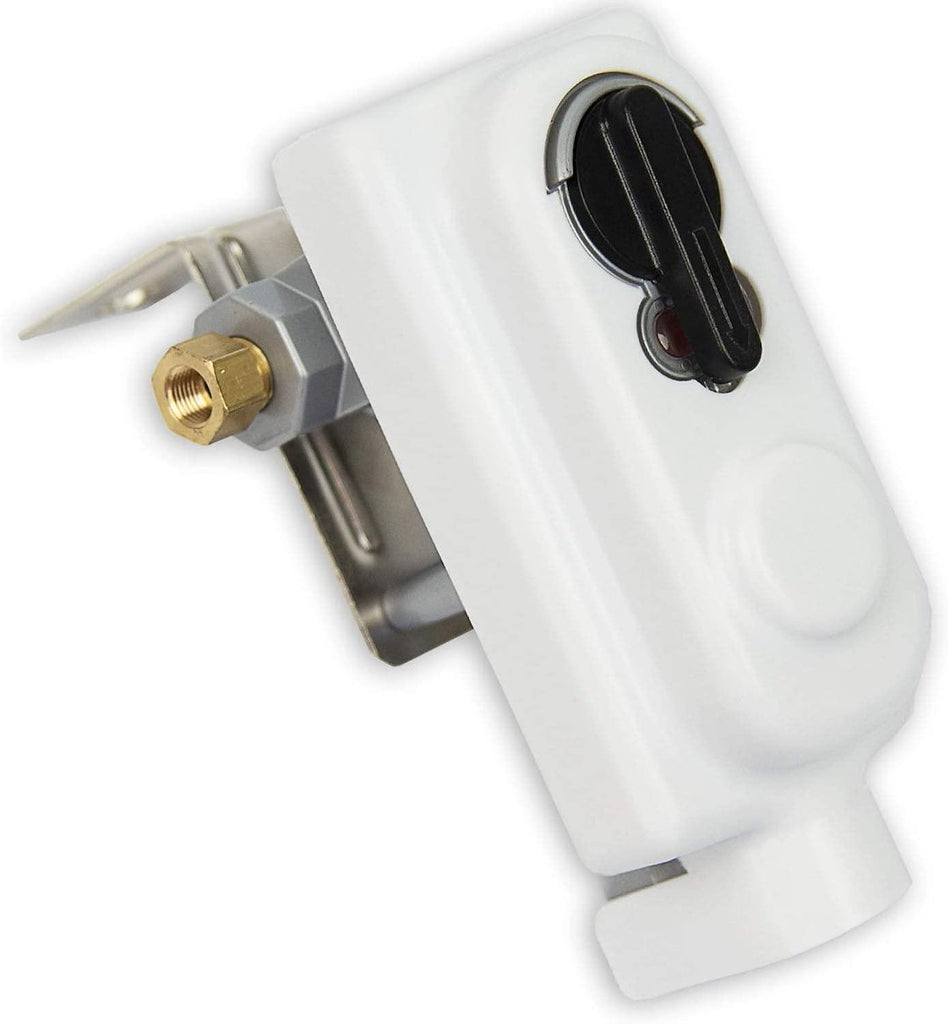

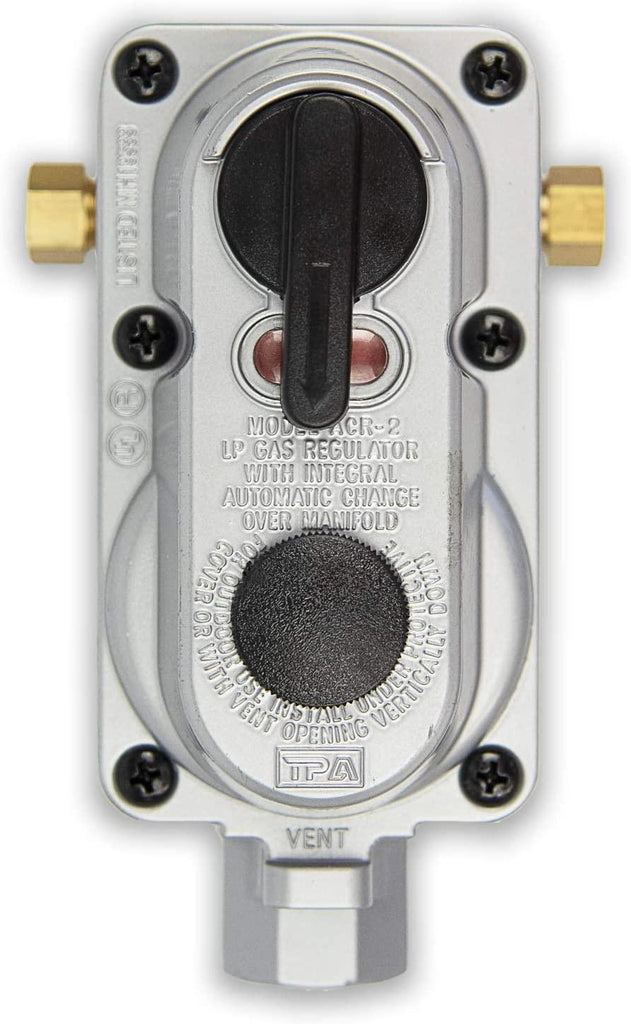

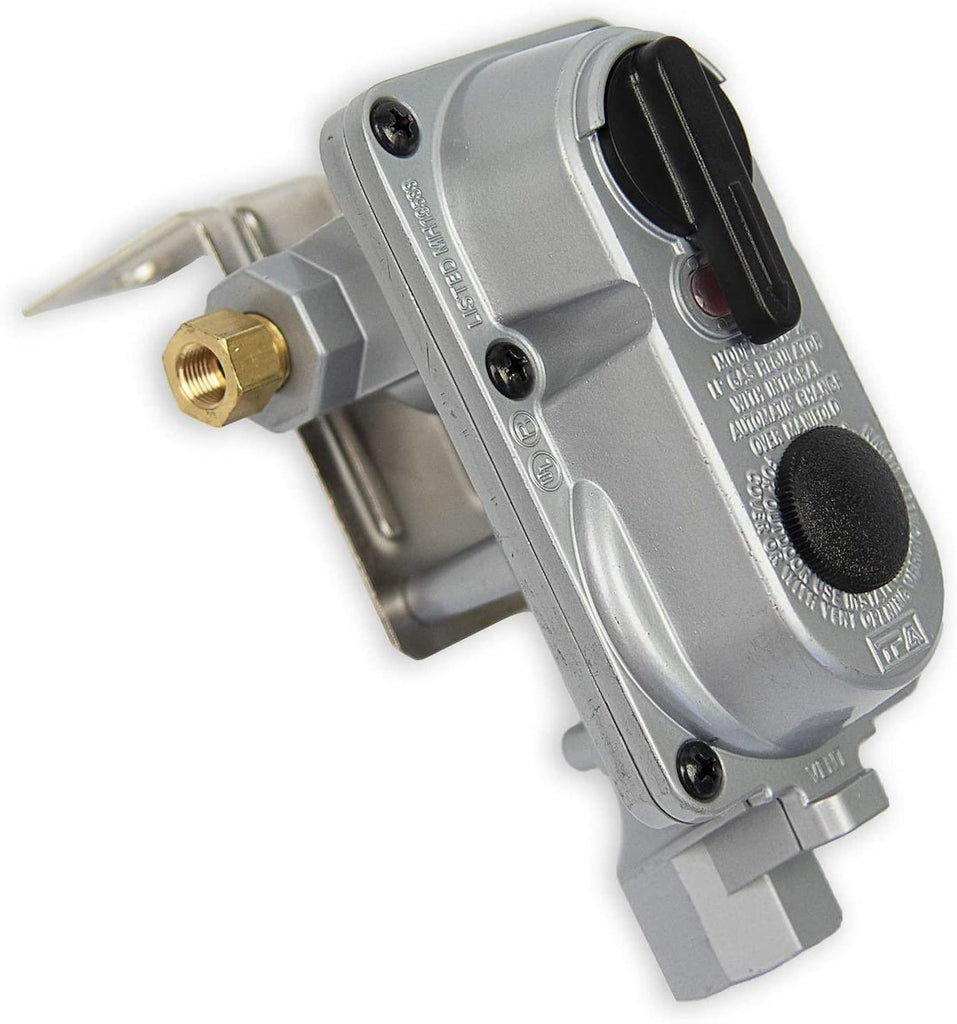

Flame King Propane Regulator (MPN: KT12ACR6)

Reliable dual tank propane regulator for RVs with automatic switching feature.

The Flame King Propane Regulator is designed for use in RVs with dual propane tanks, providing a seamless transition from the primary to the reserve tank when the primary is empty. This automatic switching feature ensures a continuous supply of propane, allowing for the removal of empty cylinders for refill without interrupting service. The regulator's double stage design maintains a constant gas pressure, accommodating varying demand and conditions, which is essential for efficient operation in diverse environments.

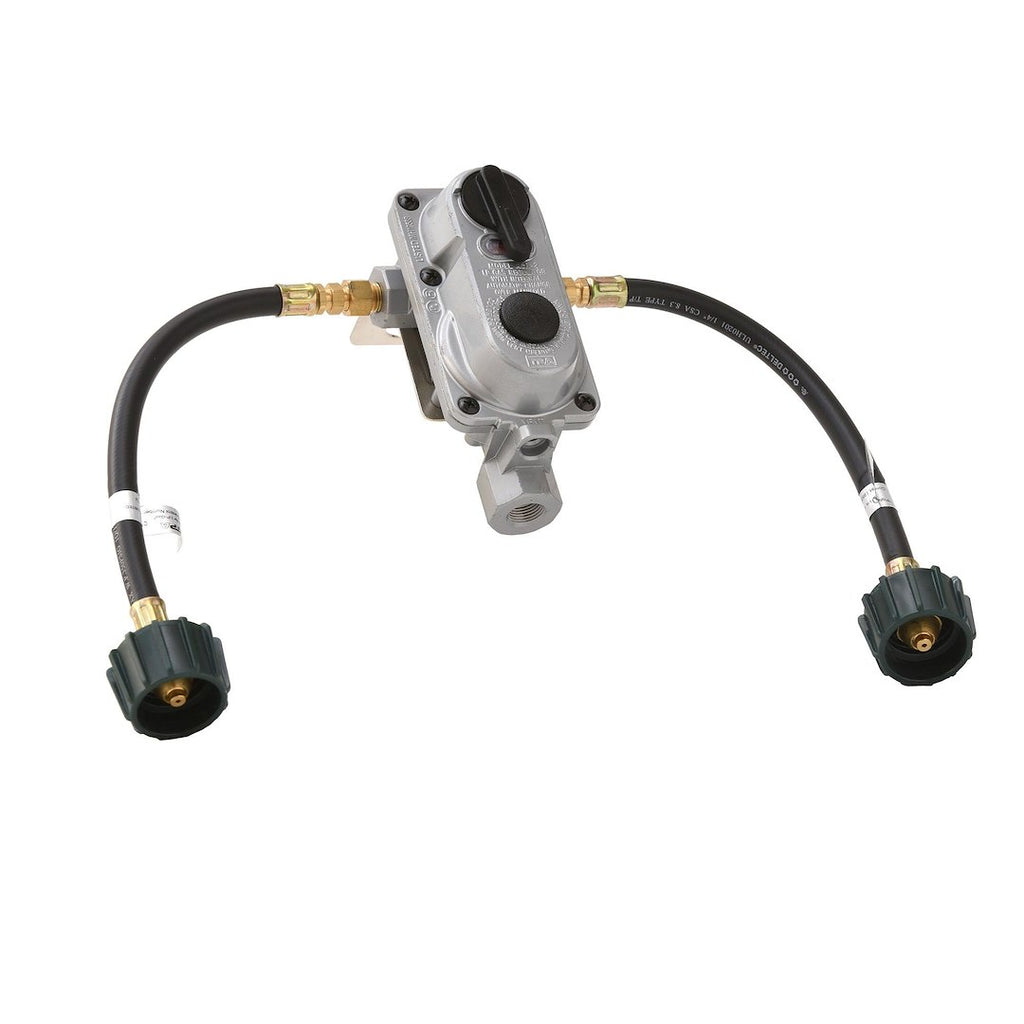

Constructed from durable aluminum, this low-pressure regulator is rated for a maximum output of 345,200 BTU, making it suitable for a range of applications. The vertical installation type and included pigtails facilitate easy setup and integration with existing propane systems. With a 1/4 inch female inverted flare inlet connection and a 3/8 inch female threads outlet connection, this regulator meets industry standards for safety and performance, ensuring reliable operation for your propane needs.

Features

• Allows Removal Of Empty Cylinder For Refill Without Interrupting Propane Supply

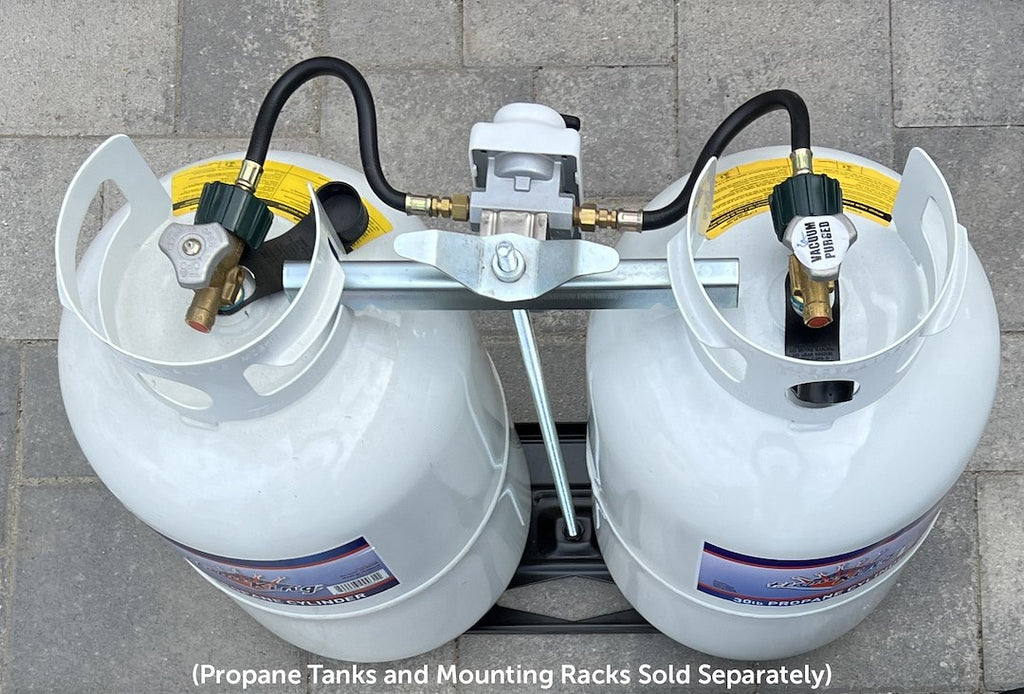

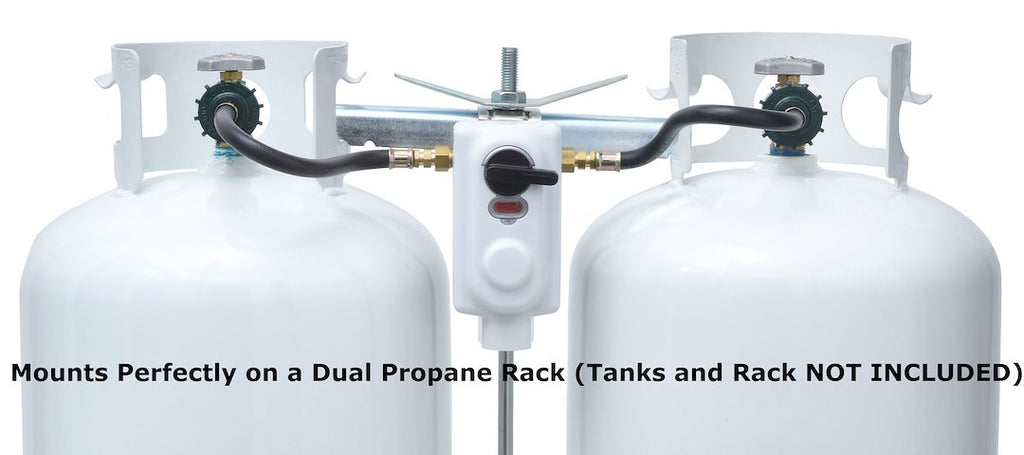

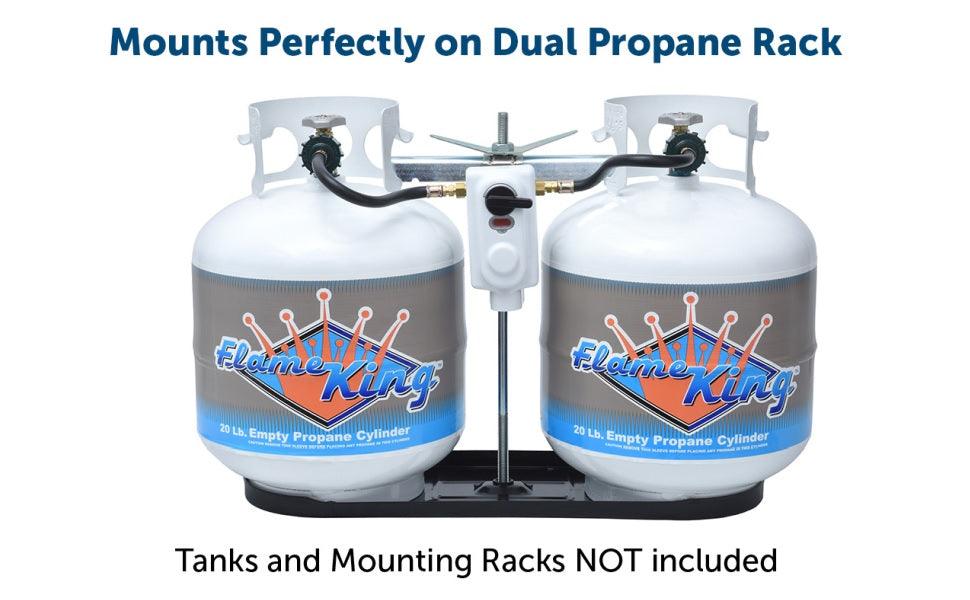

• For RVs With Dual Propane Tanks; Automatically Switches From Primary To Reserve Tank When Primary Is Empty
• Double Stage Design Maintains Constant Gas Pressure Under Changing Demand And Conditions
• Rated For 190,000 BTU

Specifications

• Manufacturer: Flame King
• Manufacturer Part Number: KT12ACR6
• Pressure: Low Pressure
• RV Approved: Yes
• Inlet Connection: 1/4 Inch Female Inverted Flare
• Outlet Connection: 3/8 Inch Female Threads

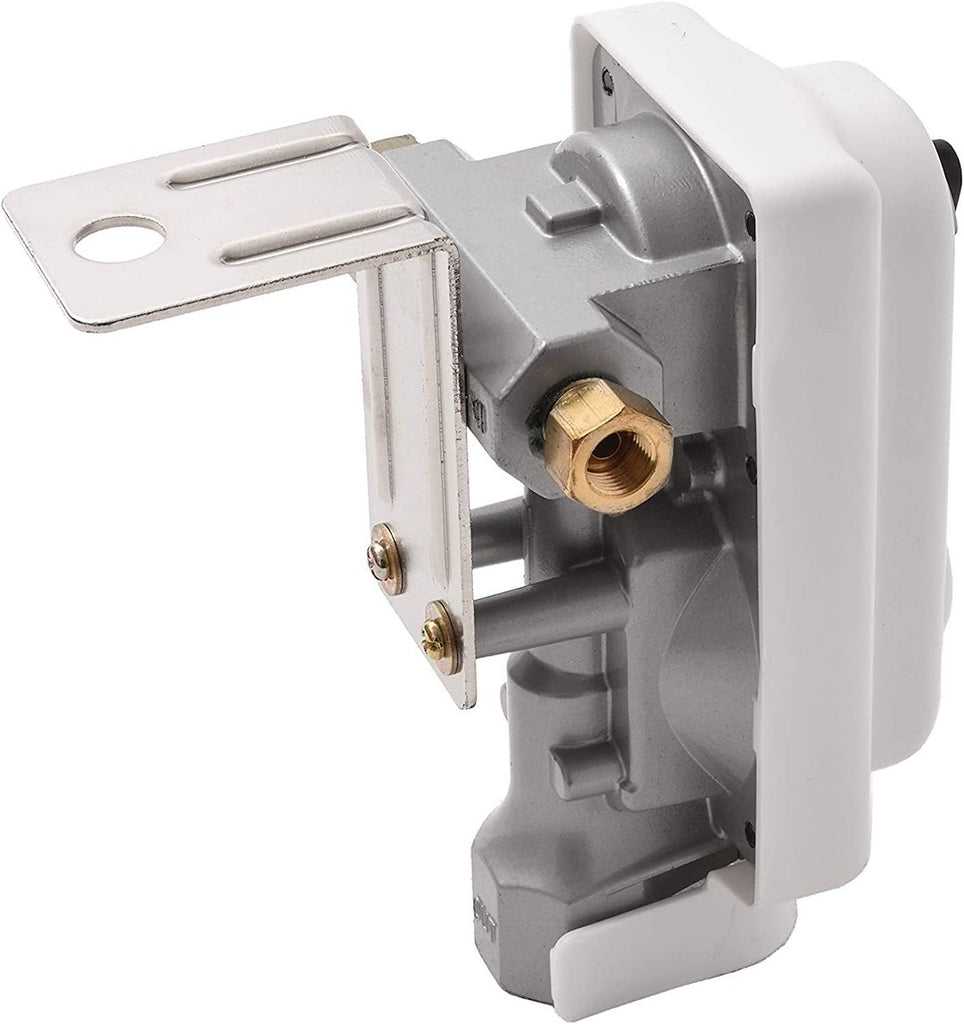

• Installation Type: Vertical
• Outlet Pressure: 11 Inch WC
• Number Of Stages: 2
• BTU Level: 345,200 BTU
• Material: Aluminum
• With Shut Off Valve: No
• With Hose: Yes

Technical Documents

• ACR6-User-Guide.pdf
