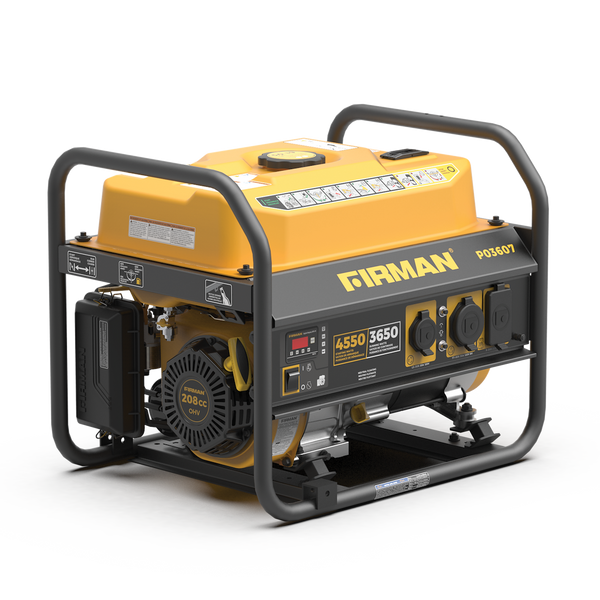

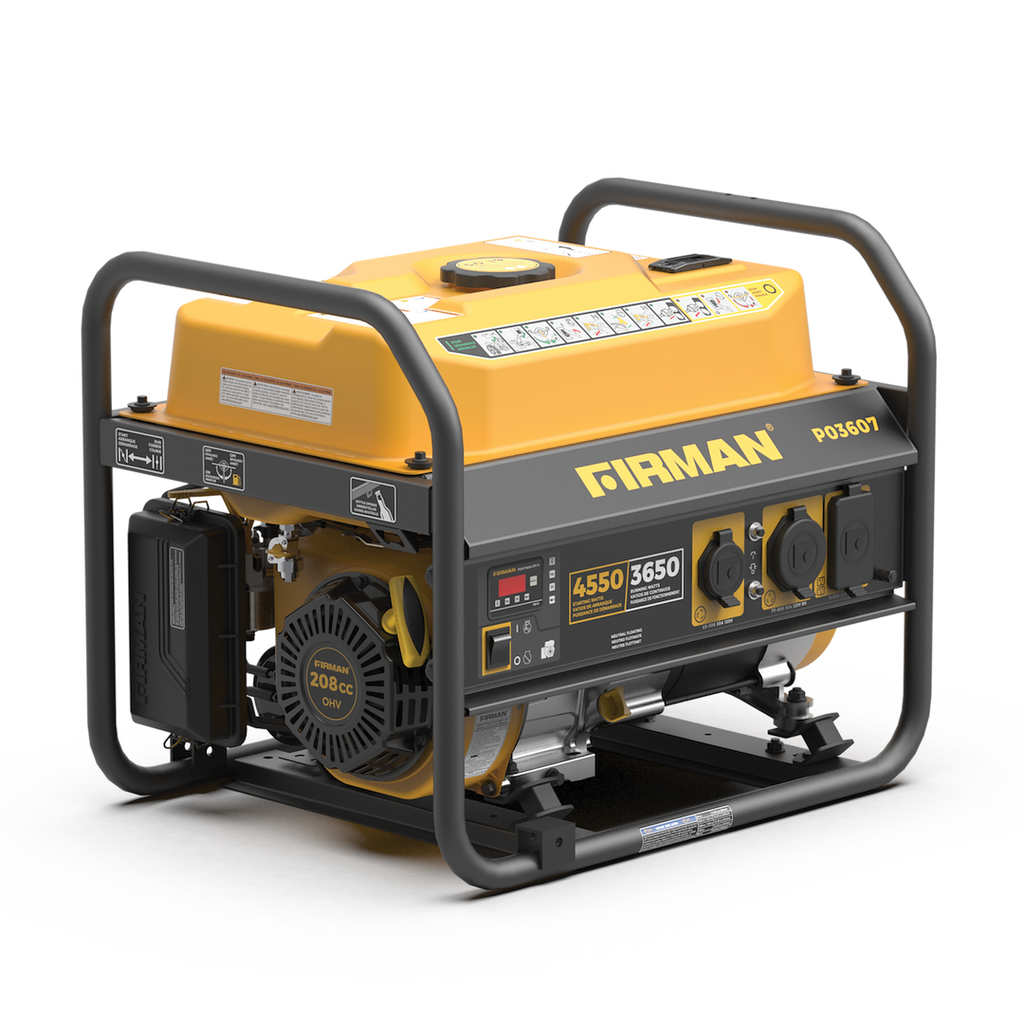

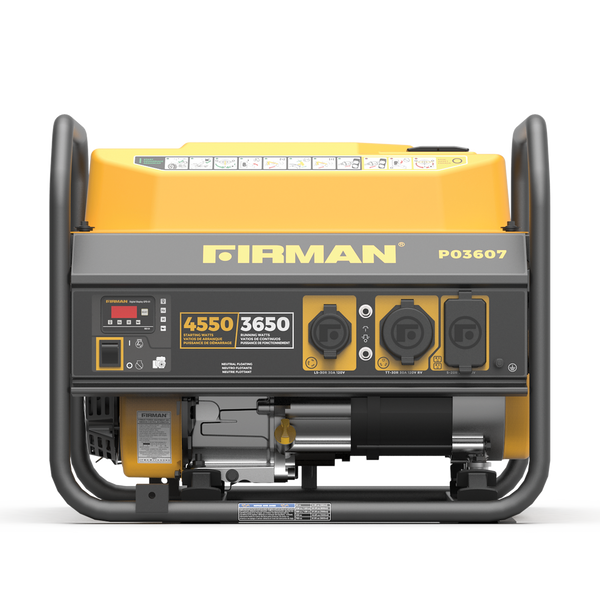

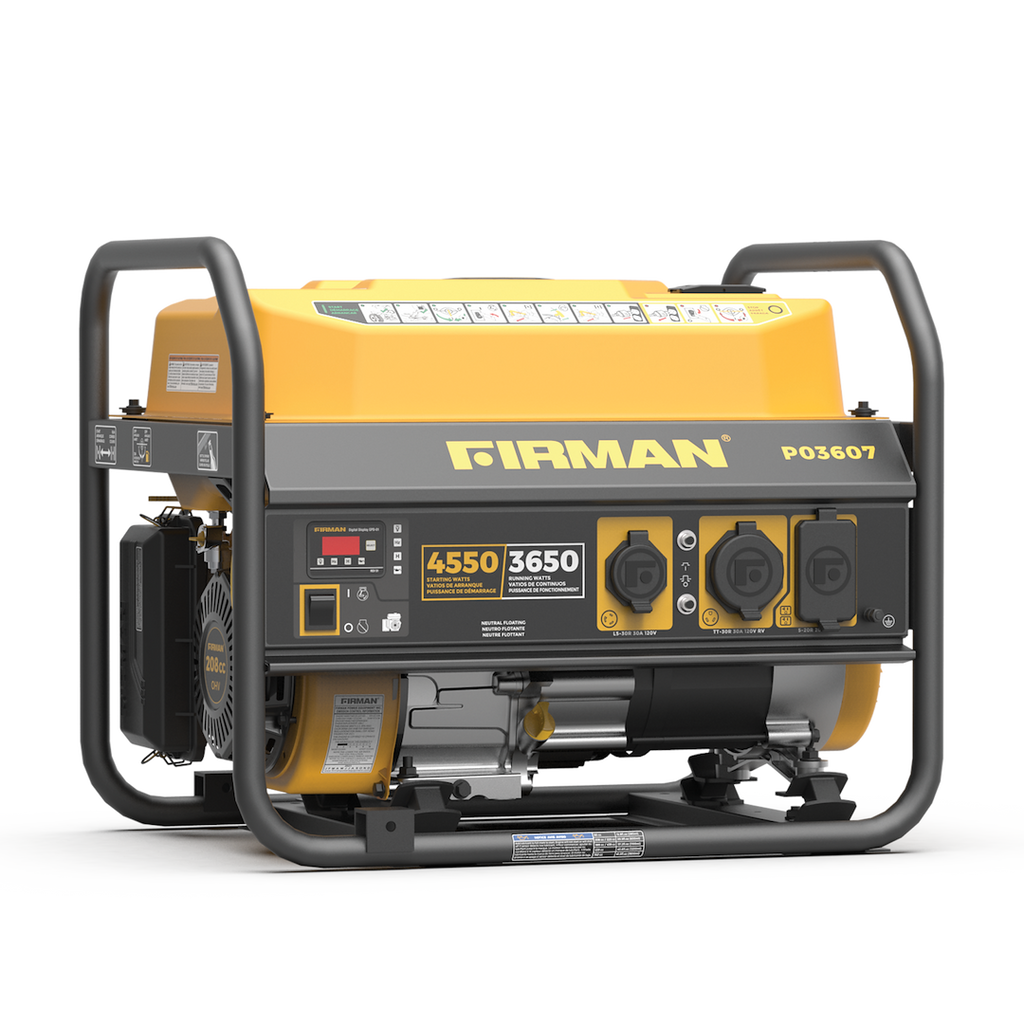

Firman Generator Performance Series (MPN: P03607)

Powerful and efficient generator with extended runtime and low noise level.

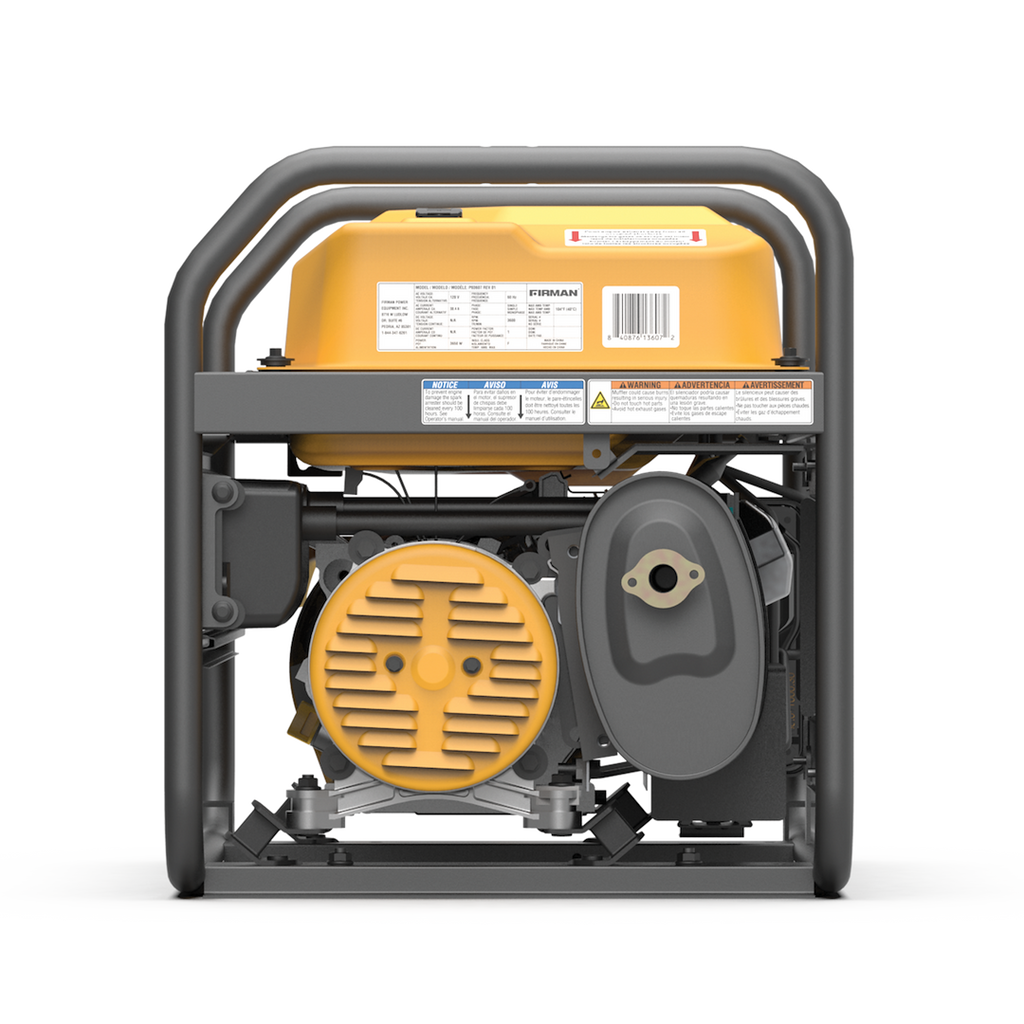

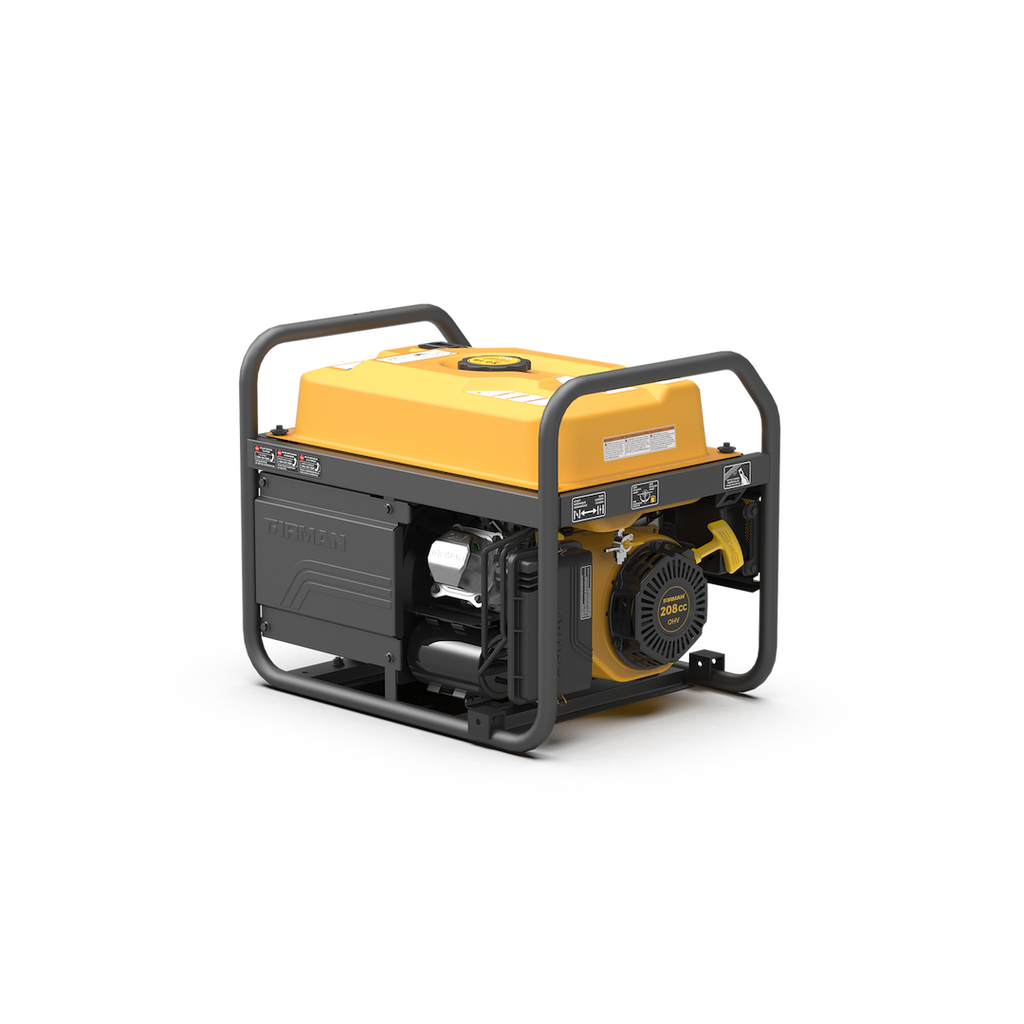

The Firman Generator Performance Series features a robust 208 CC OHV air-cooled engine designed for efficiency and durability. With a recoil start system, this generator delivers 4550 watts of starting power and 3650 watts of running power, making it suitable for various applications including camping, emergency power, and work-site use. The 5-gallon fuel tank allows for an impressive runtime of up to 14 hours at 50 percent load, minimizing the need for frequent refueling.

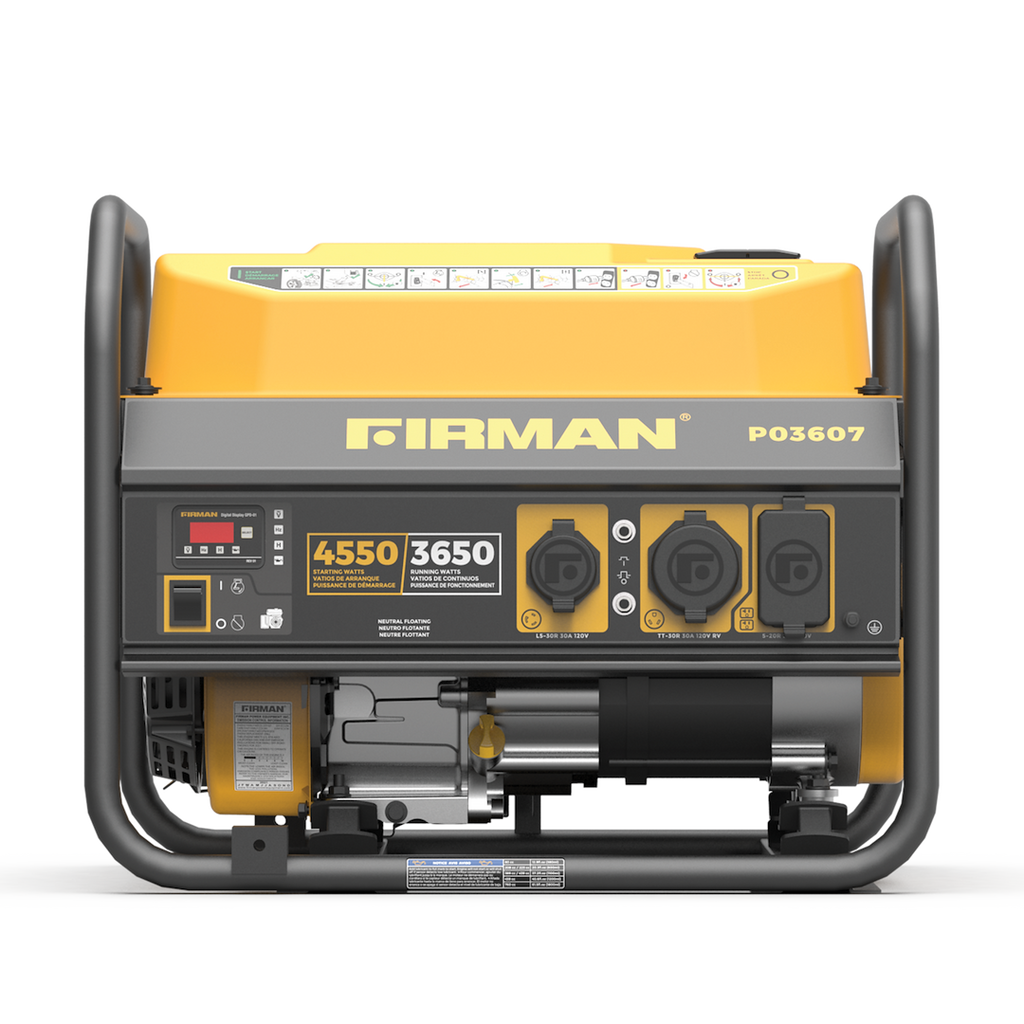

This generator is equipped with a user-friendly control panel that includes a 4-in-1 data minder, providing real-time information on volts, hertz, hours, and low oil levels. The durable tubular roll cage design enhances portability while protecting the generator during transport. Additionally, the quiet muffler ensures a noise level of only 67 decibels, making it suitable for use in noise-sensitive environments.

Safety features include an automatic low oil shutdown and a USDA FS certified spark arrester, ensuring reliable operation. The generator's multiple outlets, including RV-ready options, provide versatility for various power needs. With a compact design and a weight of 102 pounds, the Firman Generator Performance Series is engineered for both performance and convenience.

Features

• Cast Iron Sleeved Engine For Long Durability With Automatic Low Oil Shutdown Protection
• Largest Tank In The Industry With Extended Run-Time (Less Re-Fueling) With Integrated Fuel Gauge For Convenience
• Quiet Muffler (Whisper Series) With USDA FS Certified Spark Arrester
• Conveniently Located Multi-Featured Control Panel With FIRMAN Custom Designed Outlet Cover Protecting Outlets From Din, Dust And Debris
• 4 In 1 Data-Minder Monitors Running Hours, Voltage And Frequency In Conjunction With Our Low Oil Indicator Light
• Durable Compact Roll-Cage Frame Design With 1.0 Inch Steel Tubing
• Designed AVR (Automatic Voltage Regulator) VC (Volt-Lock) Series
• The FIRMAN OHV Engine (Max-Pro Series) For Longer Life Or Higher Performance Or Lower Maintenance

Specifications

• Manufacturer: Firman
• Manufacturer Part Number: P03607
• Type: Portable
• Fuel Type: Gasoline
• AC Running Watts: 3650 Watt
• Inverter Equipped: No
• Parallel Ready: No
• Starting System: Recoil
• CARB Certified: Yes
• EPA Certified: Yes
• Rated Voltage: 120 Volt
• Automatic Low Oil Shutdown: Yes
• Choke Type: Manual
• DC Output (Volt/Amps): Without DC Outlet
• Displacement (CC): 208 CC
• Weight Dry: 102 Pound
• Receptacle Type: 120 Volt, 20 Amp 5-20R Duplex/ 120 Volt, 30 Amp L5-30R/ 120 Volt, 30 Amp TT-30R
• Receptacle Quantity: 4
• Warranty: 3 Years Consumer/ 90 Day Commercial Warranty
• Wheels: Without Wheels
• Recommended Use: Camping, Emergency Power And Work-Site

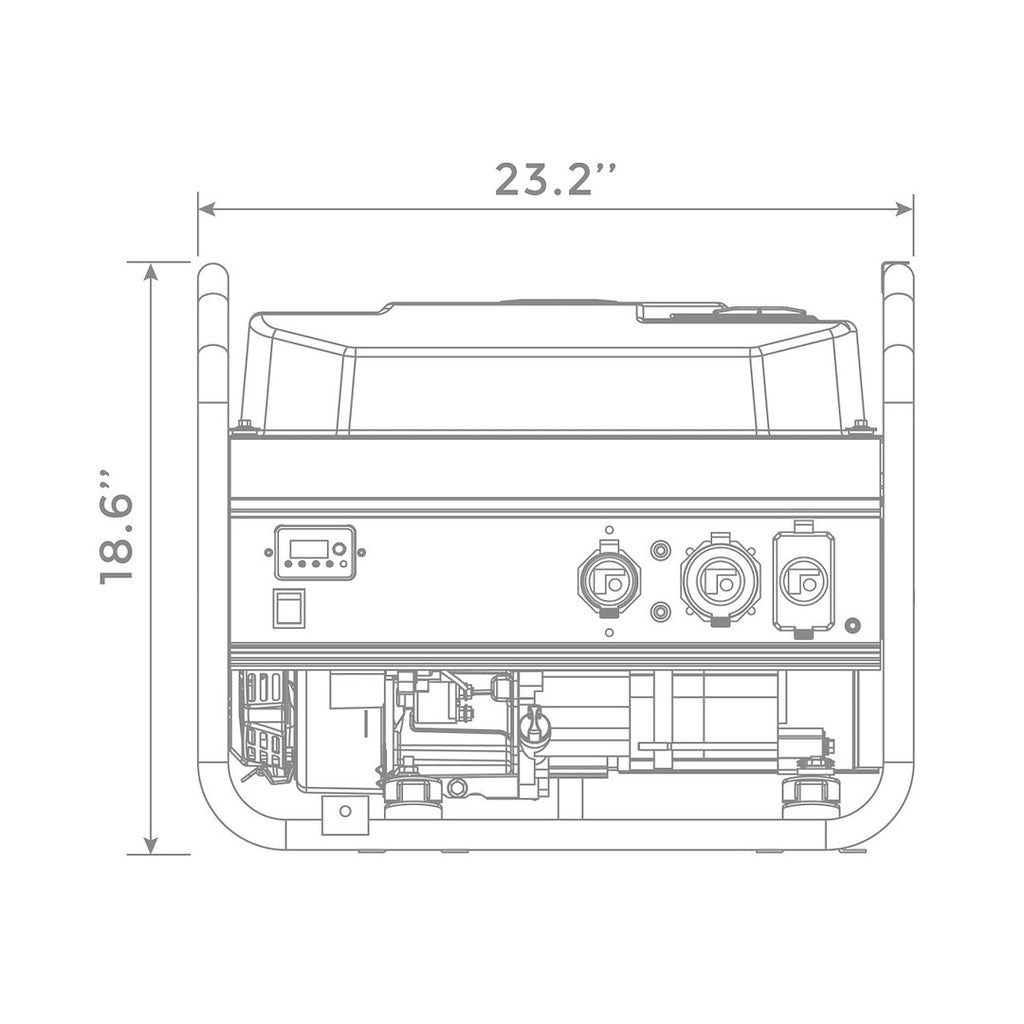

• Length (IN): 23-1/4 Inch
• Width (IN): 17-1/2 Inch
• Height (IN): 18-1/2 Inch
• Engine Type: Single Cylinder, 4-Stroke, OHV, Air-Cooled
• Fuel Gauge: Yes

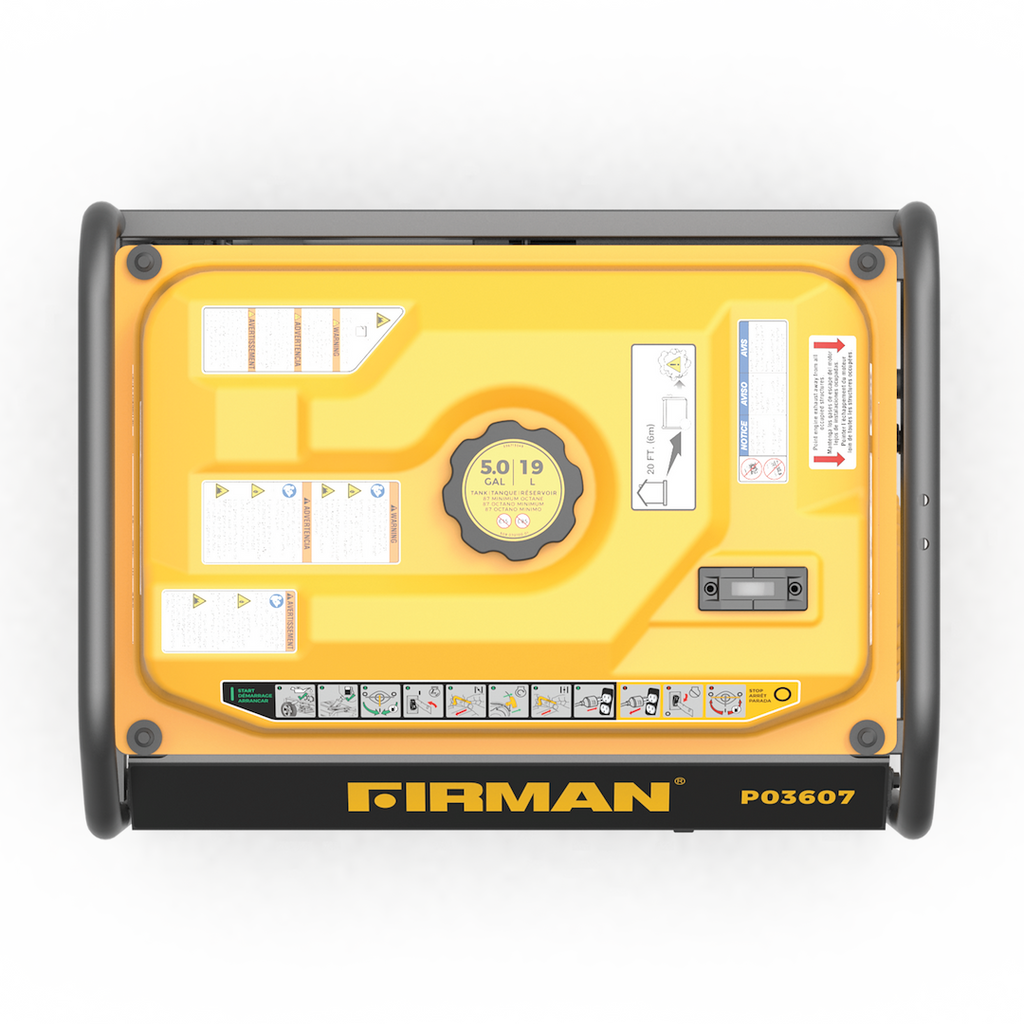

• Fuel Tank Capacity (Gallon): 5 Gallon
• Hour Meter: Yes
• Max AC Current (Amps): 20/ 30 Amp
• Oil Capacity: 0.6 Quart
• Oil Type: SAE 10W-30
• Rated Frequency (Hz): 60 Hertz

Technical Documents

• P03607_Operators_Manual.pdf
