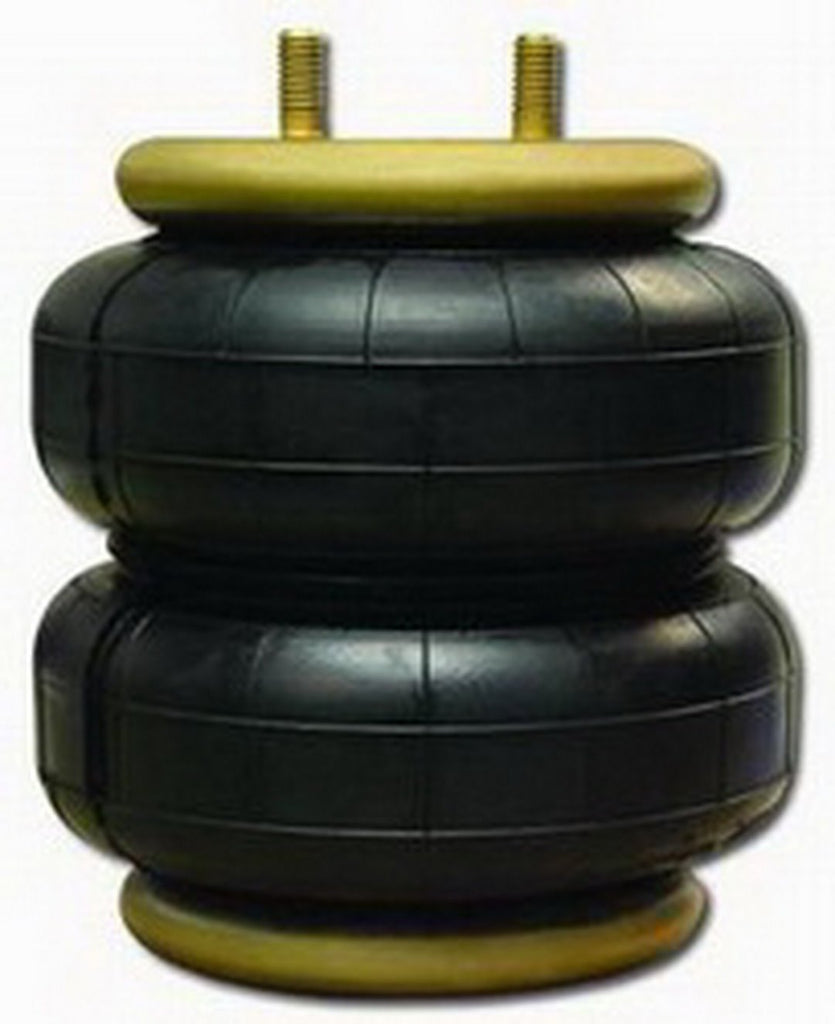

Firestone Air Double Bellows (MPN: 6776)

Enhance vehicle stability and ride quality with adjustable air support.

Firestone Air Double Bellows are designed to improve the load-carrying capacity and ride quality of vehicles. With an extended height of 8.91 inches and a compressed height of 3 inches, these bellows provide a robust solution for various automotive applications. The 7.52-inch diameter and 1/2 NPT inflation port ensure compatibility with a wide range of vehicles, including larger trucks and SUVs.

The innovative design allows for air pressure adjustments, enabling users to match the spring support to the load requirements. This feature ensures a level and stable vehicle, enhancing overall driving performance. Firestone's commitment to quality and durability is evident in the construction of these bellows, making them suitable for demanding conditions.

These air springs are particularly beneficial for maintaining ride quality under varying loads, ensuring that even with minimal pressure in an unloaded vehicle, the ride remains unchanged. Firestone continues to lead in the automotive industry with products that prioritize safety and performance.

Features

• Helps The Existing Suspension Carry The Load And Improve The Ride. With The Minimum Pressure In An Unloaded Vehicle, There Will Be No Change To The Ride
• Air Pressure Adjustment Allows To Provide The Exact Amount Of Spring Support To Match The Load, Providing A Level And Stable Vehicle

Specifications

• Manufacturer: Firestone Industrial
• Manufacturer Part Number: 6776
• Type: Air Double Bellows
• Extended Height (IN): 8.91 Inch
• Compressed Height (IN): 3 Inch
• Diameter (IN): 7.52 Inch
• Load Capacity (LB): 2500 Pound

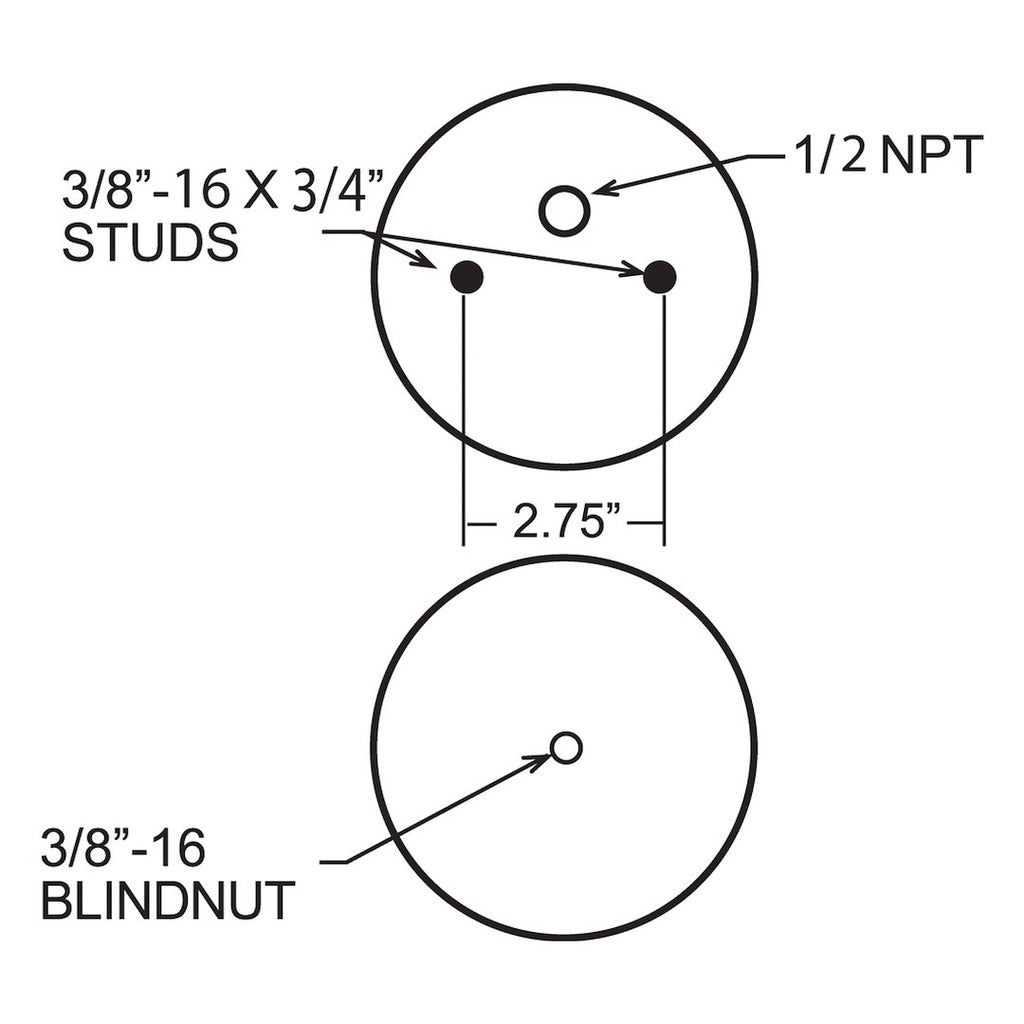

• Inflation Port Size: 1/2 Inch NPT
• Mounting Type Side A: 3/8 Inch-16 X 3/4 Inch Studs
• Mounting Type Side B: 3/8 Inch-16 Blind Nuts
• Color: Black

Technical Documents

• operating_guide.pdf
• warning_label.pdf
• operating_guide.pdf
• warning_label.pdf
