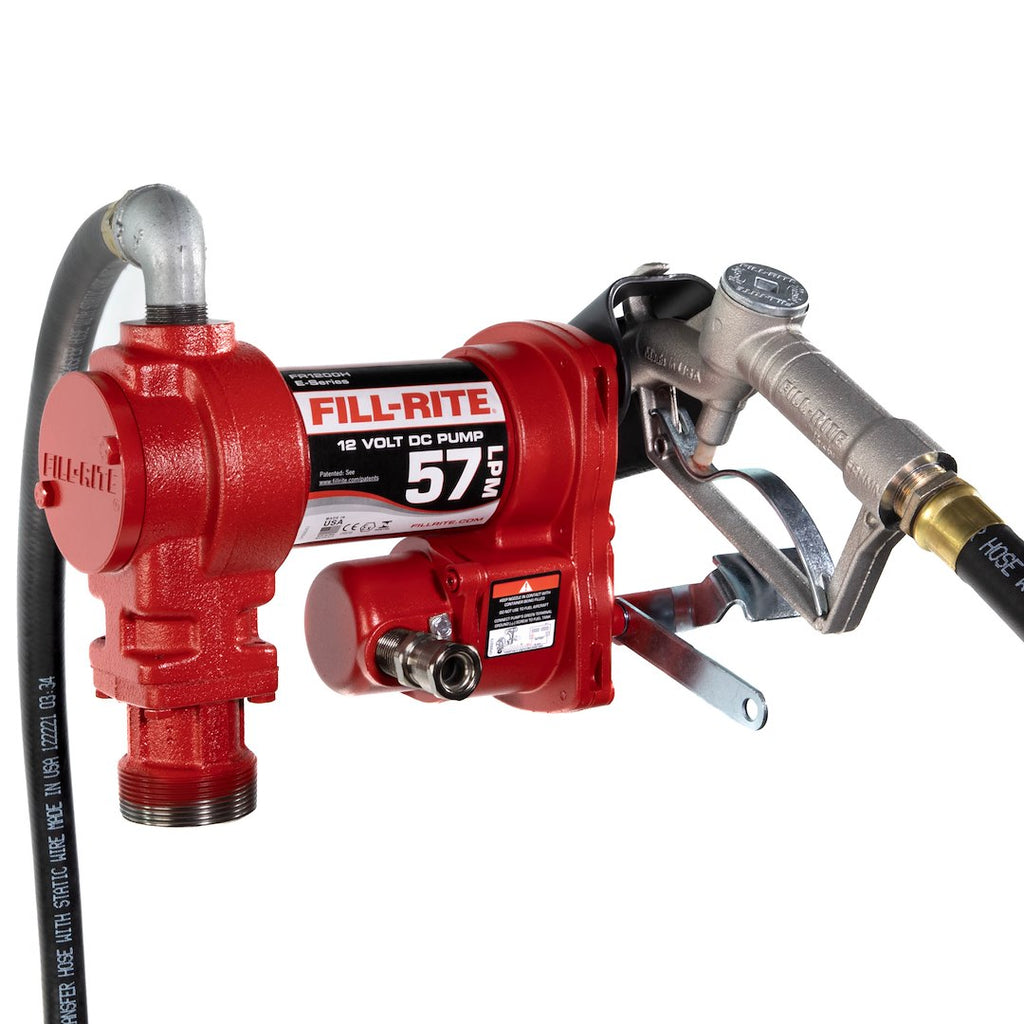

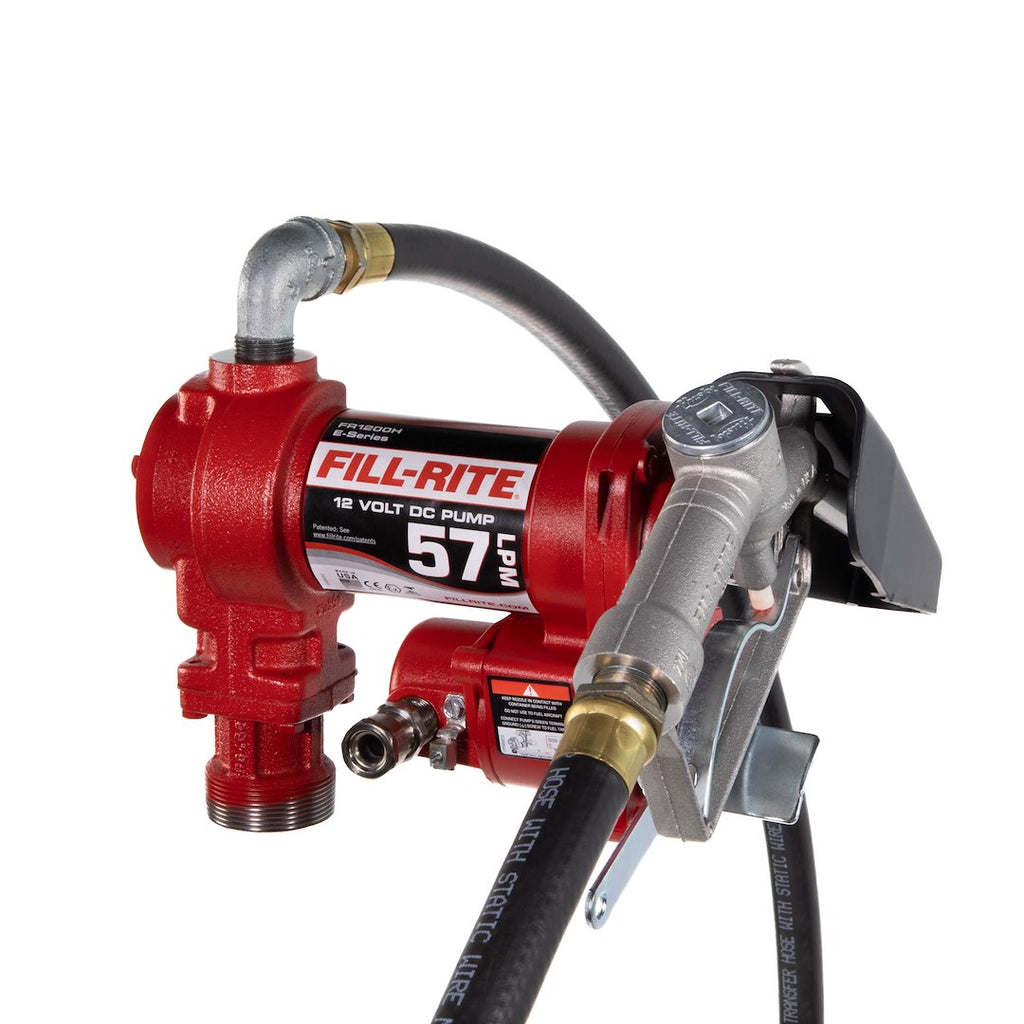

Fill-Rite Liquid Transfer Tank Pump (MPN: FR1210HE)

Efficient electric pump for gasoline, diesel, and more.

The Fill-Rite Liquid Transfer Tank Pump is designed for efficient transfer of various liquids including gasoline, diesel, B20, E-15, kerosene, and mineral spirits. This electric pump operates on a 12 Volt DC system, delivering a flow rate of 15 gallons per minute through a 1 inch NPT inlet and a 3/4 inch NPT outlet. It features a manual nozzle and comes equipped with a 3.6 meter hose, 5.5 meter 3-wire battery cable, and a 1.5 meter ground wire with clip, ensuring a comprehensive setup for liquid transfer tasks.

Constructed with all cast iron, the Fill-Rite pump is built for durability and performance in both portable and stationary applications. It includes a built-in strainer, self-priming capabilities, and thermal overload protection, making it suitable for continuous use with a 30-minute duty cycle. The pump operates effectively within a temperature range of -17 degrees Fahrenheit to 105 degrees Fahrenheit, and is designed to handle a maximum operating pressure of 16 PSI.

This pump is UL Listed and features ATEX, ANZEx, and INMETRO IEC motor approvals, ensuring compliance with safety standards. The telescoping steel suction pipe adds versatility, allowing for easy adjustments during operation. The Fill-Rite Liquid Transfer Tank Pump is an essential tool for both private and commercial facilities requiring reliable liquid transfer solutions.

Features

• Built-In Strainer
• 30-Minute Duty Cycle
• Self Priming
• Thermal Overload Protection
• ATEX, ANZEx And INMETRO IEC Motor Approved

Specifications

• Manufacturer: Fill-Rite
• Manufacturer Part Number: FR1210HE
• Type of Liquid: Gasoline/ Diesel/ Kerosene
• Delivery Type: Electric
• Flowrate: 15 Gallons Per Minute
• Inlet Size (IN): 1 Inch
• Outlet Size (IN): 3/4 Inch
• Hose Length: 12 Feet
• Nozzle: Manual
• Universality: Fully Universal
• Suction Pipe: Telescoping
• UL Listed Approved: Yes
