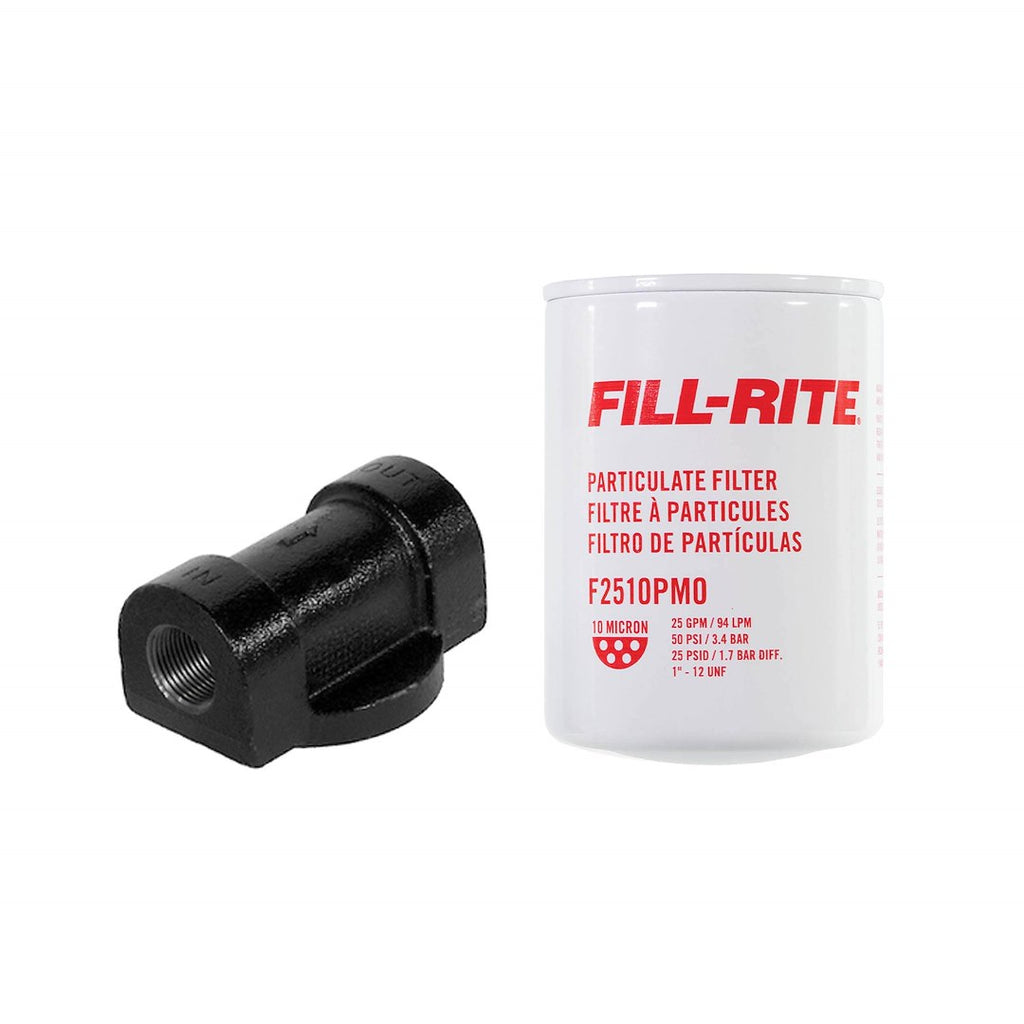

Fill-Rite Liquid Transfer Tank Pump Filter (MPN: 1200KTF7025)

Efficiently removes particulates to protect fuel systems and equipment.

Fill-Rite's Liquid Transfer Tank Pump Filter is designed to enhance the performance and longevity of fuel transfer systems. This particulate filter effectively removes contaminants such as dirt, rust, and microbial growth, ensuring that your fuel supply remains clean and free from harmful particles. With a micron rating of 10 microns and a flow rate of up to 25 gallons per minute, this filter is suitable for various applications, including gasoline, diesel fuel, E15 ethanol blended gasoline, and B20 bio-diesel.

The filter features a robust design with a 3/4 inch port and 1 inch-12 UNF filter thread, making it compatible with Fill Rite FR8-PX, FR8, FR1204H, FR1210H, and FR1210HA series liquid transfer tank pumps. Its bung mount installation allows for easy integration into existing systems. Regular maintenance is recommended, with Fill-Rite suggesting filter changes every six months to maintain optimal performance and protection against water contamination, which poses a significant risk to fuel sources.

This filter not only protects your equipment from substantial damage caused by contaminants but also serves as a reliable solution for detecting excess water in your fuel. By causing flow restriction, it alerts users when attention is required, ensuring that your fuel system operates efficiently and safely.

Features

• Protects Equipment — Protect Your Heavy Equipment From Contaminates That Cause Substantial Damage And Shorten Life, Such As Dirt, Rust, Microbial Growth, And Water
• Water Contamination Is The Highest Risk To Your Fuel Source, Finding Its Way In During Delivery, From Rain, Humidity, Condensation, Leaks And Numerous Other Methods
• Fill-Rite Recommends Changing Filters Every Six Months To Maintain The Highest Degrees Of Protection And Performance
• The Best Filtering Solution For Your Application, Water Detecting Filters Capture Particulates And Detect Excess Water By Causing Flow Restriction And Indicating Your Attention Is Required
• Second Only To Water Detecting Filters In Protection, Particulate Filters Remove Dirt, Rust, And Microbial Growth Contaminates From Your Fuel Supply Before They Make Their Way Into Your Equipment

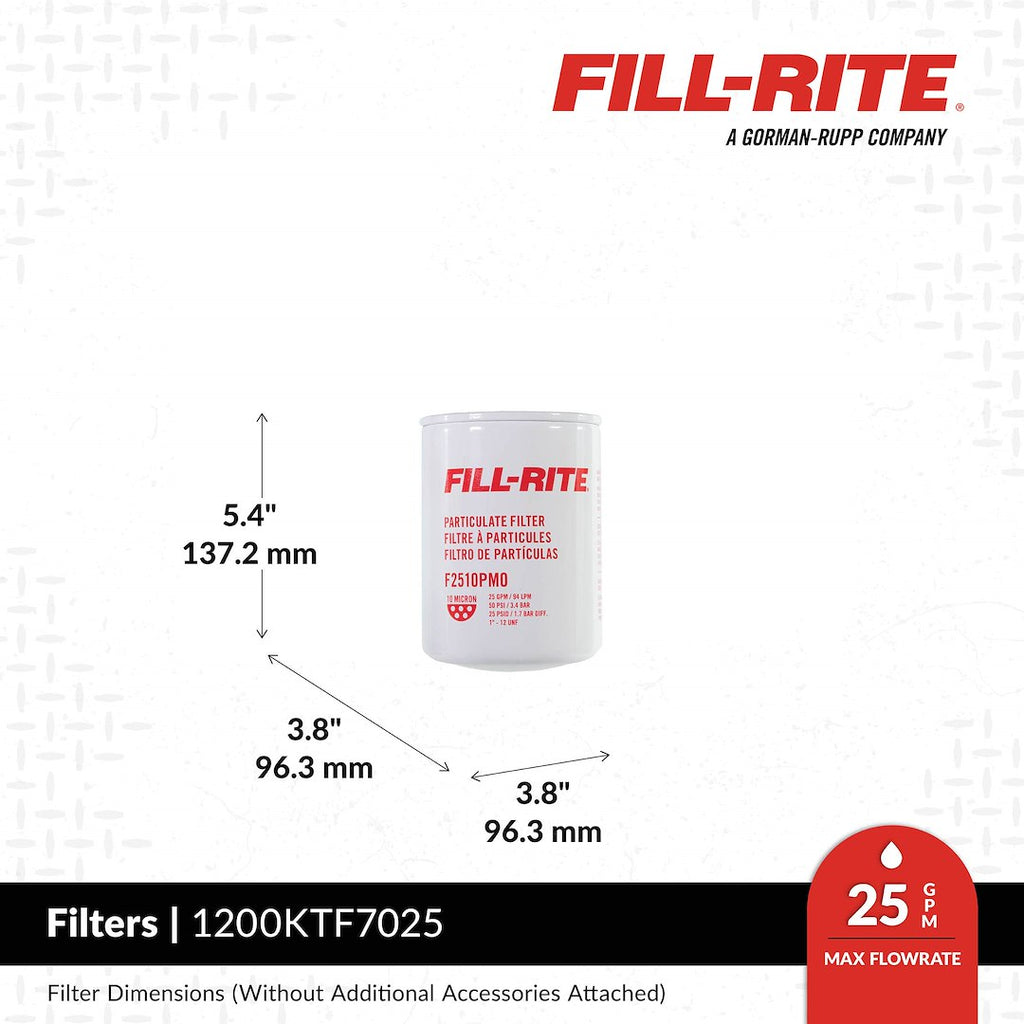

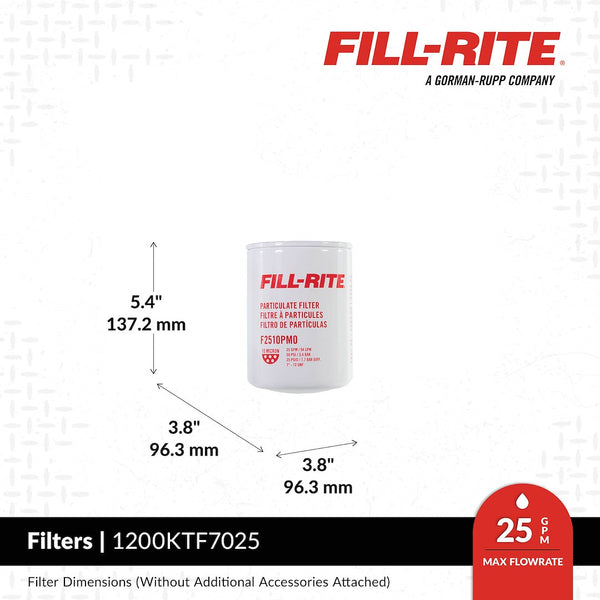

Specifications

• Manufacturer: Fill-Rite
• Manufacturer Part Number: 1200KTF7025
• Compatibility: Fill Rite FR8-PX/ FR8/ FR1204H/ FR1210H/ FR1210HA Series Liquid Transfer Tank Pump
• Type of Filter: Particulate
• Micron Rating: 10 Microns
• Filter Rate: 25 Gallons Per Minute
• Thread Size (IN): 1 Inch-12 UNF
• With Drain: No
• Universality: Fully Universal
