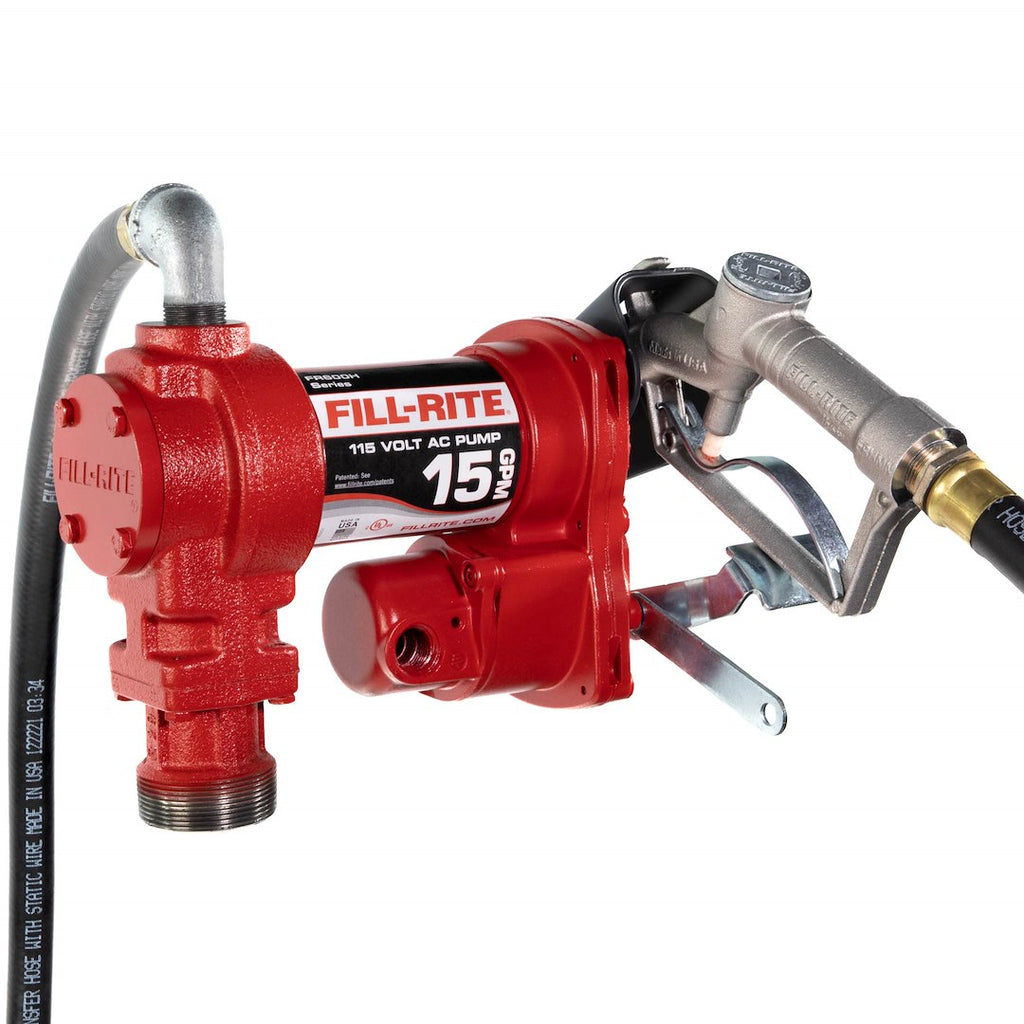

Fill-Rite H-Series Fuel Transfer Pump (MPN: FR610H)

Heavy-duty electric pump for versatile fuel transfer applications.

The Fill-Rite H-Series fuel transfer pump is engineered for robust performance in a compact design, delivering flow rates of 15 gallons per minute. This electric pump is compatible with a variety of fuels including gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene, and mineral spirits. Its construction features a durable cast iron body, ensuring longevity and reliability in demanding environments.

Designed for both mobile and stationary applications, the H-Series offers a range of configurations including manual or automatic nozzles and various hose lengths. The pump operates efficiently within a temperature range of -17 degrees Fahrenheit to 104 degrees Fahrenheit, making it suitable for diverse operational conditions. With UL and cUL certifications, this pump meets stringent safety and performance standards.

Key features include a thermally protected motor to prevent overheating, a telescoping inlet metal suction pipe for adjustable lengths, and a reliable heavy-duty power switch lever. The locking bar defense enhances security against theft, while the premium paint shield provides a corrosion-resistant barrier for extended field life. An intake strainer safeguards the pump from contaminants, ensuring optimal performance.

Features

• Reliable, Heavy-Duty Power Switch Lever: Features A Cast Metal Stop That Withstands Heavy Use In The Most Rugged Environments
• Locking Bar Defense: Elongated Bar Simplifies The Pad Locking Process To Prevent Theft
• Premium Paint Shield: An Exemplary Corrosion Resistant Barrier For Long Field Life
• Thermally Protected Motor: Prevents Overheating To Ensure Maximum Motor Life
• Telescoping Inlet Metal Suction Pipe: Adjustable From 20 To 34 Inch In Length, Allowing For Universal Sizes And Shapes
• Intake Strainer Safeguard: Protects The Pump By Blocking Particles Created By Contamination
• Focused Component Weight Reduction: Preserves Expected Heavy-Duty Performance While Improving Installation Ease
• Certifications: UL, CUL

Specifications

• Manufacturer: Fill-Rite
• Manufacturer Part Number: FR610H
• Type of Liquid: Gasoline/ Diesel/ Kerosene
• Delivery Type: Electric
• Flowrate: 15 Gallons Per Minute
• Duty Cycle: 30 Minutes On/ 30 Minutes Off
• Inlet Size (IN): 1 Inch
• Outlet Size (IN): 3/4 Inch

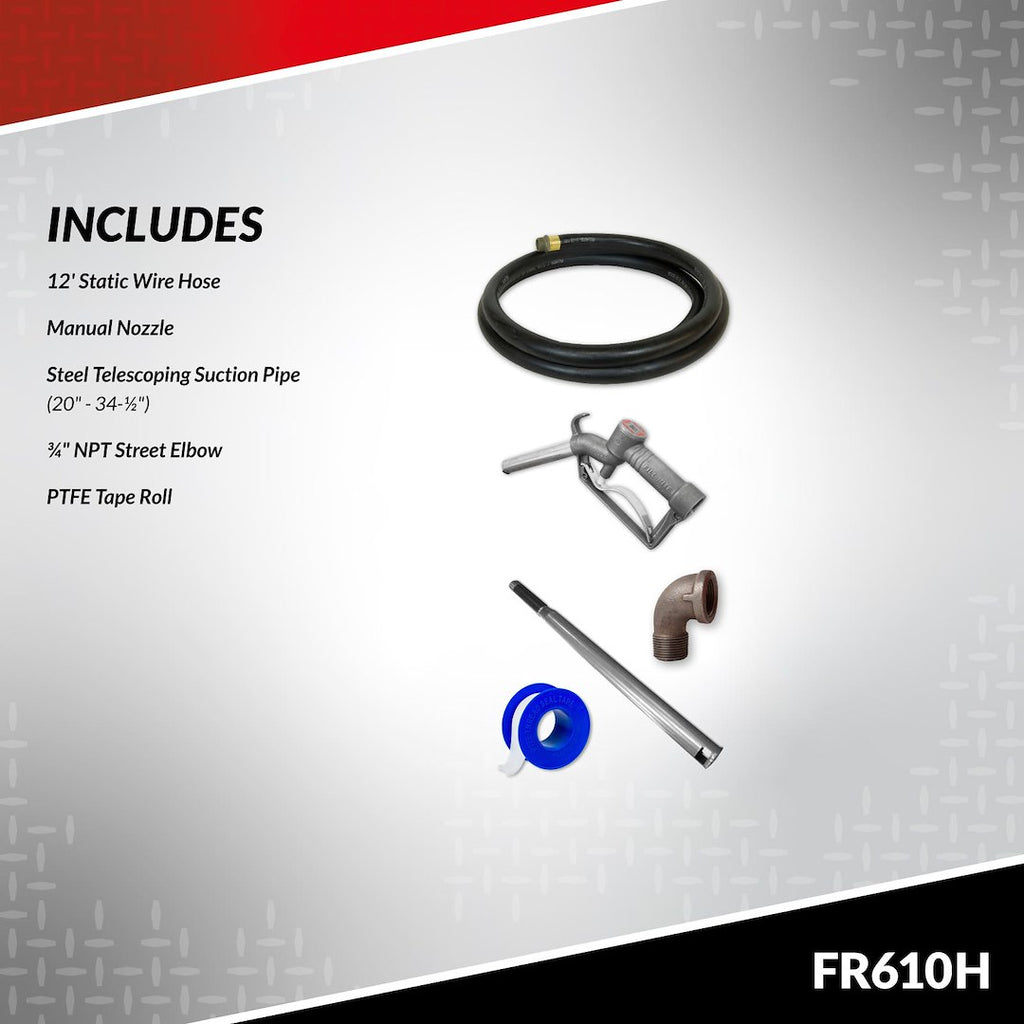

• Hose Length: 12 Feet
• Nozzle: Manual
• Universality: Fully Universal
• Hose Diameter: 3/4 Inch
• Suction Pipe: Telescoping
• UL Listed Approved: Yes

Technical Documents

• HSeries-SEDataSheet-BungMount_FINAL.pdf
