Fill-Rite H-Series Fuel Transfer Pump (MPN: FR1210HA)

Heavy-duty electric pump for versatile fuel transfer applications.

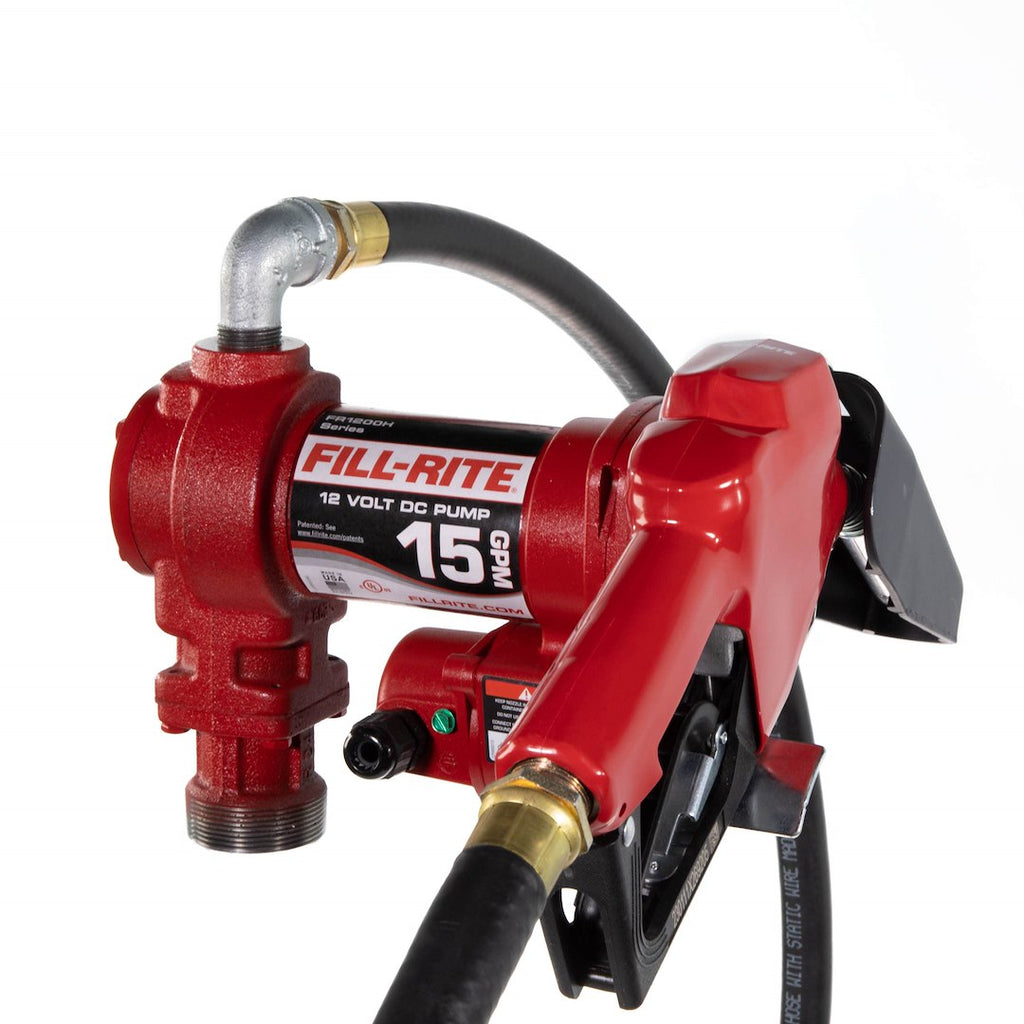

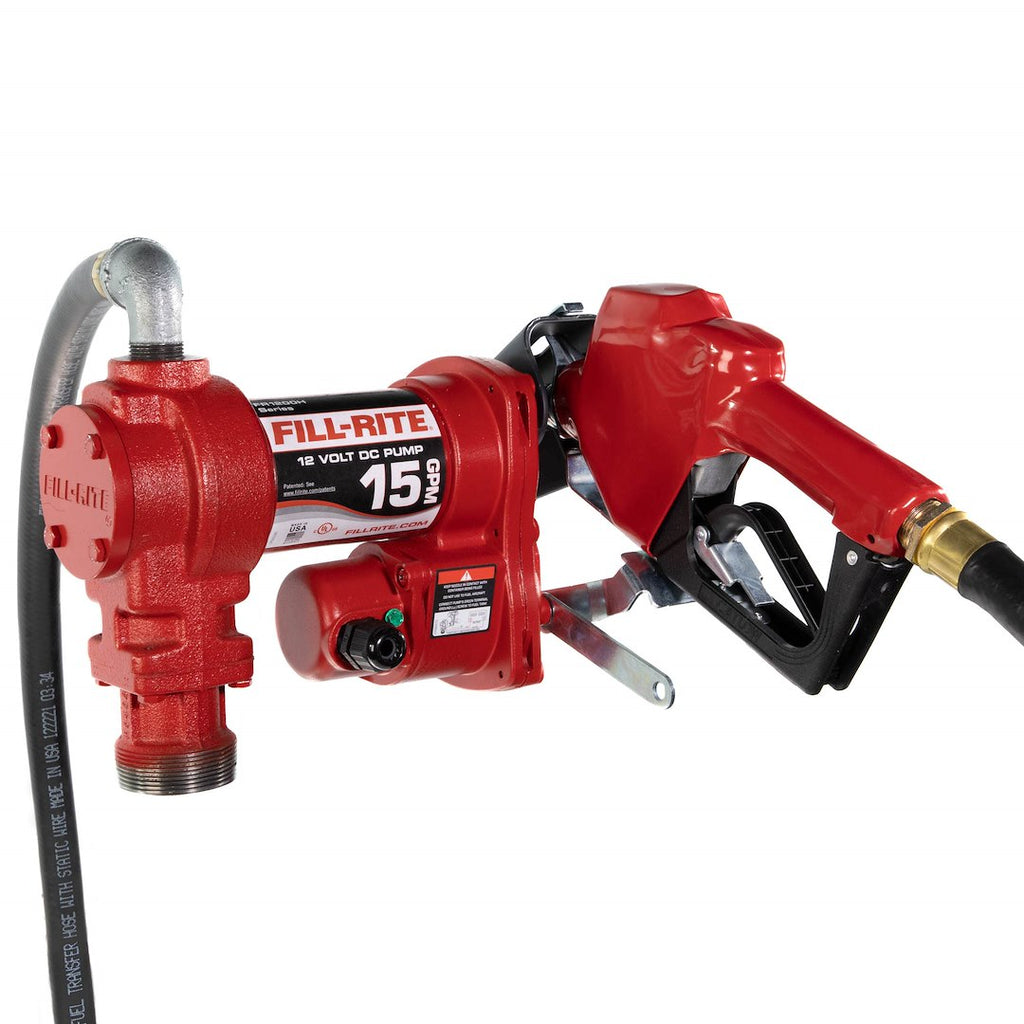

The Fill-Rite H-Series fuel transfer pump is engineered for robust performance in a compact design, delivering flow rates between 13 and 20 gallons per minute. This electric pump is compatible with a variety of fuels including gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, and kerosene, making it suitable for diverse fueling needs. The H-Series features a durable construction with a cast iron body and a built-in strainer to protect against contamination, ensuring longevity and reliability in both mobile and stationary applications.

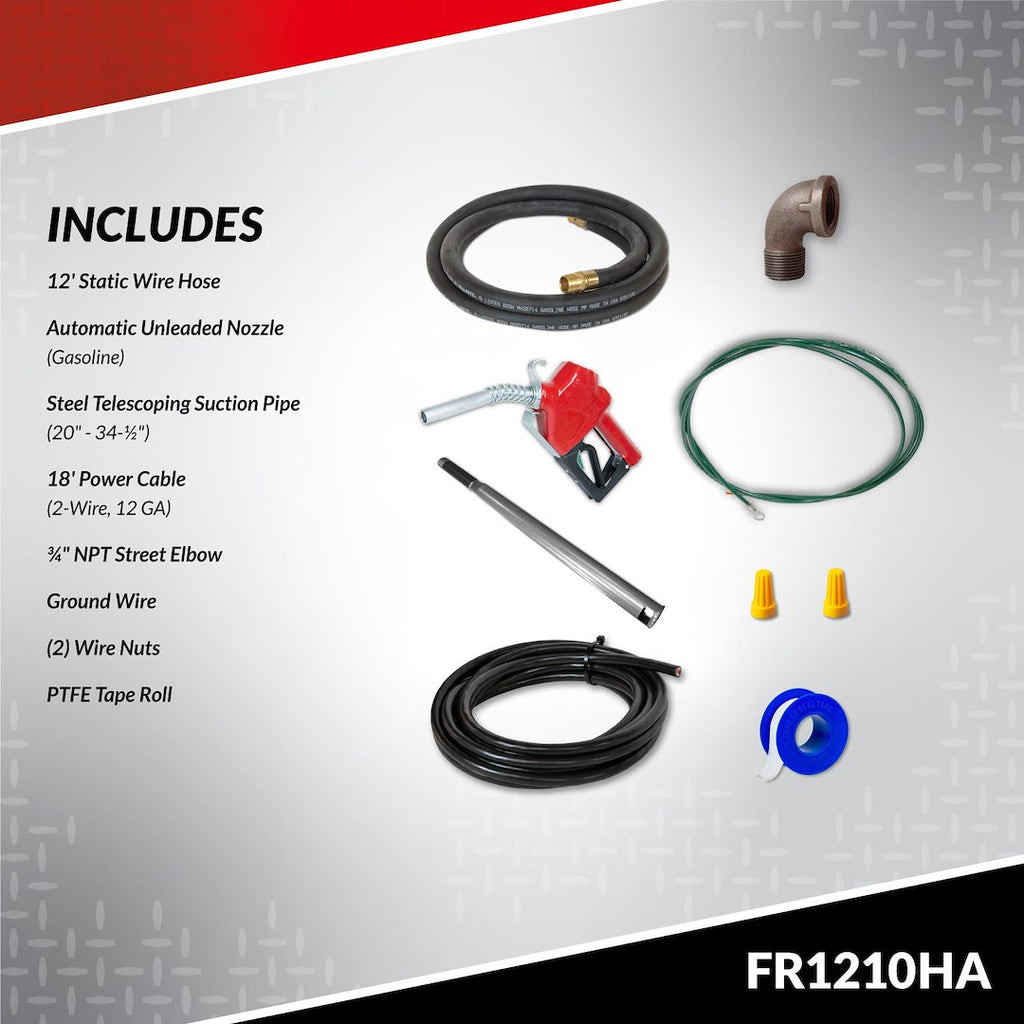

Designed for ease of use, the pump includes an automatic nozzle and a telescoping inlet metal suction pipe that adjusts from 20 to 34 inches, accommodating various tank sizes and shapes. The thermally protected motor prevents overheating, while the premium paint shield offers exceptional corrosion resistance for extended field life. With UL and cUL certifications, the H-Series meets rigorous safety standards, making it a dependable choice for heavy-duty fuel transfer tasks.

Additional features include a reliable heavy-duty power switch lever, a locking bar defense to deter theft, and a focused component weight reduction that enhances installation ease without compromising performance. The Fill-Rite H-Series is a versatile solution for those requiring a powerful and efficient fuel transfer pump.

Features

• Reliable, Heavy-Duty Power Switch Lever: Features A Cast Metal Stop That Withstands Heavy Use In The Most Rugged Environments
• Locking Bar Defense: Elongated Bar Simplifies The Pad Locking Process To Prevent Theft
• Premium Paint Shield: An Exemplary Corrosion Resistant Barrier For Long Field Life
• Thermally Protected Motor: Prevents Overheating To Ensure Maximum Motor Life
• Telescoping Inlet Metal Suction Pipe: Adjustable From 20 To 34 Inch In Length, Allowing For Universal Sizes And Shapes
• Intake Strainer Safeguard: Protects The Pump By Blocking Particles Created By Contamination
• Focused Component Weight Reduction: Preserves Expected Heavy-Duty Performance While Improving Installation Ease
• Certifications: UL, CUL

Specifications

• Manufacturer: Fill-Rite
• Manufacturer Part Number: FR1210HA
• Type of Liquid: Gasoline/ Diesel/ Kerosene
• Delivery Type: Electric
• Flowrate: 15 Gallons Per Minute
• Duty Cycle: 30 Minutes On/ 30 Minutes Off
• Inlet Size (IN): 1 Inch
• Outlet Size (IN): 3/4 Inch
• Hose Length: 12 Feet
• Nozzle: Automatic
• Universality: Fully Universal
• Hose Diameter: 3/4 Inch
• Hose Material: Rubber
• Power Cord Length (FT): 18 Feet
• Power Cord Gauge: 12 AWG
• Suction Pipe: Telescoping
• UL Listed Approved: Yes

Technical Documents

• HSeries-SEDataSheet-BungMount_FINAL.pdf
