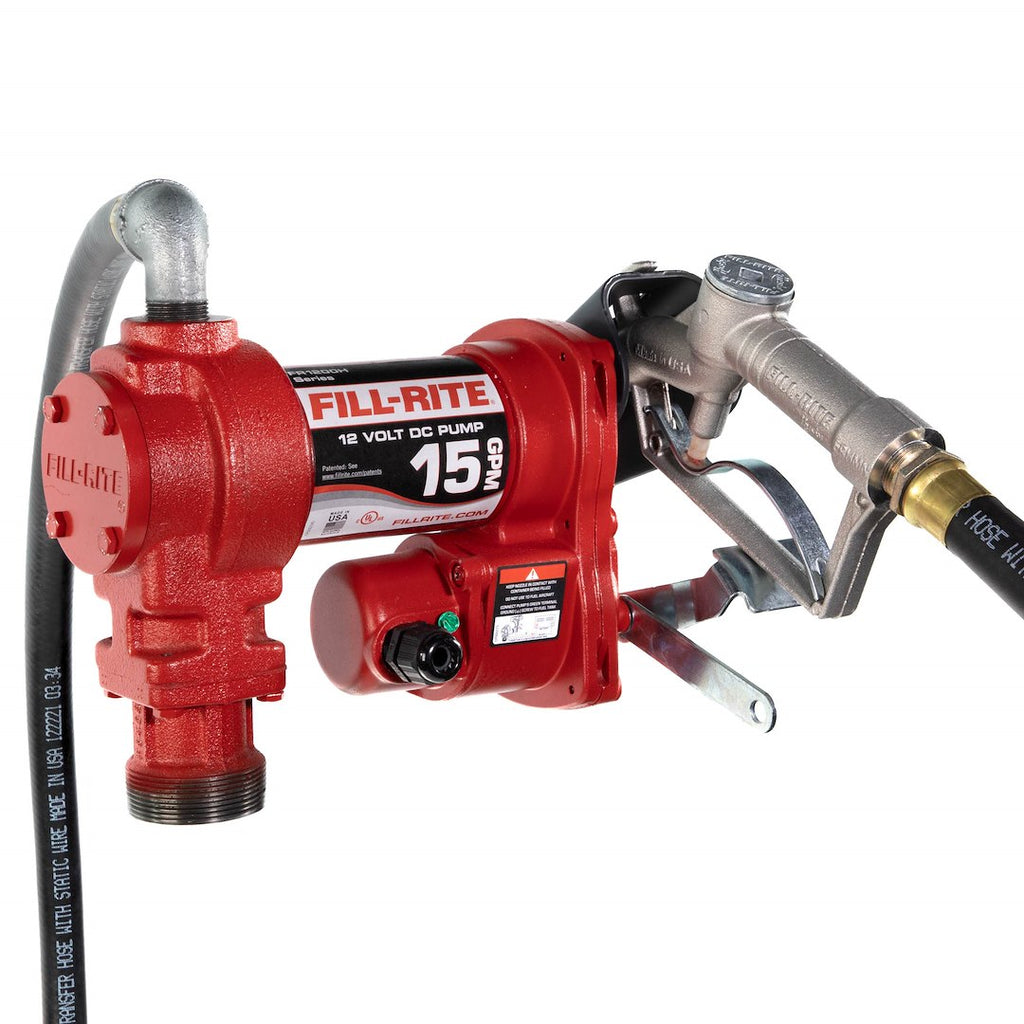

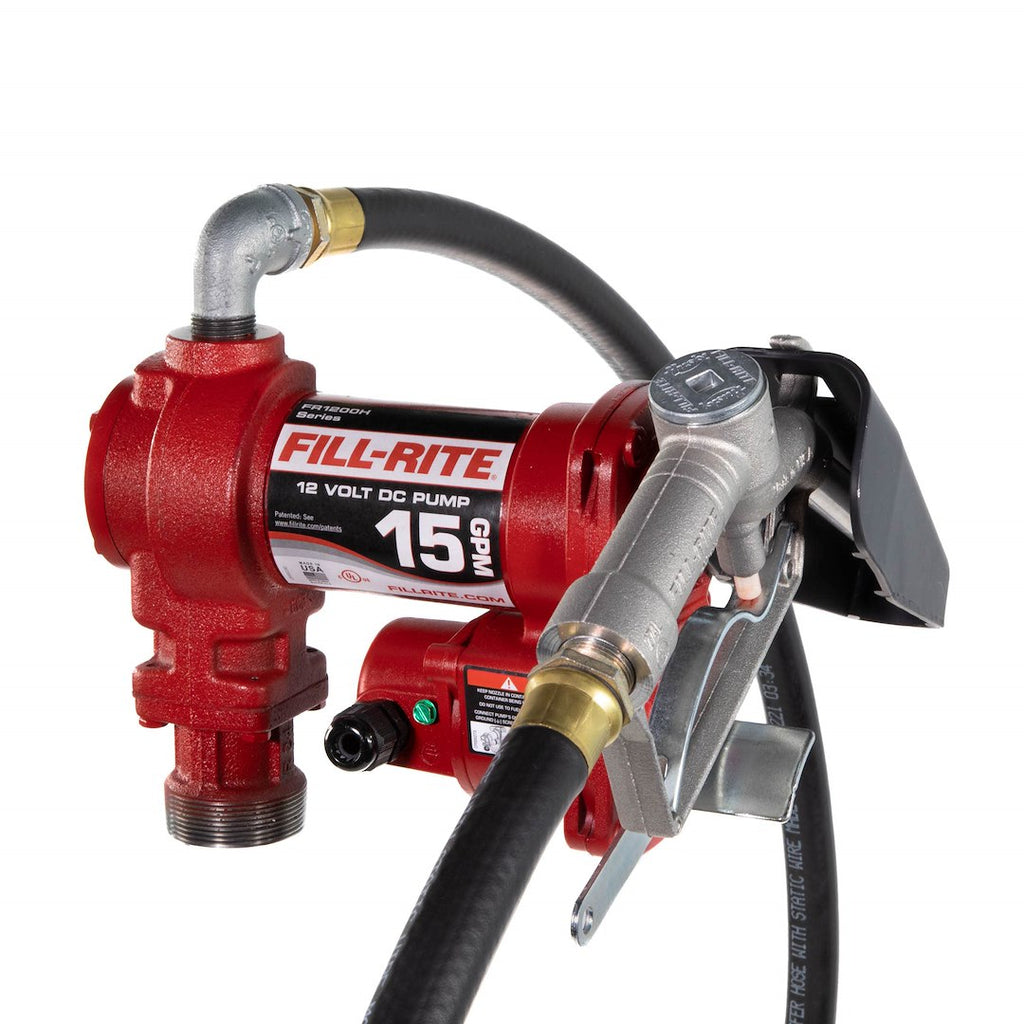

Fill-Rite H-Series Fuel Transfer Pump (MPN: FR1210H)

Heavy-duty electric pump for versatile fuel transfer applications.

The Fill-Rite H-Series fuel transfer pump is engineered for robust performance in a compact design, capable of transferring fuel at rates between 13 and 20 gallons per minute. This electric pump operates on 12 volts DC and is compatible with a variety of fuels including gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, and kerosene. Its durable construction ensures reliability in both mobile and stationary applications, making it suitable for diverse environments.

Featuring a heavy-duty power switch lever and a locking bar defense system, the H-Series is built to withstand rigorous use while preventing theft. The pump includes a telescoping inlet metal suction pipe that adjusts from 20 to 34 inches, accommodating various tank sizes and shapes. Additionally, the thermally protected motor prevents overheating, ensuring longevity and consistent performance.

The Fill-Rite H-Series is UL and cUL certified, providing peace of mind regarding safety and compliance. With a maximum operating pressure of 16 PSI and a temperature range from -17 to 105 degrees Fahrenheit, this pump is designed to perform reliably under challenging conditions. Its premium paint shield offers corrosion resistance, enhancing its durability for long-term use.

Features

• Reliable, Heavy-Duty Power Switch Lever: Features A Cast Metal Stop That Withstands Heavy Use In The Most Rugged Environments
• Locking Bar Defense: Elongated Bar Simplifies The Pad Locking Process To Prevent Theft
• Premium Paint Shield: An Exemplary Corrosion Resistant Barrier For Long Field Life
• Thermally Protected Motor: Prevents Overheating To Ensure Maximum Motor Life
• Telescoping Inlet Metal Suction Pipe: Adjustable From 20 To 34 Inch In Length, Allowing For Universal Sizes And Shapes
• Intake Strainer Safeguard: Protects The Pump By Blocking Particles Created By Contamination
• Focused Component Weight Reduction: Preserves Expected Heavy-Duty Performance While Improving Installation Ease
• Certifications: UL, CUL

Specifications

• Manufacturer: Fill-Rite
• Manufacturer Part Number: FR1210H
• Type of Liquid: Gasoline/ Diesel/ Kerosene
• Delivery Type: Electric
• Flowrate: 15 Gallons Per Minute
• Duty Cycle: 30 Minutes On/ 30 Minutes Off
• Inlet Size (IN): 1 Inch
• Outlet Size (IN): 3/4 Inch
• Hose Length: 12 Feet
• Nozzle: Manual
• Universality: Fully Universal
• Hose Diameter: 3/4 Inch
• Hose Material: Rubber
• Power Cord Length (FT): 18 Feet
• Power Cord Gauge: 12 AWG
• Suction Pipe: Telescoping
• UL Listed Approved: Yes

Technical Documents

• HSeries-SEDataSheet-BungMount_FINAL.pdf
