High-performance pump for various liquid types with robust construction.

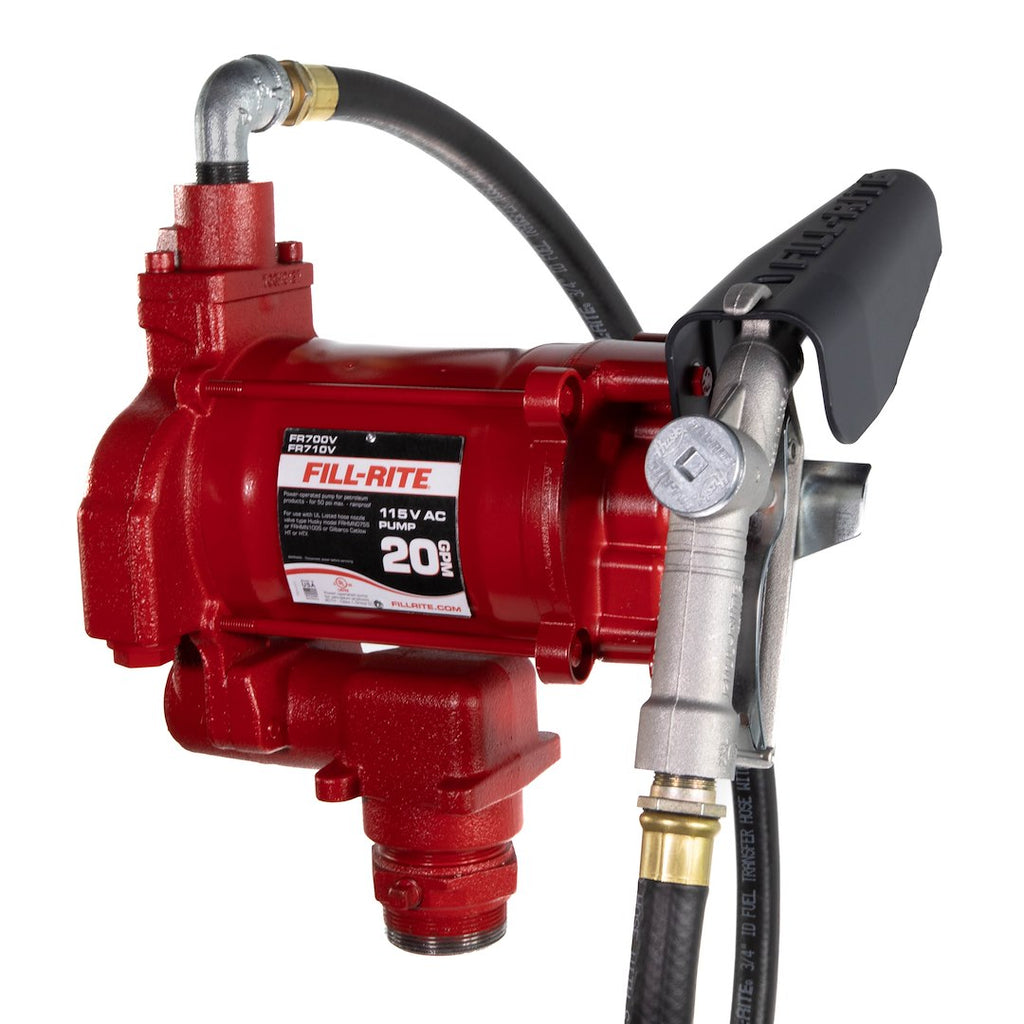

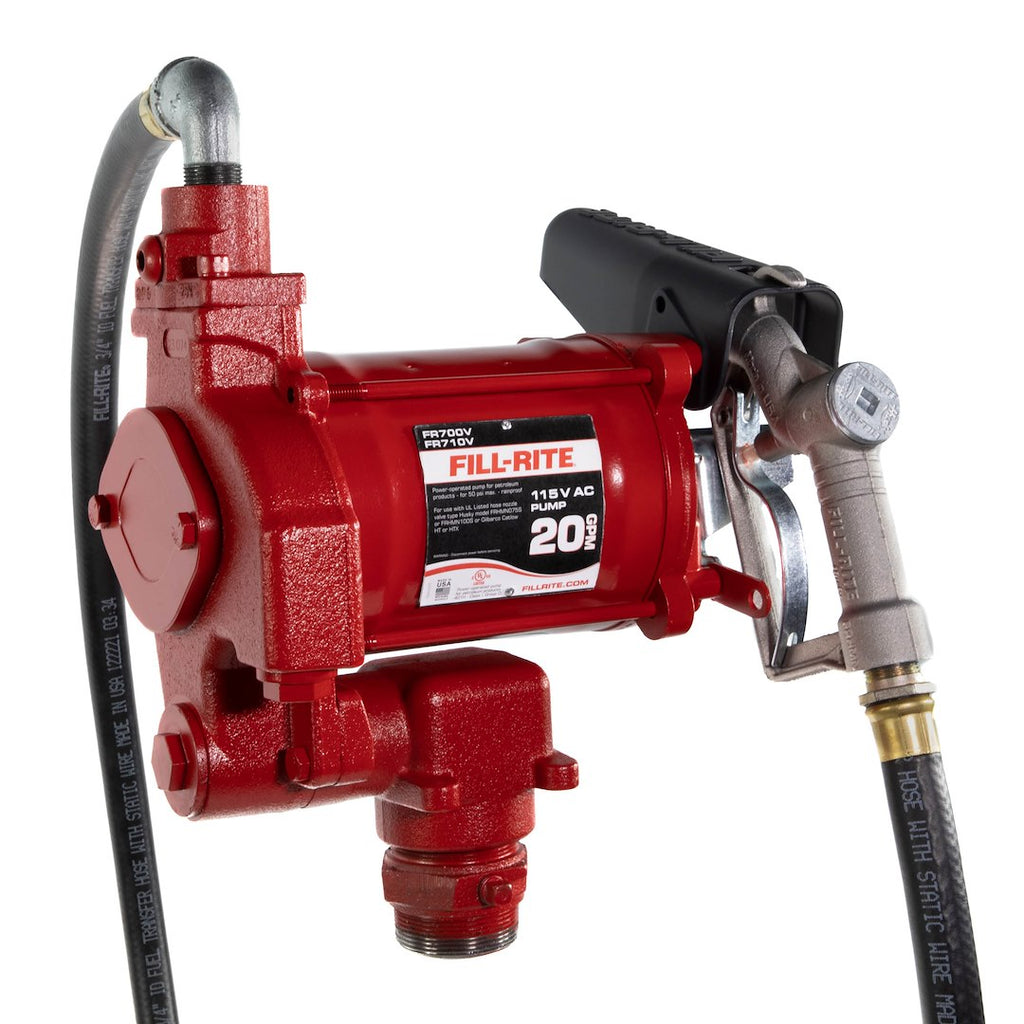

The Fill-Rite Electric Liquid Transfer Tank Pump is designed for efficient transfer of diesel, gasoline, kerosene, E15, and biodiesel up to B20. This heavy-duty pump features a powerful 1/3 horsepower motor that is UL listed for safety and reliability. With a flow rate of 18 gallons per minute, it is capable of handling demanding tasks while maintaining a maximum operating pressure of 25 PSI. The pump operates effectively within a temperature range of -4 to 105 degrees Fahrenheit, making it suitable for various environments.
Constructed from durable cast iron, this pump is built to withstand rigorous use. It includes a self-priming feature and an integral check valve with pressure relief, which enhances vertical lift and reduces pressure drop. The carbon vanes and ceramic or carbon seals are designed to minimize wear, thereby reducing maintenance costs. Additionally, the easy removable strainer and automatic bypass valve contribute to the pump's efficiency and longevity.

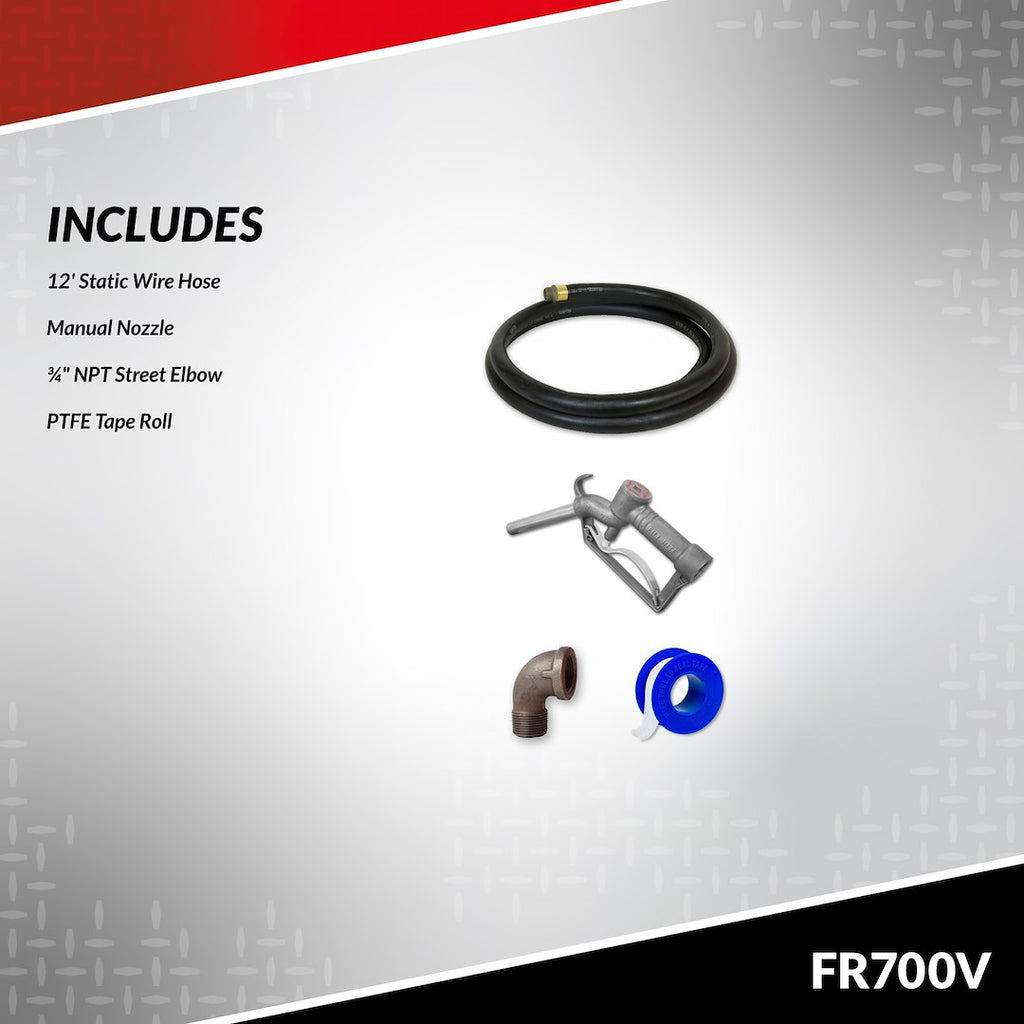

This pump is equipped with a 12-foot hose and a manual nozzle, providing flexibility and ease of use during liquid transfer operations. The 1-1/4 inch NPT inlet and 3/4 inch NPT outlet ensure compatibility with various setups, making it a versatile choice for both commercial and industrial applications.
Features
- Compatible With Diesel, Gasoline, Kerosene, E15 And Biodiesel Up To B20
- Self Priming
- Iron Rotor With Carbon Rotary Vanes
- UL/CUL Listed
- Heavy Duty Cast Iron Construction
Specifications
- Manufacturer: Fill-Rite
- Manufacturer Part Number: FR700V
- Type of Liquid: Gasoline/ Diesel/ Kerosene
- Delivery Type: Electric
- Flowrate: 18 Gallons Per Minute
- Duty Cycle: 30 Minutes On/ 30 Minutes Off
- Inlet Size (IN): 1-1/4 Inch
- Outlet Size (IN): 3/4 Inch
- Hose Length: 12 Feet
- Nozzle: Manual
- Universality: Fully Universal
- Hose Diameter: 3/4 Inch
- Power Cord Length (FT): Without Power Cord
- Power Cord Gauge: Without Power Cord
- Suction Pipe: Without Suction Pipe
- UL Listed Approved: Yes
Technical Documents
