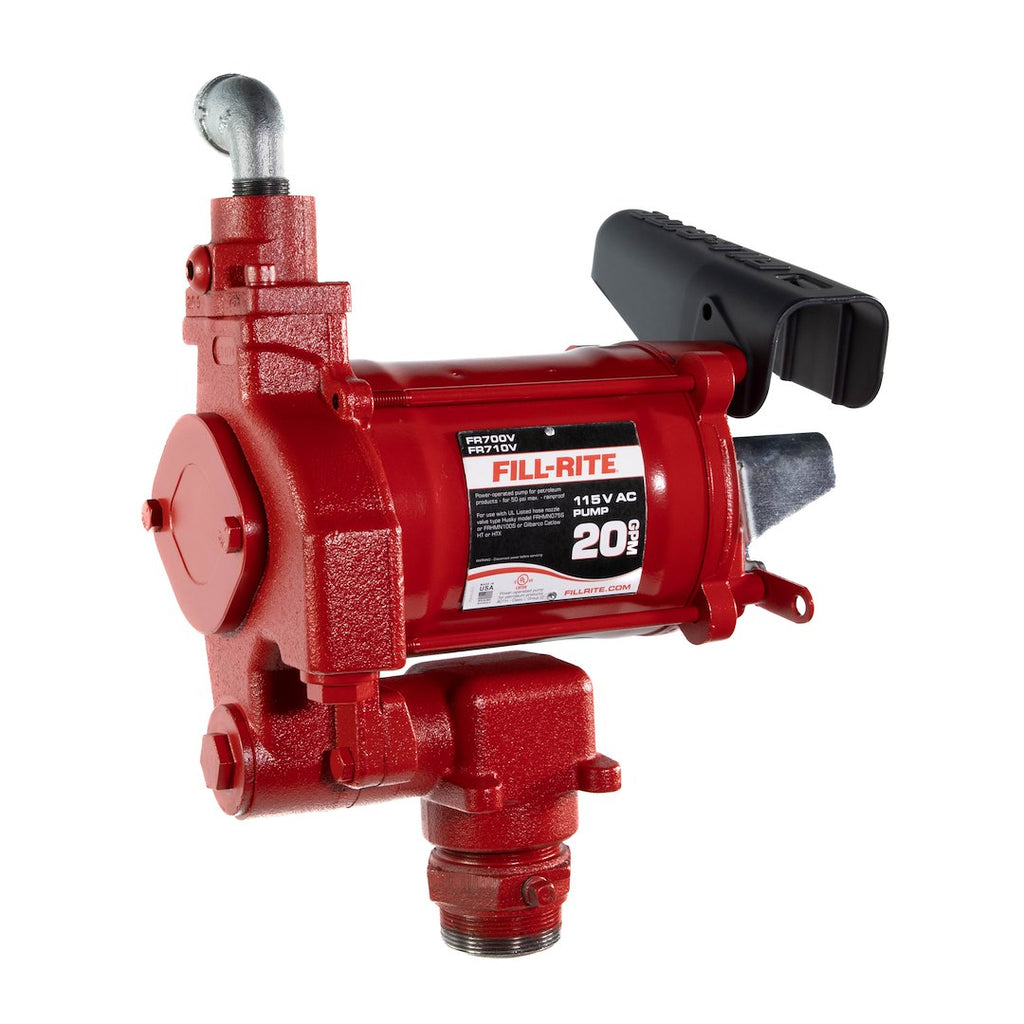

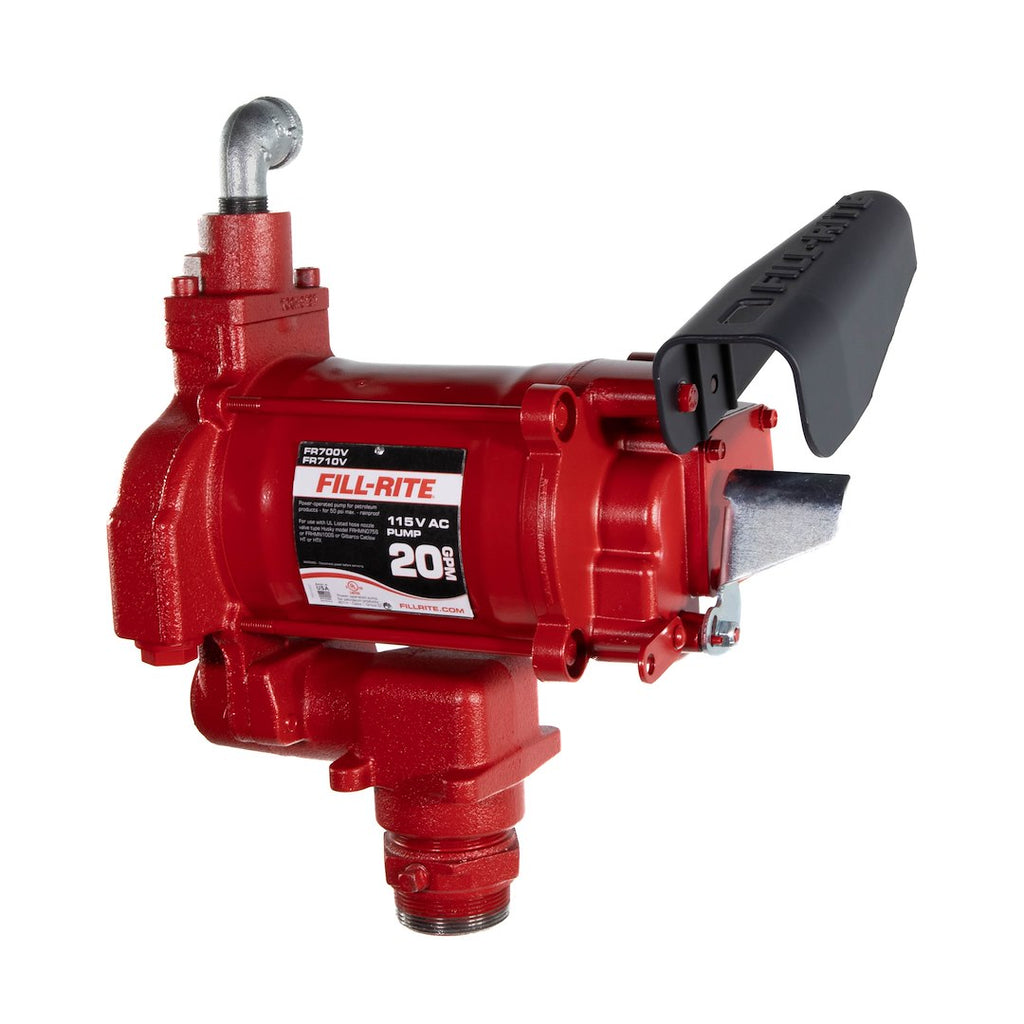

Fill-Rite Electric Liquid Transfer Pump (MPN: FR700VN)

Heavy duty pump for efficient liquid transfer across multiple fuel types.

The Fill-Rite Electric Liquid Transfer Pump is designed for the efficient transfer of various fuels including diesel, gasoline, kerosene, E15, and biodiesel up to B20. This heavy duty pump features a robust cast iron construction, ensuring durability and longevity in demanding environments. With a flow rate of 20 gallons per minute and a maximum operating pressure of 23 PSI, it is capable of handling a wide range of liquid transfer applications. The pump operates within a temperature range of -4 to 105 degrees Fahrenheit, making it suitable for various operational conditions.

Equipped with a UL listed explosion proof motor, this pump includes sealed bearings and thermal overload protection for enhanced safety and reliability. The integral check valve with pressure relief on the outlet side minimizes pressure drop and improves vertical lift, while the easy removable strainer and automatic bypass valve facilitate maintenance. The self-priming feature and heavy duty switch further enhance its operational efficiency, making it a practical choice for users requiring a dependable liquid transfer solution.

Features

• Compatible With Diesel, Gasoline, Kerosene, E15 And Biodiesel Up To B20
• Self Priming
• Iron Rotor With Carbon Rotary Vanes
• UL/CUL Listed
• Heavy Duty Cast Iron Construction

Specifications

• Manufacturer: Fill-Rite
• Manufacturer Part Number: FR700VN
• Type of Liquid: Gasoline/ Diesel/ Kerosene
• Delivery Type: Electric
• Flowrate: 20 Gallons Per Minute
• Duty Cycle: 30 Minutes On/ 30 Minutes Off
• Inlet Size (IN): 1-1/4 Inch
• Outlet Size (IN): 3/4 Inch
• Hose Length: No Hose
• Nozzle: Without Nozzle
• Universality: Fully Universal
• Hose Diameter: No Hose
• Hose Material: No Hose
• Power Cord Length (FT): Without Power Cord
• Power Cord Gauge: Without Power Cord
• Suction Pipe: Without Suction Pipe
• UL Listed Approved: Yes
