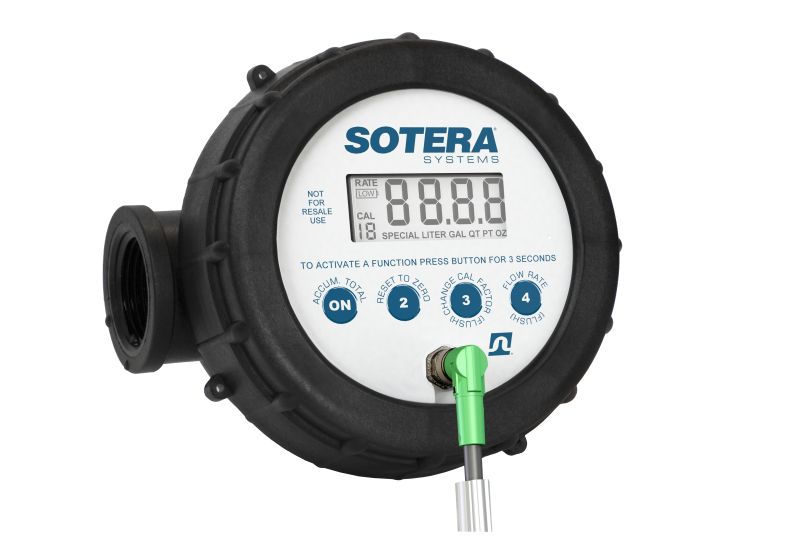

Fill-Rite 800 Series Digital Flow Meter (MPN: 825P075BSPPS)

Accurate measurement for a variety of fluids with advanced features.

The Fill-Rite 800 Series Digital Flow Meter utilizes nutating disc positive displacement technology to deliver precise flow measurements for a wide range of fluids including pesticides, fertilizers, water, and various oils. This meter is designed for versatility, allowing users to measure in multiple units such as gallons, liters, quarts, pints, and ounces, making it suitable for diverse applications. With a flow range of 2 to 20 gallons per minute, it is equipped with a digital LCD display that provides both current and cumulative flow totals, enhancing usability in various settings.

Constructed with glass-filled polypropylene housing, the meter is built to withstand harsh conditions while maintaining accuracy. It features a waterproof and corrosion-resistant body, ensuring durability over time. The device operates on an 8 to 30 VDC power source and includes two lithium CR2032 batteries for reliable performance. Additionally, the meter's pulse output capability makes it compatible with FMS and PLC systems, facilitating remote monitoring and integration into automated systems.

The Fill-Rite 800 Series is field programmable, allowing for quick calibration and easy adjustments to meet specific user requirements. Its 360-degree positioning LCD display ensures visibility from any angle, while the fluorocarbon seals enhance its reliability in various fluid applications. This flow meter is an essential tool for professionals needing accurate and efficient fluid measurement.

Features

• Simple To Use: Provides Current And Cumulative Flow Totals, And Is Field Programmable For Convenience And Versatility
• 8 To 30 Volt DC Power Source
• 360 Degree Positioning LCD Display
• Glass-Filled Polypropylene Housing Construction
• Fluorocarbon Seals; 4 To 20 Milliampere Analog Output; Glass-Filled Polypropylene Housing
• 1 Inch NPT Inlet Or Outlet Ports; Quick, One Step Calibration
• 10 Per 100, Internal Counts Per Gallon Pulse Rate
• Compatible With Pesticides, Fertilizers, Water, Crop Oil, Gear Oil, Motor Oil, Diesel Fuel, Mineral Spirits, Ethylene Glycol, Mild Acids, Soaps, Detergents, Diesel Exhaust Fluid And More
• Easy To Read Digital LCD Display; Waterproof, Corrosion-Resistant Body

Specifications

• Manufacturer: Fill-Rite
• Manufacturer Part Number: 825P075BSPPS
• Display: Digital
• Flow Range: 2 To 20 Gallons Per Minute
• Inlet Size (IN): 1 Inch FNPT
• Fuel Type: Pesticides/ Fertilizers/ Water/ Crop Oil/ Motor Oil/ Diesel Fuel/ Mineral Spirits
• Material: Polypropylene
