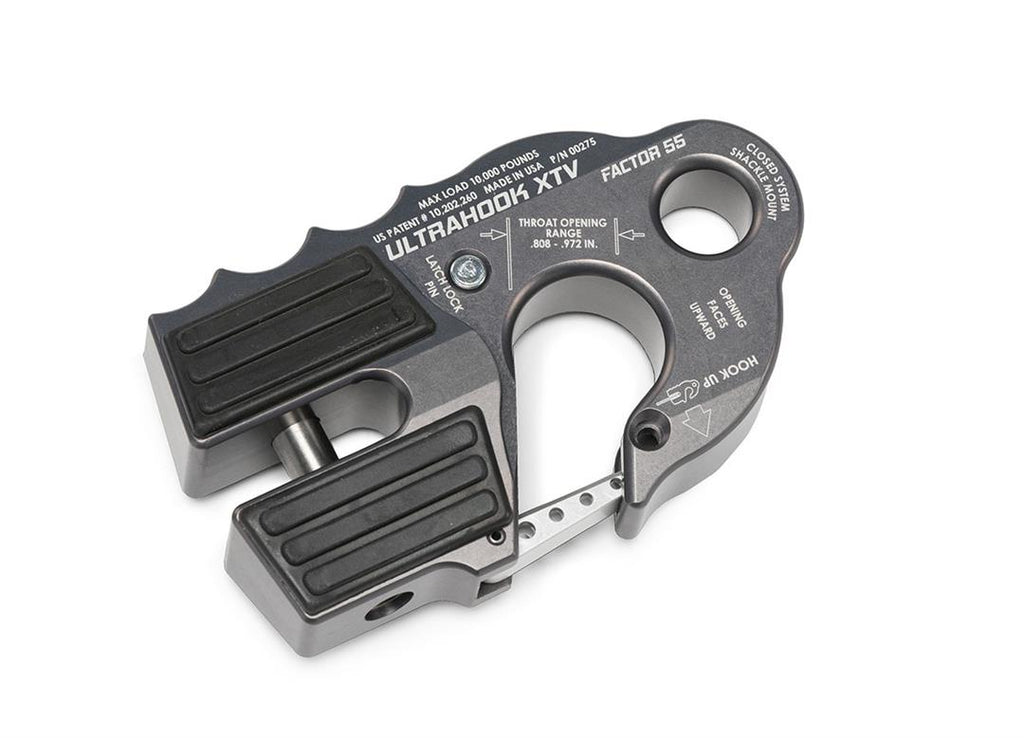

Factor 55 Winch Clevis Hook (MPN: 00275-06)

Factor 55 Winch Clevis Hook (MPN: 00275-06)

  • Sale
  • $336.96
Accepted Credit Cards

Durable aluminum hook designed for heavy-duty winching applications.

The Factor 55 Winch Clevis Hook is engineered for use with winches rated at 4500 pounds or less, accommodating ropes or cables up to 5/16 inch in diameter. This hook features a shackle pin mounting hole designed for a 3/4 inch pin, ensuring compatibility with common shackles. With a maximum load capacity of 10,000 pounds and a breaking strength of 21,000 pounds, this hook is built to withstand demanding conditions while providing reliable performance.

Constructed from high-quality aluminum, the hook incorporates advanced design elements such as a closed system shackle mount hole machined directly into the body, enhancing safety and functionality. The integrated secondary safety latch locking feature allows for secure operation, with a latch locking pin that can be stored within the hook body. Additionally, the hook includes EPDM rubber pads for fairlead protection and a finger grip feature that promotes proper orientation during use.

Factor 55 utilizes state-of-the-art technologies in the design and manufacturing of their products, employing SolidWorks CAD systems and COSMOS Finite Element Simulation software for optimal performance. This ensures that each component is meticulously crafted to meet the highest standards of safety and efficiency in off-road recovery scenarios.

Features

  • Shackle Pin Mounting Hole Accepts Screw Pins From Common 5/8 Inch Shackles
  • Max Rated Load - 10,000 Pounds And Breaking Strength - 21,000 Pounds
  • Industry First Closed System Shackle Mount Hole Machined Into The Body Of The Hook
  • Safety Latch Retraction Pocket Resulting In A Clear Throat Opening
  • Integrated Secondary Safety Latch Locking Feature-Latch Locking Pin Stored In The Body Which Can Be Removed And Inserted In To The Hook Tip, Locking The Latch Into Place
  • EPDM Rubber Pads For Fairlead Protection
  • Finger Grip Feature That Promotes Proper “Hook Up” Orientation

Specifications

  • Manufacturer: Factor 55
  • Manufacturer Part Number: 00275-06
  • Shackle Pin Size: 3/4 Inch
  • Rope Diameter: 5/16 Inch
  • Maximum Load Capacity: 10000 Pound
  • Color: Gray
  • Material: Aluminum
  • Estimated Install Time (Hours): 0.25
