Factor 55 Winch Cable Shackle Mount (MPN: 00225-08)

Innovative FlatLink design enhances safety and efficiency in winching operations.

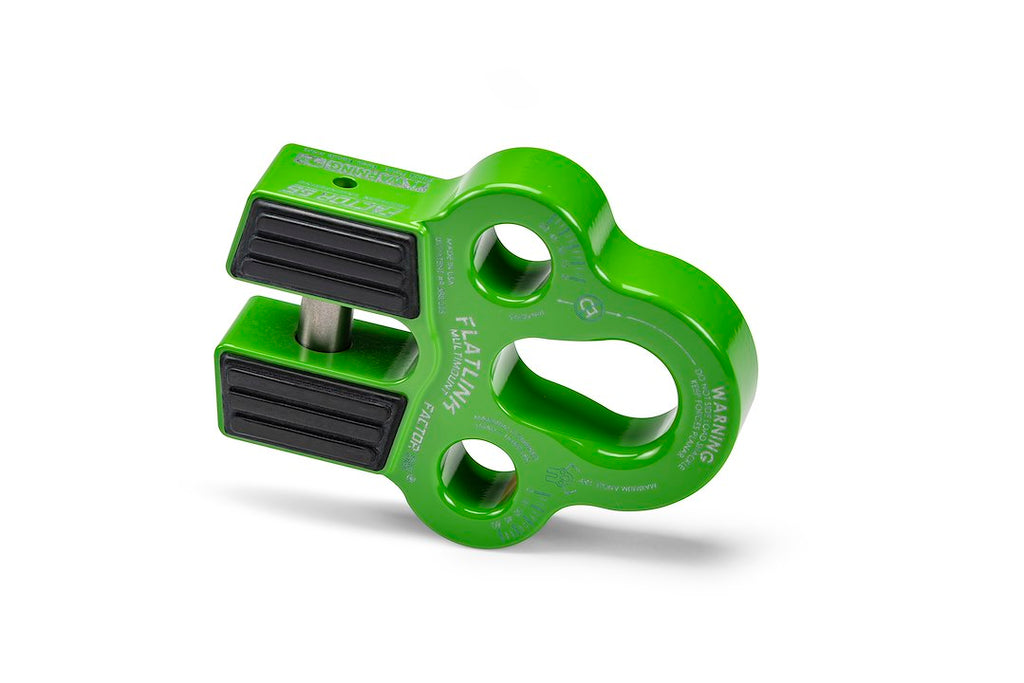

The Factor 55 Winch Cable Shackle Mount introduces a revolutionary FlatLink design that replaces traditional winch hooks with a more secure and safer shackle thimble and D-ring. This innovative folding shackle mount is the first of its kind in the industry, measuring less than 1-3/4 inches in thickness, making it compatible with all roller fairlead license plate mounting brackets. The FlatLink effectively prevents recovery straps from fraying or escaping during winching operations, thanks to its secure screw pin attachment that eliminates the risks associated with conventional winch hooks.

Constructed from lightweight, precision CNC machined 6000 series aluminum, the FlatLink is designed for both steel cables and synthetic winch ropes with diameters up to 3/8 inch. The integrated 5/8 inch diameter grade 5 steel double shear pin and internal snap ring ensure that the cable eye remains securely retained within the FlatLink. Installation is straightforward and can be completed in minutes, making it a practical choice for users seeking efficiency in recovery scenarios.

Additionally, the FlatLink features integrated EPDM rubber guards that protect alloy fairleads from damage, ensuring longevity and reliability during use. Its foldable design and compatibility with multiple 3/4 inch screw pin shackles and OEM tow hooks further enhance its versatility, making it an essential tool for any winching operation.

Features

• Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring; Multiple Shackle Interface For Bridle And Off-Camber Towing
• Lightweight - Precision CNC Machined 6000 Series Aluminum; No Splicing Required - Titanium Double Shear Pin Design
• Designed For Both Steel Cables And Synthetic Winch Ropes
• For Rope And Cable Diameters Up To 3/8 Inch
• Oval Hole Opening Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
• Oval Hole Opening Connects To Either The Pin Or Bow End Of Common 3/4 Inch Screw Pin Shackles
• Integrated EPDM Rubber Pads For Fairlead Protection
• Foldable: 1.75 Inch Thick and Compatible With All Fairlead License Plate Mounting Brackets
• Fits Multiple 3/4 Inch Screw Pin Shackles; Fits Over Most OEM Tow Hooks

Specifications

• Manufacturer: Factor 55
• Manufacturer Part Number: 00225-08
• Shackle Type: 3/4 Inch Screw Pin Shackles
• Cable Type: Synthetic Winch Rope
• Load Capacity (LB): 16000 Pound
• Shear Pin Size (IN): 5/8 Inch
• Finish: Anodized
• Color: Green
• Material: Aluminum
• With Guard: No

Technical Documents

• F55_Truck_SUV_Jeep_Rev2.pdf
