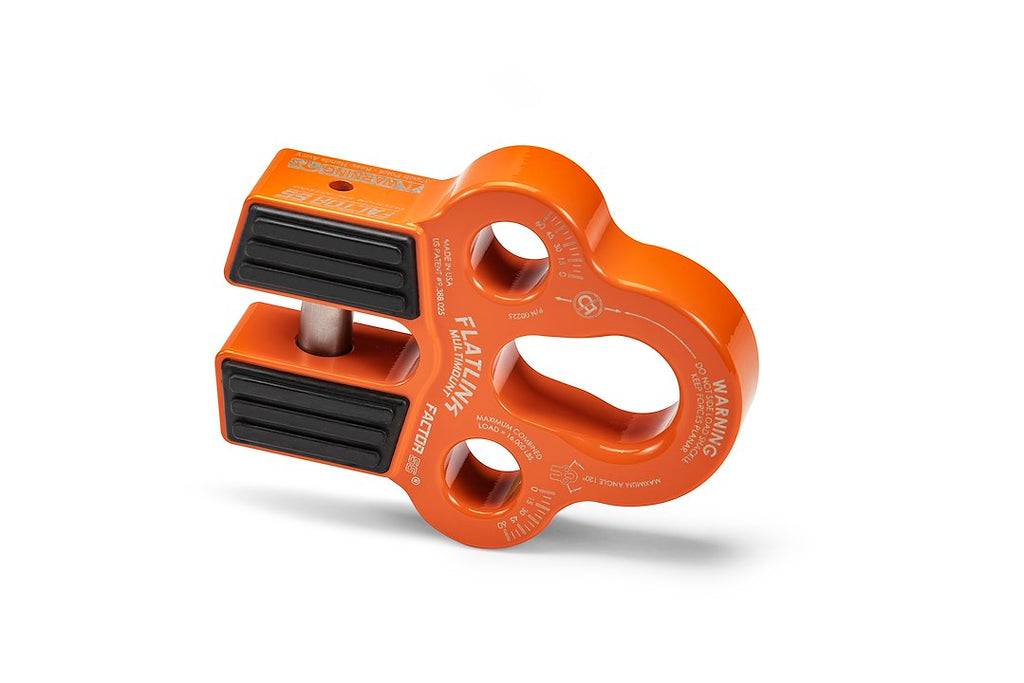

Factor 55 Winch Cable Shackle Mount (MPN: 00225-07)

Innovative FlatLink design enhances safety and efficiency in winching operations.

The Factor 55 Winch Cable Shackle Mount is a cutting-edge solution designed to replace conventional winch hooks with a more secure and efficient FlatLink shackle thimble and D-ring. This innovative product features a foldable design that measures less than 1-3/4 inches in thickness, making it compatible with all roller fairlead license plate mounting brackets. The FlatLink is engineered to accommodate both steel cables and synthetic winch ropes with diameters up to 3/8 inch, ensuring versatility in various recovery scenarios.

Constructed from precision CNC machined 6000 series aluminum, the FlatLink is lightweight yet robust, boasting a load capacity of 16,000 pounds. The design incorporates a 5/8 inch diameter grade 5 steel double shear pin and an internal snap ring to securely retain the cable eye, preventing strap loops from escaping during winching operations. Additionally, integrated EPDM rubber guards protect alloy fairleads from damage, enhancing the longevity of the equipment.

The FlatLink's multiple shackle interface allows for bridle and off-camber towing, providing flexibility in recovery situations. Its oval hole opening connects seamlessly to the pin ends of 7/8 inch and 1 inch screw pin shackles, as well as the pin or bow end of common 3/4 inch screw pin shackles. This product is designed for easy installation, requiring no splicing, and can be set up in just minutes.

Features

• Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring; Multiple Shackle Interface For Bridle And Off-Camber Towing
• Lightweight - Precision CNC Machined 6000 Series Aluminum; No Splicing Required - Titanium Double Shear Pin Design
• Designed For Both Steel Cables And Synthetic Winch Ropes
• For Rope And Cable Diameters Up To 3/8 Inch
• Oval Hole Opening Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
• Oval Hole Opening Connects To Either The Pin Or Bow End Of Common 3/4 Inch Screw Pin Shackles
• Integrated EPDM Rubber Pads For Fairlead Protection
• Foldable: 1.75 Inch Thick and Compatible With All Fairlead License Plate Mounting Brackets
• Fits Multiple 3/4 Inch Screw Pin Shackles; Fits Over Most OEM Tow Hooks

Specifications

• Manufacturer: Factor 55
• Manufacturer Part Number: 00225-07
• Shackle Type: 3/4 Inch Screw Pin Shackles
• Cable Type: Synthetic Winch Rope
• Load Capacity (LB): 16000 Pound
• Shear Pin Size (IN): 5/8 Inch
• Finish: Powder Coated
• Color: Orange
• Material: Aluminum
• With Guard: No

Technical Documents

• F55_Truck_SUV_Jeep_Rev2.pdf
