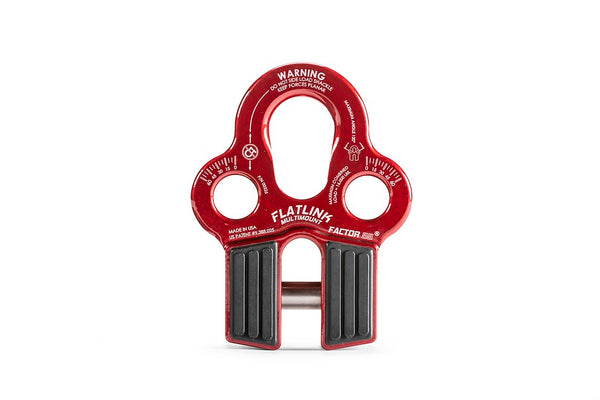

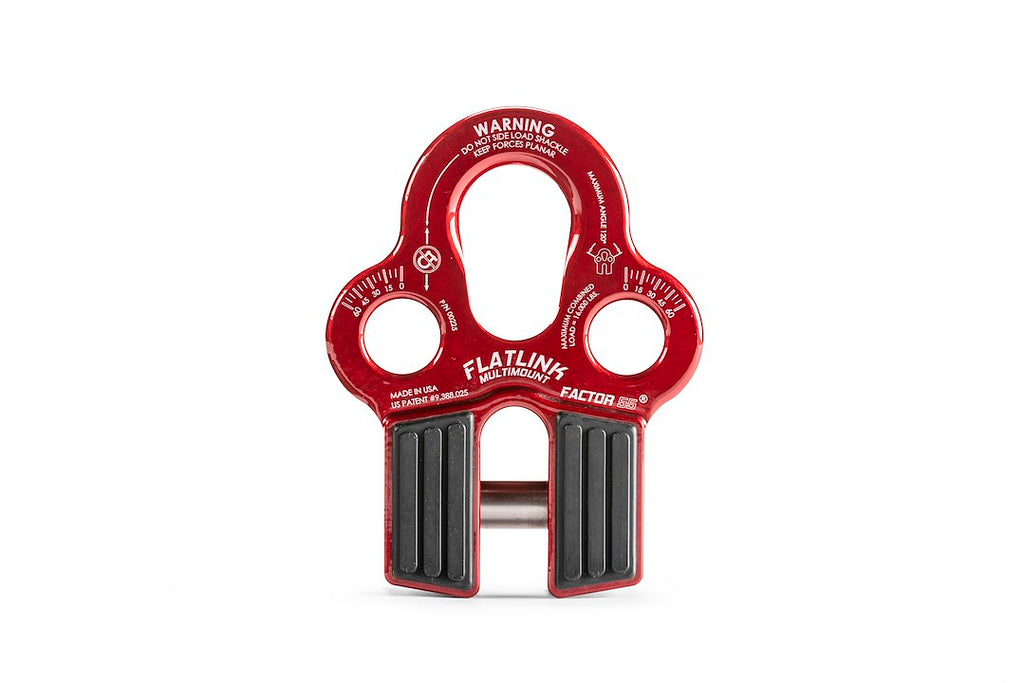

Factor 55 Winch Cable Shackle Mount (MPN: 00225-01)

Innovative FlatLink design enhances winching safety and efficiency.

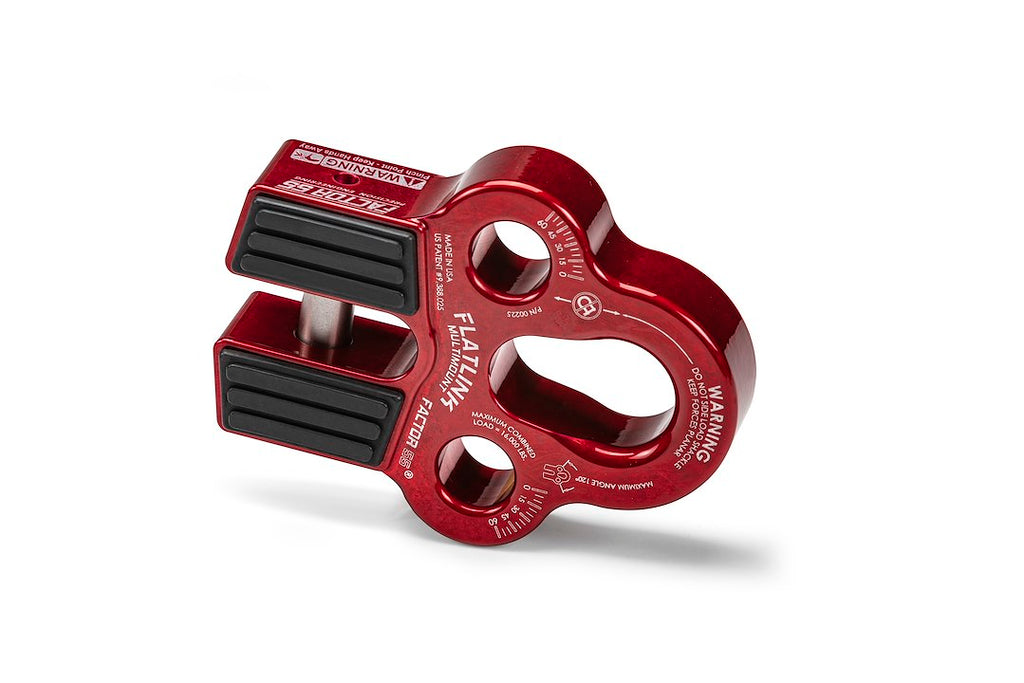

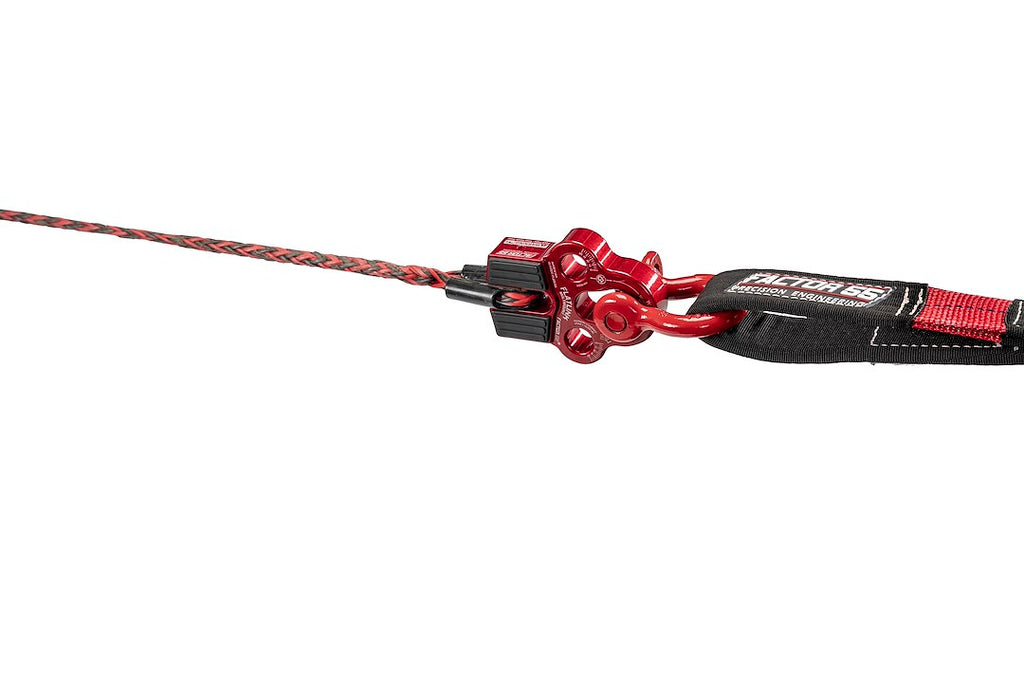

The Factor 55 Winch Cable Shackle Mount introduces a revolutionary FlatLink design that replaces traditional winch hooks with a more secure and safer shackle thimble and D-ring. This innovative folding shackle mount is the first of its kind in the industry, measuring less than 1-3/4 inches in thickness, making it compatible with all roller fairlead license plate mounting brackets. Unlike conventional winch hooks that can damage recovery straps, the FlatLink ensures that strap loops remain secure due to its screw pin attachment, preventing any accidental escapes during winching operations.

Constructed from lightweight, precision CNC machined 6000 series aluminum, the FlatLink is designed for both steel cables and synthetic winch ropes with diameters up to 3/8 inch. The integrated 5/8 inch diameter grade 5 steel double shear pin and internal snap ring provide a robust connection, allowing for easy installation in just minutes. Additionally, the EPDM rubber guards protect alloy fairleads from wear and tear, ensuring longevity and reliability during use.

With a load capacity of 16,000 pounds, the Factor 55 Winch Cable Shackle Mount is engineered for heavy-duty applications. Its oval hole opening accommodates various screw pin shackles, enhancing versatility for different towing scenarios. The foldable design and compatibility with multiple OEM tow hooks make it an essential tool for any recovery operation.

Features

• Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring; Multiple Shackle Interface For Bridle And Off-Camber Towing
• Lightweight - Precision CNC Machined 6000 Series Aluminum; No Splicing Required - Titanium Double Shear Pin Design
• Designed For Both Steel Cables And Synthetic Winch Ropes
• For Rope And Cable Diameters Up To 3/8 Inch
• Oval Hole Opening Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
• Oval Hole Opening Connects To Either The Pin Or Bow End Of Common 3/4 Inch Screw Pin Shackles
• Integrated EPDM Rubber Pads For Fairlead Protection

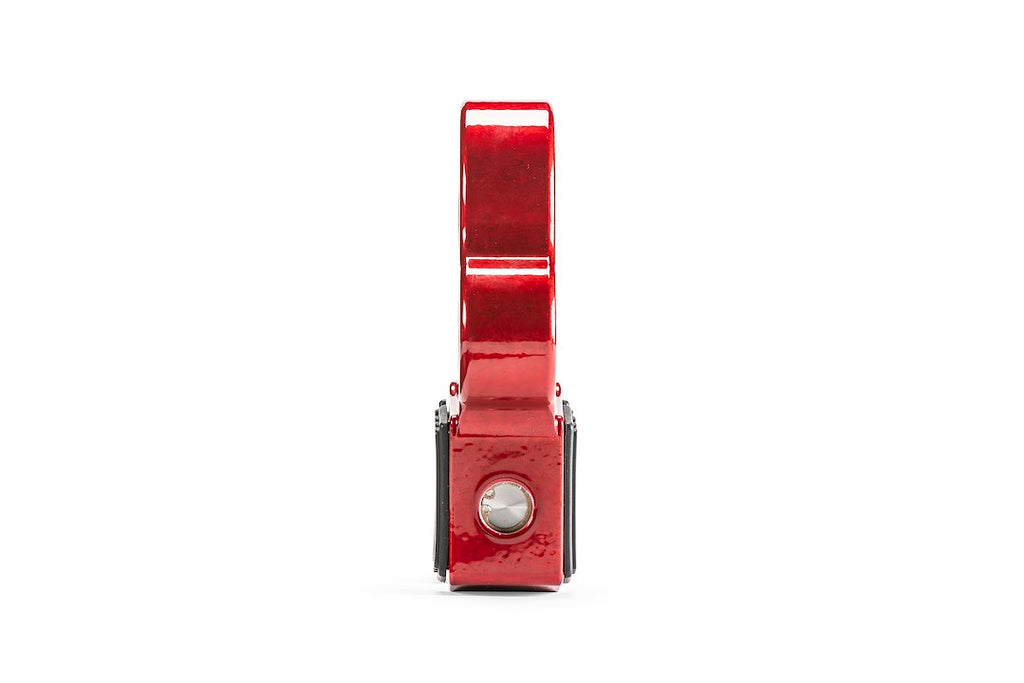

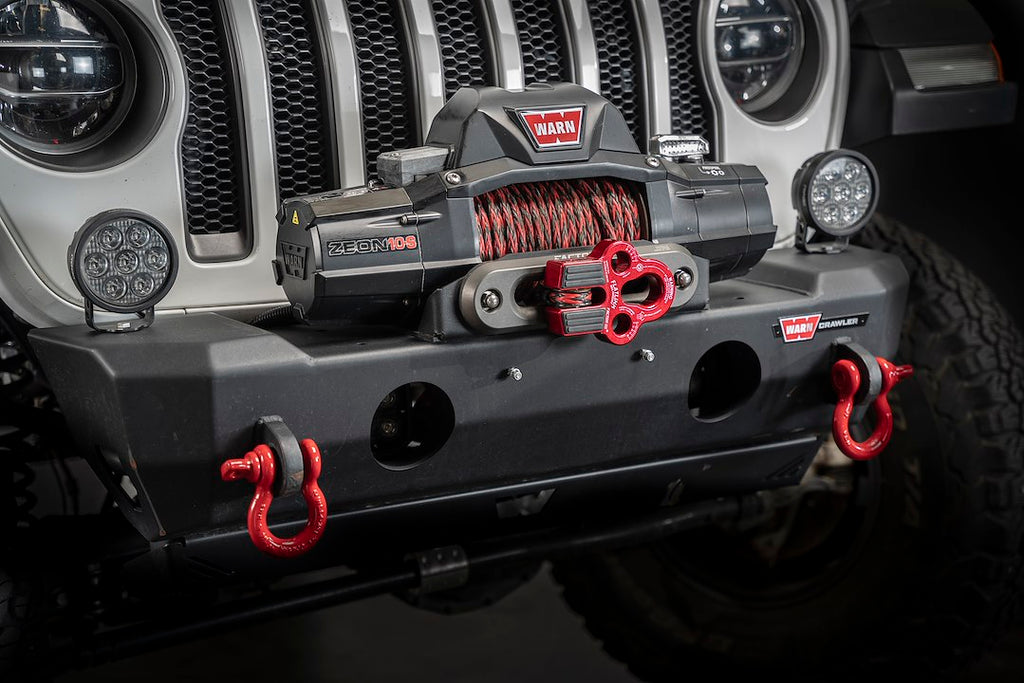

• Foldable: 1.75 Inch Thick and Compatible With All Fairlead License Plate Mounting Brackets
• Fits Multiple 3/4 Inch Screw Pin Shackles; Fits Over Most OEM Tow Hooks

Specifications

• Manufacturer: Factor 55
• Manufacturer Part Number: 00225-01
• Shackle Type: 3/4 Inch Screw Pin Hook
• Cable Type: 3/8 Inch Steel Cables
• Load Capacity (LB): 16000 Pound
• Shear Pin Size (IN): 5/8 Inch
• Color: Red
• Material: Billet Aluminum
• With Guard: Yes

Technical Documents

• F55_Truck_SUV_Jeep_Rev2.pdf
