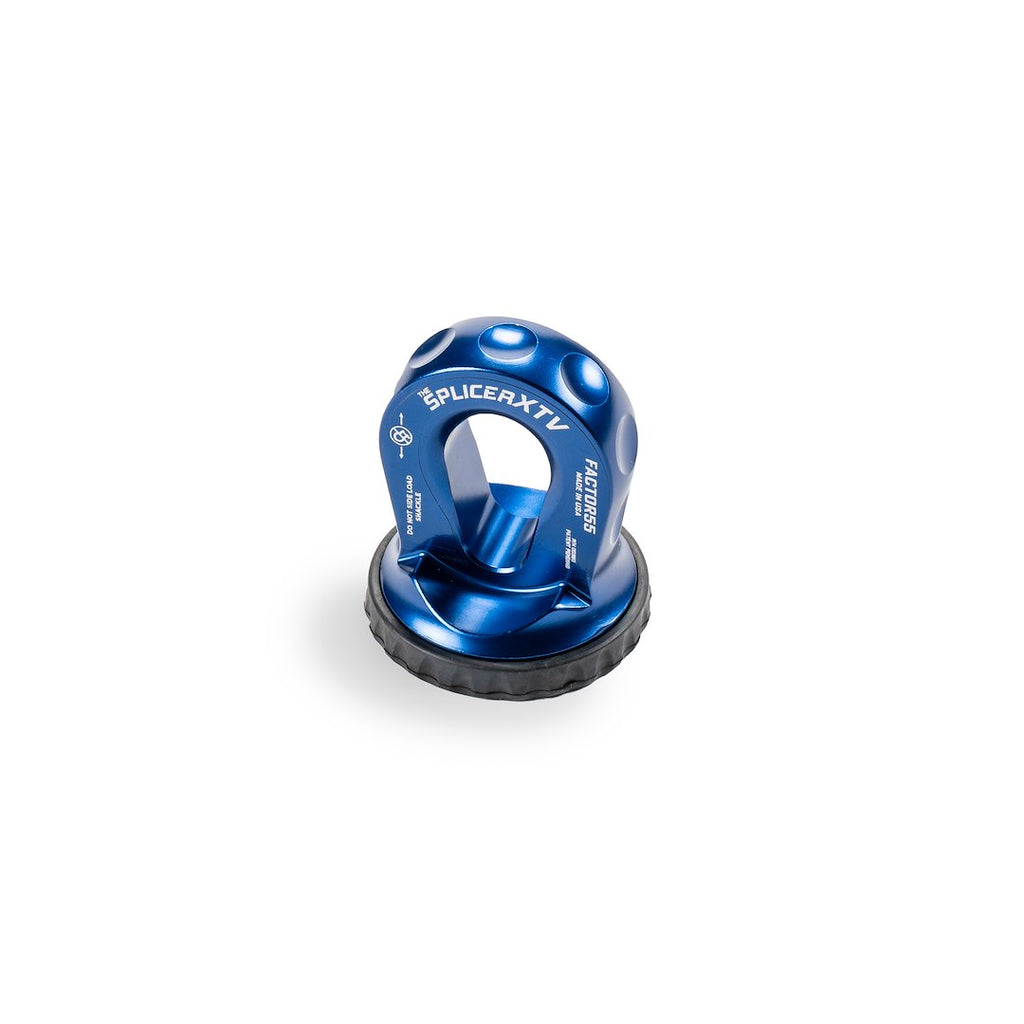

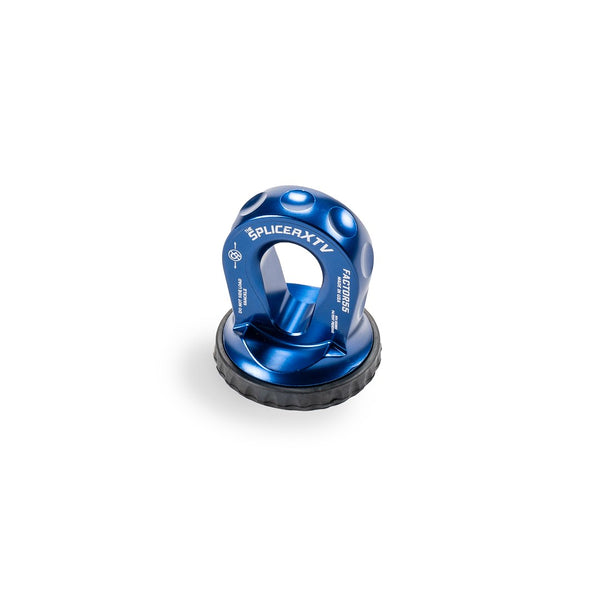

Factor 55 Splicer XTV Winch Cable Shackle Mount (MPN: 00355-02)

Innovative synthetic rope shackle mount for UTV and ATV applications.

The Factor 55 Splicer XTV is a cutting-edge splice on thimble designed specifically for UTV and ATV winches. This product features a unique machined rope passage that provides a robust outer barrier, protecting against rope impact, abrasion, and UV exposure. It connects seamlessly to both the pin and bow end of common 1/2 inch and 5/8 inch screw pin shackles, ensuring versatility and reliability in various applications.

Constructed from high-quality aluminum and finished with an anodized coating, the Splicer XTV is built to withstand demanding conditions while maintaining a load capacity of 16000 pounds. The integrated rubber pad enhances the performance of the synthetic rope shackle mount, providing additional protection and stability during use. Each product is meticulously designed using advanced 3D CAD software and optimized through Finite Element Analysis to ensure superior quality and performance.

Factor 55 is committed to producing high-quality products that deliver exceptional value to customers. Each design undergoes rigorous testing, including destructive tests, to guarantee reliability and safety. The Splicer XTV is an essential component for those seeking a durable and efficient solution for their winching needs.

Features

• Unique Machined Rope Passage Provides A Tough Outer Barrier To Protect Against Rope Impact And Abrasion As Well As UV Exposure Protection
• Connects To Both The Pin And Bow End Of Common 1/2 Inch And 5/8 Inch Screw Pin Shackles
• Synthetic Rope Shackle Mounting Thimble With Rope Protection And Integrated Rubber Pad For UTV Or ATV
• All Factor 55 Products Are Designed In House Using The Latest 3D CAD Software And Optimized Using Cosmos FEA (Finite Element Analysis)
• Also Perform A Destructive Test On Each Design With The Assistance Of A Test Facility Equipped With Test Measurement And Data Recording Equipment
• Factor 55 Wants To Make Sure We Are Producing The Highest Quality, Best Value Products For Our Customers

Specifications

• Manufacturer: Factor 55
• Manufacturer Part Number: 00355-02
• Shackle Type: 1/2 Inch And 5/8 Inch Diameter Screw Pin Shackles
• Cable Type: Synthetic Winch Rope
• Load Capacity (LB): 16000 Pound
• Shear Pin Size (IN): 3/4 Inch
• Finish: Anodized
• Color: Blue
• Material: Aluminum
• With Guard: No

Technical Documents

• F55_XTV_ProductGuide.pdf
