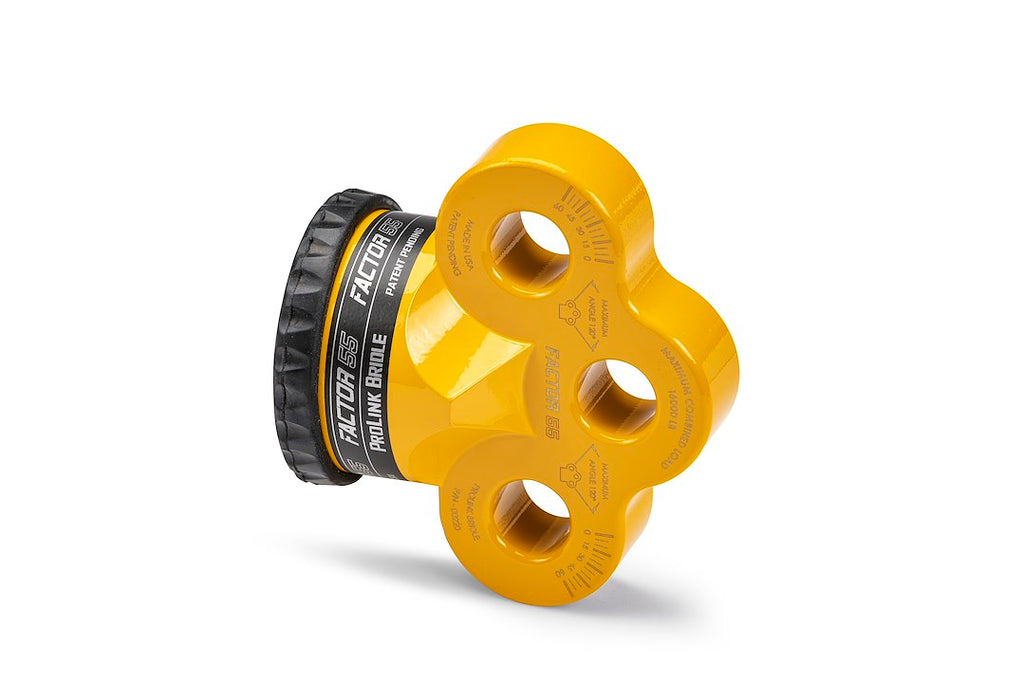

Factor 55 ProLink Bridle (MPN: 00220-03)

Enhance winching safety with a robust shackle mount solution.

The Factor 55 ProLink Bridle is engineered to replace traditional winch hooks with a more secure and robust screw pin shackle or D-ring. This innovative product is specifically designed for winch cables, making it an essential tool for professionals in the towing industry. Featuring three individual shackle mounting holes, the ProLink Bridle allows for versatile configurations, accommodating both fixed length bridle links and a single centered shackle for recovery operations.

Constructed from high-quality 6000 series billet aluminum, the ProLink Bridle is built to withstand demanding conditions. It boasts a working load limit of 16,000 pounds and an ultimate failure rating exceeding 42,000 pounds, ensuring reliability during heavy-duty applications. The design includes dedicated shackle mounting points that mitigate the risk of dangerous side loading, promoting safer winching practices.

Additionally, the ProLink Bridle incorporates an EPDM rubber guard that protects alloy hawse fairleads and cushions line stowage, enhancing the longevity of the equipment. The simple snap ring shear pin retention system further simplifies operation, making it a practical choice for both commercial and recreational winching needs.

Features

• Machined From 6000 Series Billet Aluminum
• 5/8 Diameter Titanium Double Shear Pin
• Working Load Limit Of 16,000 Pound
• Ultimate Failure Of Greater Than 42,000 Pound
• EPDM "Rubber Guard" Protects Alloy Hawse Fairleads And Cushions Line Stowage
• Simple Snap Ring Shear Pin Retainment

Specifications

• Manufacturer: Factor 55
• Manufacturer Part Number: 00220-03
• Shackle Type: 3/4 Inch Diameter
• Cable Type: Steel Cable
• Load Capacity (LB): 16000 Pound
• Color: Yellow
• Material: Aluminum

Technical Documents

• F55_Truck_SUV_Jeep_Rev2.pdf
