Enhance winching safety and efficiency with this durable shackle mount.

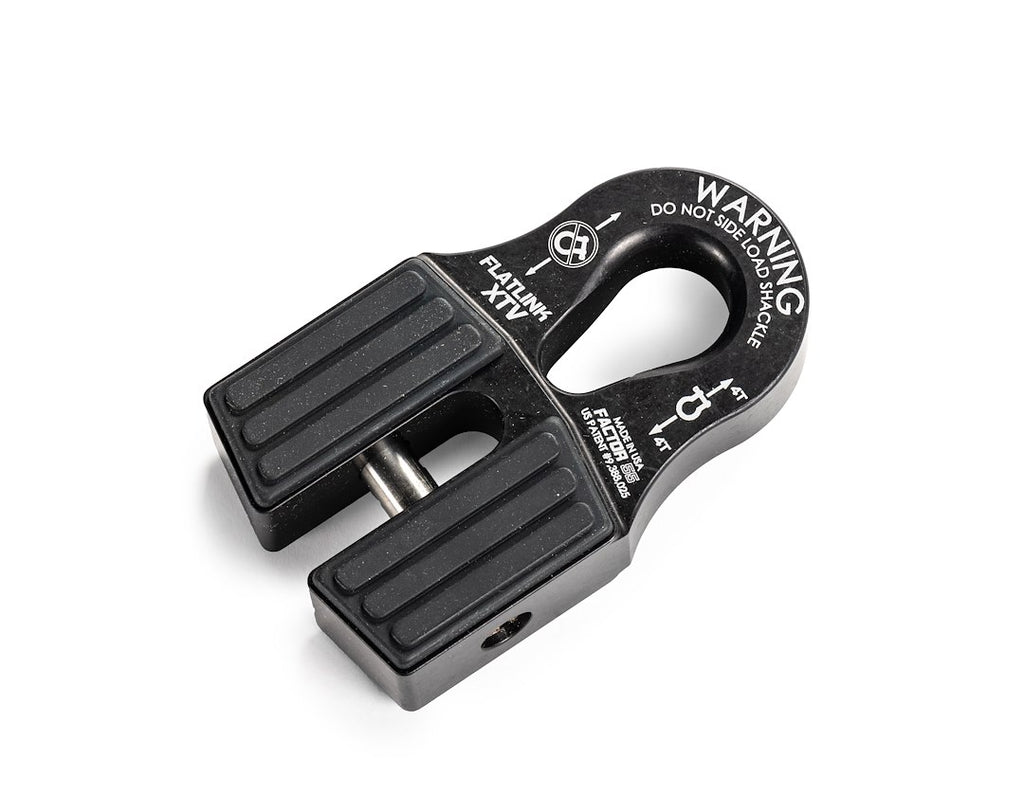

The Factor 55 FlatLink XTV is designed for UTV and ATV winch owners seeking to improve their winching operations. This innovative shackle mount replaces traditional winch hooks with a more secure and robust connection using shackles and D-Rings. Unlike conventional hooks that can damage recovery straps, the FlatLink XTV features a screw pin attachment that prevents strap loops from escaping during use, ensuring a safer recovery process.
Constructed from precision-machined 6000 series aluminum and 6Al-4V titanium, the FlatLink XTV is built to withstand demanding conditions. It accommodates both steel cables and synthetic ropes up to 5/16 inch in diameter, making it versatile for various winching applications. The mount is equipped with a 7/16 inch diameter titanium double shear pin and an internal snap ring for secure cable retention, allowing for quick and easy installation.
Additionally, the FlatLink XTV includes EPDM rubber guards that protect alloy fairleads and cushion the line during stowage. This feature not only enhances the longevity of your equipment but also minimizes hook rattle and potential fairlead damage. With a maximum load capacity of 8000 pounds and an ultimate failure rating exceeding 28,000 pounds, the FlatLink XTV is engineered for reliability and performance in challenging environments.
Features
- Precision Machined From 6000 Series Aluminum And 6Al-4V Titanium
- EPDM Rubber Guard Protects Alloy Fairleads And Cushions Line Stowage
- Simple Snap Ring Removal For Shear Pin
- Oval Hole Opening Connects To The Pin Or Bow End Of 1/2 Or 5/8 Inch Screw Pin Shackles And D-Rings
- Oval Hole Opening Connects To The Pin Ends Of 3/4 Inch Screw Pin Shackles And D-Rings
- Stops Hook Rattle And Fairlead Damage
Specifications
- Manufacturer: Factor 55
- Manufacturer Part Number: 00070-04
- Shackle Type: 1/2 Inch to 3/4 Inch Shackles/ D-Rings
- Cable Type: 5/16 Inch Steel Cable/ Synthetic Winch Rope
- Load Capacity (LB): 8000 Pound
- Finish: Anodized
- Color: Black
- Material: Aluminum
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
