Enhance winching safety and efficiency with this durable shackle mount.

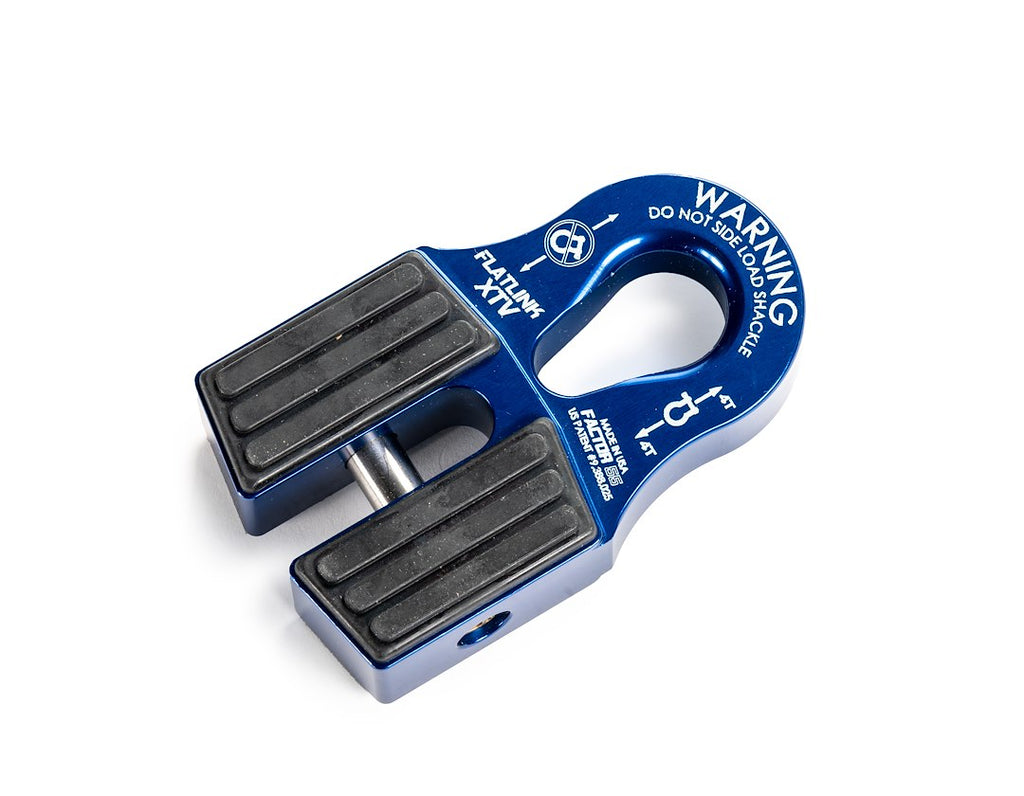

The Factor 55 FlatLink XTV is designed for UTV and ATV winch owners seeking a robust alternative to traditional winch hooks. This innovative shackle mount replaces conventional hooks with a secure screw pin shackle, minimizing the risk of fraying recovery straps and preventing strap ends from escaping during winching operations. The FlatLink XTV accommodates both steel cables and synthetic ropes up to 5/16 inch, ensuring versatility in various recovery scenarios.
Constructed from precision-machined 6000 series aluminum and 6Al-4V titanium, the FlatLink XTV boasts a maximum load capacity of 8000 pounds, with an ultimate failure rating exceeding 28,000 pounds. The design features a 7/16 inch diameter titanium double shear pin and internal snap ring, allowing for easy installation and secure retention of the cable eye. Additionally, the EPDM rubber guards protect alloy fairleads and cushion line stowage, enhancing the overall durability of the system.
The FlatLink XTV is compatible with standard 1/2 to 5/8 inch shackles and D-Rings, featuring an oval hole opening that connects seamlessly to the pin or bow end of these shackles. This design not only prevents hook rattle but also mitigates potential fairlead damage, making it a practical choice for serious off-road enthusiasts. Available in five anodized colors, the FlatLink XTV combines functionality with aesthetic appeal.
Features
- Precision Machined From 6000 Series Aluminum And 6Al-4V Titanium
- EPDM Rubber Guard Protects Alloy Fairleads And Cushions Line Stowage
- Simple Snap Ring Removal For Shear Pin
- Oval Hole Opening Connects To The Pin Or Bow End Of 1/2 Or 5/8 Inch Screw Pin Shackles And D-Rings
- Oval Hole Opening Connects To The Pin Ends Of 3/4 Inch Screw Pin Shackles And D-Rings
- Stops Hook Rattle And Fairlead Damage
Specifications
- Manufacturer: Factor 55
- Manufacturer Part Number: 00070-02
- Shackle Type: 1/2 Inch to 3/4 Inch Shackles/ D-Rings
- Cable Type: 5/16 Inch Steel Cable/ Synthetic Winch Rope
- Load Capacity (LB): 8000 Pound
- Finish: Anodized
- Color: Blue
- Material: Aluminum
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
