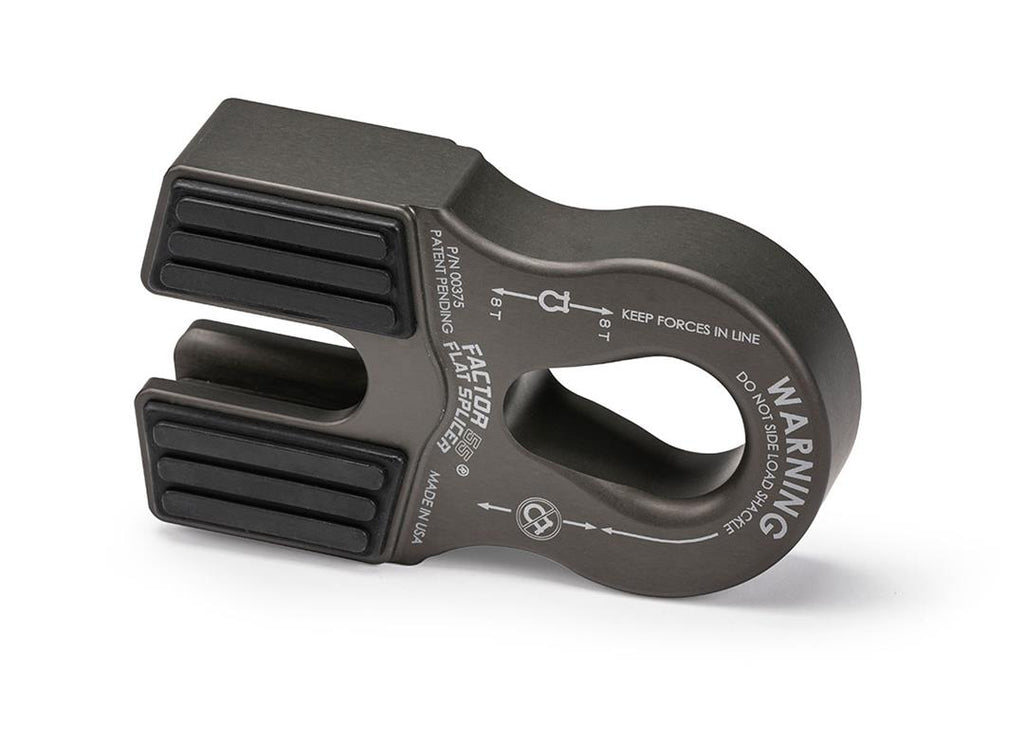

Factor 55 Flat Splicer Winch Rope Mount (MPN: 00375-06)

Innovative splice-on design for enhanced winch rope protection and utility.

The Factor 55 Flat Splicer is a cutting-edge splice-on folding winch rope shackle mount thimble designed for optimal performance in off-road applications. Constructed from lightweight 6000 series military-grade aluminum, this product features a durable Mil-Spec hard anodized finish that ensures longevity and resistance to wear. With a load capacity of 16000 pounds, it is engineered to connect securely to both the pin and bow ends of common 3/4 inch screw pin shackles, as well as the pin ends of larger 7/8 inch and 1 inch shackles.

This innovative design allows the Flat Splicer to fold flat against winch fairleads, minimizing frontal protrusion and protecting the winch rope from UV damage and abrasion. The integrated EPDM rubber pads provide additional protection for the fairlead, ensuring that the winch system operates smoothly and safely. The unique machined rope path offers complete protection for synthetic winch ropes up to 1/2 inch in diameter, making it a reliable choice for serious off-road enthusiasts.

The Flat Splicer not only enhances safety during recoveries through a closed system winching approach but also allows for efficient stowage with the groove side facing the winch. This thoughtful design feature eliminates exposed winch rope, further safeguarding it from environmental factors. The Factor 55 Flat Splicer is a significant advancement in winching technology, combining functionality with robust construction.

Features

• Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
• Unique Machined Rope Path Provides Complete Rope Protection From Impact And UV
• Safer Recoveries Through Closed System Winching; Connects To Both The Pin And Bow End Of Common 3/4 Inch Screw Pin Shackles
• Lightweight - Precision CNC Machined 6000 Series Military Grade Aluminum
• For Synthetic Winch Rope Only
• Integrated EPDM Rubber Pads For Fairlead Protection
• The World’s First Foldable Splice-On Winch Rope Shackle Mount
• Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
• For Synthetic Winch Rope Diameters Up To 1/2 Inch

Specifications

• Manufacturer: Factor 55
• Manufacturer Part Number: 00375-06
• Shackle Type: 3/4 Inch Screw Pin Hook
• Cable Type: 1/2 Inch Diameter Synthetic Winch Ropes
• Load Capacity (LB): 16000 Pound
• Color: Gray
• Material: Billet Aluminum
• With Guard: Yes

Technical Documents

• F55_Truck_SUV_Jeep_Rev2.pdf
