Factor 55 Flat Splicer Winch Rope Mount (MPN: 00375-04)

Innovative splice-on design for enhanced winching safety and efficiency.

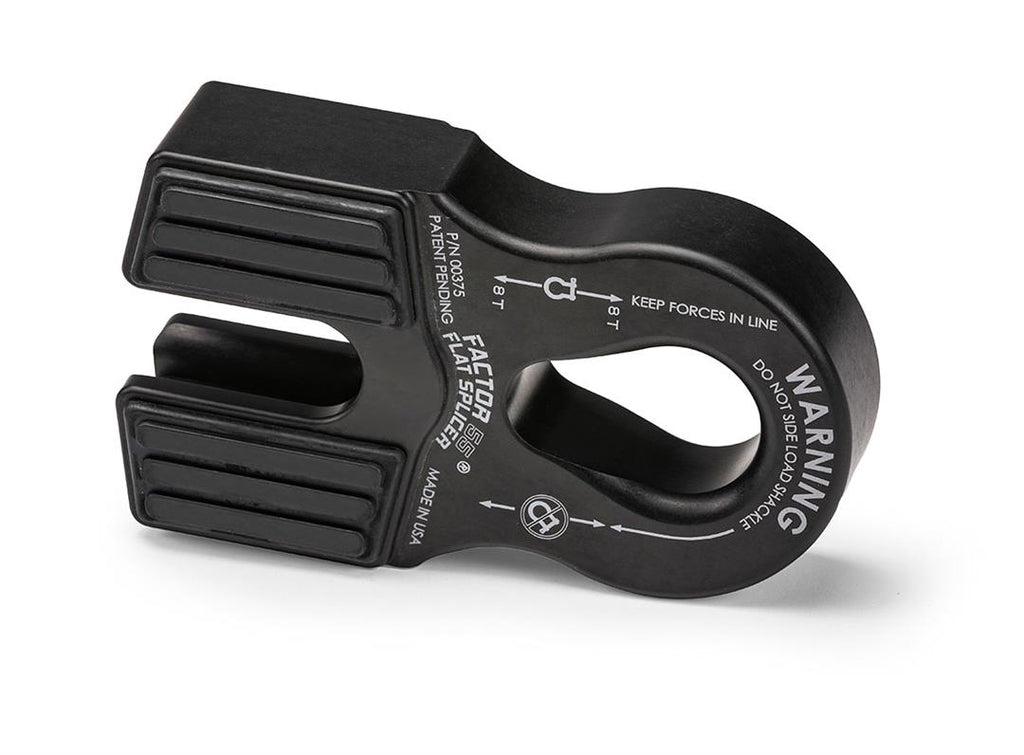

The Factor 55 Flat Splicer is a cutting-edge splice-on folding winch rope shackle mount thimble designed for optimal performance in off-road recovery situations. Constructed from lightweight 6000 series military-grade aluminum, this mount features a durable Mil-Spec hard anodized finish that ensures longevity and resistance to wear. With a load capacity of 16000 pounds, it is engineered to connect securely to both the pin and bow ends of common 3/4 inch screw pin shackles, as well as the pin ends of larger 7/8 inch and 1 inch shackles.

The unique design of the Flat Splicer allows for a compact profile, folding flat against winch fairleads to minimize vehicle frontal protrusion. Integrated EPDM rubber pads provide additional protection for fairleads while ensuring that the synthetic winch rope, with diameters up to 1/2 inch, is safeguarded from UV damage and abrasion. This innovative mount not only enhances safety during recoveries by facilitating a closed system winching approach but also allows for efficient routing of the winch rope, making it a practical choice for serious off-road enthusiasts.

In summary, the Factor 55 Flat Splicer is a revolutionary product that replaces conventional winch hooks with a more secure and safer shackle or D-ring connection. Its precision CNC machined design and foldable feature make it a versatile addition to any winching setup, providing complete rope protection and maintaining vehicle approach angles.

Features

• Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
• Unique Machined Rope Path Provides Complete Rope Protection From Impact And UV
• Safer Recoveries Through Closed System Winching; Connects To Both The Pin And Bow End Of Common 3/4 Inch Screw Pin Shackles
• Lightweight - Precision CNC Machined 6000 Series Military Grade Aluminum
• For Synthetic Winch Rope Only
• Integrated EPDM Rubber Pads For Fairlead Protection
• The World’s First Foldable Splice-On Winch Rope Shackle Mount
• Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
• For Synthetic Winch Rope Diameters Up To 1/2 Inch

Specifications

• Manufacturer: Factor 55
• Manufacturer Part Number: 00375-04
• Shackle Type: 3/4 Inch Screw Pin Hook
• Cable Type: 1/2 Inch Diameter Synthetic Winch Ropes
• Load Capacity (LB): 16000 Pound
• Color: Black
• Material: Billet Aluminum
• With Guard: Yes

Technical Documents

• F55_Truck_SUV_Jeep_Rev2.pdf
