Innovative splice-on design for enhanced winch rope protection and utility.

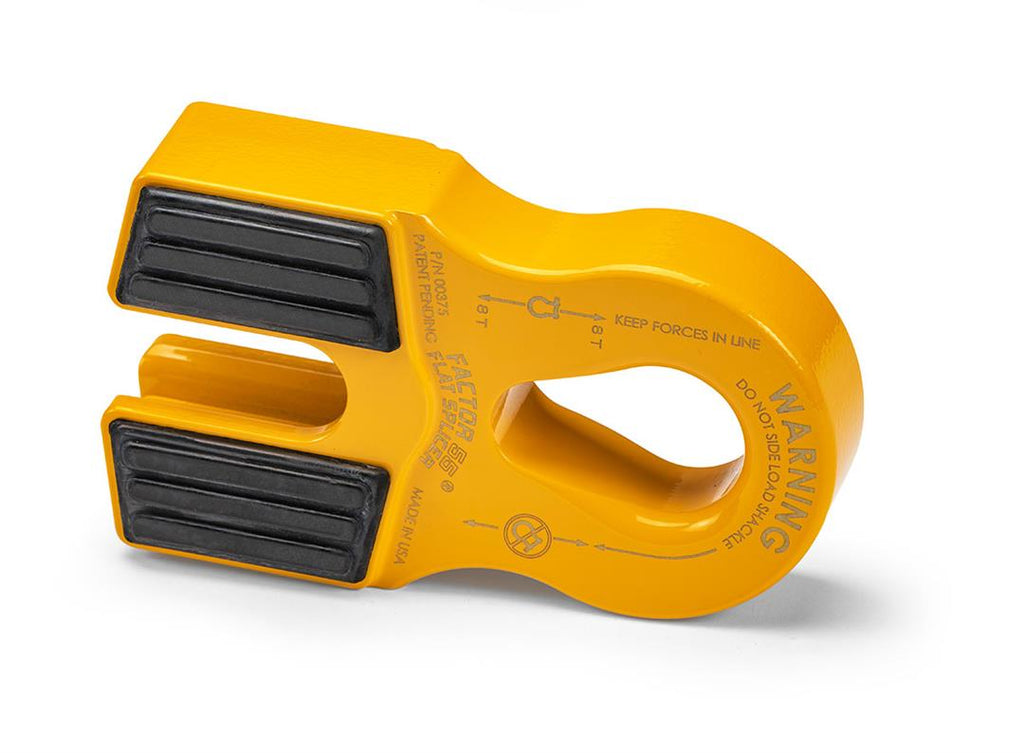

The Factor 55 Flat Splicer is a cutting-edge splice-on folding winch rope shackle mount thimble designed for optimal performance in off-road applications. Constructed from lightweight 6000 series military-grade aluminum and finished with a durable Mil-Spec hard anodized surface, this product offers a robust solution for connecting synthetic winch ropes to shackles. With a load capacity of 16000 pounds, it accommodates both 3/4 inch and larger 7/8 inch screw pin shackles, ensuring secure and reliable connections during recovery operations.
This innovative design allows the Flat Splicer to fold flat against winch fairleads, minimizing vehicle frontal protrusion and protecting the winch rope from UV damage and abrasion. The integrated EPDM rubber pads provide additional protection for fairleads, enhancing the overall durability of the system. The unique machined rope path ensures complete rope protection from impact, making it a safer alternative to conventional winch hooks.
The Flat Splicer is specifically designed for synthetic winch ropes, providing a closed system winching solution that enhances safety during recoveries. Its ability to route the spliced rope 90 degrees along the inner radius allows for efficient stowage, keeping the winch rope secure and protected. Made in the USA, the Factor 55 Flat Splicer is a reliable choice for off-road enthusiasts seeking to improve their winching capabilities.
Features
- Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
- Unique Machined Rope Path Provides Complete Rope Protection From Impact And UV
- Safer Recoveries Through Closed System Winching; Connects To Both The Pin And Bow End Of Common 3/4 Inch Screw Pin Shackles
- Lightweight - Precision CNC Machined 6000 Series Military Grade Aluminum
- For Synthetic Winch Rope Only
- Integrated EPDM Rubber Pads For Fairlead Protection
- World's First Foldable Splice-On Winch Rope Shackle Mount
- Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
- Made In USA
Specifications
- Manufacturer: Factor 55
- Manufacturer Part Number: 00375-03
- Shackle Type: 7/8 Inch And 1 Inch Screw Pin Shackles
- Cable Type: Synthetic Winch Rope
- Load Capacity (LB): 16000 Pound
- Shear Pin Size (IN): 3/4 Inch
- Finish: Anodized
- Color: Yellow
- Material: Aluminum
- With Guard: Yes
