Innovative splice-on folding winch rope shackle mount for enhanced safety and utility.

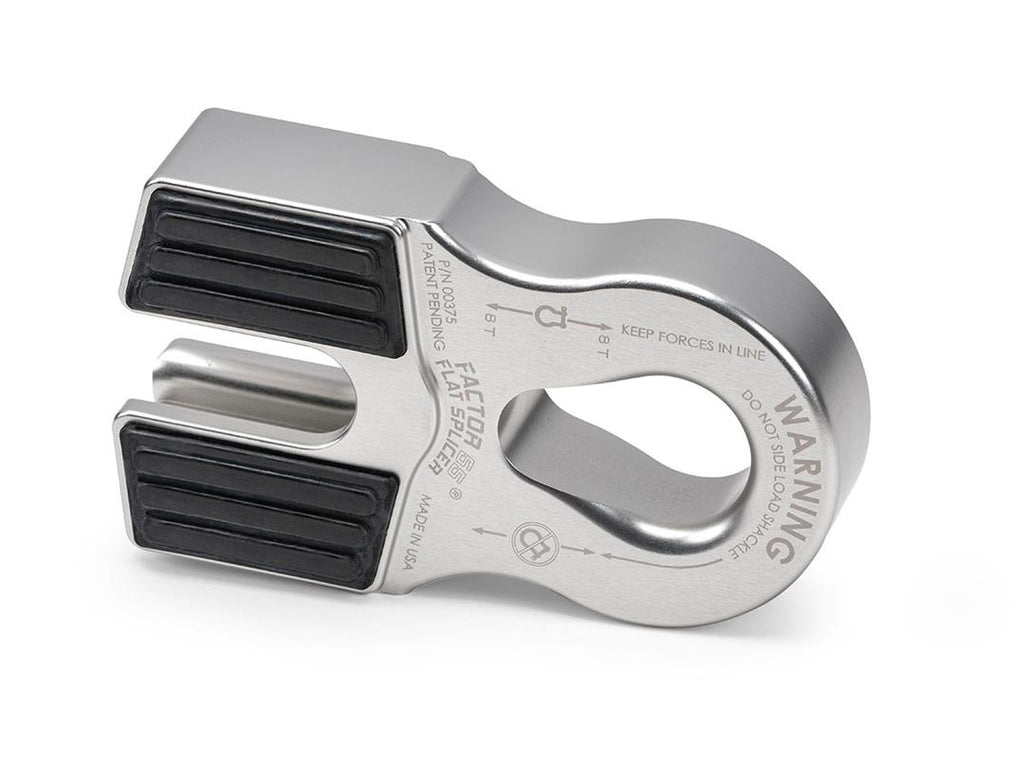

The Factor 55 Flat Splicer is a cutting-edge splice-on folding winch rope shackle mount thimble designed for optimal performance in off-road recovery situations. Constructed from lightweight 6000 series military-grade aluminum, this product features a durable Mil-Spec hard anodized finish that ensures longevity and resistance to wear. With a load capacity of 16000 pounds, it is engineered to connect securely to both the pin and bow ends of common 3/4 inch screw pin shackles, as well as the pin ends of larger 7/8 inch and 1 inch shackles.
This innovative design allows the Flat Splicer to fold flat against winch fairleads, minimizing frontal protrusion and protecting the winch rope from UV damage and abrasion. The integrated EPDM rubber pads provide additional protection for fairleads, ensuring that the winch rope remains secure and undamaged during use. The unique machined rope path offers complete protection from impact, making it a safer alternative to conventional winch hooks.
Designed specifically for synthetic winch ropes, the Flat Splicer allows for a 90-degree routing of the spliced rope, enhancing the overall efficiency of the winching process. This product is proudly made in the USA, reflecting a commitment to quality and performance in off-road recovery solutions.
Features
- Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
- Unique Machined Rope Path Provides Complete Rope Protection From Impact And UV
- Safer Recoveries Through Closed System Winching; Connects To Both The Pin And Bow End Of Common 3/4 Inch Screw Pin Shackles
- Lightweight - Precision CNC Machined 6000 Series Military Grade Aluminum
- For Synthetic Winch Rope Only
- Integrated EPDM Rubber Pads For Fairlead Protection
- World's First Foldable Splice-On Winch Rope Shackle Mount
- Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
- Made In USA
Specifications
- Manufacturer: Factor 55
- Manufacturer Part Number: 00375-05
- Shackle Type: 7/8 Inch And 1 Inch Screw Pin Shackles
- Cable Type: Synthetic Winch Rope
- Load Capacity (LB): 16000 Pound
- Shear Pin Size (IN): 3/4 Inch
- Finish: Polished
- Color: Silver
- Material: Aluminum
- With Guard: Yes
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
