Innovative splice-on folding winch rope shackle mount for enhanced safety and utility.

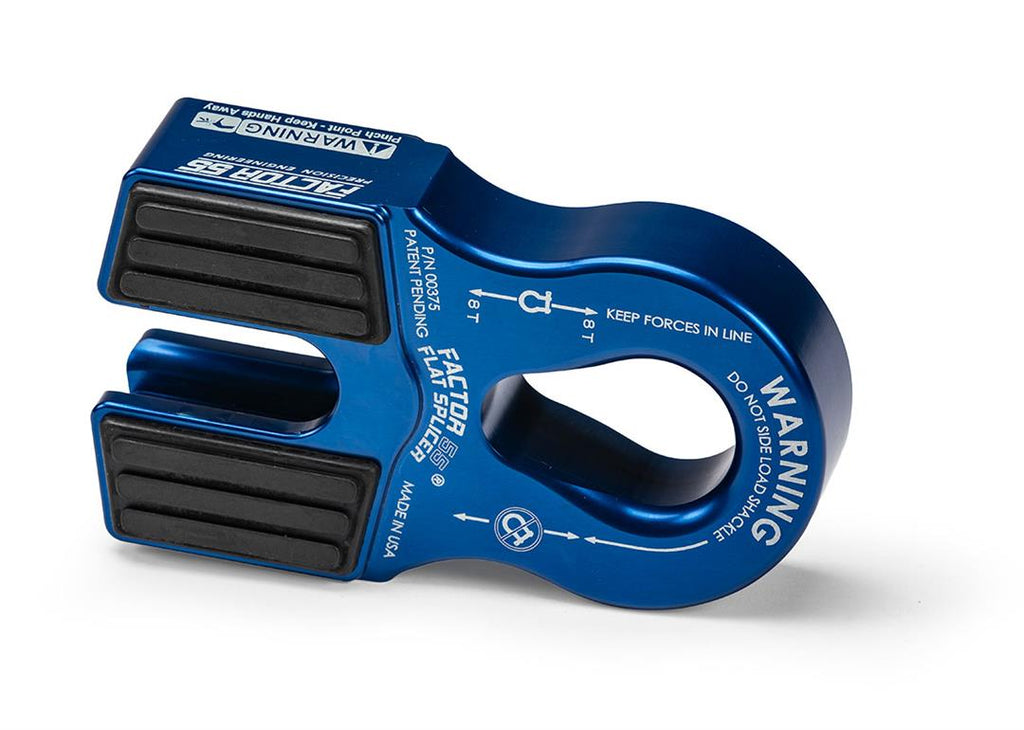

The Factor 55 Flat Splicer is a cutting-edge splice-on folding winch rope shackle mount thimble designed for optimal performance and safety. Constructed from lightweight 6000 series military-grade aluminum, this product features a durable Mil-Spec hard anodized finish that ensures longevity and resistance to wear. With a load capacity of 16000 pounds, it is engineered to connect securely to both the pin and bow ends of common 3/4 inch screw pin shackles, as well as the pin ends of larger 7/8 inch and 1 inch shackles.
This innovative design allows the Flat Splicer to fold flat against winch fairleads, minimizing vehicle frontal protrusion and protecting the winch rope from UV damage and abrasion. The integrated EPDM rubber pads provide additional protection for fairleads, ensuring that the winch rope remains secure and undamaged during use. The unique machined rope path offers complete protection from impact, making it a reliable choice for off-road enthusiasts.
The Flat Splicer is specifically designed for synthetic winch ropes up to ½ inch in diameter, providing a safer alternative to conventional winch hooks by utilizing a closed system winching method. This product not only enhances recovery safety but also maintains a streamlined approach angle for vehicles, making it an essential accessory for serious off-roaders.
Features
- Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring
- Unique Machined Rope Path Provides Complete Rope Protection From Impact And UV
- Safer Recoveries Through Closed System Winching; Connects To Both The Pin And Bow End Of Common 3/4 Inch Screw Pin Shackles
- Lightweight - Precision CNC Machined 6000 Series Military Grade Aluminum
- For Synthetic Winch Rope Only
- Integrated EPDM Rubber Pads For Fairlead Protection
- World's First Foldable Splice-On Winch Rope Shackle Mount
- Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
- Made In USA
Specifications
- Manufacturer: Factor 55
- Manufacturer Part Number: 00375-02
- Shackle Type: 7/8 Inch And 1 Inch Screw Pin Shackles
- Cable Type: Synthetic Winch Rope
- Load Capacity (LB): 16000 Pound
- Shear Pin Size (IN): 3/4 Inch
- Finish: Anodized
- Color: Blue
- Material: Aluminum
- With Guard: Yes
